Infiniti QX56 (JA60). Manual - part 307





TRANSFER ASSEMBLY

DLN-151

< DISASSEMBLY AND ASSEMBLY >

[ATX14B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

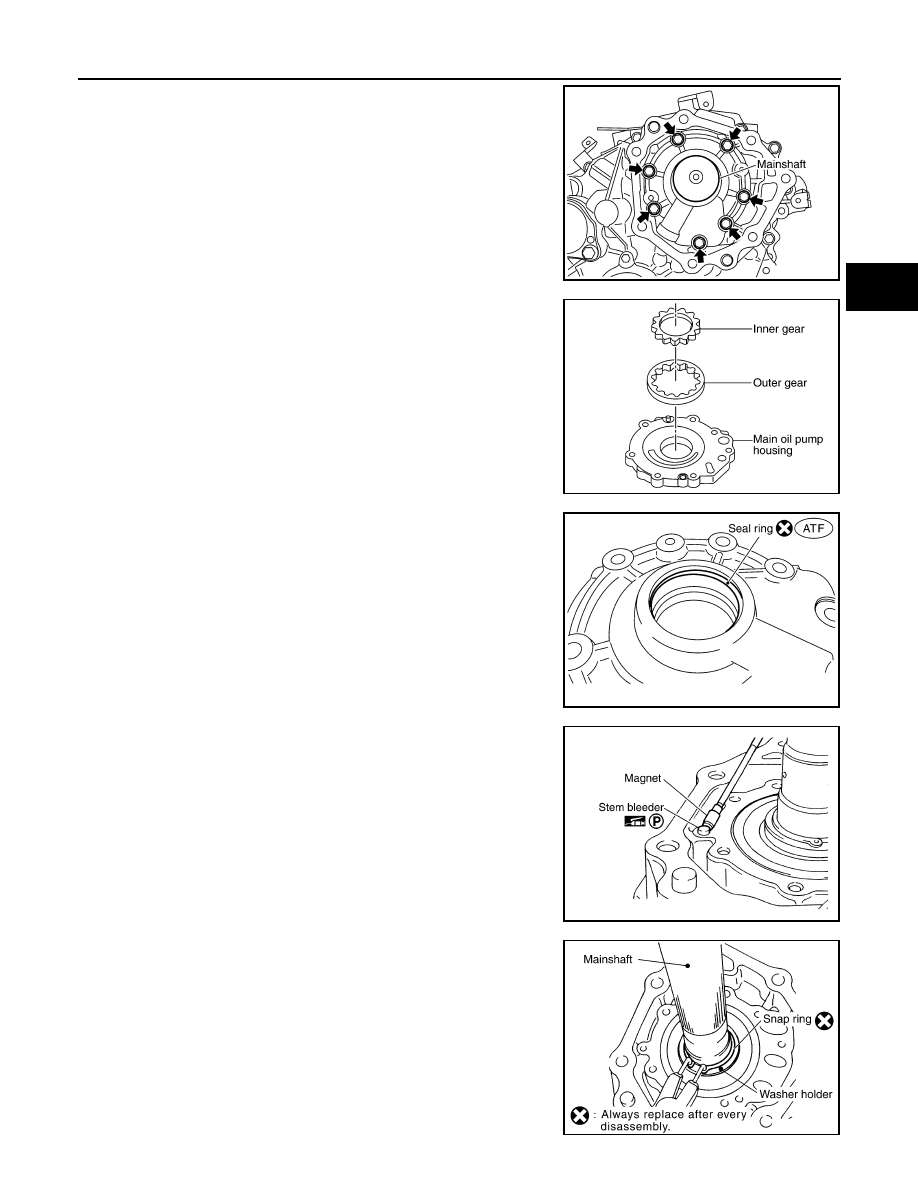

7. Remove the bolts and main oil pump cover.

8. Remove the outer gear, inner gear and main oil pump housing

from the center case.

9. Remove the seal ring from the main oil pump cover.

10. Remove the stem bleeder from the bleed hole.

11. Remove the snap ring and washer holder from the mainshaft.

SDIA2130E

SDIA2131E

SDIA2783E

SDIA2780E

SDIA2104E

DLN-152

< DISASSEMBLY AND ASSEMBLY >

[ATX14B]

TRANSFER ASSEMBLY

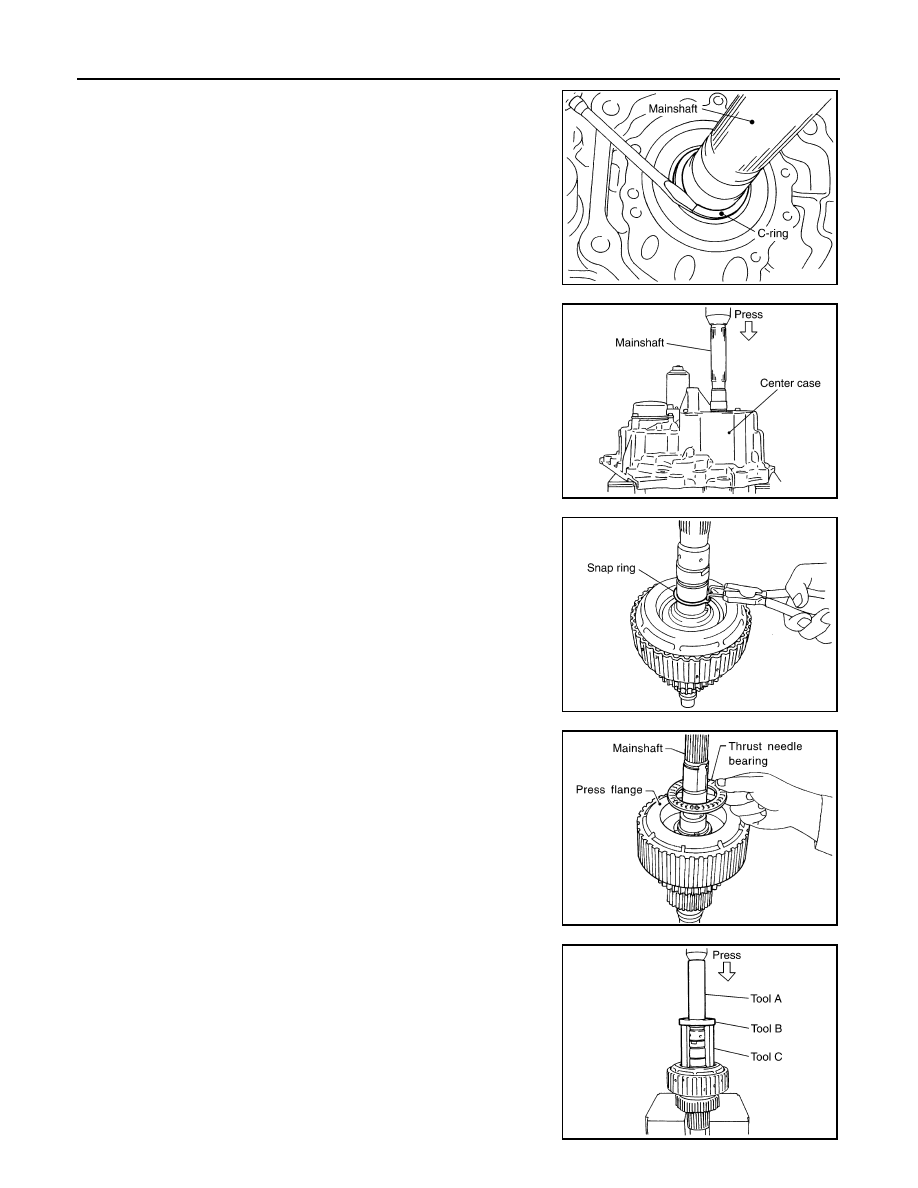

12. Remove the C-rings from the mainshaft using suitable tool.

13. Set the center case on the press stand. Remove the mainshaft

from the center case.

14. Remove the snap ring from the mainshaft using suitable tool.

15. Remove the thrust needle bearing from the press flange.

16. Press the press flange until the snap ring is out of place using

Tools.

SDIA2105E

SDIA2108E

SDIA2110E

SDIA2109E

Tool number

A: ST22452000 (J-34335)
B: ST30911000 ( — )
C: KV31103300 ( — )

SDIA2111E

TRANSFER ASSEMBLY

DLN-153

< DISASSEMBLY AND ASSEMBLY >

[ATX14B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

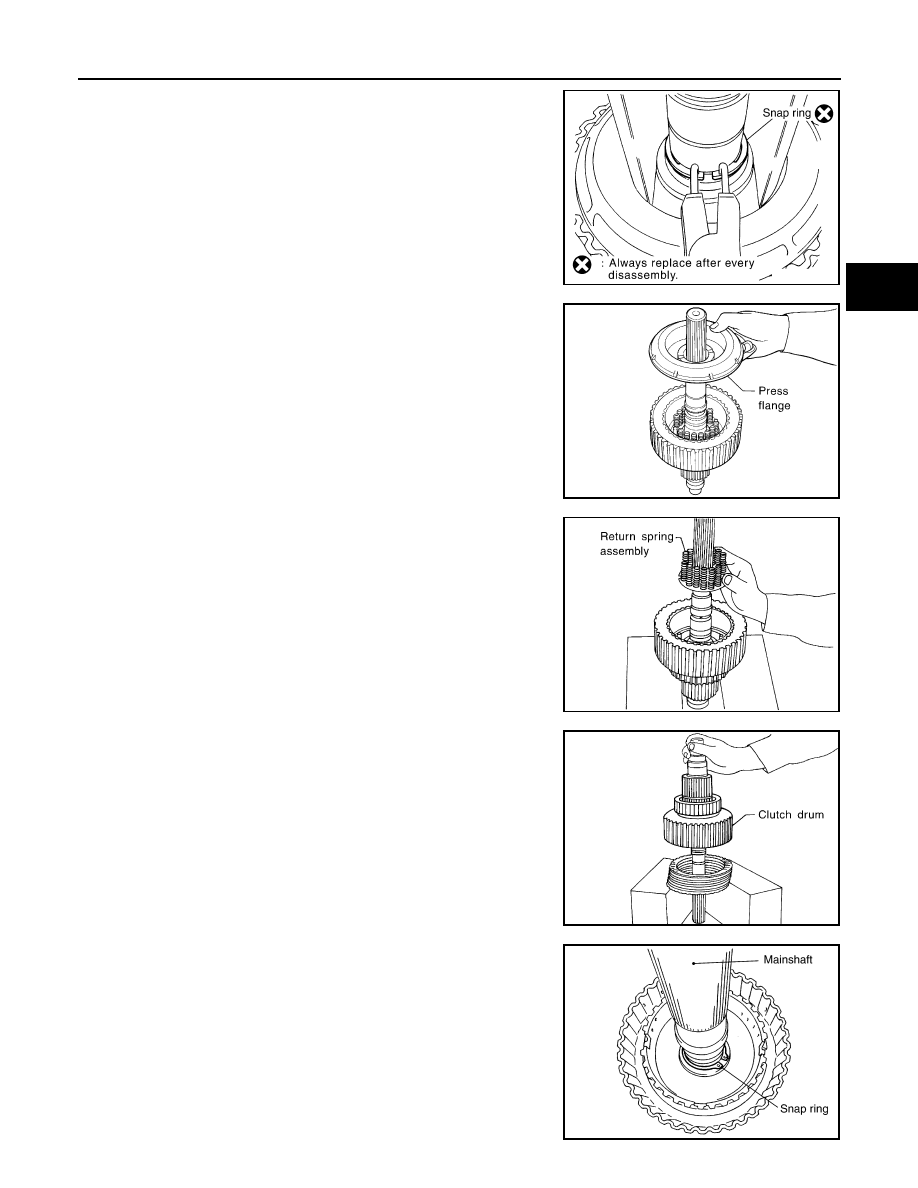

17. Remove the snap ring from the mainshaft using suitable tool.

18. Remove the press flange from the mainshaft.

19. Remove the return spring assembly from the clutch hub.

20. Remove each plate from the clutch drum.

21. Remove the snap ring from the mainshaft.

SDIA2112E

SMT910C

SMT911C

SMT912C

SDIA2113E

DLN-154

< DISASSEMBLY AND ASSEMBLY >

[ATX14B]

TRANSFER ASSEMBLY

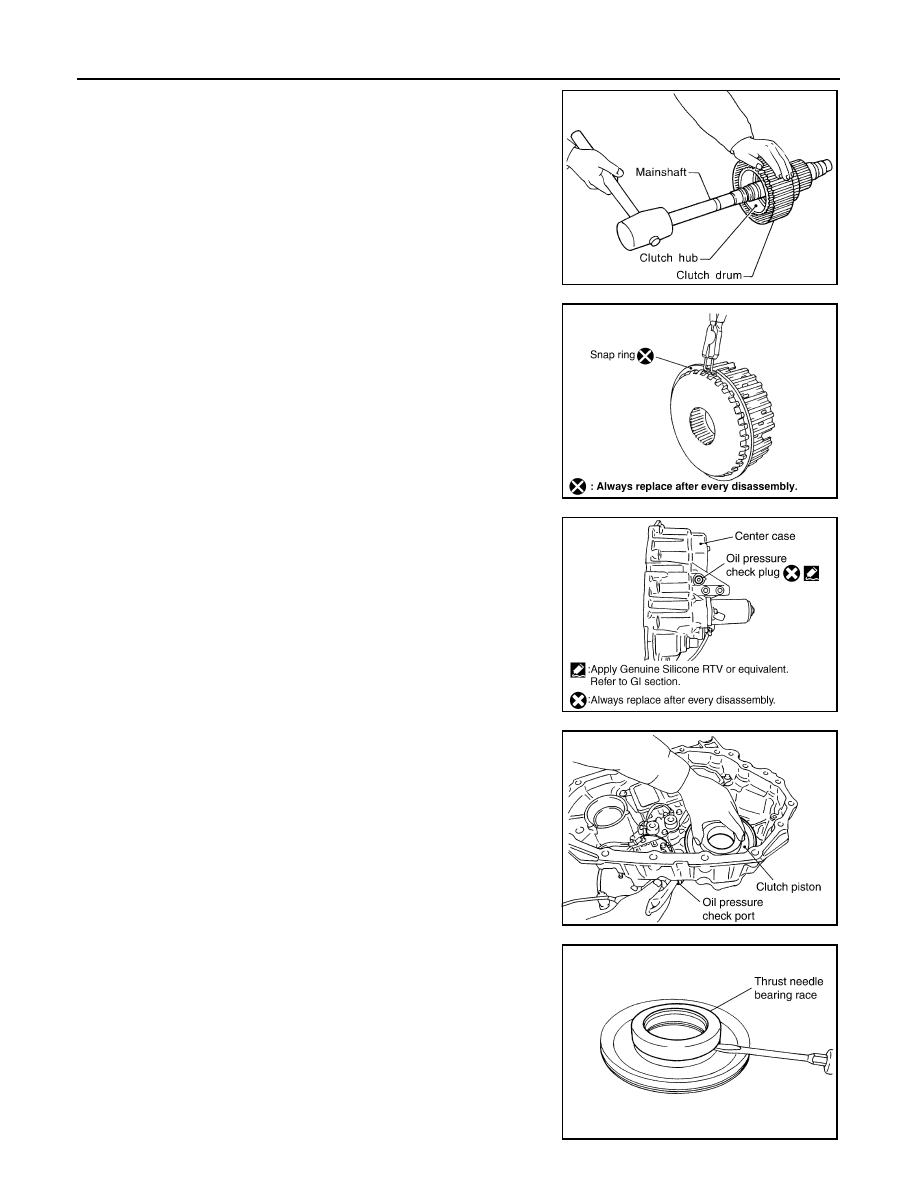

22. Remove the mainshaft from the clutch drum and clutch hub

using suitable tool.

23. Remove the needle bearing and spacer from the mainshaft.

24. Remove the snap ring from the clutch hub using suitable tool.

25. Remove the oil pressure check plug from the oil pressure check

port.

26. Apply air gradually from the oil pressure check port, and remove

the clutch piston assembly from the center case.

27. Remove the thrust needle bearing race from the clutch piston by

hooking a edge into 3 notches of the thrust needle bearing race

using suitable tool.

CAUTION:

Do not damage clutch piston or thrust needle bearing race.

SMT914C

WDIA0101E

WDIA0227E

SDIA2116E

SDIA2118E
