Infiniti QX56 (JA60). Manual - part 268

FRONT DOOR LOCK

DLK-243

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

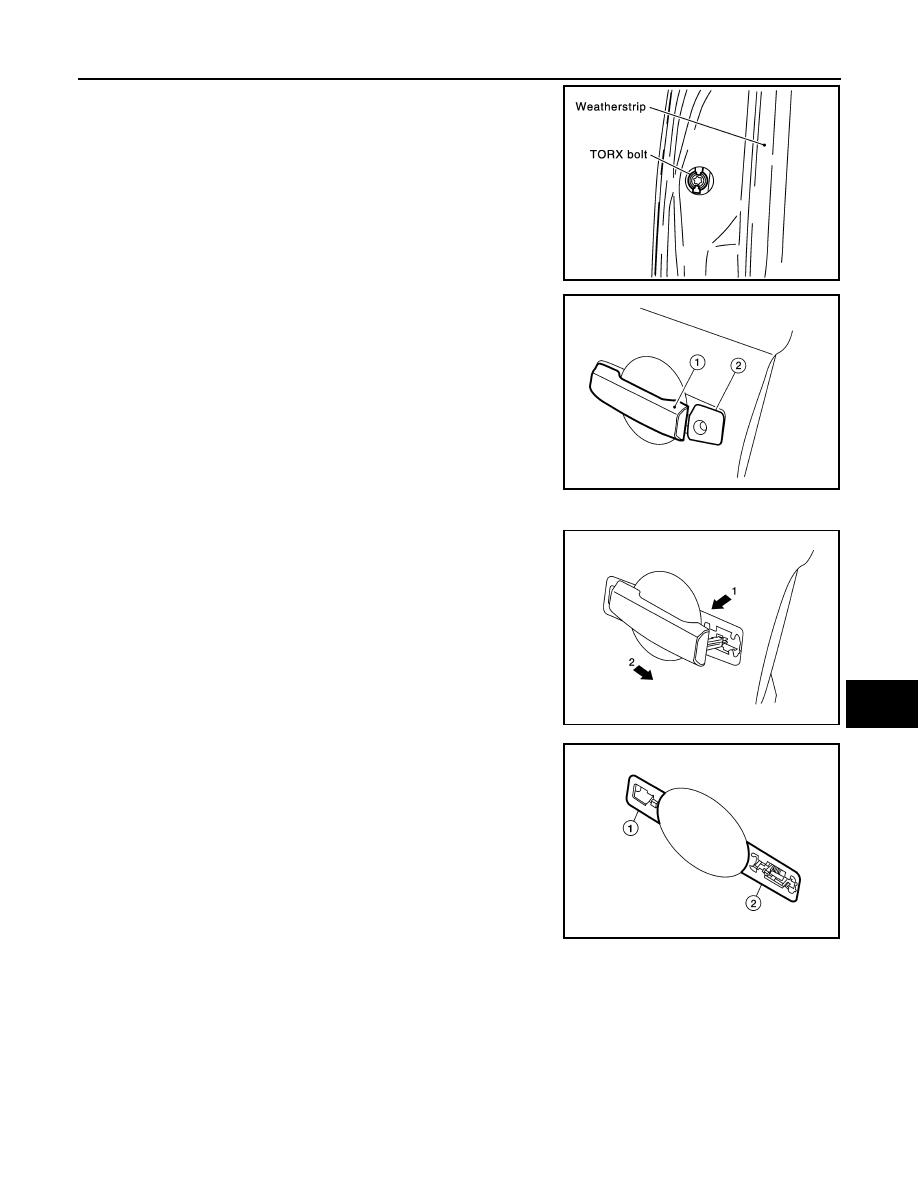

3. Remove the door side grommet, and the bolt (TORX T30) from

the grommet hole.

4. While pulling the outside handle (1), remove the door key cylin-

der assembly (LH) (2) or outside handle escutcheon (RH) (2).

5. Separate the key cylinder rod from the door key cylinder assembly (if equipped).
6. While pulling the outside handle, slide it toward rear of vehicle to

remove as shown.

7. Remove the front gasket (1) and rear gasket (2).

Torx bolt

5.3 N·m (0.54 kg-m, 47 in-lb)

PIIA3553E

ALKIA0899ZZ

ALKIA0900ZZ

ALKIA0893ZZ

DLK-244

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

FRONT DOOR LOCK

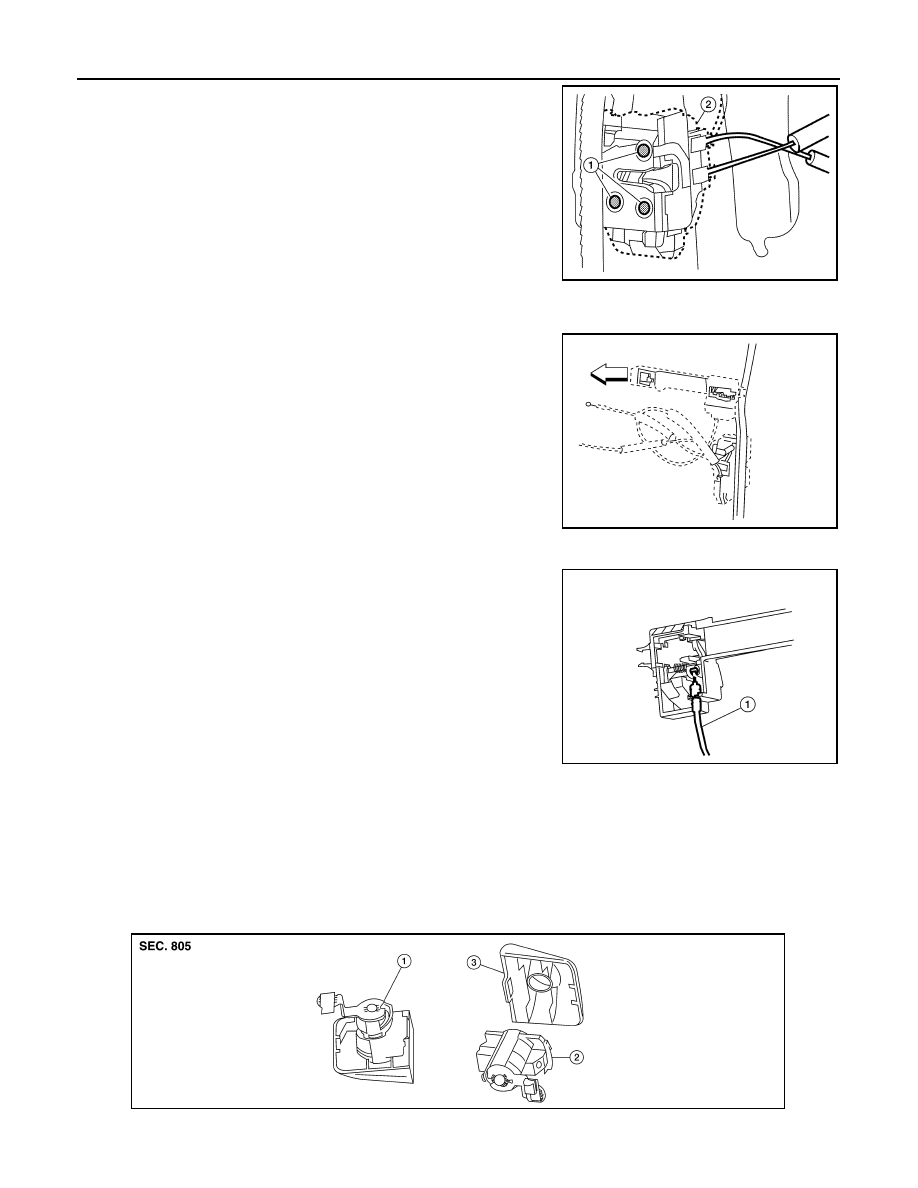

8. Remove the TORX bolts (T30) (1), and separate the door lock

assembly (2) from the door.

9. While pulling the outside handle bracket, slide it toward the front of the vehicle to remove it and the door

lock assembly as shown.

⇐ : Front

10. Disconnect the door lock actuator electrical connector.
11. Separate the outside handle cable connection (1) from the out-

side handle bracket.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

To install the key cylinder rod, be sure to rotate the key cylinder rod holder until a click is felt.

Disassembly and Assembly

INFOID:0000000005147058

DOOR KEY CYLINDER ASSEMBLY

ALKIA0894ZZ

ALKIA0895ZZ

ALKIA0896ZZ

1.

Door key cylinder assembly

2.

Key cylinder assembly

3.

Door key cylinder escutcheon

AWKIA1325ZZ

FRONT DOOR LOCK

DLK-245

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Release the door key cylinder escutcheon pawls to remove the door key cylinder.

DLK-246

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

REAR DOOR LOCK

REAR DOOR LOCK

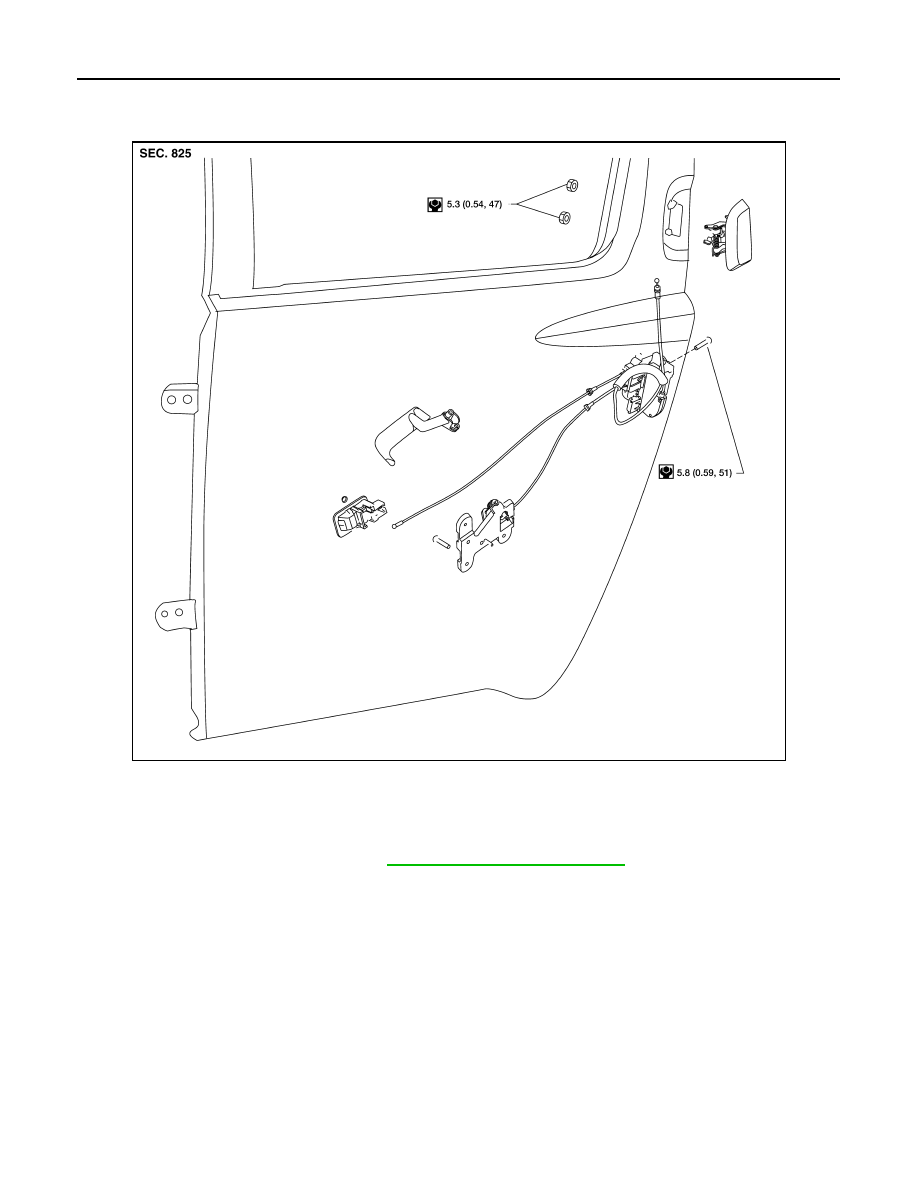

Component Structure

INFOID:0000000005147059

Removal and Installation

INFOID:0000000005147060

REMOVAL

1. Remove the front door finisher. Refer to

INT-11, "Removal and Installation"

.

2. Position aside the vapor barrier.
3. Remove door grommets, and remove outside handle nuts from grommet hole.
4. Remove outside handle and disconnect the cable.
5. Remove the door lock bolts, remove the door lock and disconnect the actuator connector.

INSTALLATION

Installation is in the reverse order of removal.

WIIA0892E
