Removal and Installation of Hood Lock Control

INFOID:0000000005147052

REMOVAL

1. Remove the bolts and the hood lock assembly.
2. Remove the front fender protector (LH). Refer to

EXT-23, "Removal and Installation"

.

3. Disconnect the hood lock primary and secondary hood lock cables from the hood lock. Unclip the primary

cable from the radiator core support upper and hood ledge.

4. Remove the nuts and the secondary hood lock release assembly.
5. Remove the grommet from the dash lower, and pull the primary hood lock cable into the passenger room.

CAUTION:

While pulling, be careful not to damage the outside of the hood lock cable.

INSTALLATION

1. Pull the hood lock cable through the dash lower hole into the engine room.

Be careful not to bend the cable too much, keeping the radius

100mm (3.94 in) or more.

2. Make sure the cable is not offset from the positioning grommet,

and push the grommet into the dash lower hole securely.

3. Apply sealant around the grommet at * mark.

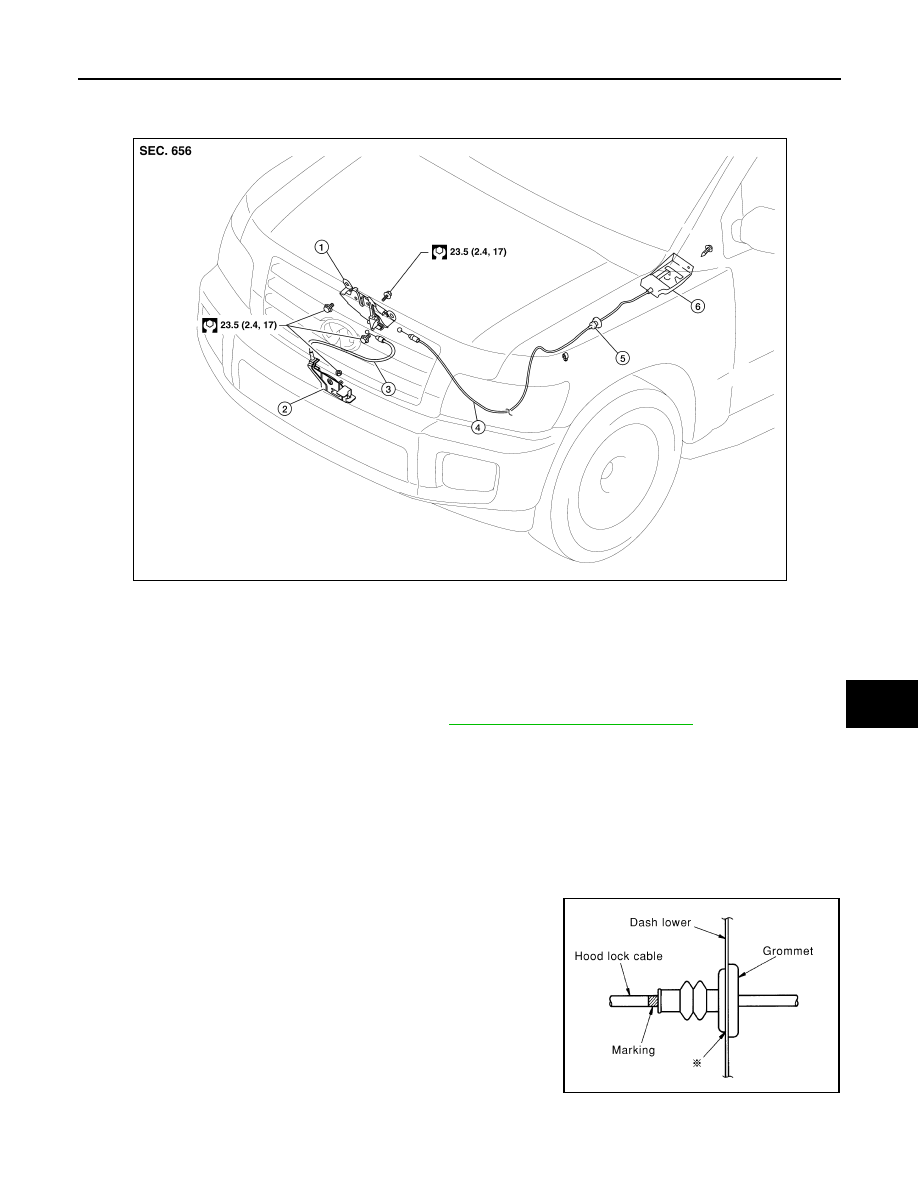

1.

Hood lock assembly

2.

Secondary hood lock release as-
sembly

3.

Secondary hood lock cable

4.

Primary hood lock cable

5.

Grommet

6.

Hood lock release handle

WIIA0900E

PIIA0173E

DLK-236

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

HOOD

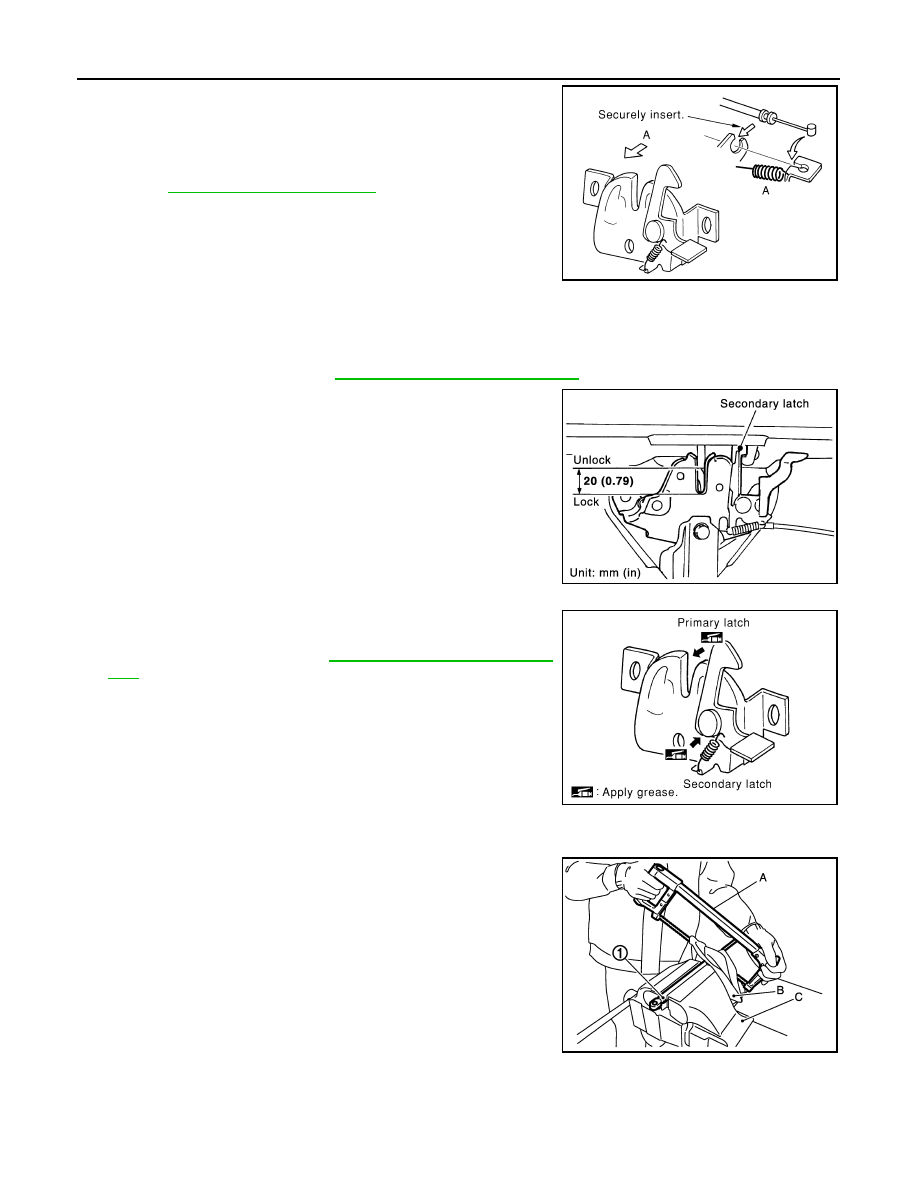

4. Install the primary and secondary cables securely to the hood

lock assembly.

5. Install the hood lock and the secondary hood lock release

assemblies.

6. Check the hood lock adjustment and hood opener operation.

Refer to

DLK-233, "Fitting Adjustment"

.

7. Install the remaining components in the reverse order of

removal.

Hood Lock Control Inspection

INFOID:0000000005147053

CAUTION:

If the hood lock cable is bent or deformed, replace it.
1. Remove the front grille. Refer to

EXT-17, "Removal and Installation"

.

2. Make sure the secondary latch is properly engaged with the sec-

ondary striker with hood's own weight by dropping it from

approx. 200 mm (7.87 in) height.

3. While operating the hood opener, carefully make sure the front

end of the hood is raised by approx. 20 mm (0.79 in). Also make

sure the hood opener returns to the original position.

4. Check the hood lock lubrication condition. If necessary, apply

“body grease” to the points shown in the figure.

5. Install the front grille. Refer to

EXT-17, "Removal and Installa-

tion"

.

Hood Stay Disposal

INFOID:0000000005356855

1. Fix hood stay (1) using a vise (C).
2. Using hacksaw (A) slowly make 2 holes in the hood stay, in

numerical order as shown in the figure.

CAUTION:

• When cutting a hole on hood stay, always cover a hack-

saw using a shop cloth (B) to avoid scattering metal frag-

ments or oil.

• Wear eye protection (safety glasses).

• Wear gloves.

PIIA0174E

PIIA1086E

PIIA0176E

JMKIA3336ZZ

HOOD

DLK-237

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

A: 20 mm (0.787 in)
B: Cut at the groove.

JMKIA3609ZZ

DLK-238

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

DOOR

DOOR

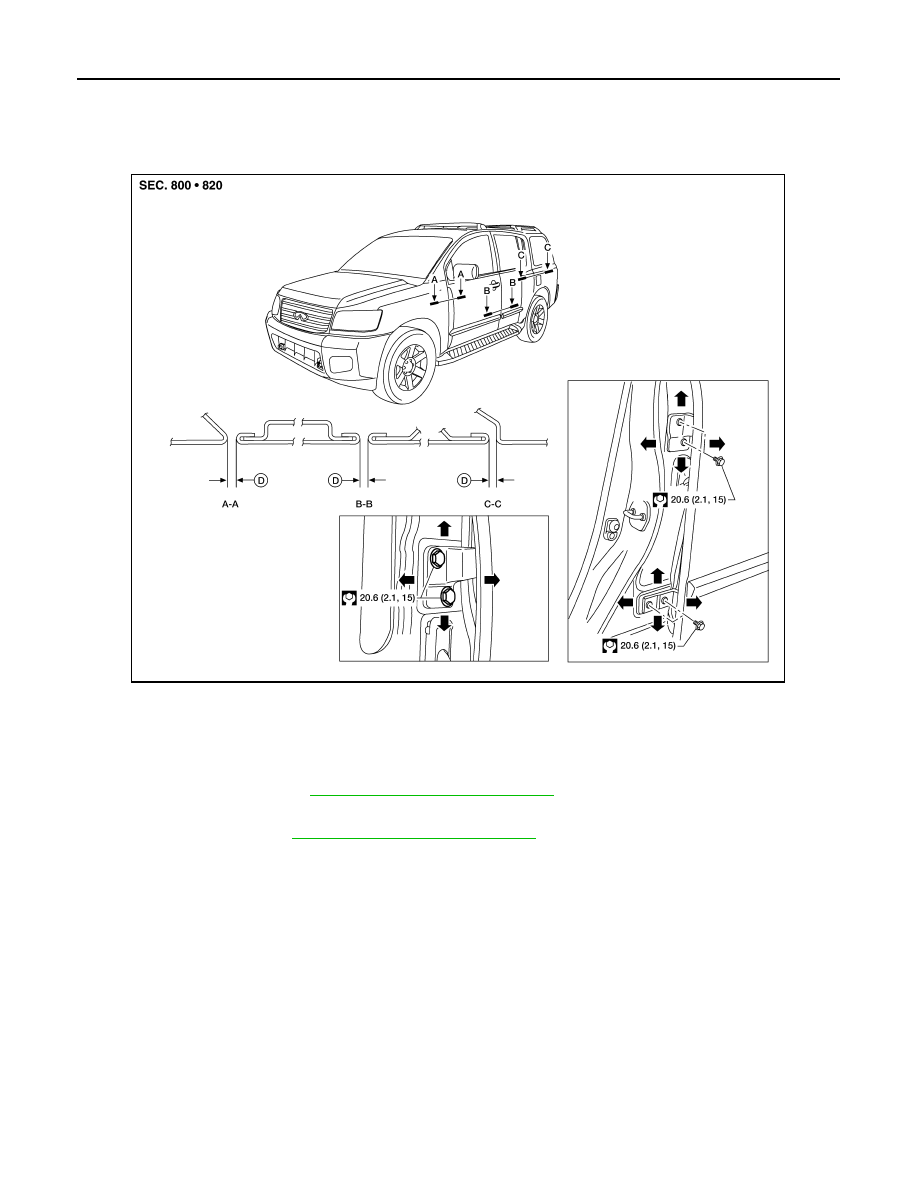

Fitting Adjustment

INFOID:0000000005147054

Front door

Longitudinal clearance and surface height adjustment at front end

1. Remove the fender. Refer to

EXT-20, "Removal and Installation"

.

2. Loosen the hinge bolts. Raise the front door at rear end to adjust.
3. Install the fender. Refer to

EXT-20, "Removal and Installation"

.

Rear door

Longitudinal clearance and surface height adjustment at front end

1. Loosen the bolts. Open the rear door, and raise the rear door at rear end to adjust.

Striker adjustment

D.

4.5

± 1.0 mm (0.177 ± 0.039 in)

AWKIA0675ZZ
