Infiniti QX56 (JA60). Manual - part 239

GLASS HATCH SWITCH

DLK-127

< COMPONENT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

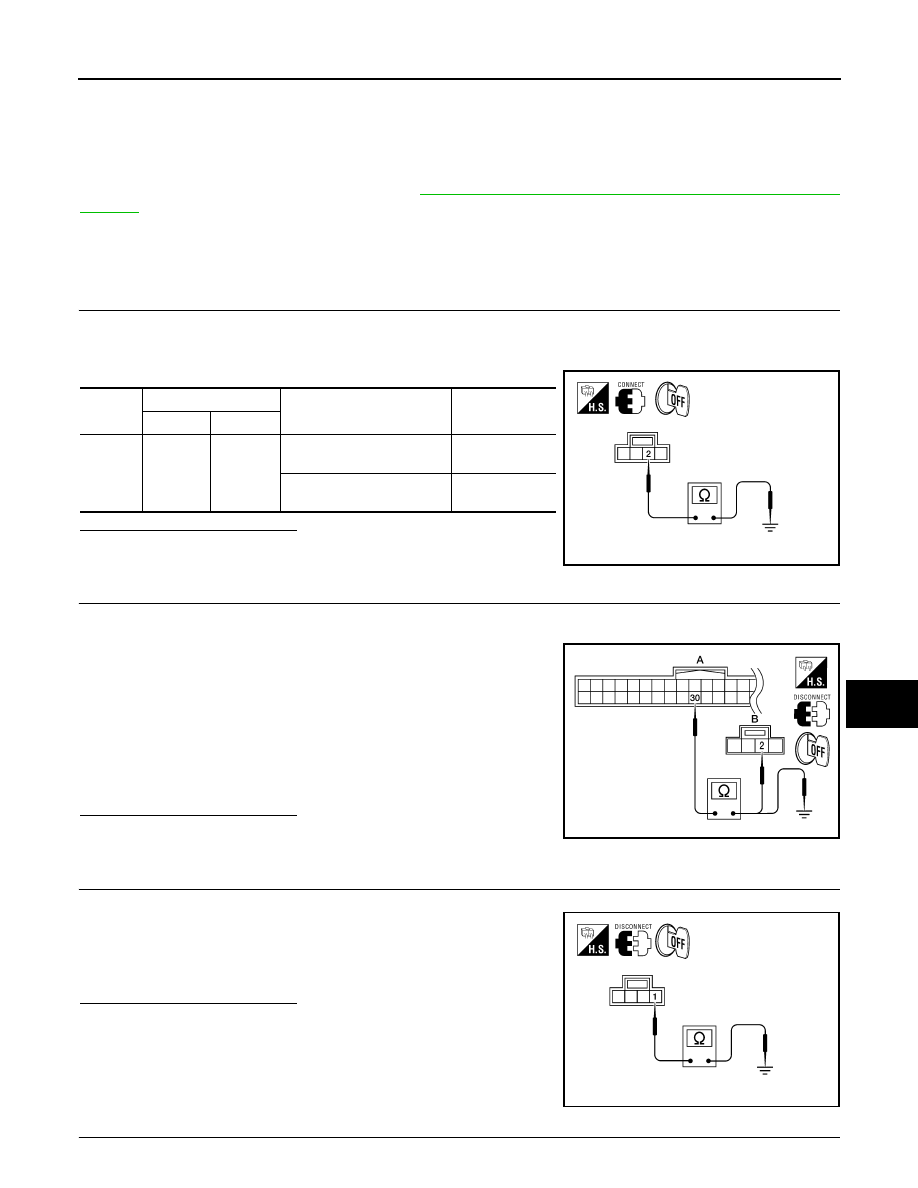

GLASS HATCH SWITCH

Diagnosis Procedure

INFOID:0000000005146999

Regarding Wiring Diagram information, refer to

DLK-157, "Wiring Diagram — POWER DOOR LOCK SYS-

TEM —"

.

NOTE:

Repair any front door lock actuator RH malfunction before proceeding with this diagnosis.

1.

CHECK GLASS HATCH SWITCH

1. Turn ignition switch OFF.

2. Insure front door lock actuator RH is in the unlock position.

3. Check continuity between glass hatch switch terminal 2 and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

CHECK HARNESS CONTINUITY

1. Disconnect glass hatch switch.

2. Disconnect BCM.

3. Check continuity between BCM connector M18 (A) terminal 30

and glass hatch switch connector D706 (B) terminal 2.

4. Check continuity between BCM connector M18 (A) terminal 30

and ground.

Is the inspection result normal?

YES

>> Glass hatch switch circuit is OK.

NO

>> Repair or replace harness.

3.

CHECK GLASS HATCH SWITCH

1. Disconnect glass hatch switch.

2. Check continuity between glass hatch switch harness connector

D706 terminal 1 and ground.

Is the inspection result normal?

YES

>> Replace glass hatch switch.

NO

>> GO TO 4.

4.

CHECK HARNESS CONTINUITY

Connec-

tor

Terminals

Condition

Continuity

(+)

(–)

D706

2

Ground

With the glass hatch switch
pressed

Yes

With the glass hatch switch
released

No

LIIA2399E

30 - 2

: Continuity should exist.

30 - Ground

: Continuity should not exist.

LIIA2400E

1 - Ground

: Continuity should exist.

LIIA2401E

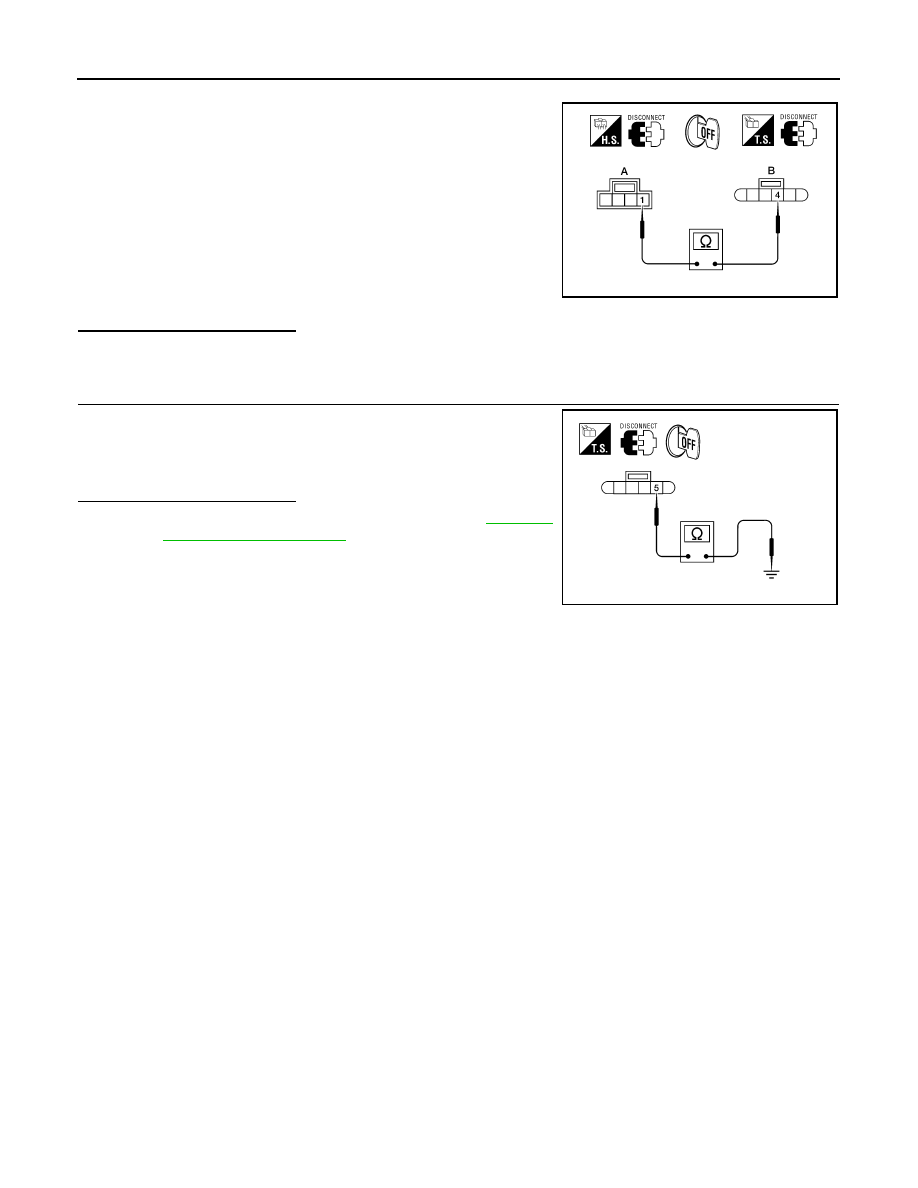

DLK-128

< COMPONENT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

GLASS HATCH SWITCH

1. Disconnect front door lock actuator RH.

2. Check continuity between glass hatch switch connector D706

(A) terminal 1 and front door lock actuator RH connector D114

(B) terminal 4

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair or replace harness.

5.

CHECK FRONT DOOR LOCK ACTUATOR RH GROUND CIRCUIT

Check continuity between front door lock actuator RH connector

D114 terminal 5 and ground

Is the inspection result normal?

YES

>> Replace front door lock actuator RH. Refer to

DLK-242,

"Removal and Installation"

.

NO

>> Repair or replace harness.

1 - 4

: Continuity should exist.

LIIA2402E

5 - Ground

: Continuity should exist.

LIIA2403E

GLASS HATCH AJAR SWITCH

DLK-129

< COMPONENT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

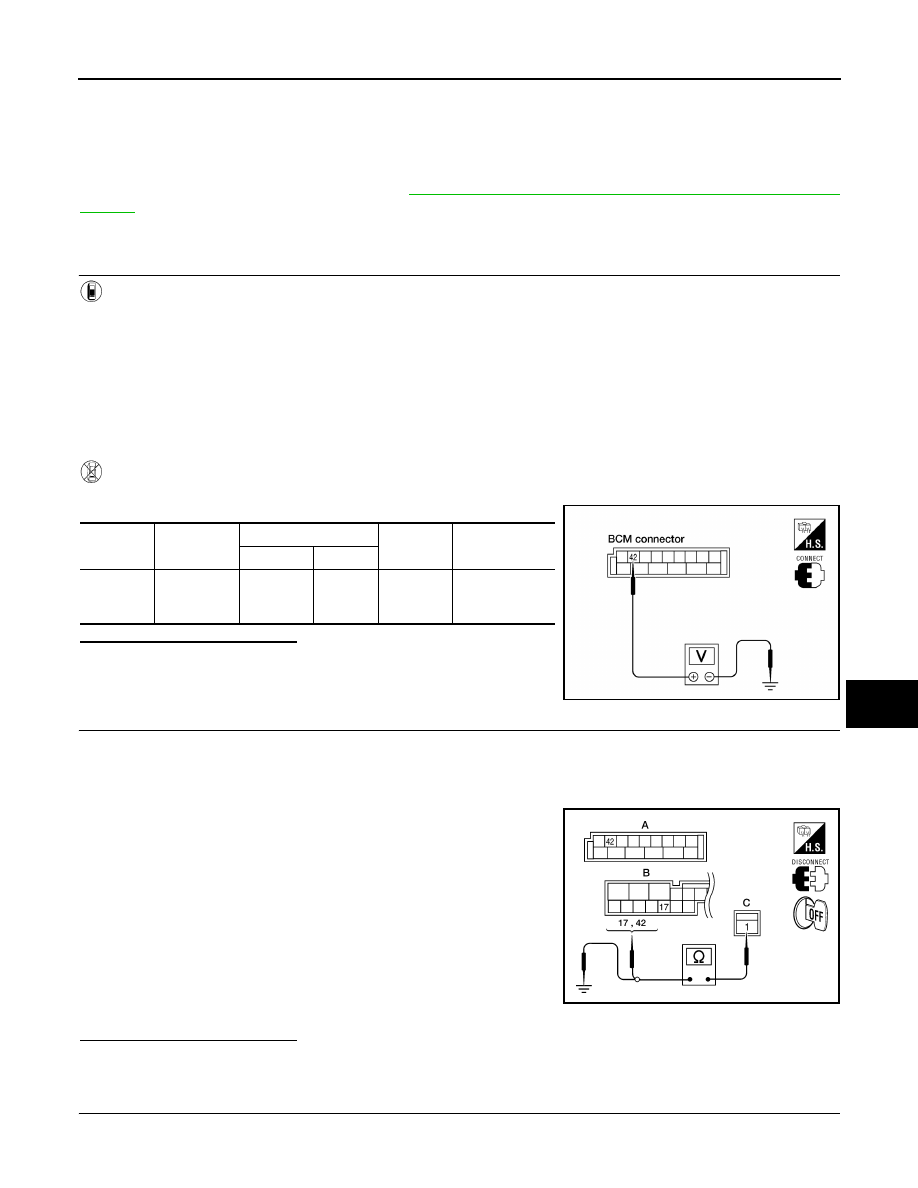

GLASS HATCH AJAR SWITCH

Diagnosis Procedure

INFOID:0000000005147000

Regarding Wiring Diagram information, refer to

DLK-199, "Wiring Diagram—AUTOMATIC BACK DOOR SYS-

TEM—"

.

1.

CHECK GLASS HATCH AJAR SWITCH INPUT SIGNAL

With CONSULT-III

Check glass hatch ajar switch ("TRNK OPN MNTR") in DATA MONITOR mode with CONSULT–III.

• When glass hatch is open:

• When glass hatch is closed:

Without CONSULT-III

Check voltage between BCM connector M19 terminal 42 and ground.

Is the inspection result normal?

YES

>> System is OK.

NO

>> GO TO 2

2.

CHECK GLASS HATCH AJAR SWITCH CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect glass hatch ajar switch, BCM and back door control unit.

3. Check continuity between BCM connector (A) M19 terminal 42 and glass hatch ajar switch connector (C)

D707 terminal 1.

4. Check continuity between back door control unit connector B55

(B) terminal 17 and glass hatch ajar switch connector (C) D707

terminal 1.

5. Check continuity between glass hatch ajar switch connector (C)

D707 terminal 1 and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace harness.

3.

CHECK GLASS HATCH AJAR SWITCH

1. Disconnect glass hatch ajar switch connector.

TRNK OPN MNTR

: ON

TRNK OPN MNTR

: OFF

Connector

Item

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(–)

M19

BCM

42

Ground

Open

↓

Closed

0
↓

Battery voltage

LIIA1149E

42 - 1

: Continuity should exist.

17 - 1

: Continuity should exist.

1 - Ground : Continuity should not exist.

ALKIA0667ZZ

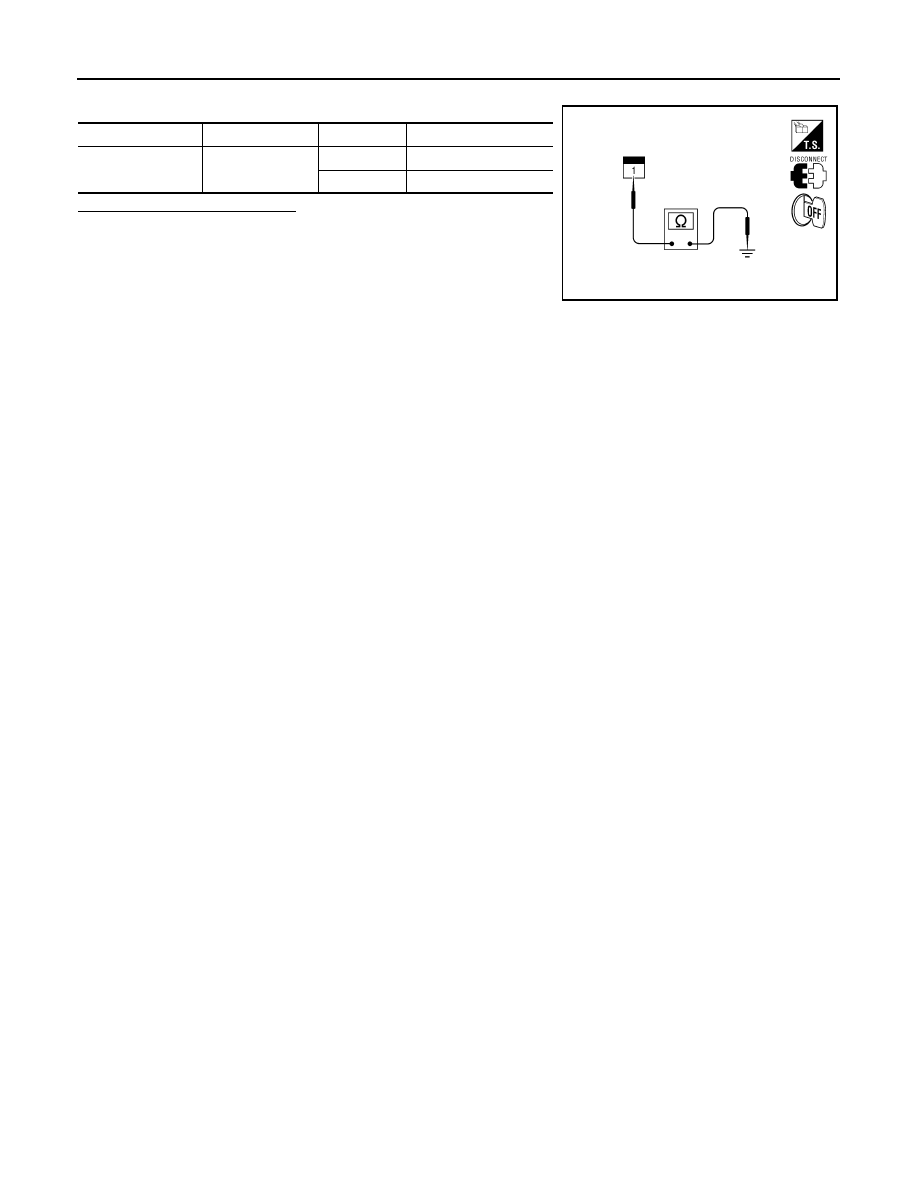

DLK-130

< COMPONENT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

GLASS HATCH AJAR SWITCH

2. Check continuity between glass hatch ajar switch connector terminal 1 and ground.

Is the inspection result normal?

YES

>> Check glass hatch ajar switch case ground condition.

NO

>> Replace glass hatch ajar switch, or repair or replace

harness.

Terminals

Condition

Continuity

Glass hatch ajar

switch

1 – Ground

Open

Yes

Closed

No

ALKIA0668ZZ
