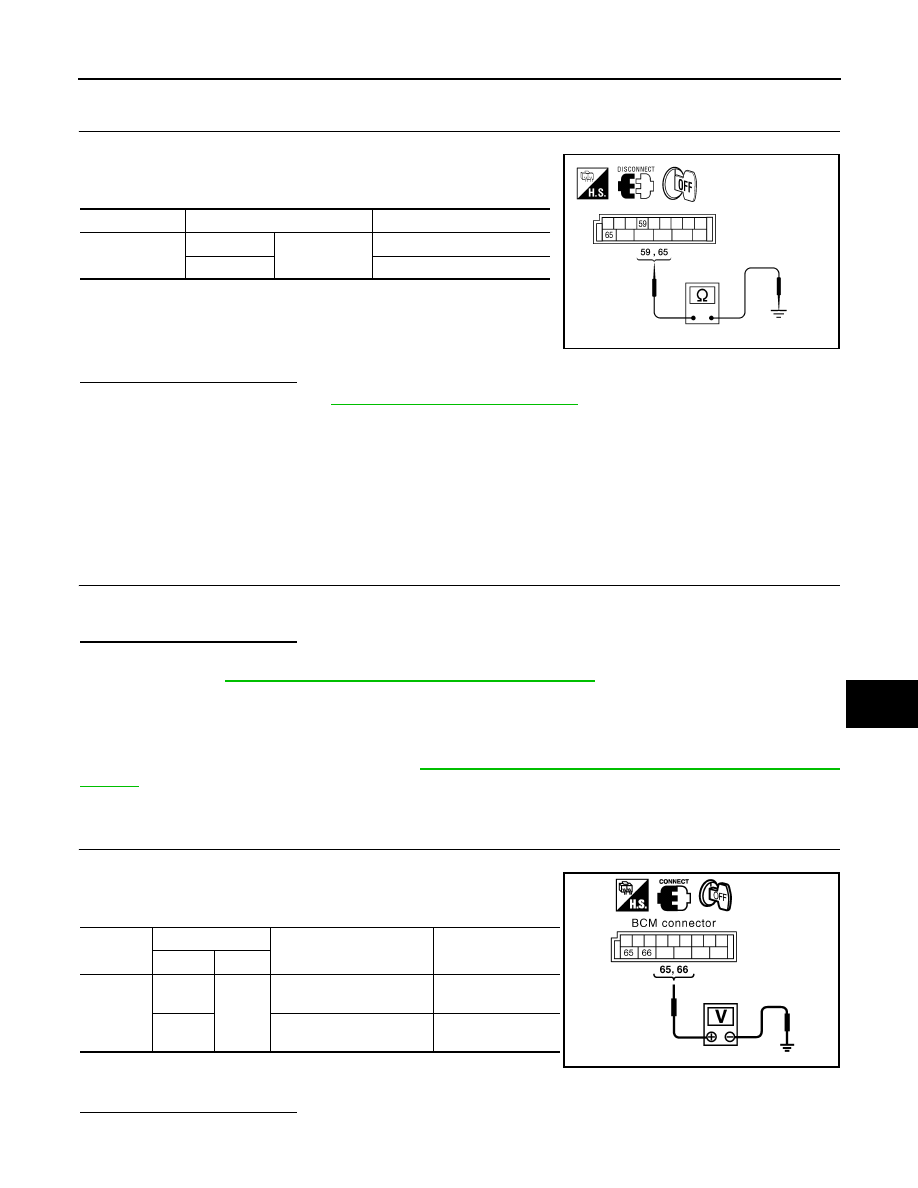

DOOR LOCK ACTUATOR
DLK-87
< COMPONENT DIAGNOSIS >
[WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G
H
I
J
L
M
A
B
DLK
N
O
P
NO
>> Repair or replace harness.
3.

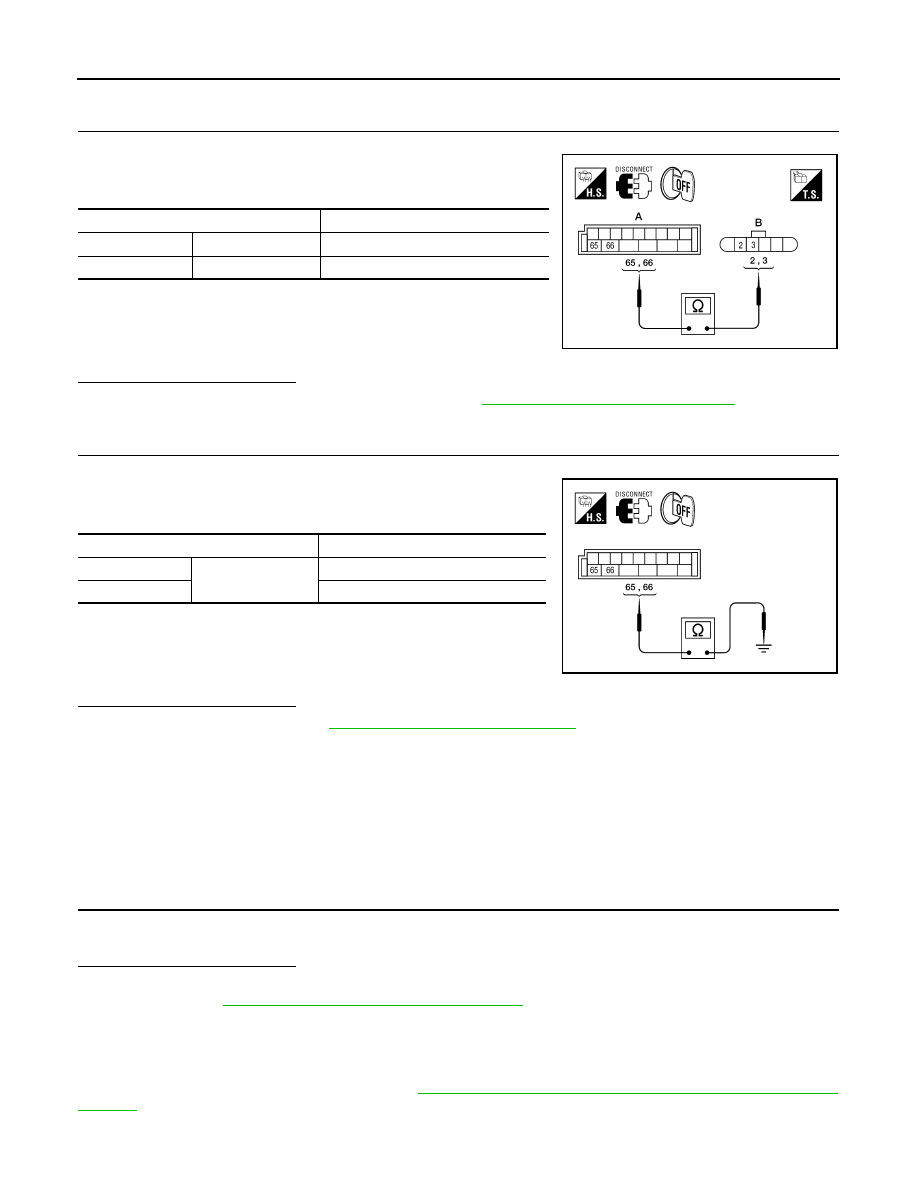

CHECK DOOR LOCK ACTUATOR HARNESS
1. Disconnect BCM and front door lock assembly LH (actuator).
2. Check continuity between BCM connector M20 terminals 59, 65
and ground.
Is the inspection result normal?
YES
>> Replace BCM. Refer to
BCS-59, "Removal and Installation"
NO
>> Repair or replace harness.
PASSENGER SIDE
PASSENGER SIDE : Description
INFOID:0000000005146949
Locks/unlocks the door with the signal from BCM.
PASSENGER SIDE : Component Function Check
INFOID:0000000005146950
1.
CHECK FUNCTION
1. Use CONSULT-III to perform Active Test DOOR LOCK.
2. Touch “ALL LOCK” or “ALL UNLOCK” to check that it works normally.
Is the inspection result normal?
YES
>> Door lock actuator is OK.
NO
>> Refer to
DLK-87, "PASSENGER SIDE : Diagnosis Procedure"
PASSENGER SIDE : Diagnosis Procedure
INFOID:0000000005146951
Regarding Wiring Diagram information, refer to
DLK-157, "Wiring Diagram — POWER DOOR LOCK SYS-

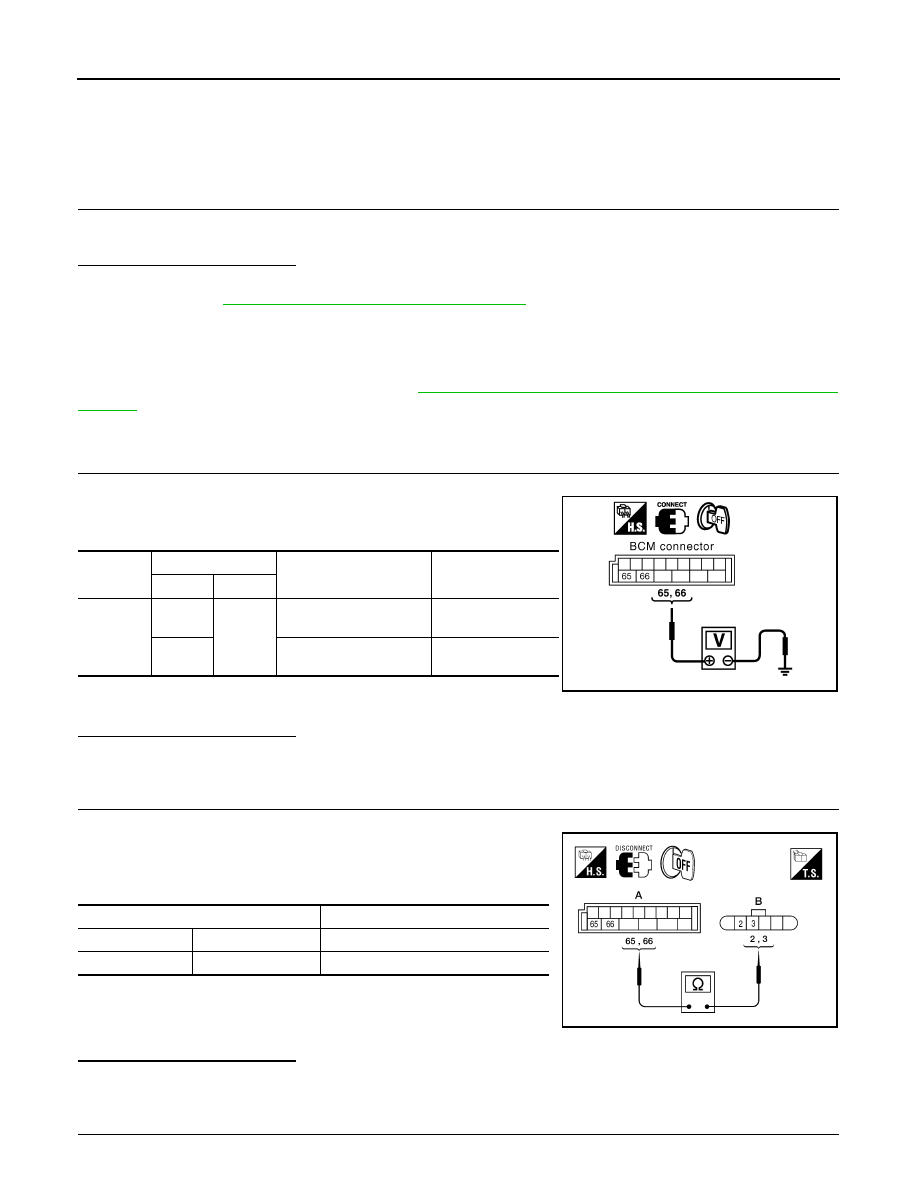

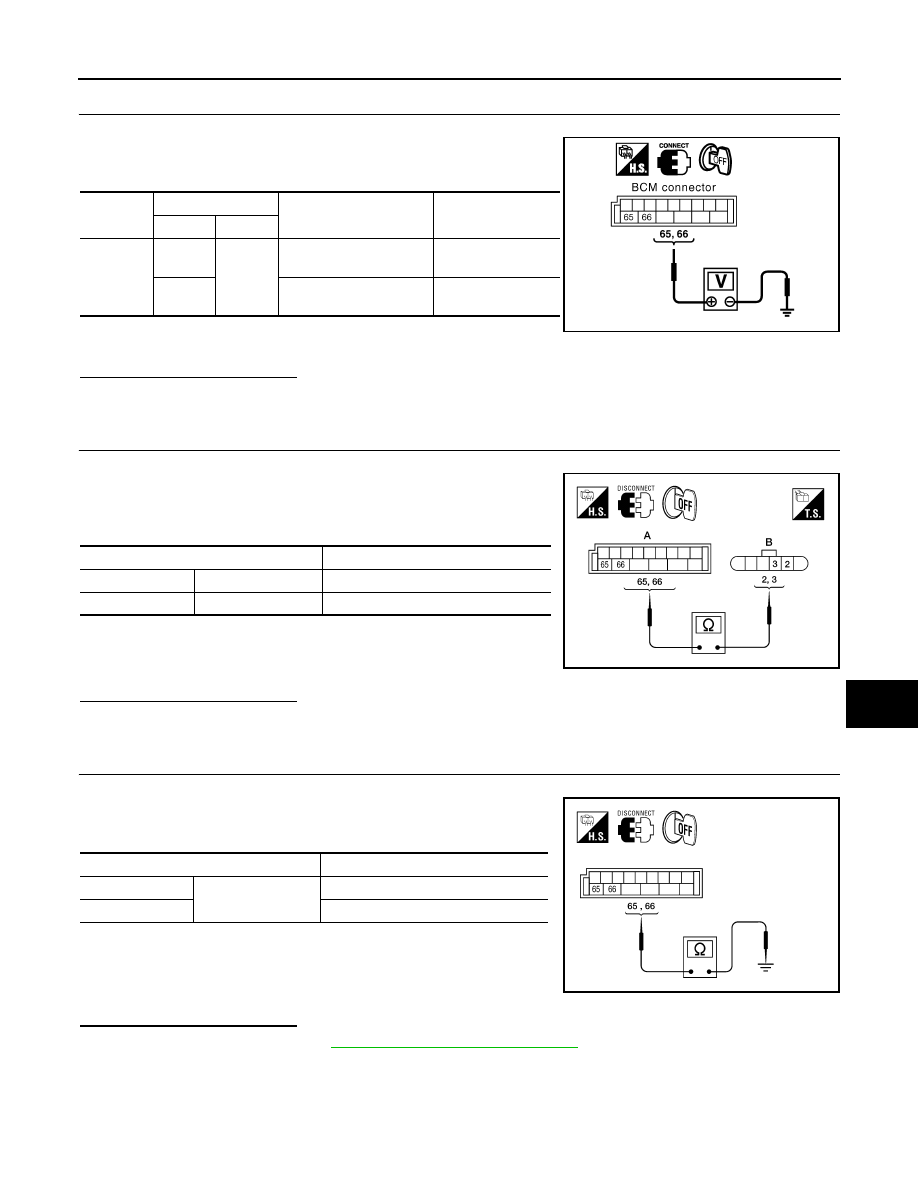

1.
CHECK FRONT DOOR LOCK ACTUATOR RH SIGNAL
1. Turn ignition switch OFF.
2. Check voltage between BCM connector M20 terminals 65, 66
and ground.
Is the inspection result normal?
YES
>> GO TO 2
Connector
Terminals
Continuity
M20
59
Ground
No
65
No
ALKIA0633ZZ
Connector
Terminals
Condition
Voltage (V)
(Approx.)
(+)
(-)
M20
65
Ground
Door lock/unlock switch is
turned to LOCK
0
→ Battery voltage
for 300 ms
66
Door lock/unlock switch is
turned to UNLOCK
0
→ Battery voltage
for 300 ms
LIIA1048E
