HAZARD AND BUZZER REMINDER FUNCTION

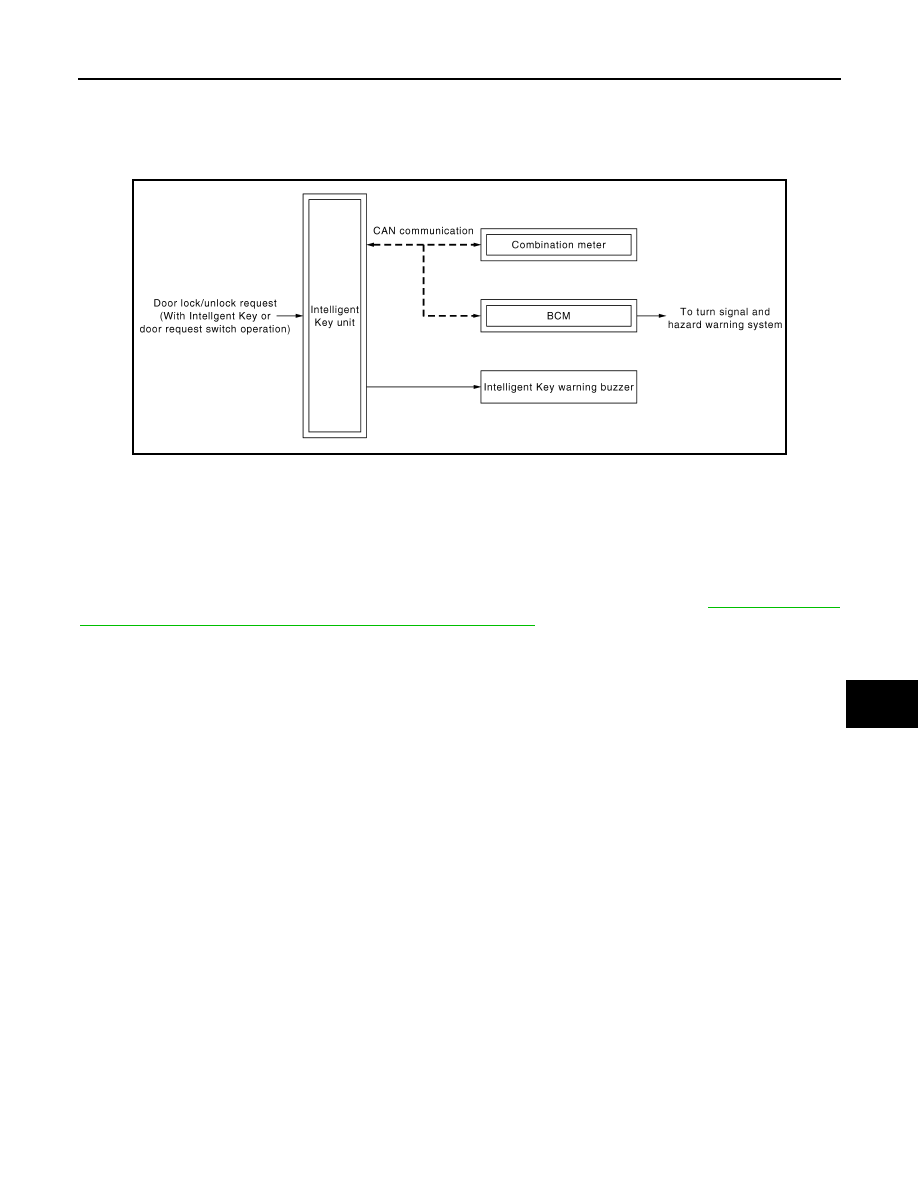

System Diagram

INFOID:0000000005146895

HAZARD & BUZZER REMINDER FUNCTION

System Description

INFOID:0000000005146896

HAZARD AND BUZZER REMINDER FUNCTION

When door is locked or unlocked by Intelligent Key or door request switch, Intelligent Key unit sounds buzzer

and sends hazard request signal to BCM via CAN communication. Then BCM flashes hazard warning lamps

as a reminder.

NOTE:

Hazard and buzzer reminder function mode can be changed with CONSULT-III. Refer to

DLK-55, "INTELLI-

GENT KEY : CONSULT-III Function (BCM - INTELLIGENT KEY)"

.

JMKIA0506GB

DLK-48

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

HAZARD AND BUZZER REMINDER FUNCTION

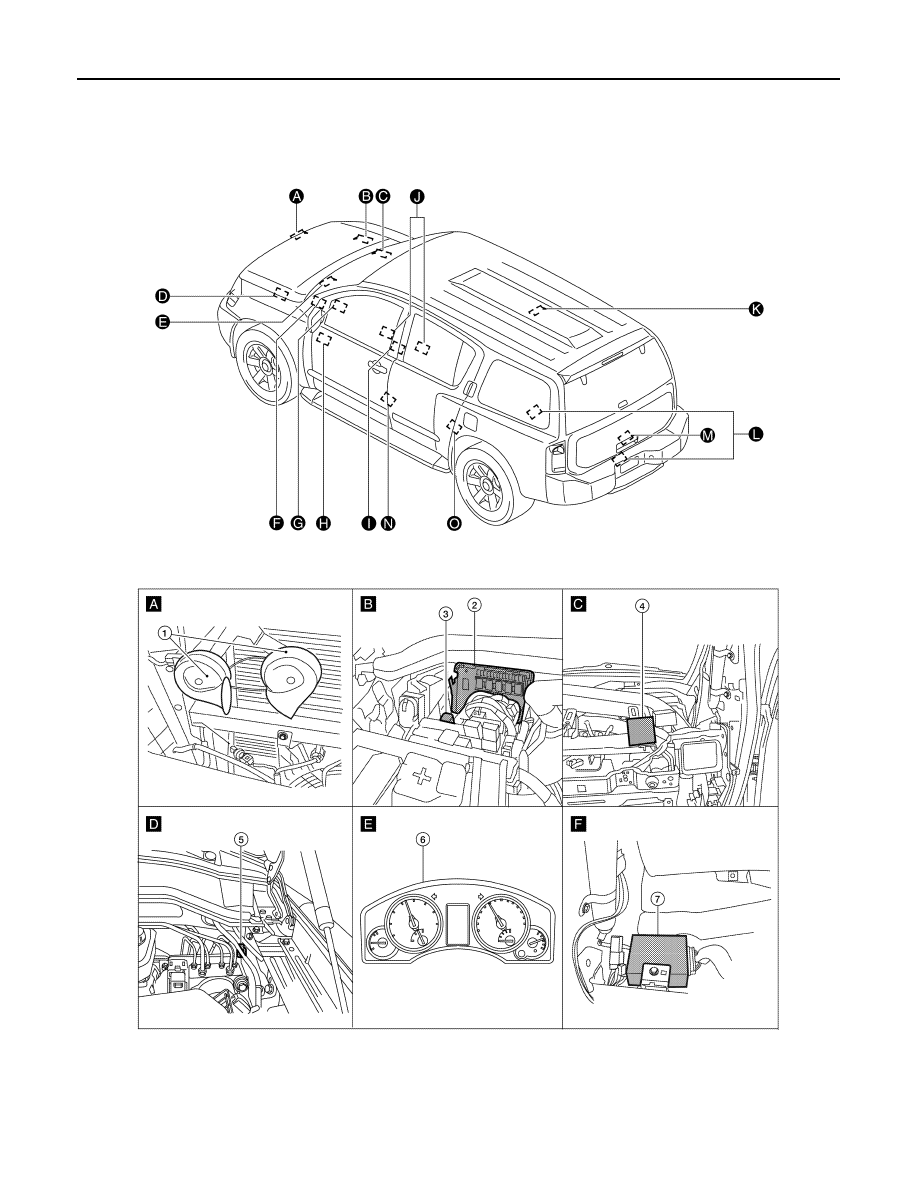

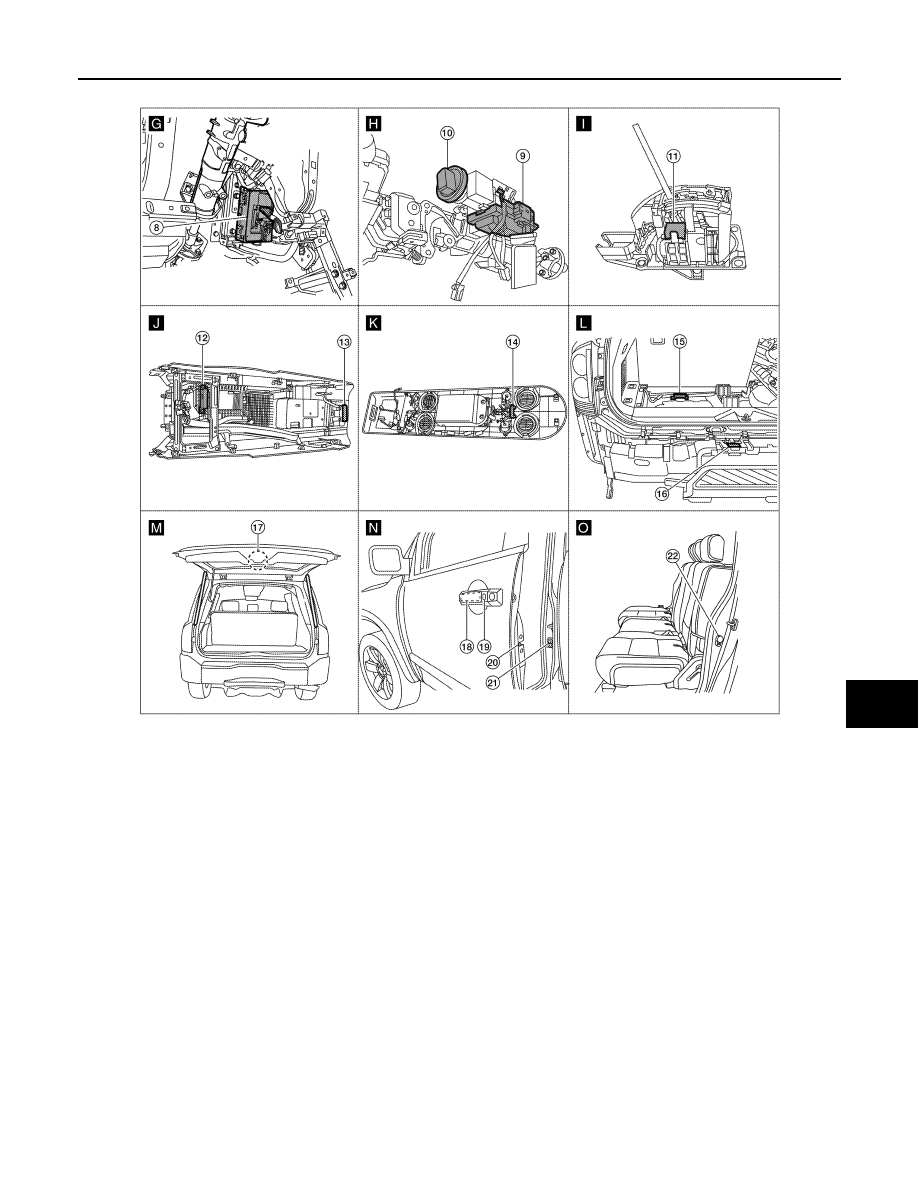

Component Parts Location

INFOID:0000000005380602

ALKIA0965ZZ

HAZARD AND BUZZER REMINDER FUNCTION

DLK-49

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

ALKIA0579ZZ

1.

Horn E3
(view with hood open)

2.

IPDM E/R E122, E124
(view with cover removed)

3.

Horn relay H-1

4.

Remote keyless entry receiver M25
(view with instrument panel RH removed)

5.

Intelligent key warning buzzer E25

6.

Combination meter M23, M24

7.

Intelligent Key unit M70
(view with instrument panel LH removed)

8.

BCM M18, M19, M20
(view with instrument panel LH removed)

9.

Steering lock solenoid M15
(view with steering column removed)

10. Key switch and ignition knob switch M12 11. A/T shift selector (park position switch)

M203
(view with center console removed)

12. Center console area antenna (front)

M210
(view with center console removed)

13. Center console area antenna (rear)

M209

14. Overhead console area antenna R210

(view with overhead console removed)

15. Luggage area antenna B76

(view with rear carpet removed)

16. Rear bumper antenna C7

(view with rear bumper removed)

17. Back door latch D503

18. Front outside antenna LH D15

Front outside antenna RH D115

19. Front door request switch LH D16

Front door request switch RH D116

20. Front door lock assembly LH (door un-

lock sensor) D14

21. Front door switch LH B8

RH B108

22. Rear door switch LH B18

RH B116

DLK-50

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

HAZARD AND BUZZER REMINDER FUNCTION

Component Description

INFOID:0000000005146898

Item

Function

BCM

Controls the hazard and buzzer reminder function (without Intelligent Key).

Intelligent Key unit

Controls the hazard and buzzer reminder function (with Intelligent Key).

Combination meter

Turns ON the LOCK indicator, KEY indicator, turn signal indicator and buzzer
(built in combination meter) by the request from Intelligent Key unit via CAN com-
munication.

Intelligent Key warning buzzer

Sounds by the request signal from Intelligent Key unit via CAN communication.
