DOOR LOCK FUNCTION

DLK-19

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

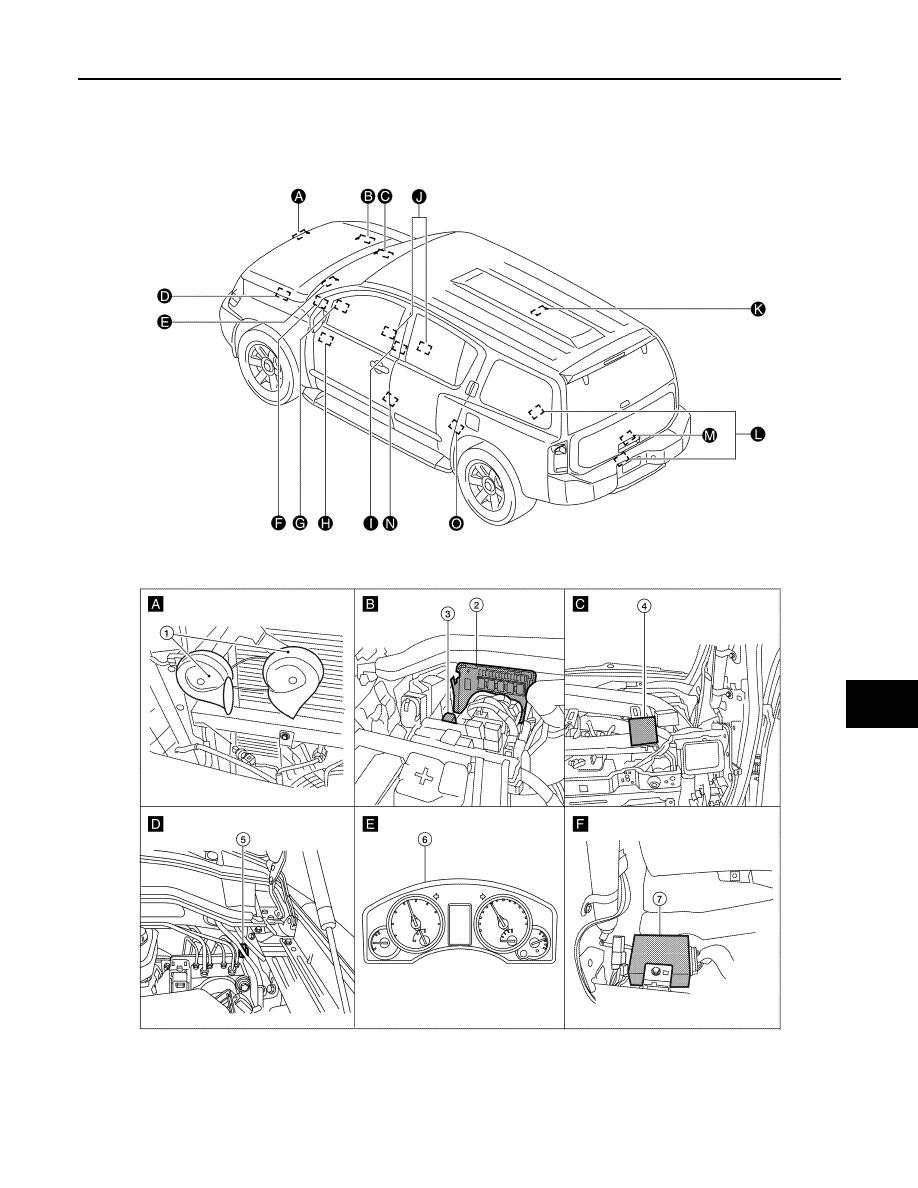

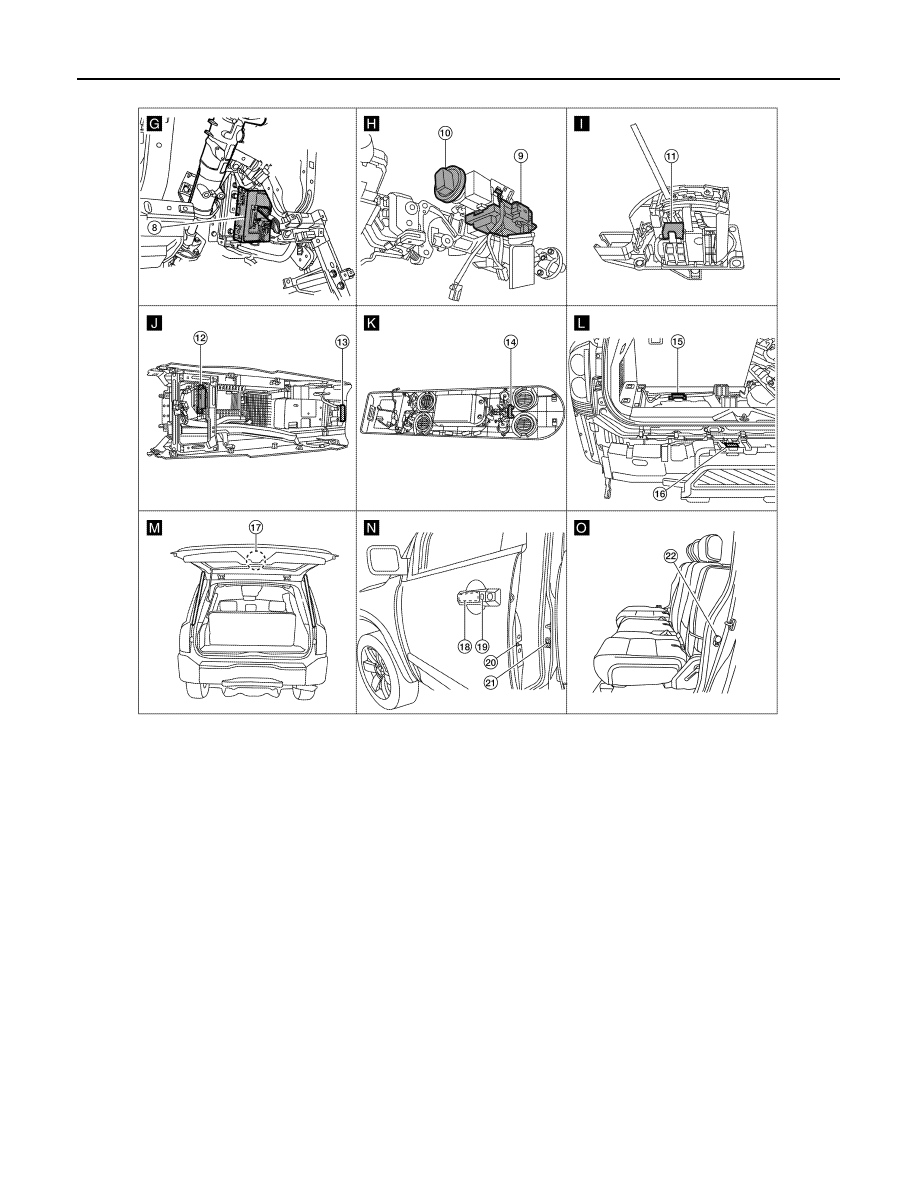

DOOR REQUEST SWITCH : Component Parts Location

INFOID:0000000005146877

ALKIA0965ZZ

DLK-20

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

DOOR LOCK FUNCTION

ALKIA0579ZZ

1.

Horn E3
(view with hood open)

2.

IPDM E/R E122, E124
(view with cover removed)

3.

Horn relay H-1

4.

Remote keyless entry receiver M25
(view with instrument panel RH removed)

5.

Intelligent key warning buzzer E25

6.

Combination meter M23, M24

7.

Intelligent Key unit M70
(view with instrument panel LH removed)

8.

BCM M18, M19, M20
(view with instrument panel LH removed)

9.

Steering lock solenoid M15
(view with steering column removed)

10. Key switch and ignition knob switch M12 11. A/T shift selector (park position switch)

M203
(view with center console removed)

12. Center console area antenna (front)

M210
(view with center console removed)

13. Center console area antenna (rear)

M209

14. Overhead console area antenna R210

(view with overhead console removed)

15. Luggage area antenna B76

(view with rear carpet removed)

16. Rear bumper antenna C7

(view with rear bumper removed)

17. Back door latch D503

18. Front outside antenna LH D15

Front outside antenna RH D115

19. Front door request switch LH D16

Front door request switch RH D116

20. Front door lock assembly LH (door un-

lock sensor) D14

21. Front door switch LH B8

RH B108

22. Rear door switch LH B18

RH B116

DOOR LOCK FUNCTION

DLK-21

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

DOOR REQUEST SWITCH : Component Description

INFOID:0000000005146878

INTELLIGENT KEY

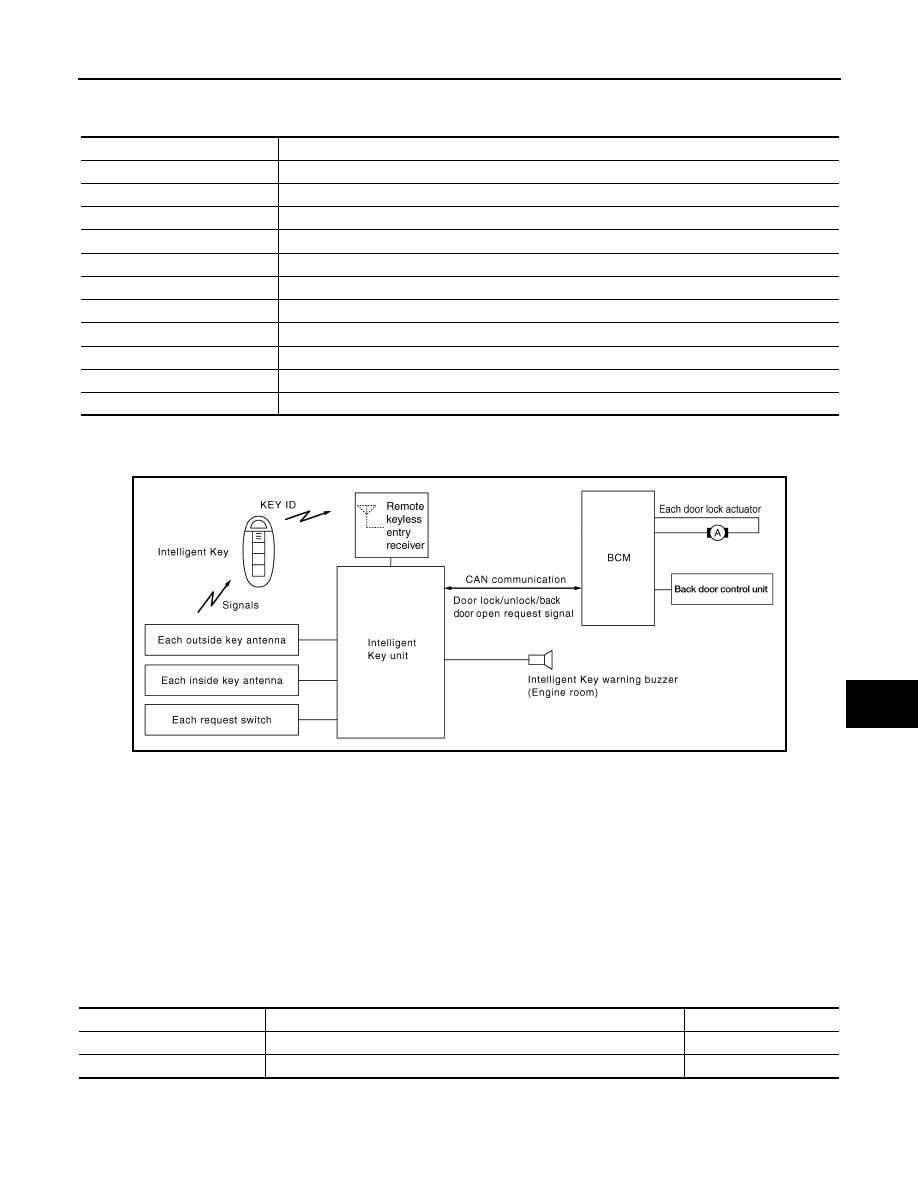

INTELLIGENT KEY : System Diagram

INFOID:0000000005146879

INTELLIGENT KEY : System Description

INFOID:0000000005146880

The Intelligent Key has the same functions as the remote control entry system. In addition to other safety fea-

tures, it can be used to lock and unlock all doors as well as open the back door.

OPERATION DESCRIPTION/DOOR LOCK/UNLOCK FUNCTION

• When door lock/unlock button of the Intelligent Key is pressed, lock signal or unlock signal is transmitted

from Intelligent Key to BCM via remote keyless entry receiver and Intelligent Key unit.

• When BCM receives the door lock/unlock signal, it operates door lock actuator, flashes the hazard lamp

(lock: 2 times, unlock: 1 time) and horn chirp signal to IPDM E/R at the same time as a reminder.

• IPDM E/R honks horn (lock: 2 times) as a reminder

OPERATION CONDITION

OPERATION AREA

• Operating Range

Item

Function

Intelligent Key unit

Receives lock/unlock signal from remote keyless entry receiver, and then transmits to BCM.

BCM

Controls the door lock function and room lamp function.

Door lock and unlock switch

Transmits lock or unlock signal to BCM.

Door lock actuator

Receives lock/unlock signal from BCM and locks/unlocks each door.

Door switch

Transmits door open/close condition to BCM.

Remote keyless entry receiver

Receives lock/unlock signal from the Intelligent Key, and then transmits to Intelligent Key unit.

Request switch

Transmits lock/unlock operation to Intelligent Key unit.

Intelligent Key

Transmits button operation to remote keyless entry receiver.

Outside key antenna

Detects if Intelligent Key is outside the vehicle.

Inside key antenna

Detects if Intelligent Key is inside the vehicle.

Intelligent Key warning buzzer

Warns the user of the lock/unlock condition and inappropriate operations with the buzzer sound.

ALKIA0704GB

Remote controller operation

Operation condition

Operation

Lock

• All doors closed

All doors lock

Unlock

• Intelligent Key is out of the ignition key cylinder

All doors unlock

DLK-22

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

DOOR LOCK FUNCTION

• To ensure the Intelligent Key works effectively, use within 80 cm range of each doors, however the operable

range may differ according to surroundings.

SELECTIVE UNLOCK FUNCTION

When a LOCK signal is transmitted from Intelligent Key, all doors will be locked.

When an UNLOCK signal is  transmitted from Intelligent Key once, driver's door will be unlocked.

Then, if an UNLOCK signal is transmitted from Intelligent Key again within 5 seconds, all other doors will be

unlocked.

When a liftgate signal is transmitted from Intelligent Key for more than 0.5 second, the back door operates to

the full open position. After opening, another signal will cause the back door to close.

HAZARD AND HORN REMINDER FUNCTION

When doors are locked or unlocked by Intelligent Key, BCM flashes hazard warning lamps as a reminder and

sends horn chirp signal to IPDM E/R. IPDM E/R sounds horn as a reminder.

The hazard and horn reminder has a horn chirp mode (C mode) and a non-horn chirp mode (S mode).

Operating function of hazard and horn reminder

Hazard and horn reminders do not operate if any door switch is ON (any door is OPEN).

How to change hazard and horn reminder mode

With CONSULT-III

Refer to

DLK-55, "INTELLIGENT KEY : CONSULT-III Function (BCM - INTELLIGENT KEY)"

.

Without CONSULT-III

Refer to Owner's Manual for instructions.

AUTO DOOR LOCK FUNCTION

Auto Door Lock Function

When all doors are locked, ignition switch is OFF (ignition switch is not pressed) and key switch is OFF, doors

are unlocked with Intelligent Key button. When BCM does not receive the following signals within 30 seconds,

all doors are locked.

• Door switch is ON (door is opened)

• Door is locked

• Ignition switch is ON

• Key switch is ON (mechanical key is inserted in ignition key cylinder)

Auto door lock mode can be changed by DOOR LOCK-UNLOCK SET mode in “WORK SUPPORT”. Refer to

DLK-53, "DOOR LOCK : CONSULT-III Function (BCM - DOOR LOCK)"

.

PANIC ALARM FUNCTION

When ignition switch is OFF (ignition switch is not pressed) and key switch is OFF, BCM receives PANIC

ALARM signal from Intelligent Key through the remote keyless entry receiver and the Intelligent Key unit.

BCM turns on and off headlamp intermittently and  transmits theft warning horn signal to IPDM E/R. Then,

IPDM E/R turns on and off horn intermittently.

The headlamp flashes and the horn sounds intermittently.

The alarm automatically turns off:

• After 25 seconds

• When BCM receives any signal from Intelligent Key

Panic alarm function mode can be changed by PANIC ALARM SET mode in “WORK SUPPORT”. Refer to

DLK-55, "INTELLIGENT KEY : CONSULT-III Function (BCM - INTELLIGENT KEY)"

.

KEYLESS POWER WINDOW DOWN (OPEN) FUNCTION

Front power windows (with left and right front power window anti-pinch system) open when the unlock button

on Intelligent Key is activated and kept pressed for more than 3 seconds with the ignition switch OFF. The win-

dows keep opening if the unlock button is continuously pressed.

The power window opening stops when the following operations are performed:

• When the unlock button is kept pressed more than 15 seconds.

• When the ignition switch is turned ON while the power window opening is operated.

• When the unlock button is released.

C mode

S mode

Intelligent Key operation

Lock

Unlock

Back door

open

Lock

Unlock

Back door

open

Hazard warning lamp flash

Twice

Once

—

Twice

—

—

Horns sound

Once

—

—

—

—

—
