Infiniti QX56 (JA60). Manual - part 211

DOOR LOCK FUNCTION

DLK-15

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

DLK

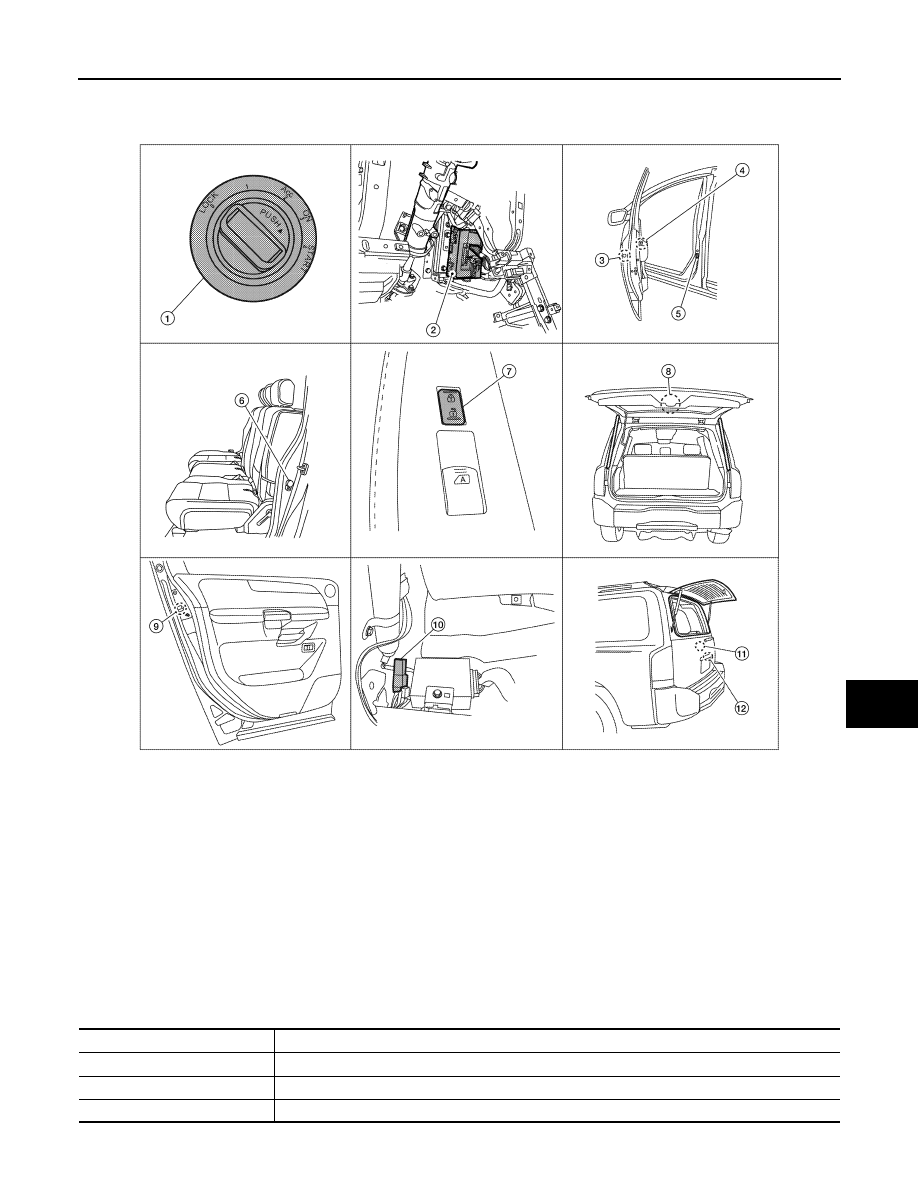

DOOR LOCK AND UNLOCK SWITCH : Component Parts Location

INFOID:0000000005146873

DOOR LOCK AND UNLOCK SWITCH : Component Description

INFOID:0000000005146874

Key switch and ignition knob switch M12 2.

BCM M18, M19, M20
(view with instrument panel removed)

Front door lock assembly LH (key
cylinder switch) D14
Front door lock actuator RH D114

Main power window and door lock/un-
lock switch D7, D8

Front door switch
LH B8
RH B108

Rear door switch
LH B18
RH B116

Power window and door lock/unlock
switch RH D105

Back door latch (door ajar switch)
D503

Rear door lock actuator
LH D205
RH D305

10. Passenger select unlock relay M7

(view with instrument panel LH removed)

11. Glass hatch lock actuator D711

12. Back door and glass hatch switch

assembly (glass hatch switch) D706

ALKIA1836ZZ

Item

Function

BCM

Controls the door lock function and room lamp function.

Door lock and unlock switch

Transmits lock or unlock signal to BCM.

Door lock actuator

Receives lock/unlock signal from BCM and locks/unlocks each door.

DLK-16

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

DOOR LOCK FUNCTION

DOOR REQUEST SWITCH

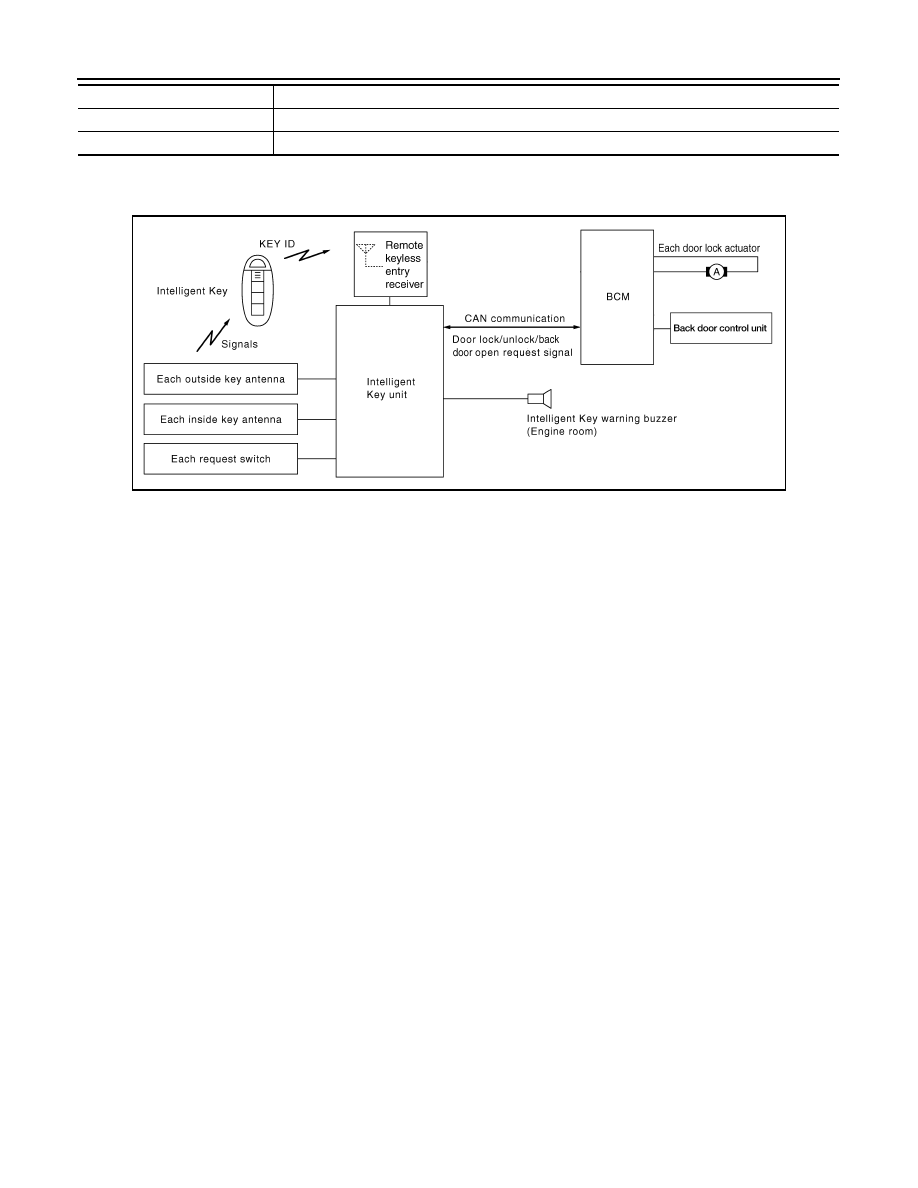

DOOR REQUEST SWITCH : System Diagram

INFOID:0000000005146875

DOOR REQUEST SWITCH : System Description

INFOID:0000000005146876

Only when pressing the request switch, it is possible to lock and unlock the door by carrying the Intelligent

Key.

• The Intelligent Key system is a system that makes it possible to lock and unlock the door locks (door lock/

unlock function) by carrying the Intelligent Key, which operates based on the results of electronic ID verifica-

tion using two-way communications between the Intelligent Key and the vehicle (BCM).

CAUTION:

The driver should always carry the Intelligent Key

• If an action that does not meet the operating conditions of the Intelligent Key system is taken, the buzzer

goes off to inform the driver (Warning chime function).

• When a door lock is locked or unlocked with request switch or remote controller button operation, the hazard

lamps flash and the Intelligent Key warning buzzer or horn sounds (Hazard and buzzer/horn reminder func-

tion).

• The settings for each function can be changed with the CONSULT-III.

• If an Intelligent Key is lost, a new Intelligent Key can be registered. A maximum of 4 Intelligent Keys can be

registered.

• It is possible to perform a diagnosis on the system and register an Intelligent Key with the CONSULT-III.

OPERATION DESCRIPTION/DOOR LOCK/UNLOCK

• When the BCM detects that each door request switch is pressed, it starts the outside key antenna and inside

key antenna corresponding to the pressed door request switch and transmits the request signal to the Intelli-

gent Key. And then, check that the Intelligent Key is near the door.

• If the Intelligent Key is within the outside key antenna detection area, it receives the request signal and

transmits the key ID signal to the BCM via remote keyless entry receiver.

• BCM receives the key ID signal and compares it with the registered key ID.

• BCM sends the door lock/unlock signal and sounds Intelligent Key buzzer warning (lock: 2 times, unlock: 1

time) at the same time as a reminder.

OPERATION CONDITION

If the following conditions are not satisfied, door lock/unlock operation is not performed even if the request

switch is operated.

Door switch

Transmits door open/close condition to BCM.

Passenger select unlock relay

Enables or disables the unlocking of rear doors when this Intelligent Key option is selected.

Item

Function

ALKIA0704GB

DOOR LOCK FUNCTION

DLK-17

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

DLK

*: Even with a registered Intelligent Key remaining inside the vehicle, door locks can be unlocked from outside of the vehicle with a spare
Intelligent Key as long as key IDs are different.

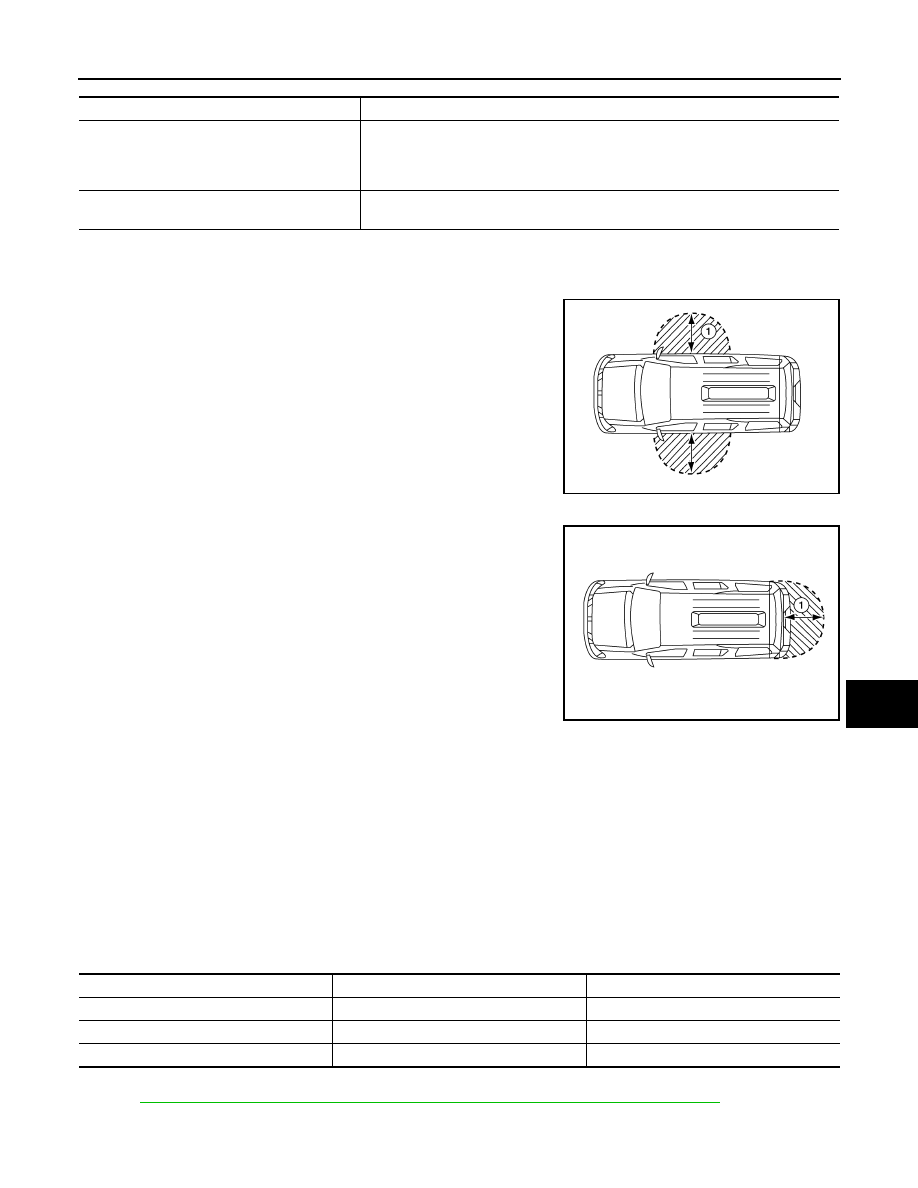

OUTSIDE KEY ANTENNA DETECTION AREA

The outside key antenna detection area of door lock/unlock function

is in the range of approximately 80 cm (31.50 in) surrounding the

driver and passenger door handles (1).

OUTSIDE KEY ANTENNA DETECTION AREA

The outside key antenna detection area of back door lock/unlock

function is in the range of approximately 80 cm (31.50 in) surround-

ing the back door handle (1).

SELECTIVE UNLOCK FUNCTION

When a LOCK signal is sent from door request switch (driver side or passenger side), all doors will be locked.

When an UNLOCK signal is sent from door request switch (driver side or passenger side) once, driver's door

will be unlocked.

Then, if an UNLOCK signal is sent from door request switch (driver side and passenger side) again within 5

seconds, all other doors will be unlocked.

HAZARD AND BUZZER REMINDER FUNCTION

During lock or unlock operation by each request switch, the hazard warning lamps and Intelligent Key warning

buzzer will blink or honk as a reminder.

When doors are locked, unlocked by each request switch, IPDM E/R honks Intelligent Key warning buzzer as

a reminder and transmits hazard request signal to BCM via CAN communication line.

BCM flashes hazard warning lamps as a reminder.

Operating function of hazard warning lamps and buzzer reminder

How to change hazard and buzzer reminder mode

Refer to

DLK-55, "INTELLIGENT KEY : CONSULT-III Function (BCM - INTELLIGENT KEY)"

AUTO DOOR LOCK FUNCTION

Each request switch operation

Operation condition

Lock operation

• All doors are closed
• Ignition switch is in OFF position
• Intelligent Key is outside the vehicle
• Intelligent Key is within outside key antenna detection area

Unlock Operation

• Intelligent Key is outside the vehicle
• Intelligent Key is within outside key antenna detection area *

ALKIA0582ZZ

ALKIA0581ZZ

Operation

Hazard warning lamps flash

Intelligent Key warning buzzer sounds

Unlock

Once

Lock

Twice

Back door open

—

Four times

DLK-18

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

DOOR LOCK FUNCTION

When all doors are locked, ignition switch is in OFF position and key switch is OFF, doors are unlocked with

door request switch

When BCM does not receive the following signals within 60 seconds, all doors are locked.

• Door switch is ON (door is opened)

• Door is locked

• Ignition switch is ON (ignition switch is pressed)

• Key switch is ON

Auto door lock mode can be changed by “AUTO LOCK SET” mode in “WORK SUPPORT”. Refer to

DLK-55,

"INTELLIGENT KEY : CONSULT-III Function (BCM - INTELLIGENT KEY)"

ROOM LAMP OPERATION

When the following conditions are met:

• Condition of interior lamp switch is in DOOR position

• Door switch OFF (all the doors are closed)

Intelligent Key system turns on interior lamp (for up to 30 seconds maximum) by receiving UNLOCK signal

from door request switch. For detailed description, refer to

DLK-14, "DOOR LOCK AND UNLOCK SWITCH :

System Description"

LIST OF OPERATION RELATED PARTS

Parts marked with

× are the parts related to operation.

Door lock function

tel

lig

t Ke

Ign

iti

y swi

tch

s en

try rec

ive

or swi

tch

or req

st sw

itch

(Driv

r, Pa

Doo

r lo

uat

de ke

y an

ten

y an

a (Dri

sse

er)

tel

lig

t Ke

warn

ing

uzze

CAN co

ati

n sys

tem

BCM

Hazard warning lamp

Door lock/unlock function by request switch

Hazard and buzzer reminder function for door lock/unlock
operation

Key reminder function

Selective unlock function by request switch
(Driver side)

Selective unlock function by request switch
(Passenger side)

Auto door lock function
