DIAGNOSIS AND REPAIR WORKFLOW

3.

SELF-DIAGNOSIS

Perform SELF-DIAGNOSIS. Refer to

WT-33, "Self-Diagnosis (With CONSULT-III)"

 or

WT-34, "Self-Diagnosis

(Without CONSULT-III)"

.

>> GO TO 4

4.

SYMPTOM

Check for symptoms.  Refer to

WT-36, "Symptom Table"

.

>> GO TO 5

5.

MALFUNCTIONING PARTS

Repair or replace the applicable parts.

>> GO TO 6

6.

DRIVE TEST

1. Perform a drive test.

2. Check the low tire pressure warning lamp.

>> GO TO 7

7.

SELF-DIAGNOSIS

Perform SELF-DIAGNOSIS. Refer to

WT-33, "Self-Diagnosis (With CONSULT-III)"

 or

WT-34, "Self-Diagnosis

(Without CONSULT-III)"

.

Are any DTC's displayed?

YES

>> GO TO 5

NO

>> Inspection End

INSPECTION AND ADJUSTMENT

WT-5

< BASIC INSPECTION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

INSPECTION AND ADJUSTMENT

Preliminary Check

INFOID:0000000005148203

1.

TIRE PRESSURE

Check all tire pressures. Refer to

WT-52, "Tire"

.

Do tire pressures match specification?

YES

>> GO TO 2.

NO

>> Adjust tire pressures to specified value.

2.

LOW TIRE PRESSURE WARNING LAMP

Check low tire pressure warning lamp activation.
Does the low tire pressure warning lamp activate for one second when ignition switch is turned ON?

YES

>> GO TO 3.

NO

>> GO TO

WT-37, "Low Tire Pressure Warning Lamp Does Not Come On When Ignition Switch Is

Turned On"

.

3.

BCM CONNECTOR

1. Disconnect BCM harness connectors.

2. Check terminals for damage or loose connections.

3. Reconnect harness connectors.
Are BCM connectors damaged or loose?

YES

>> Repair or replace damaged parts.

NO

>> GO TO 4.

4.

TRANSMITTER ACTIVATION TOOL

Check battery in transmitter activation tool.
Is transmitter activation tool battery fully charged?

YES

>> Perform self-diagnosis.  Refer to

WT-33, "Self-Diagnosis (With CONSULT-III)"

.

NO

>> Replace battery in transmitter activation tool.

Transmitter Wake Up Operation

INFOID:0000000005148204

NOTE:

This procedure must be done after replacement of a low tire pressure warning transmitter or BCM.

New replacement transmitters are provided "asleep" and must first be "woken up" using Transmitter

Activation Tool J-45295 before ID registration can be performed.

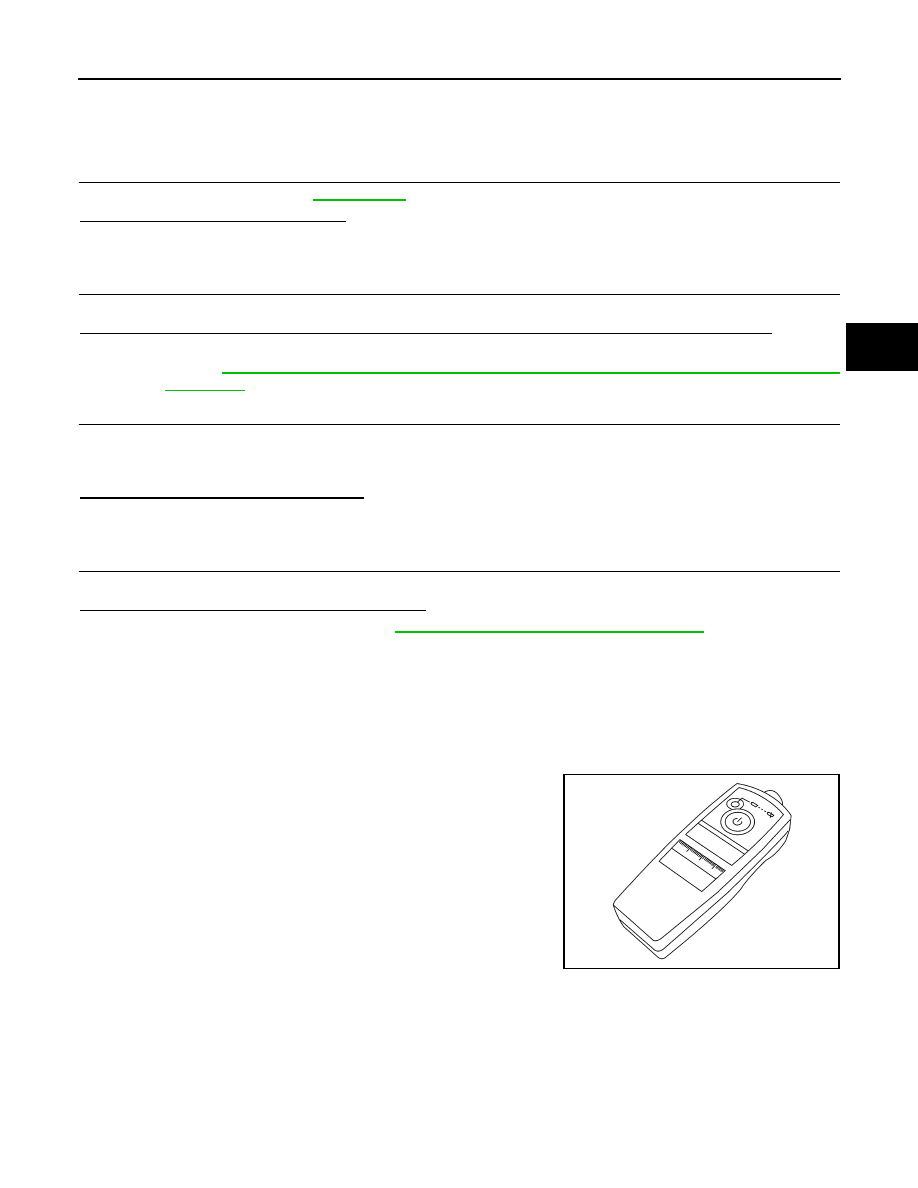

1. Turn ignition switch ON. Push the transmitter activation tool

against the tire near the front left transmitter. Press the button for

5 seconds.  The hazard warning lamps flash per the following

diagram.

2. Repeat this procedure for each tire in the following order: FL, FR, RR, RL.

Tool number

: (J-45295)

LEIA0036E

WT-6

< BASIC INSPECTION >

INSPECTION AND ADJUSTMENT

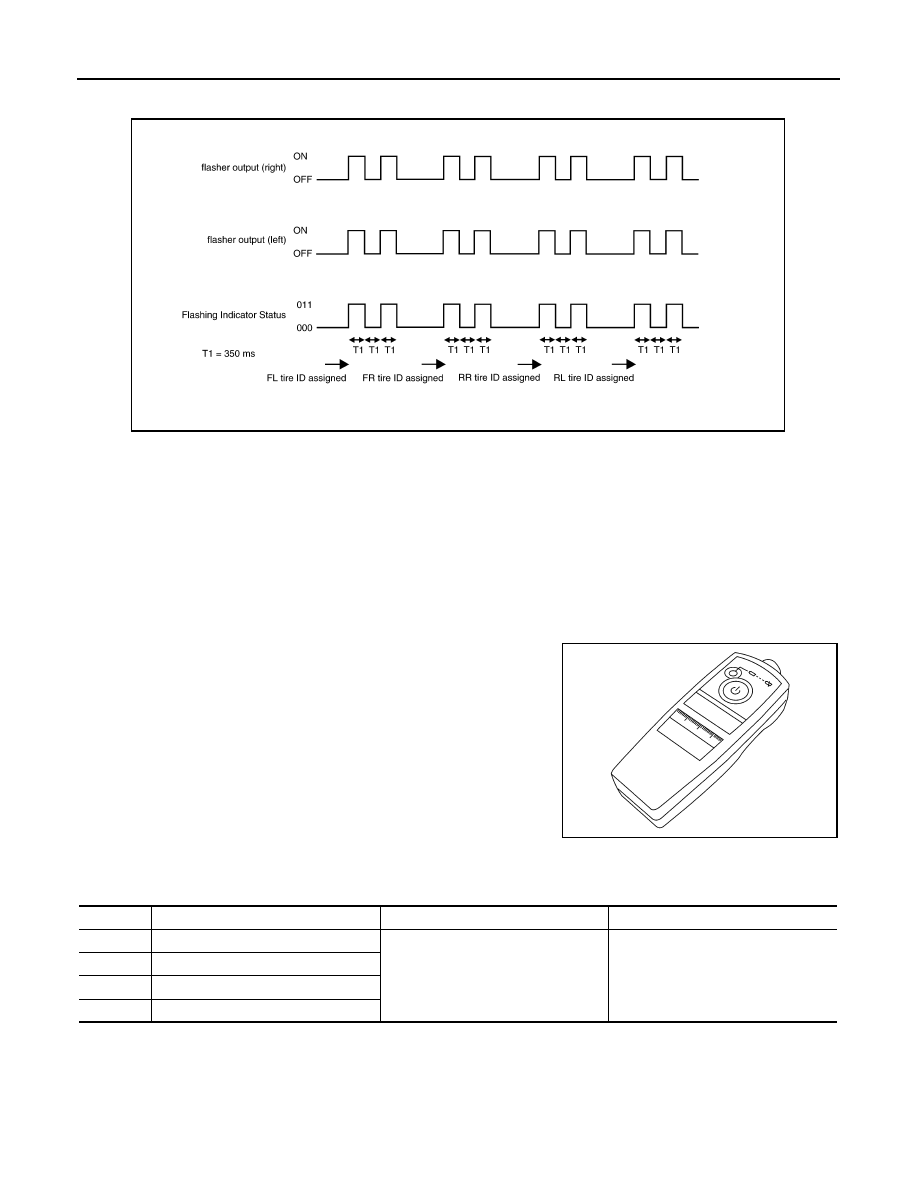

3. When the BCM finishes assigning each tire ID, the BCM flashes the hazard warning lamps and sends

flashing indicator status by CAN according to the following time chart.

4. After completing wake up of all transmitters, make sure low tire pressure warning lamp goes out.

ID Registration Procedure

INFOID:0000000005148205

ID REGISTRATION WITH TRANSMITTER ACTIVATION TOOL

NOTE:

This procedure must be done after replacement of a low tire pressure warning transmitter or BCM.

New replacement transmitters are provided "asleep" and must first be "woken up" using Transmitter

Activation Tool J-45295 before ID registration can be performed.
1. Connect CONSULT-III.
2. Select "ID REGIST" under BCM.
3. Push the transmitter activation tool against the tire near the front

left transmitter. Press the button for 5 seconds.

4. Register the IDs in order from FR LH, FR RH, RR RH and RR LH. When ID registration of each wheel has

been completed, the hazard warning lamps flash.

5. After completing all ID registrations, press “END” to complete the procedure.
NOTE:

Be sure to register all of the IDs in order from FR LH, FR RH, RR RH, to RR LH, or the self-diagnostic results

display will not function properly.

ID REGISTRATION WITHOUT TRANSMITTER ACTIVATION TOOL

NOTE:

WEIA0177E

Tool number

: (J-45295)

LEIA0036E

Step

Activation tire position

Hazard warning lamp

CONSULT-III

1

Front LH

2 times flashing

“YET”

↓

“DONE”

2

Front  RH

3

Rear  RH

4

Rear LH

INSPECTION AND ADJUSTMENT

WT-7

< BASIC INSPECTION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

This procedure must be done after replacement of a low tire pressure warning transmitter or BCM.

New replacement transmitters are provided "asleep" and must first be "woken up" using Transmitter

Activation Tool J-45295 before ID registration can be performed.
1. Connect CONSULT-III.
2. Select "ID REGIST" under BCM.
3. Adjust the tire pressures to the values shown in the table and drive the vehicle at 40 km/h (25 MPH) or

more for a few minutes.

4. After completing all ID registrations, press “END” to complete the procedure.

5. Inflate all tires to proper pressure. Refer to

WT-52, "Tire"

.

Tire position

Tire pressure kPa (kg/cm

2

, psi)

Front LH

250 (2.5, 36)

Front RH

230 (2.3, 33)

Rear RH

210 (2.1, 30)

Rear LH

190 (1.9, 27)

Activation tire position

CONSULT-III

Front LH

“YET”

↓

“DONE”

Front RH

Rear RH

Rear LH
