Infiniti QX56 (JA60). Manual - part 91





AV-172

< ON-VEHICLE REPAIR >

[AUDIO SYSTEM]

FRONT TWEETER

FRONT TWEETER

Removal and Installation

INFOID:0000000005146358

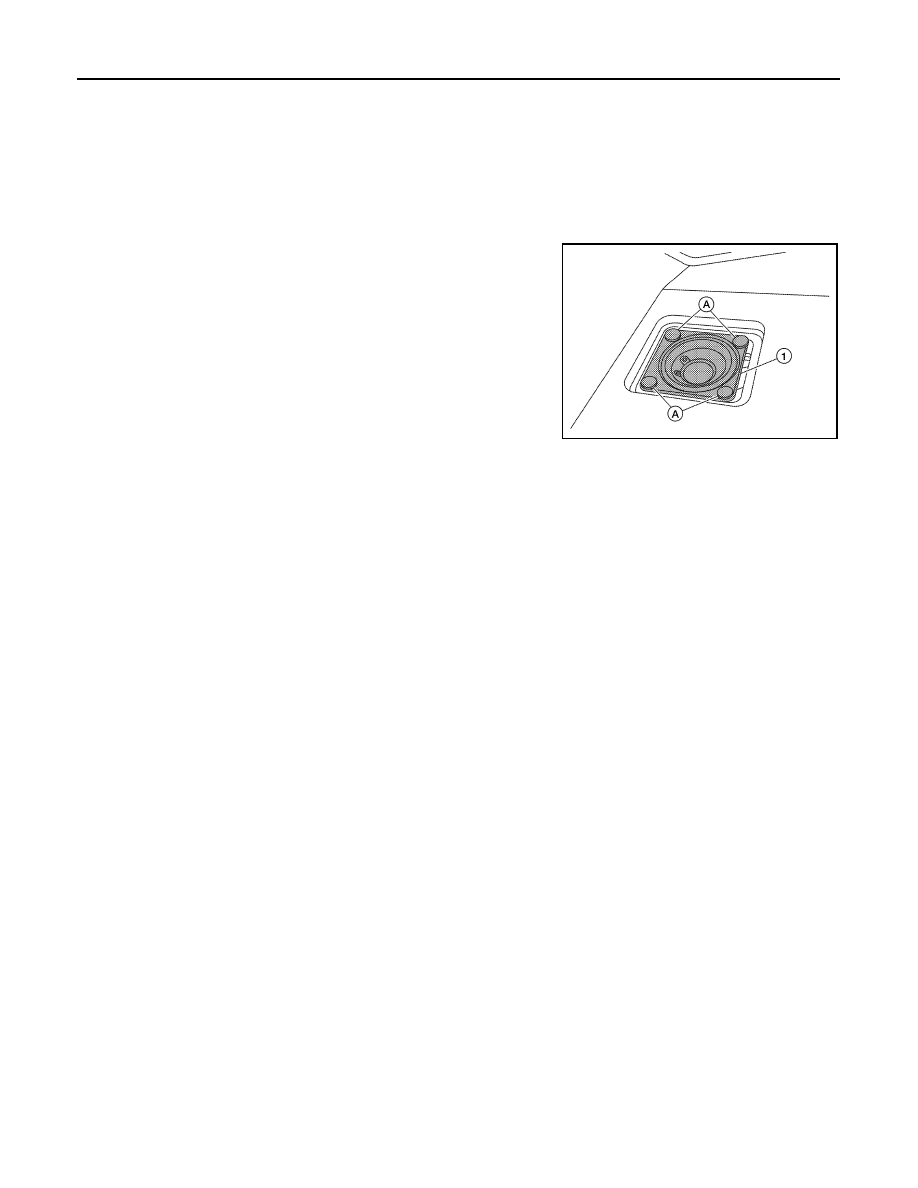

REMOVAL

CAUTION:

Use a suitable tool to prevent damage to the tweeter speaker grille trim and the instrument panel.
1. Remove front tweeter speaker grille.
2. Remove the front tweeter clips (C103) (A).
3. Disconnect the front tweeter connector.
4. Remove the front tweeter (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0202ZZ

AV

CENTER SPEAKER

AV-173

< ON-VEHICLE REPAIR >

[AUDIO SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

CENTER SPEAKER

Removal and Installation

INFOID:0000000005146359

REMOVAL

CAUTION:

Use a suitable tool to prevent damage to the center speaker grille and the instrument panel.
1. Using a suitable tool, remove the center speaker grille finisher

(1).

2. Disconnect the center speaker connector (A).
3. Remove the center speaker screws (B).
4. Remove the center speaker (2).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0275ZZ

AV-174

< ON-VEHICLE REPAIR >

[AUDIO SYSTEM]

FRONT DOOR SPEAKER

FRONT DOOR SPEAKER

Removal and Installation

INFOID:0000000005146360

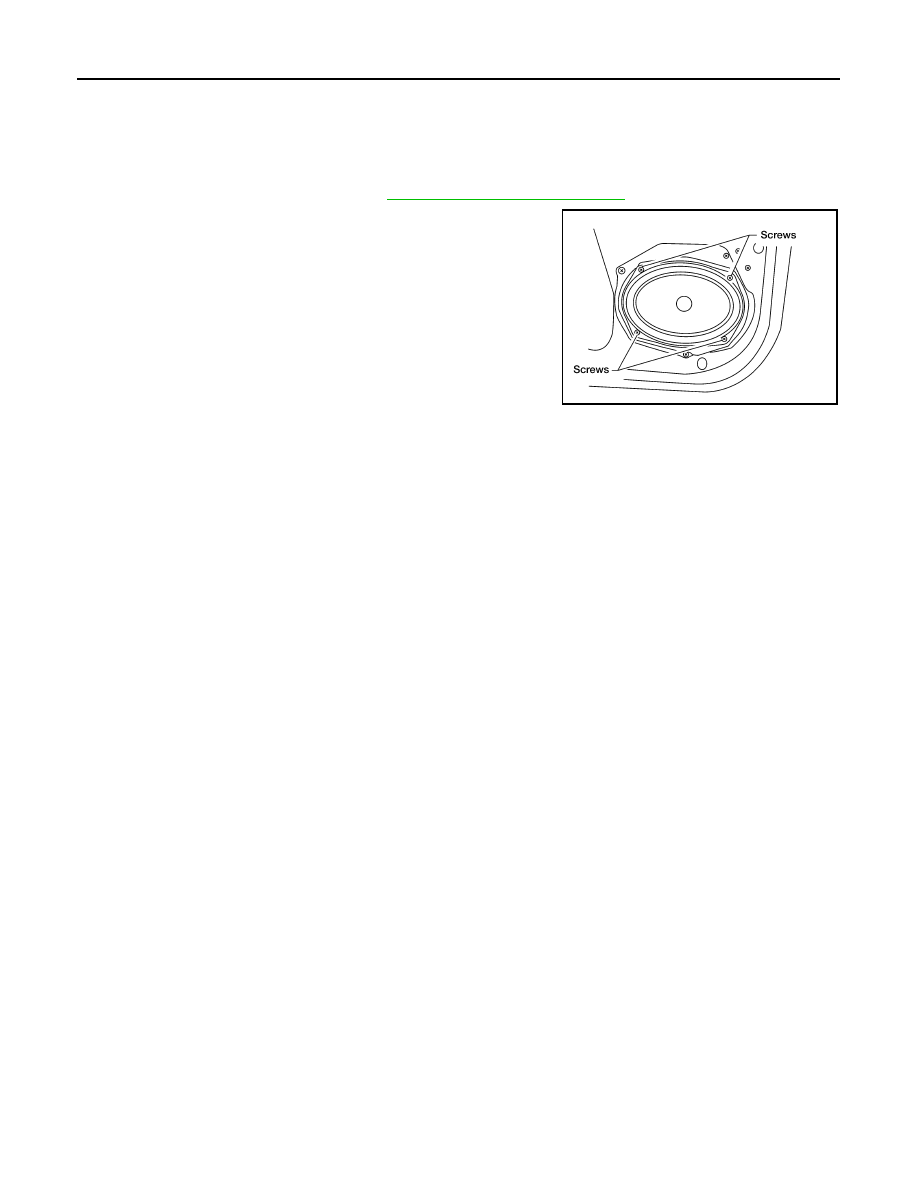

REMOVAL

1. Remove the front door finisher. Refer to

INT-11, "Removal and Installation"

.

2. Remove the front door speaker screws.
3. Disconnect the front door speaker connector.
4. Remove the front door speaker.

INSTALLATION

Installation is in the reverse order of removal.

WKIA1498E

AV

REAR DOOR SPEAKER

AV-175

< ON-VEHICLE REPAIR >

[AUDIO SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REAR DOOR SPEAKER

Removal and Installation

INFOID:0000000005146361

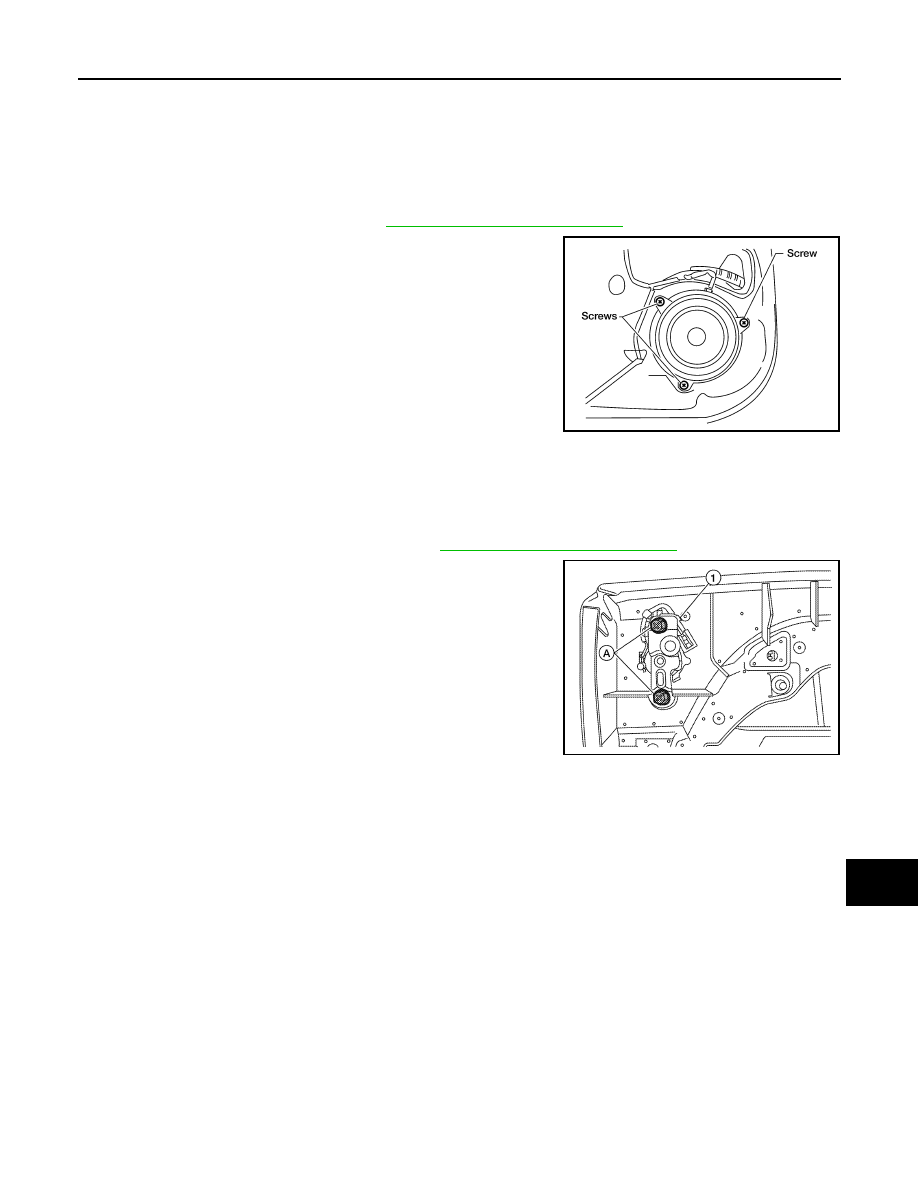

REAR DOOR SPEAKER

Removal

1. Remove the rear door finisher. Refer to

INT-11, "Removal and Installation"

.

2. Remove the rear door speaker screws.
3. Disconnect the rear door speaker connector.
4. Remove the rear door speaker.

Installation

Installation is in the reverse order of removal.

REAR DOOR TWEETER

Removal

1. Partially remove the rear door finisher. Refer to

INT-11, "Removal and Installation"

.

2. Remove the rear door tweeter screws (A).
3. Remove the rear door tweeter (1).

Installation

Installation is in the reverse order of removal.

WKIA1492E

ALNIA0269ZZ
