RECLINING SENSOR

Description

INFOID:0000000005147529

• The reclining motor is installed to the seatback assembly.

• The pulse signal is inputted to the driver seat control unit when the reclining is operated.

• The driver seat control unit counts the pulse and calculates the reclining amount of the seat.

Component Function Check

INFOID:0000000005147530

1.

 CHECK FUNCTION

1. Select “RECLN PULSE” in “Data monitor” mode with CONSULT-III.

2. Check reclining sensor signal under the following conditions.

Is the indication normal?

YES

>> Inspection End.

NO

>> Perform diagnosis procedure. Refer to

ADP-83, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000005147531

Regarding Wiring Diagram information, refer to

ADP-119, "Wiring Diagram"

.

1.

 CHECK RECLINING SENSOR SIGNAL

1. Turn ignition switch OFF.

2. Read voltage signal between driver seat control unit harness

connector and ground with oscilloscope.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> GO TO 2

2.

 CHECK RECLINING SENSOR CIRCUIT

Monitor item

Condition

Value

RECLN PULSE

Seat reclining

Operate (forward)

Change (increase)

Operate (backward)

Change (decrease)

Release

No change

Terminals

Condition

Voltage signal

(+)

(–)

Driver

seat con-

trol unit

Termi-

nal

B202

9

Ground

Seat
reclin-
ing

Operate

Other
than
above

0 or 5

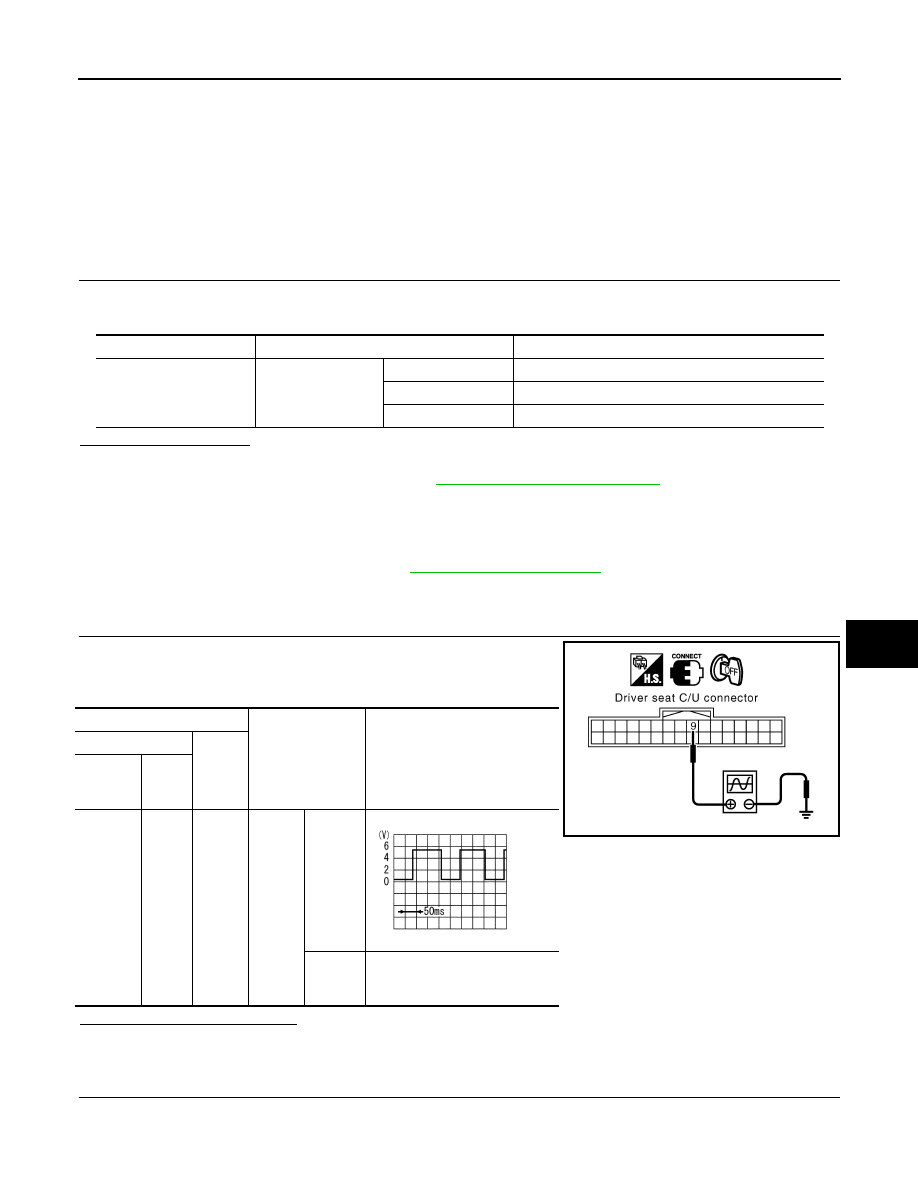

PIIA4559E

SIIA0692J

ADP-84

< COMPONENT DIAGNOSIS >

RECLINING SENSOR

1. Disconnect driver seat control unit and reclining motor LH.

2. Check continuity between driver seat control unit harness con-

nector and reclining motor LH harness connector.

3. Check continuity between driver seat control unit harness con-

nector and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace harness.

3.

 CHECK SEAT OPERATION

1. Connect driver seat control unit and reclining motor LH.

2. Check seat operation (except reclining operation) with memory function.
Is the operation normal?

YES

>> Replace reclining motor LH. (Built in seatback assembly). Refer to

SE-69, "Disassembly and

Assembly"

.

NO

>> Replace driver seat control unit. Refer to

ADP-174, "Removal and Installation"

.

4.

 CHECK INTERMITTENT INCIDENT

Refer to

GI-38, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> Replace driver seat control unit. Refer to

ADP-174, "Removal and Installation"

.

NO

>> Repair or replace the malfunctioning part.

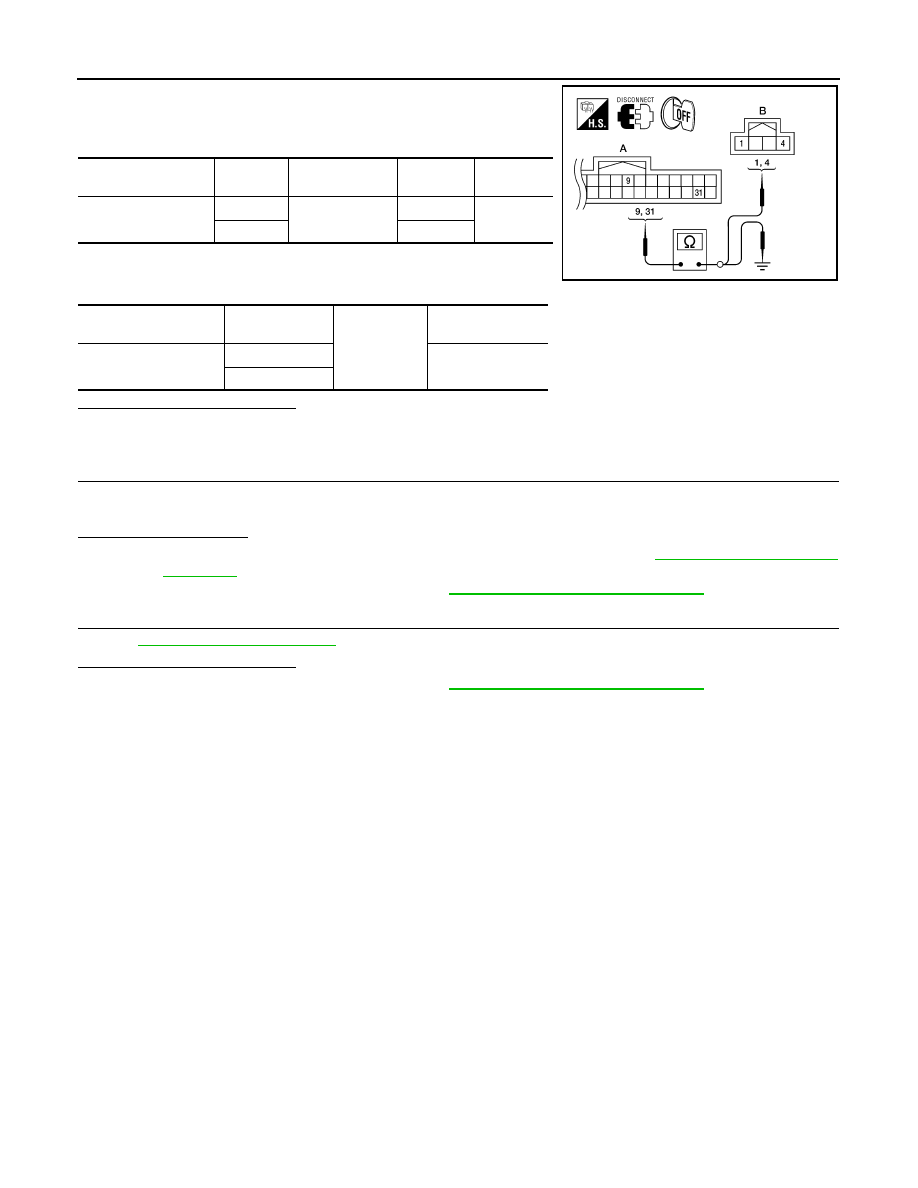

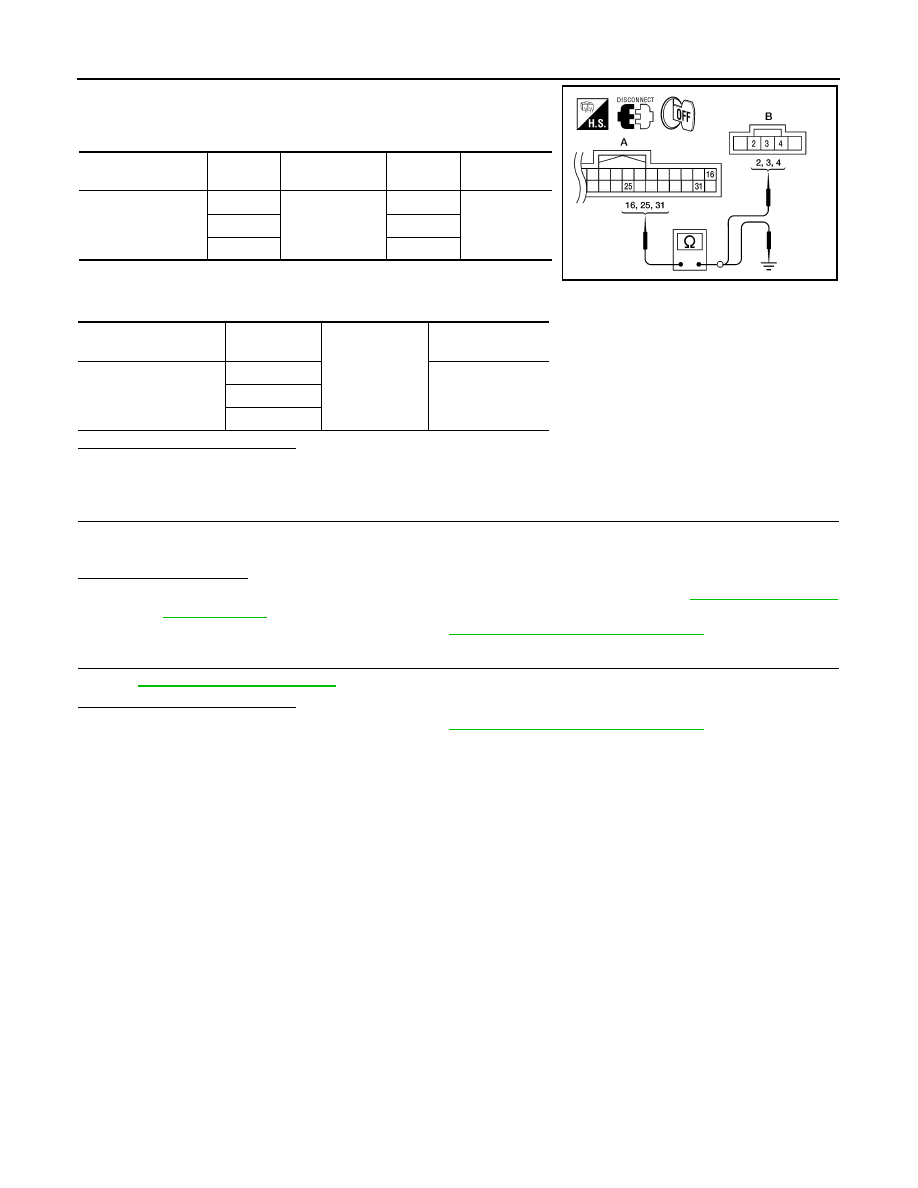

Driver seat control

unit connector

Terminal

Reclining motor

connector

Terminal

Continuity

B202 (A)

9

B205 (B)

1

Yes

31

4

Driver seat control unit

connector

Terminal

Ground

Continuity

B202 (A)

9

No

31

ALJIA0318ZZ

LIFTING SENSOR (FRONT)

ADP-85

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

LIFTING SENSOR (FRONT)

Description

INFOID:0000000005147532

• The lifting sensor (front) is installed to the power seat frame assembly.

• The pulse signal is input to the driver seat control unit when the lifting (front) is operated.

• The driver seat control unit counts the pulse and calculates the lifting (front) amount of the seat.

Component Function Check

INFOID:0000000005147533

1.

CHECK FUNCTION

1. Select “LIFT FR PULSE” in “Data monitor” mode with CONSULT-III.

2. Check the lifting sensor (front) signal under the following conditions.

Is the indication normal?

YES

>> Inspection End.

NO

>> Perform diagnosis procedure. Refer to

ADP-85, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000005147534

Regarding Wiring Diagram information, refer to

ADP-119, "Wiring Diagram"

.

1.

 CHECK LIFTING SENSOR (FRONT) SIGNAL

1. Turn ignition switch OFF.

2. Read the voltage signal between driver seat control unit harness

connector and ground with an oscilloscope.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> GO TO 2

2.

 CHECK LIFTING SENSOR (FRONT) CIRCUIT

Monitor item

Condition

Value

LIFT FR PULSE

Seat lifting (front)

Operate (up)

Change (increase)

Operate (down)

Change (decrease)

Release

No change

Terminals

Condition

Voltage signal

(+)

(–)

Driver

seat con-

trol unit

connector

Termi-

nal

B202

25

Ground

Seat
lifting
(front)

Oper-
ate

Other
than
above

0 or 5

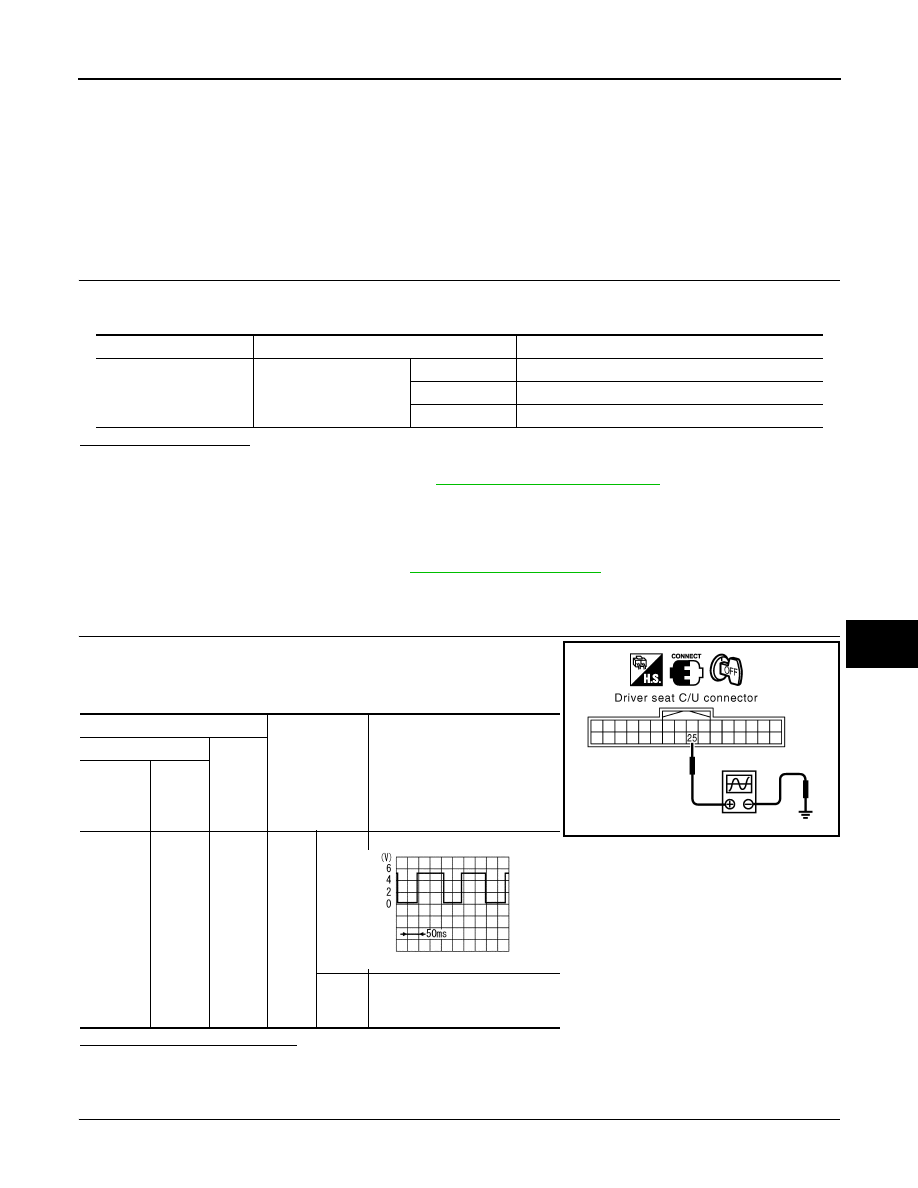

PIIA4561E

SIIA0691J

ADP-86

< COMPONENT DIAGNOSIS >

LIFTING SENSOR (FRONT)

1. Disconnect driver seat control unit and lifting motor (front).

2. Check continuity between driver seat control unit harness con-

nector and lifting motor (front) harness connector.

3. Check continuity between driver seat control unit harness con-

nector and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace harness.

3.

 CHECK SEAT OPERATION

1. Connect driver seat control unit and lifting motor (front).

2. Check seat operation [except lifting (front) operation] with memory function.
Is the operation normal?

YES

>> Replace lifting motor (front). (Built in power seat frame assembly). Refer to

SE-69, "Disassembly

and Assembly"

.

NO

>> Replace driver seat control unit. Refer to

ADP-174, "Removal and Installation"

.

4.

 CHECK INTERMITTENT INCIDENT

Refer to

GI-38, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> Replace driver seat control unit. Refer to

ADP-174, "Removal and Installation"

.

NO

>> Repair or replace the malfunctioning part.

Driver seat control

unit connector

Terminal

Lifting motor

(front) connector

Terminal

Continuity

B202 (A)

16

B206 (B)

3

Yes

25

4

31

2

Driver seat control unit

connector

Terminal

Ground

Continuity

B202 (A)

16

No

25

31

ALJIA0319ZZ
