Infiniti QX56 (Z62). Manual - part 935

MIR-32

< REMOVAL AND INSTALLATION >

OUTSIDE MIRROR

OUTSIDE MIRROR

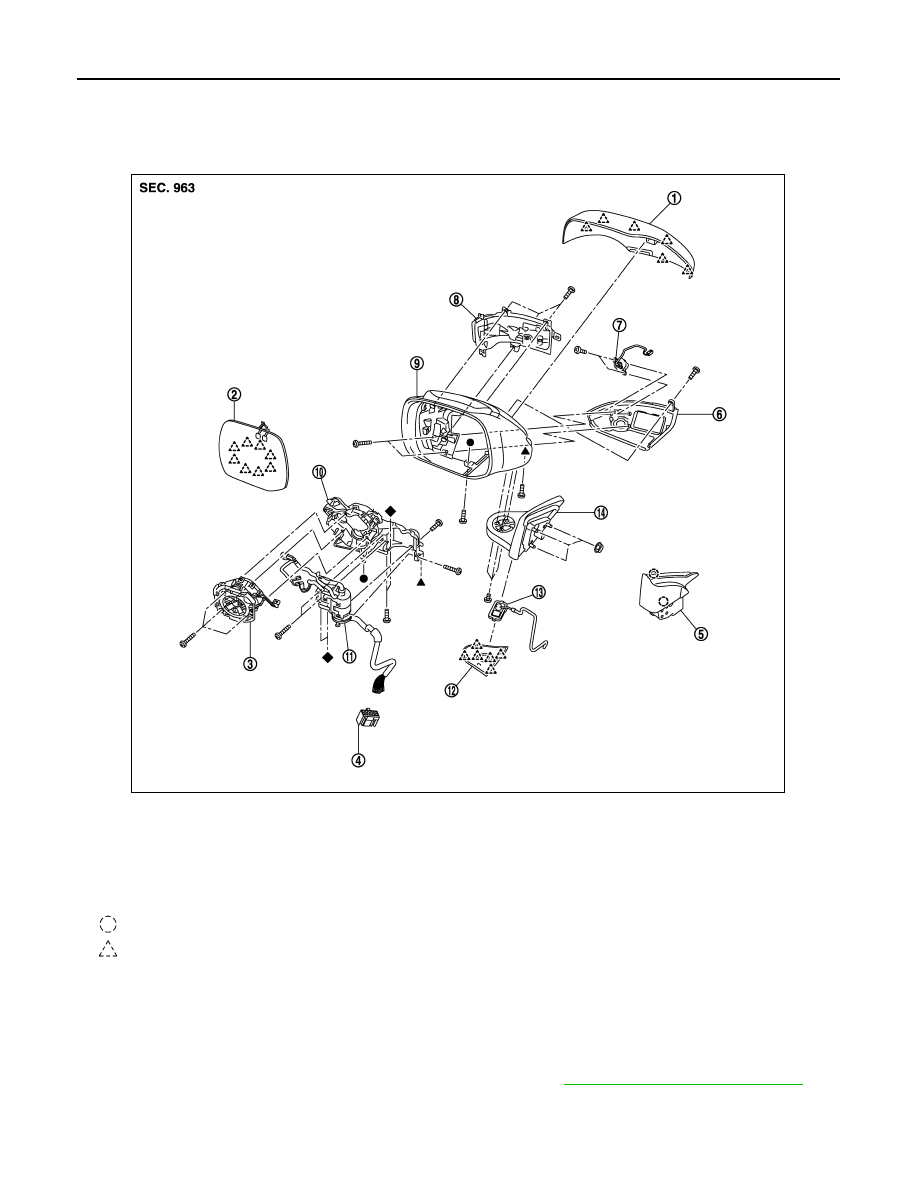

Exploded View

INFOID:0000000006257236

DOOR MIRROR ASSEMBLY

DOOR MIRROR ASSEMBLY : Removal and Installation

INFOID:0000000006257237

REMOVAL

1.

Remove front door finisher and door mirror corner cover. Refer to

INT-14, "Removal and Installation"

.

2.

Disconnect door mirror assembly harness connector.

3.

Remove door mirror mounting nuts, and then remove door mirror assembly.

1.

Door mirror cover

2.

Glass mirror

3.

Actuator assembly

4.

Connector

5.

Door mirror cover

6.

Side camera finisher

7.

Around view camera

8.

Side turn signal lamp

9.

Housing

10. Bracket

11.

Power fold unit

12. Base cover

13. Puddle lamp

14. Base

: Clip

: Pawl

JMLIA1144ZZ

OUTSIDE MIRROR

MIR-33

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

Perform camera image calibration (with side camera models). Refer to

AV-112, "Work Procedure"

.

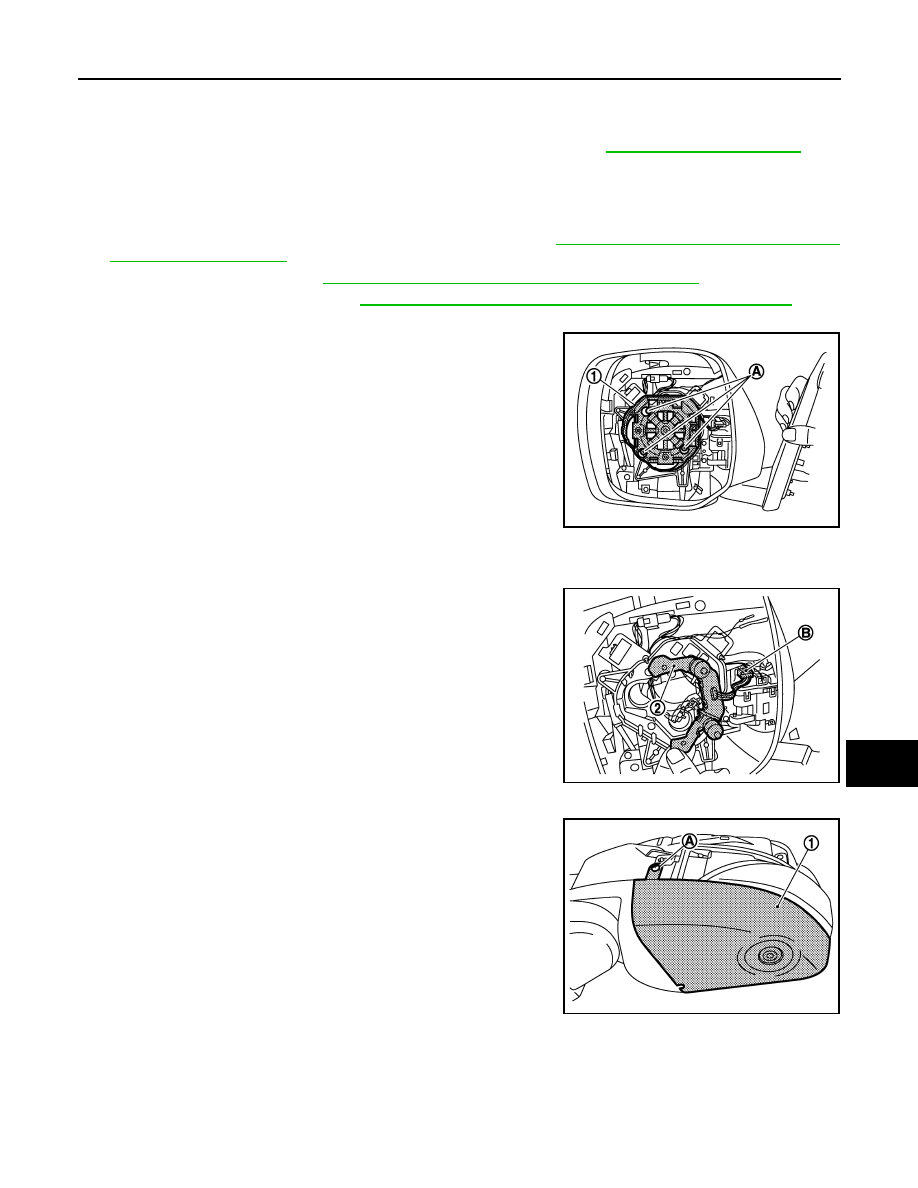

DOOR MIRROR ASSEMBLY : Disassembly and Assembly

INFOID:0000000006257238

DISASSEMBLY

1.

Remove door mirror assembly from front door panel. Refer to

MIR-32, "DOOR MIRROR ASSEMBLY :

Removal and Installation"

.

2.

Remove glass mirror. Refer to

MIR-35, "GLASS MIRROR : Removal and Installation"

.

3.

Remove door mirror cover. Refer to

MIR-36, "DOOR MIRROR COVER : Removal and Installation"

.

4.

Remove actuator.
1.

Remove actuator (1) fixing screws (A).

2.

Disconnect the harness connectors behind the actuator.

NOTE:
Disconnect the harness connector (B) of automatic driving posi-
tion system (2) if equipped.

5.

Remove side camera finisher assembly (1).
1.

Remove side camera finisher fixing screw (A).

JMLIA0910ZZ

JMLIA0911ZZ

JMLIA0912ZZ

MIR-34

< REMOVAL AND INSTALLATION >

OUTSIDE MIRROR

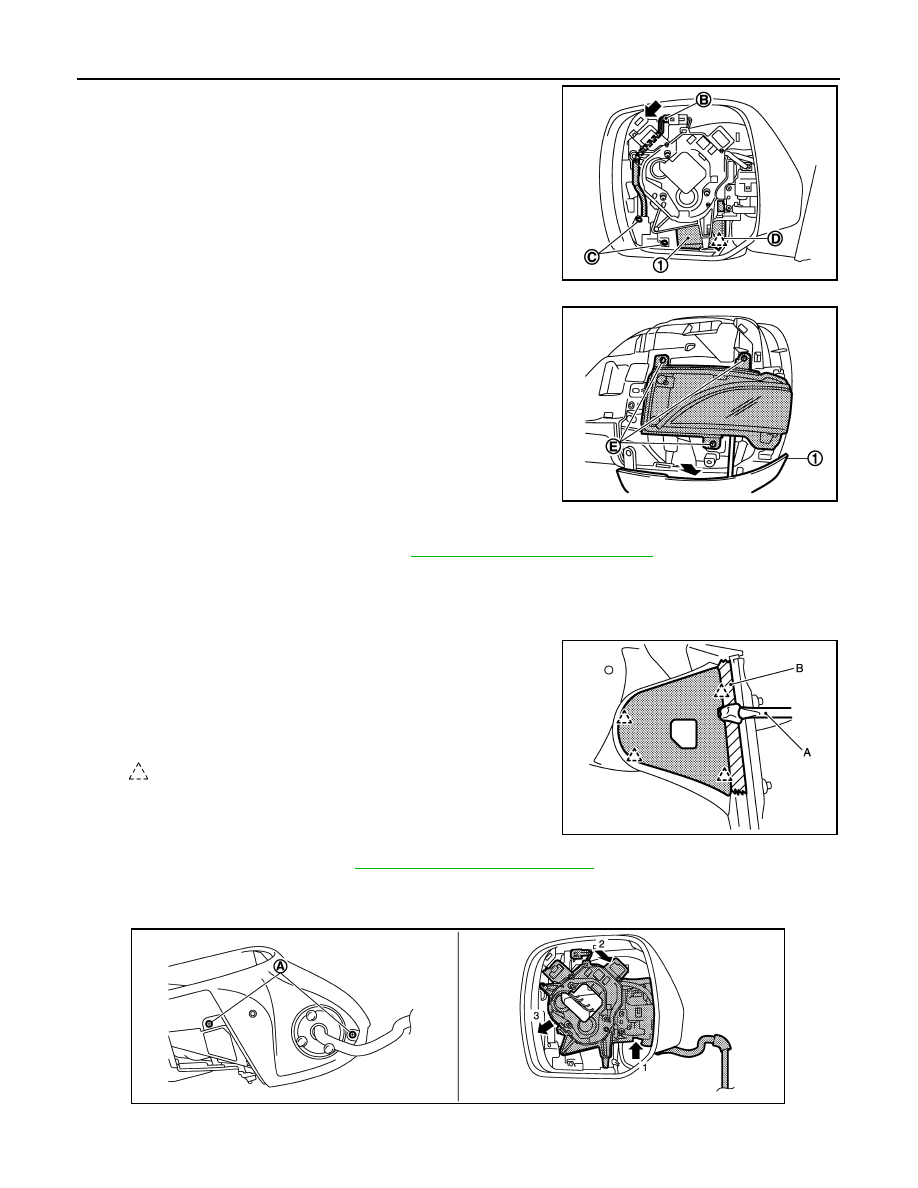

2.

Disconnect harness connector (B), and remove screws (C)
and pawl (D) fixing the side camera finisher (1) to housing.

3.

Remove side turn signal lamp fixing screws (E), and then
remove side turn signal lamp.
NOTE:
Pull slightly side camera finisher (1) covering side turn sig-
nal lamp bottom screw.

4.

Remove side camera finisher assembly.

5.

Remove around view camera. Refer to

AV-233, "Removal and Installation"

.

6.

Remove all the harness connector terminal from the connector.
NOTE:
Write a short note to describe connector terminal layout before starting operation.

7.

Remove base.
1.

Remove base cover.
Remove base cover fixing pawls with a flat-bladed screw-
driver (A) wrapped into a tape.

CAUTION:

Apply protective tape (B) around the base to protect the
surface from damage.

2.

Remove puddle lamp. Refer to

INL-79, "Removal and Installation"

.

3.

Remove base mounting bolts located under base cover.

4.

Remove base.

8.

Remove the fixing screws (A), and then remove power fold unit and bracket from housing.

JMLIA0913ZZ

JMLIA0914ZZ

: Pawl

JMLIA1146ZZ

JMLIA0923ZZ

OUTSIDE MIRROR

MIR-35

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

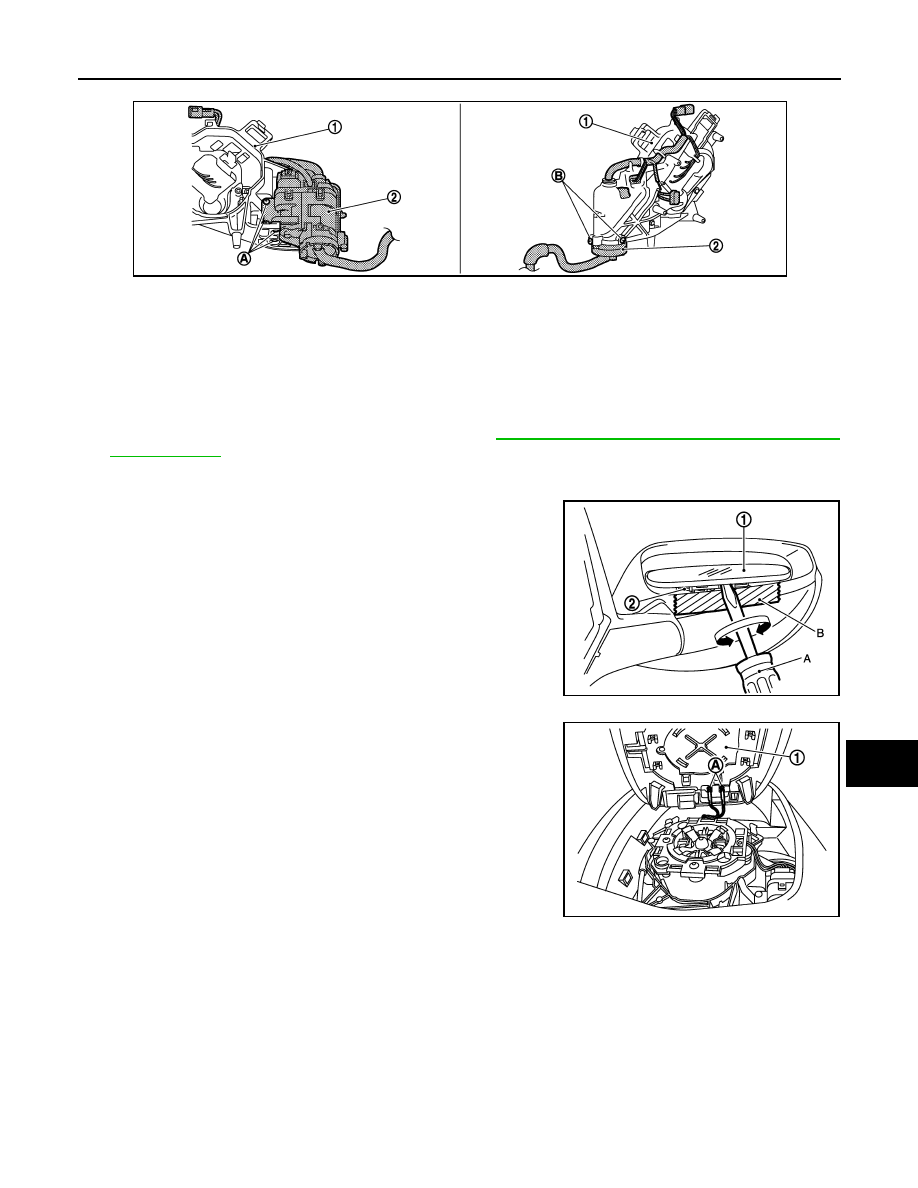

9.

Remove fixing screws (A), (B) and then remove power fold unit (2) from bracket (1).

ASSEMBLY

Assemble in the reverse order of disassembly.

GLASS MIRROR

GLASS MIRROR : Removal and Installation

INFOID:0000000006257239

REMOVAL

1.

Remove door mirror assembly from front door. Refer to

MIR-32, "DOOR MIRROR ASSEMBLY : Removal

and Installation"

.

2.

Remove glass mirror.
1.

Place the glass mirror upward.

2.

Put a strip of protective tape (B) on housing assembly.

3.

As shown in the figure, insert a small flat-bladed screwdriver
(A) between glass mirror (1) and actuator (2). Push up both
pawls simultaneously to remove glass mirror lower half side.
NOTE:
Insert flat-bladed screwdriver into recesses, and push up
while rotating (twisting) to make work easier.

4.

Remove terminals (A) of mirror heater attachment from
glass mirror (1) if equipped.

3.

Lightly lift up lower side of glass mirror, and detach both pawls of upper side as if pulling it out to disas-
semble glass mirror from actuator.
NOTE:
Be careful not to allow grease on sealing agent in center of mirror or back side of glass mirror.

INSTALLATION

Note the following item, and then install in the reverse order n the reverse order of disassembly.

CAUTION:

After installation, visually check that pawls are securely engaged.

DOOR MIRROR COVER

JMLIA0924ZZ

JMLIA0158ZZ

JMLIA0908ZZ
