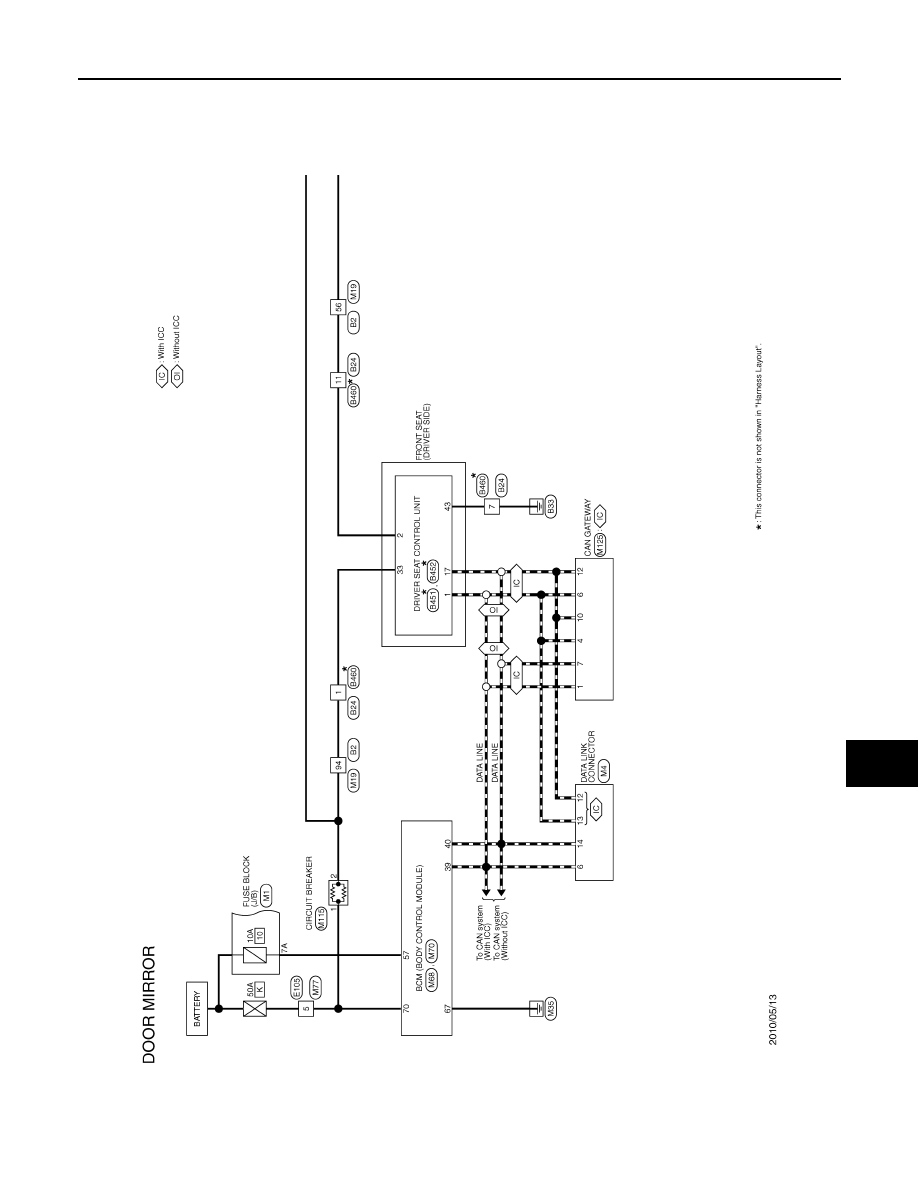

DOOR MIRROR SYSTEM

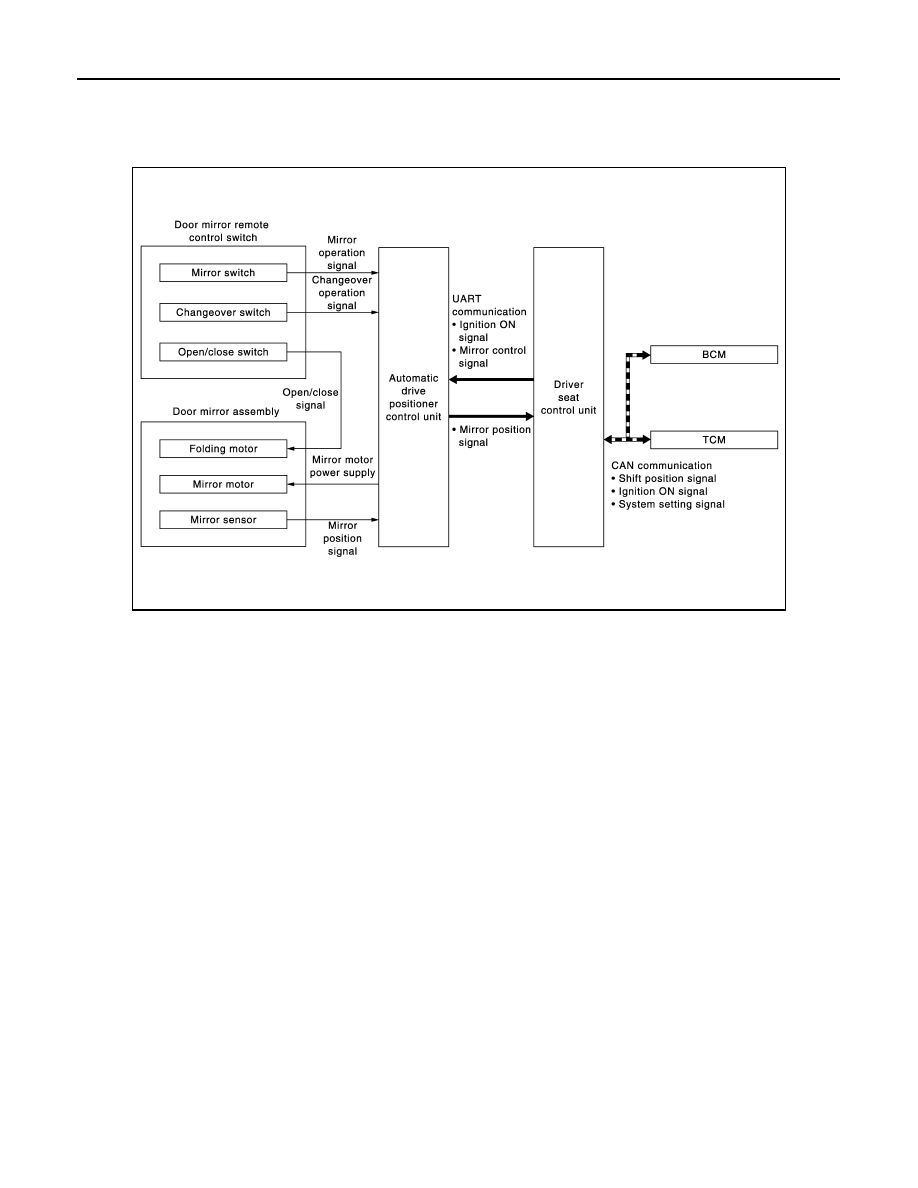

DOOR MIRROR SYSTEM : System Diagram
INFOID:0000000006257222
DOOR MIRROR SYSTEM : System Description
INFOID:0000000006257223
MANUAL FUNCTION
Description
• Automatic drive positioner control unit controls door mirror.
• Automatic drive positioner control unit inputs changeover switch signal and perform the LH/RH control of
door mirror motor supplying electric power when changeover switch is operated.
• Automatic drive positioner control unit inputs mirror switch signal and supplies electric power to door mirror.
• The ignition switch signal (ACC/ON) is transmitted from BCM to driver seat control unit via CAN communica-
tion and from driver seat control unit to automatic drive positioner control unit via UART communication.
Operation Conditions
If the following conditions are not satisfied, operation is not performed.
• Ignition switch: ON or ACC
• Changeover switch: Select either left or right
REVERSE INTERLOCK DOOR MIRROR SYSTEM
Description
• Select either of the door mirror faces by changeover switch, and then set mirror face downward.
• When ignition switch is ON position and A/T shift selector is in R position, TCM sends the R signal to driver
seat control unit.
• The R signal is transmitted to automatic drive positioner control unit from driver seat control unit via UART
communication.
• When the R signal is detected, automatic drive positioner control unit activated mirror motor.
Operation Conditions
If the following conditions are not satisfied, operation is not performed.
• Ignition switch: ON
JMLIA0872GB
