Infiniti QX56 (Z62). Manual - part 928





MIR-4

< PRECAUTION >

PRECAUTIONS

5.

When the repair work is completed, re-connect both battery cables. With the brake pedal released, turn
the push-button ignition switch from ACC position to ON position, then to LOCK position. (The steering
wheel will lock when the push-button ignition switch is turned to LOCK position.)

6.

Perform self-diagnosis check of all control units using CONSULT-III.

PREPARATION

MIR-5

< PREPARATION >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

PREPARATION

PREPARATION

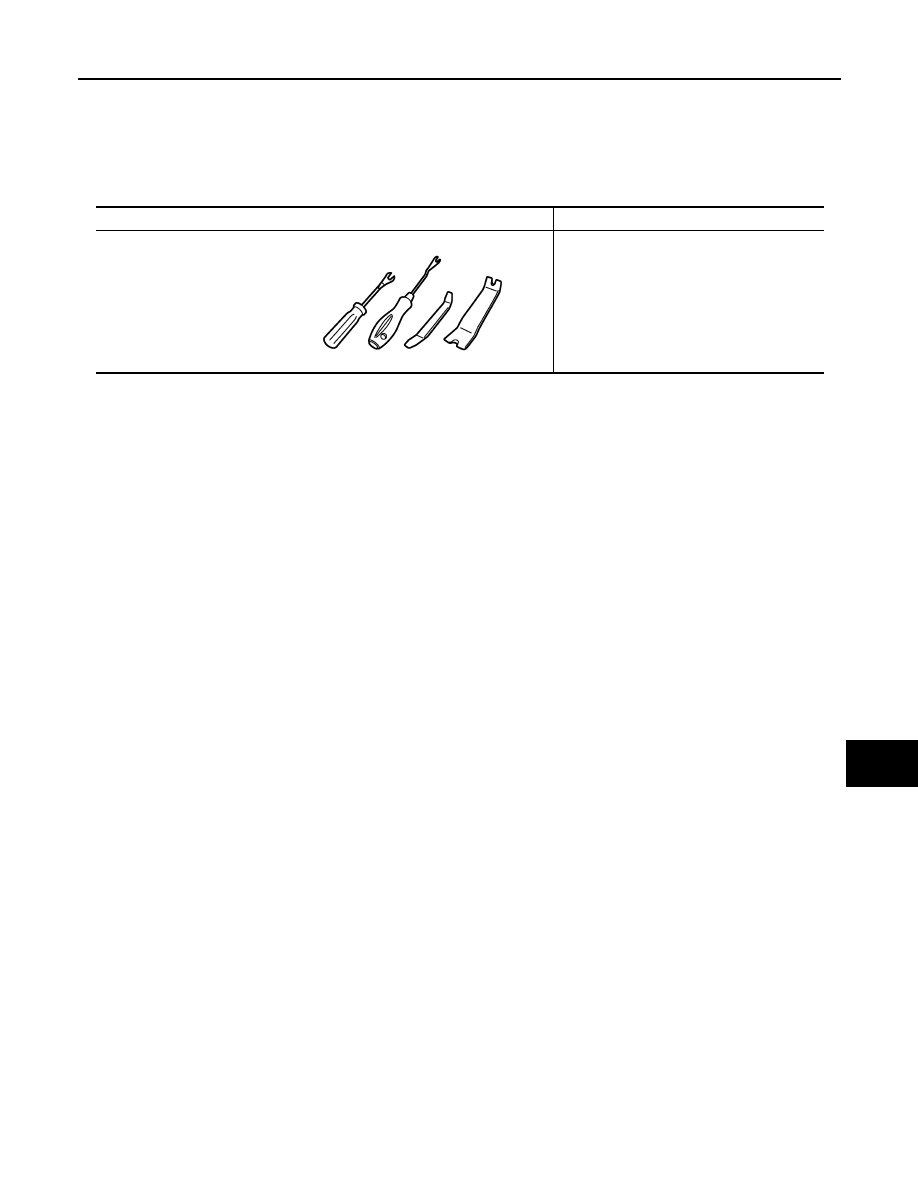

Commercial Service Tools

INFOID:0000000006257218

Tool name

Description

Remover tools

Removes the clips, pawls and metal clips

JMKIA3050ZZ

MIR-6

< SYSTEM DESCRIPTION >

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

DOOR MIRROR

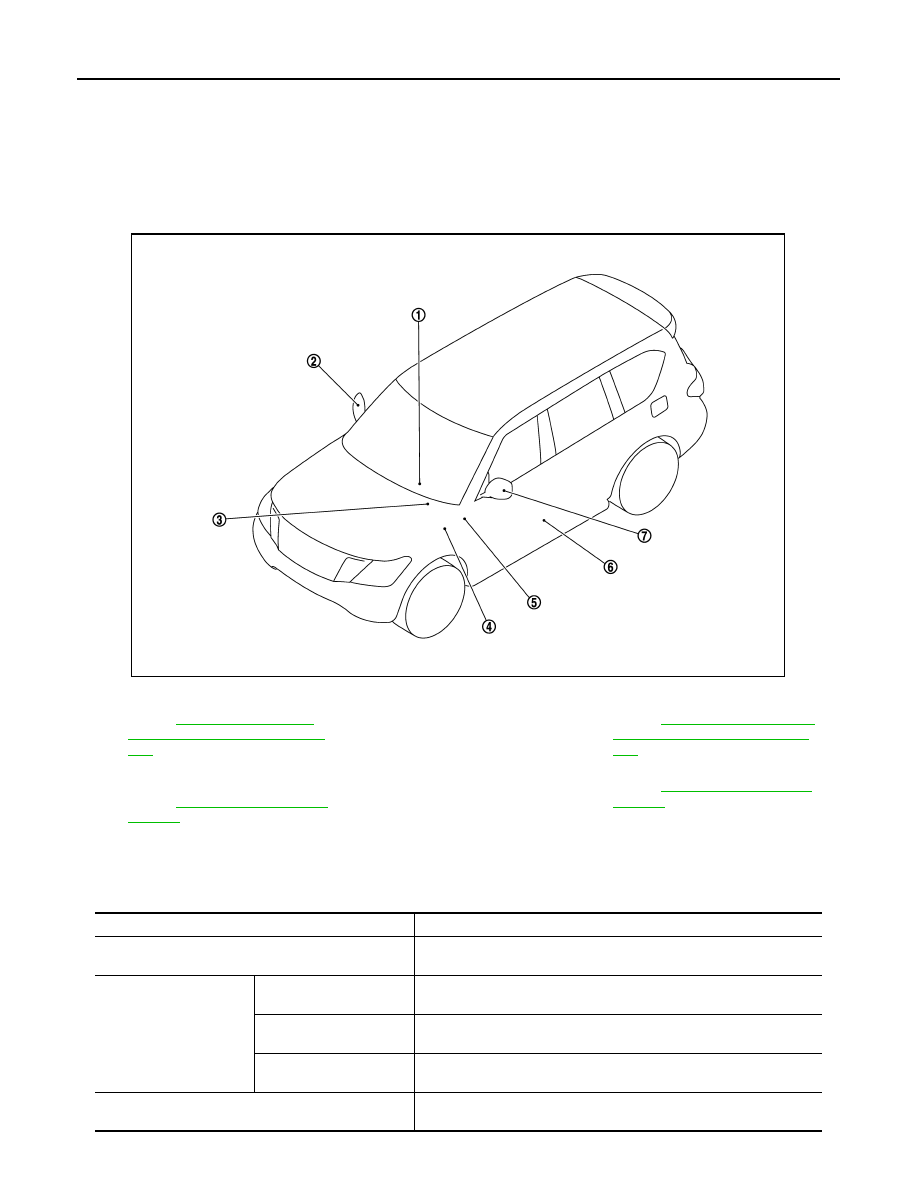

DOOR MIRROR : Component Parts Location

INFOID:0000000006257219

DOOR MIRROR : Component Description

INFOID:0000000006257220

1.

TCM
Refer to

TM-10, "A/T CONTROL

SYSTEM : Component Parts Loca-
tion"

2.

Door mirror (passenger side)

3.

BCM
Refer to

BCS-4, "BODY CONTROL

SYSTEM : Component Parts Loca-
tion"

4.

Automatic drive positioner control
unit
Refer to

ADP-6, "Component Parts

Location"

5.

Door mirror remote control switch

6.

Driver seat control unit
Refer to

ADP-6, "Component Parts

Location"

7.

Door mirror (driver side)

JMLIA0871ZZ

Component parts

Description

Automatic drive positioner control unit

Door mirror is supplied with power after receiving the input of mirror
switch and changeover switch.

Door mirror remote control
switch

Mirror switch

It transmits mirror face adjust operation to automatic drive positioner
control unit.

Changeover switch

It transmits the LH/RH control of door mirror that supplies power to au-
tomatic drive positioner control unit.

Open/close switch

Power is supplied to folding mirror from door mirror remote control
switch when operating switch.

Door mirror

It makes mirror face operate from side to side and up and down via in-
tegrated motor.

COMPONENT PARTS

MIR-7

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

INSIDE MIRROR

INSIDE MIRROR : Component Description

INFOID:0000000006257221

BCM

The ignition switch signal (ACC/ON) is transmitted to driver seat control
unit via CAN communication.

Driver seat control unit

The ignition switch signal (ACC/ON) is transmitted to automatic drive
positioner control unit via UART communication.

TCM

The A/T shift position signal is transmitted to driver seat control unit via
CAN communication.

Component parts

Description

Component

Function

Auto anti-dazzling inside mirror

It automatically changes the light transmittance according to the brightness of the
light from the headlight of the vehicle behind.
