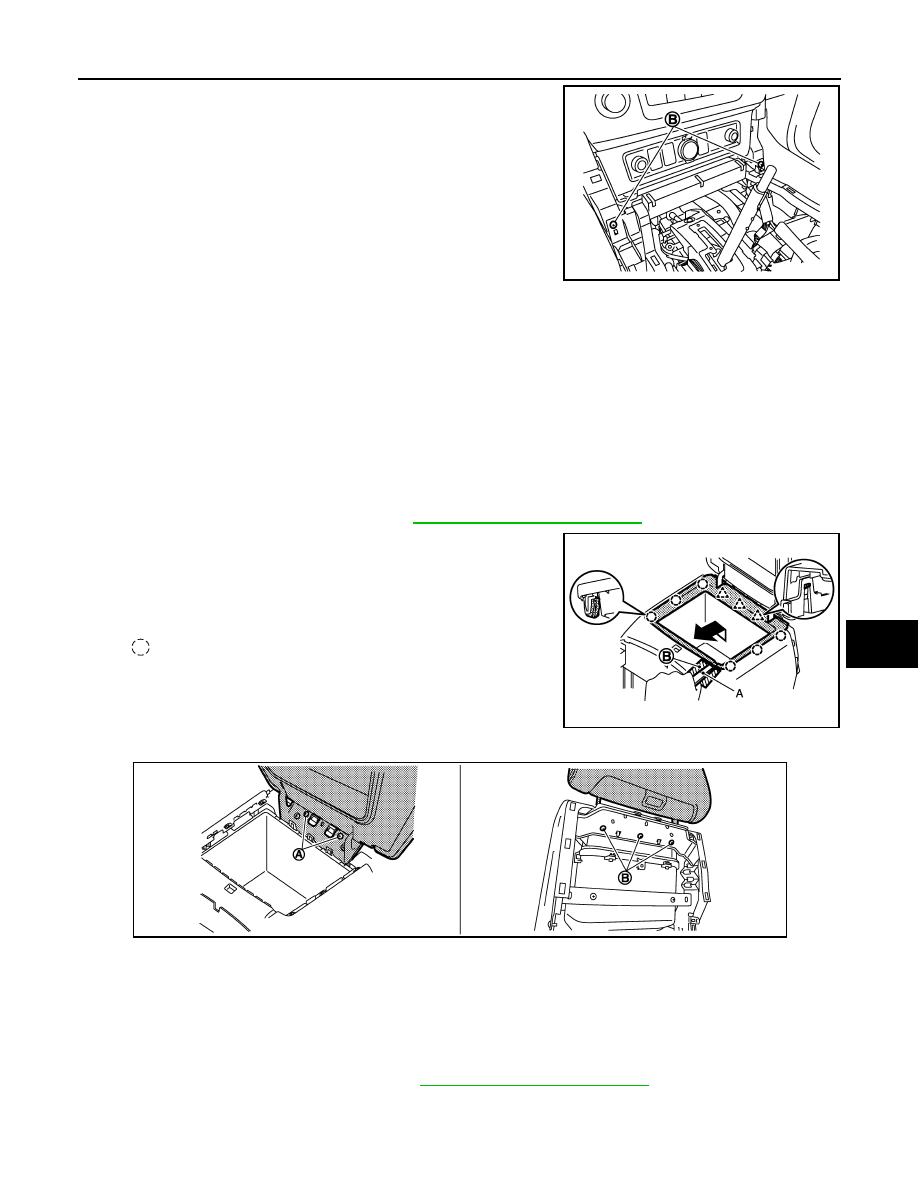

CENTER CONSOLE ASSEMBLY

IP-27

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

3.

Remove center console assembly front fixing screws (B).

4.

Lift up center console assembly back side, and then remove center console assembly.

INSTALLATION

Install in the reverse order of removal.

Disassembly and Assembly

INFOID:0000000006113101

CAUTION:

When disassembling, always use a remover tool that is made of plastic.

Disassembly and Assembly of Center Console Assembly

DISASSEMBLY

1.

Remove center console assembly. Refer to

IP-25, "Removal and Installation"

.

2.

Remove console mask.
1.

Open console lid.

2.

Remove console mask fixing clips with remover tool (A).

3.

Pull console mask up and back.

4.

Disconnect cool box switch connector (with Cool box).

CAUTION:

Apply protective tape (B) on the part to protect it from dam-
age.

3.

Remove console lid assembly mounting screws (A) and (B), and then remove console lid assembly.

4.

Remove console box fixing screws, and then remove console box.

ASSEMBLY

Assemble in the reverse order of disassembly.

Disassembly and Assembly of Console Finisher Assembly

DISASSEMBLY

1.

Remove console finisher assembly. Refer to

IP-25, "Removal and Installation"

.

2.

Remove console pocket assembly fixing screws, and then remove console pocket assembly.

3.

Remove cup holder assembly fixing screws, and then remove cup holder assembly.

JMJIA3898ZZ

: Clip

JMJIA4231ZZ

JMJIA4332ZZ

IP-28

< REMOVAL AND INSTALLATION >

CENTER CONSOLE ASSEMBLY

4.

Remove console power socket. Refer to

PWO-11, "CONSOLE POWER SOCKET (REAR) : Removal and

Installation"

.

5.

Remove 4WD switch assembly (2WD: SNOW MODE/TOW MODE/VDC OFF switch assembly). Refer to

DLN-108, "Removal and Installation"

.

ASSEMBLY

Assemble in the reverse order of disassembly.

REAR CONSOLE ASSEMBLY

IP-29

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

REAR CONSOLE ASSEMBLY

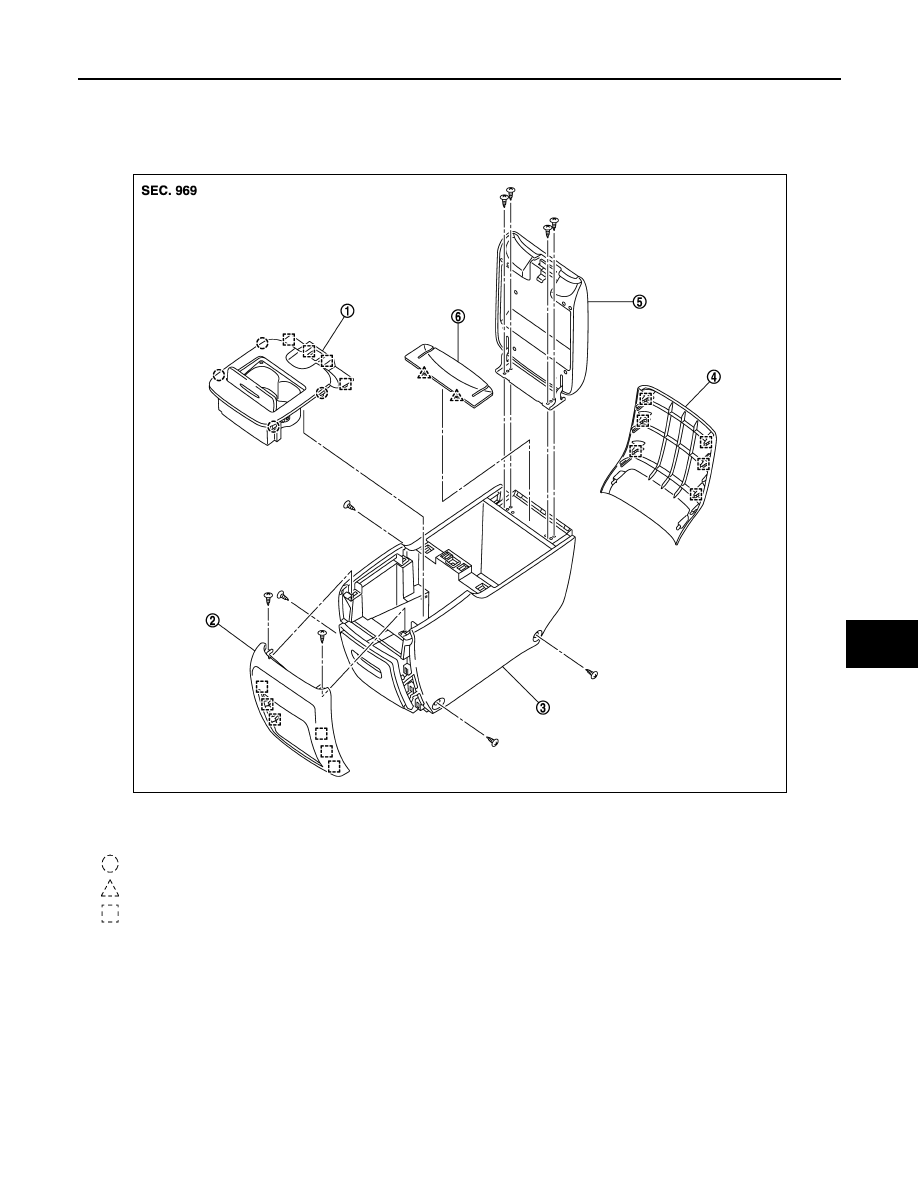

Exploded View

INFOID:0000000006113102

Removal and Installation

INFOID:0000000006113103

REMOVAL

1.

Operate rear seat lever or reclining lever to release seat lock assembly lock and to fold 2nd seats forward.

2.

Remove rear console assembly mounting screws, and then remove rear console assembly.

INSTALLATION

Install in the reverse order of removal.

1.

Cup holder assembly

2.

Rear console front finisher

3.

Rear console body assembly

4.

Rear console rear finisher

5.

Rear console lid assembly

6.

Rear console hinge mask

: Clip

: Pawl

: Metal clip

JMJIA3764ZZ

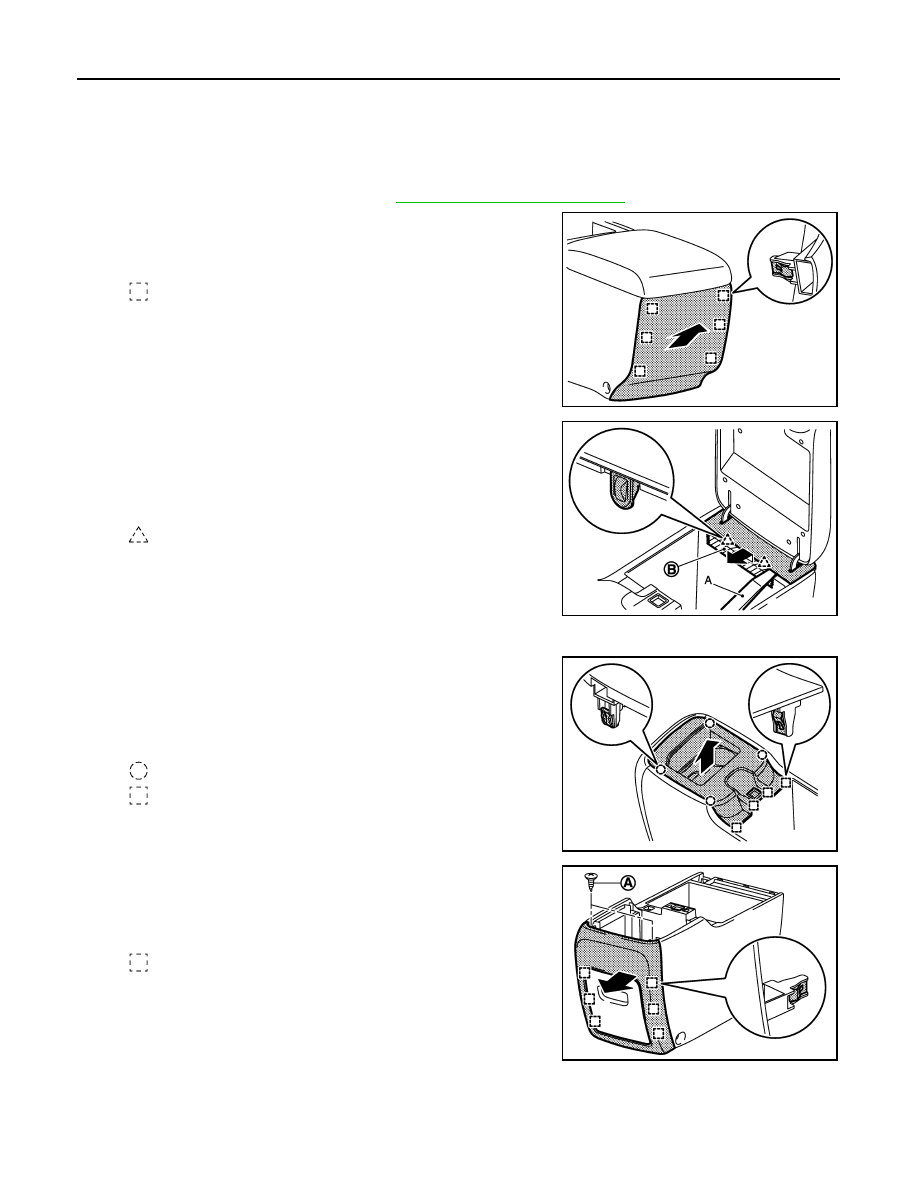

IP-30

< REMOVAL AND INSTALLATION >

REAR CONSOLE ASSEMBLY

Disassembly and Assembly

INFOID:0000000006113104

CAUTION:

When disassembling, always use a remover tool that is made of plastic.

DISASSEMBLY

1.

Remove rear console assembly. Refer to

IP-29, "Removal and Installation"

.

2.

Remove rear console rear finisher.
Pull back rear console rear finisher, and then disengage metal
clips.

3.

Remove rear console mask.
1.

Open the rear console lid assembly.

2.

Remove rear console hinge mask fixing pawls with remover
tool (A).

3.

Pull rear console hinge mask up and back.

CAUTION:

Apply protective tape (B) on the part to protect it from dam-
age.

4.

Remove console lid assembly mounting screws (A), and then remove console lid assembly.

5.

Remove rear cup holder assembly.
1.

Open the rear console lid assembly.

2.

Pull upward to release rear cup holder assembly fixing clips
and metal clips from rear console assembly.

3.

Pull rear console mask up and back.

6.

Remove rear console front finisher.
1.

Remove screws (A).

2.

Pull rear console front finisher, and then disengage metal
clips.

ASSEMBLY

Assemble in the reverse order of disassembly.

: Metal clip

JMJIA3904ZZ

: Pawl

JMJIA3905ZZ

: Clip

: Metal clip

JMJIA3906ZZ

: Metal clip

JMJIA3907ZZ
