Infiniti QX56 (Z62). Manual - part 821





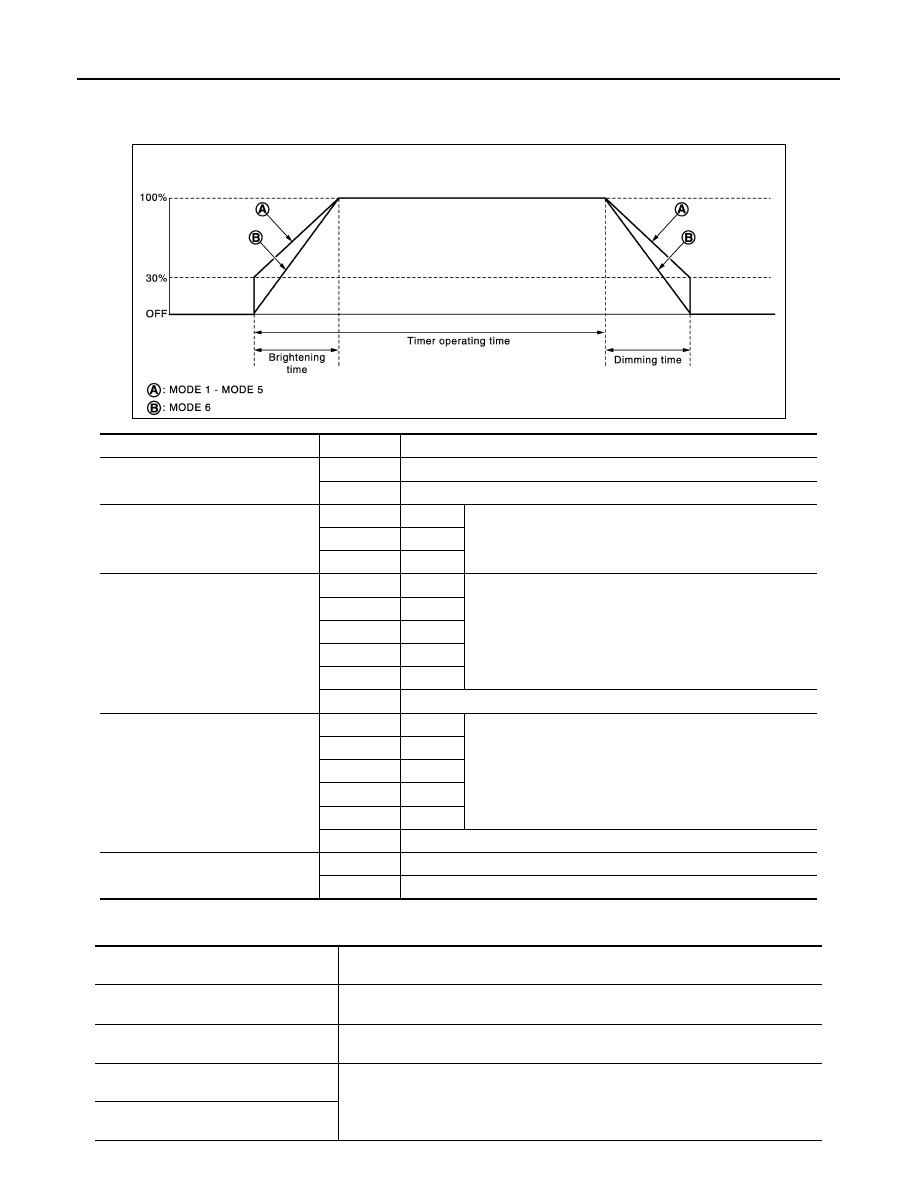

INL-14

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM)

INT LAMP : CONSULT-III Function (BCM - INT LAMP)

INFOID:0000000006216059

WORK SUPPORT

DATA MONITOR

JMLIA0961GB

Service item

Setting item

Setting

SET I/L D-UNLCK INTCON

On*

With the interior room lamp timer function

Off

Without the interior room lamp timer function

ROOM LAMP TIMER SET

MODE 2

7.5 sec.

Sets the interior room lamp ON time. (Timer operating time)

MODE 3*

15 sec.

MODE 4

30 sec.

ROOM LAMP ON TIME SET

MODE 1

0.5 sec.

Sets the interior room lamp gradual brightening time.

MODE 2

1 sec.

MODE 3

2 sec.

MODE 4

3 sec.

MODE 5

0 sec.

MODE 6*

Gradually brightens from 0% to 100% brightness in 1 second.

ROOM LAMP OFF TIME SET

MODE 1

0.5 sec.

Sets the interior room lamp gradual dimming time.

MODE 2

1 sec.

MODE 3

2 sec.

MODE 4

3 sec.

MODE 5

0 sec.

MODE 6*

Gradually dims from 100% to 0% in 1 second.

R LAMP TIMER LOGIC SET

MODE 1*

Interior room lamp timer activates with synchronizing all doors.

MODE 2

Interior room lamp timer activates with synchronizing the driver door only.

Monitor item

[Unit]

Description

REQ SW-DR
[On/Off]

The switch status input from door request switch (driver side)

REQ SW-AS
[On/Off]

The switch status input from door request switch (passenger side)

REQ SW-RR
[On/Off]

NOTE:
The item is indicated, but not monitored.

REQ SW-RL
[On/Off]

DIAGNOSIS SYSTEM (BCM)

INL-15

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

ACTIVE TEST

BATTERY SAVER

BATTERY SAVER : CONSULT-III Function (BCM - BATTERY SAVER)

INFOID:0000000006216060

WORK SUPPORT

*:Factory setting

PUSH SW
[On/Off]

The switch status input from push-button ignition switch

UNLK SEN -DR
[On/Off]

Driver door unlock status input from unlock sensor

DOOR SW-DR
[On/Off]

The switch status input from door switch (driver side)

DOOR SW-AS
[On/Off]

The switch status input from door switch (passenger side)

DOOR SW-RR
[On/Off]

The switch status input from rear door switch RH

DOOR SW- RL
[On/Off]

The switch status input from rear door switch LH

DOOR SW- BK
[On/Off]

The switch status input from back door switch

CDL LOCK SW
[On/Off]

Lock switch status input from door lock and unlock switch

CDL UNLOCK SW
[On/Off]

Unlock switch status input from door lock and unlock switch

KEY CYL LK-SW
[On/Off]

Lock switch status received from door key cylinder switch

KEY CYL UN-SW
[On/Off]

Unlock switch status received from door key cylinder switch

TRNK/HAT MNTR
[On/Off]

NOTE:
The item is indicated, but not monitored.

RKE-LOCK
[On/Off]

Lock signal status received from remote keyless entry receiver

RKE-UNLOCK
[On/Off]

Unlock signal status received from remote keyless entry receiver

Monitor item

[Unit]

Description

Test item

Operation

Description

INT LAMP

On

Outputs the interior room lamp control signal to turn the interior room lamps ON.
 [Map lamp, personal lamp, foot lamp (when applicable lamps switch is in DOOR po-
sition.)]

Off

Stops the interior room lamp control signal to turn the interior room lamps OFF.

STEP LAMP TEST

On

Outputs the step lamp control signal to turn the step lamps ON.

Off

Stops the step lamp control signal to turn the step lamps ON.

Service item

Setting item

Setting

ROOM LAMP TIMER SET

MODE 1

*

30 min.

Sets the interior room lamp battery saver timer operating
time.

MODE 2

60 min.

BATTERY SAVER SET

On

*

With the exterior lamp battery saver function

Off

Without the exterior lamp battery saver function

INL-16

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM)

DATA MONITOR

ACTIVE TEST

*: Each lamp switch is in ON position.

Monitor item

[Unit]

Description

REQ SW-DR
[On/Off]

The switch status input from door request switch (driver side)

REQ SW-AS
[On/Off]

The switch status input from door request switch (passenger side)

REQ SW-RR
[On/Off]

NOTE:
The item is indicated, but not monitored.

REQ SW-RL
[On/Off]

PUSH SW
[On/Off]

The switch status input from push-button ignition switch

UNLK SEN-DR
[On/Off]

Driver door unlock status input from unlock sensor

DOOR SW-DR
[On/Off]

The switch status input from door switch (driver side)

DOOR SW-AS
[On/Off]

The switch status input from door switch (passenger side)

DOOR SW-RR
[On/Off]

The switch status input from rear door switch RH

DOOR SW- RL
[On/Off]

The switch status input from rear door switch LH

DOOR SW- BK
[On/Off]

The switch status input from back door switch

CDL LOCK SW
[On/Off]

Lock switch status input from door lock and unlock switch

CDL UNLOCK SW
[On/Off]

Unlock switch status input from door lock and unlock switch

KEY CYL LK-SW
[On/Off]

Lock switch status received from door key cylinder switch

KEY CYL UN-SW
[On/Off]

Unlock switch status received from door key cylinder switch

TRNK/HAT MNTR
[On/Off]

NOTE:
The item is indicated, but not monitored.

RKE-LOCK
[On/Off]

Lock signal status received from remote keyless entry receiver

RKE-UNLOCK
[On/Off]

Unlock signal status received from remote keyless entry receiver

Test item

Operation

Description

BATTERY SAVER

Off

Cuts the interior room lamp power supply to turn interior room lamps OFF.

On

Outputs the interior room lamp power supply to turn interior room lamps ON.*

BCM

INL-17

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

ECU DIAGNOSIS INFORMATION

BCM

List of ECU Reference

INFOID:0000000006216061

ECU

Reference

BCM

BCS-33, "Reference Value"

BCS-54, "Fail-safe"

BCS-56, "DTC Inspection Priority Chart"

BCS-57, "DTC Index"
