GW-16

< REMOVAL AND INSTALLATION >

BACK DOOR WINDOW GLASS

BACK DOOR WINDOW GLASS

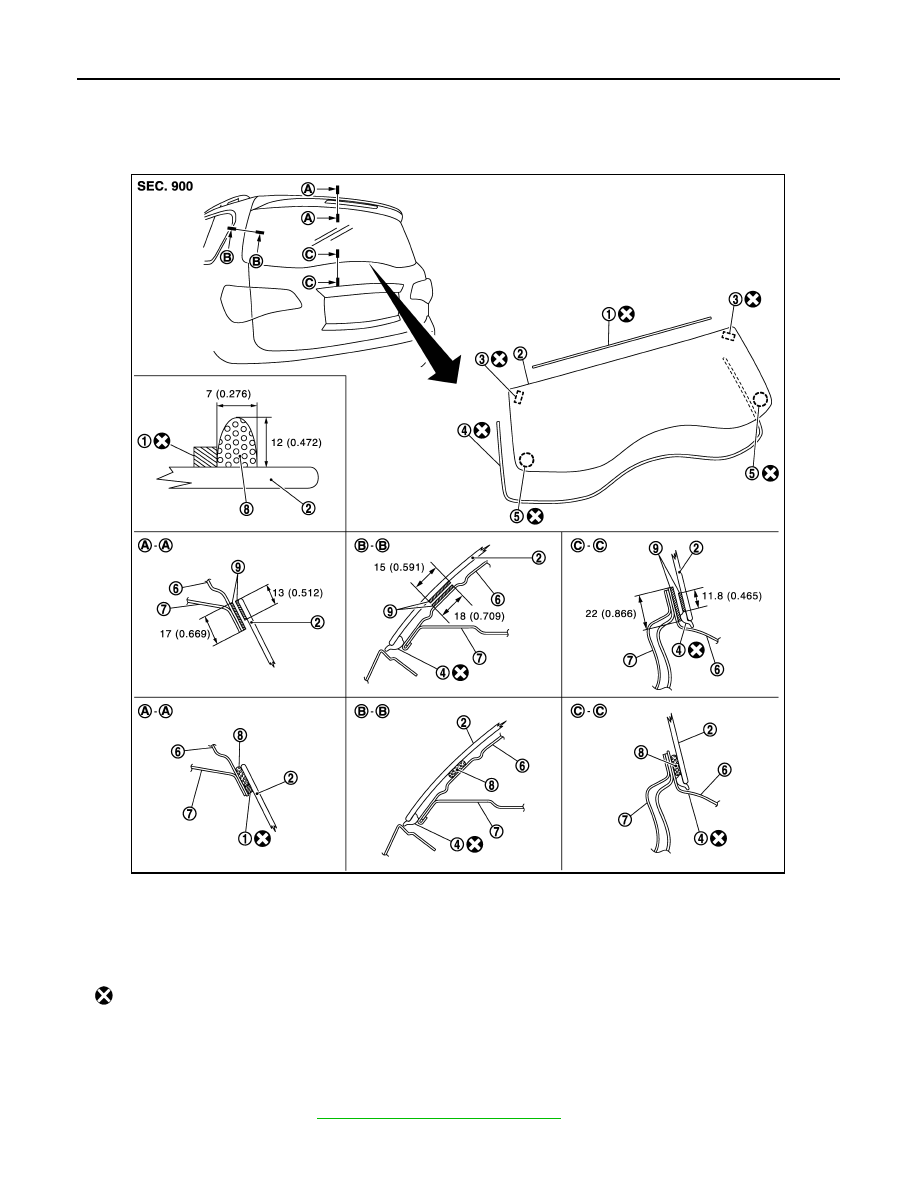

Exploded View

INFOID:0000000006220819

Removal and Installation

INFOID:0000000006220820

REMOVAL

1.

Remove rear spoiler. Refer to

EXT-41, "Removal and Installation"

.

2.

Remove the connectors and grounds for the back door window defogger.

1.

Dam-sealant rubber upper

2.

Back door window glass

3.

Back door window glass holder (up-
per)

4.

Back door window glass molding

5.

Back door window glass holder (low-
er)

6.

Back door panel outer

7.

Back door panel inner

8.

Adhesive

9.

Primer

: Do not reuse

Unit

: mm (in)

JMKIA5457GB

BACK DOOR WINDOW GLASS

GW-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

3.

Remove rear wiper arm. Refer to

WW-74, "Removal and Installation"

.

4.

Remove rear wiper motor. Refer to

WW-76, "Removal and Installation"

.

5.

Remove back door window glass molding using a pliers. Refer to

GW-16, "Exploded View"

.

6.

Apply protective tape around the back door window glass to protect the painted surface from damage.

7.

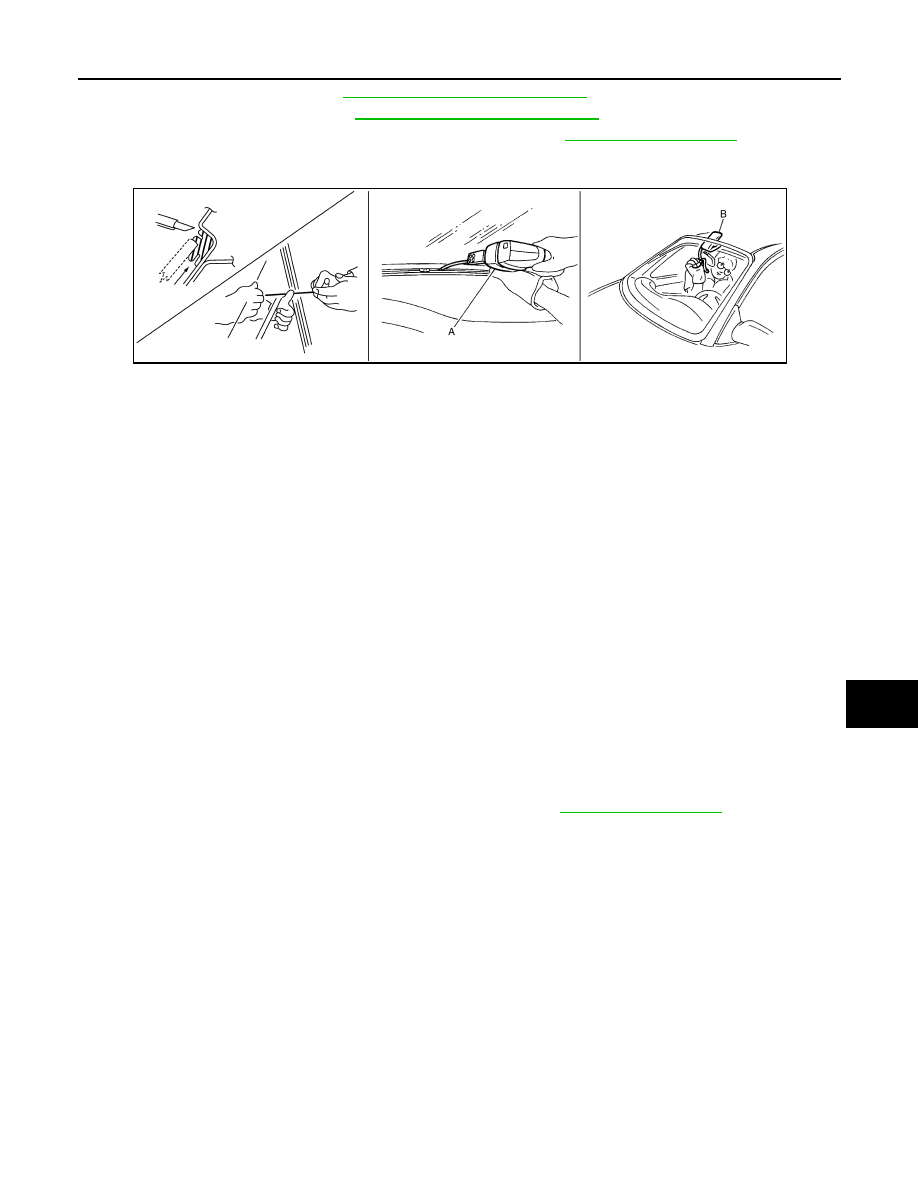

Remove glass using piano wire or power cutting tool (A) and an inflatable pump bag (B).

NOTE:
Mark the body and the glass with matching marks if the back door window glass is reused.

WARNING:

Always wear safety glasses and heavy gloves to prevent injury.

CAUTION:

• Be careful not to scratch the glass when removing.
• Never set or stand the glass on its edge. Small chips may develop into cracks.

INSTALLATION

• The dam rubber should be installed in position.
• Use a genuine Nissan Urethane Adhesive Kit (if available) or an equivalent and follow the instructions pro-

vided with it.

• Open a door window while the urethane adhesive is curing. This prevents the glass from being forced out by

passenger compartment air pressure when all door windows are closed.

• Inform the customer that the vehicle should remain stationary until the urethane adhesive has completely

cured (approximately 24 hours). Curing time varies with temperature and humidity.

WARNING:

• Keep heat and open flames away as primers and adhesive are flammable.
• The materials contained in the kit are harmful if swallowed, and may irritate skin and eyes. Never

let them come in contact with the skin and eyes.

• Use in an open, well ventilated location. Never breathe the vapors. They may be harmful if inhaled.

Move immediately to an area with fresh air if affected by vapor inhalation.

• Driving the vehicle before the urethane adhesive has completely cured may affect the performance

of the rear window in case of an accident.

CAUTION:

• Perform adjustment of rear wiper arm stop location. Refer to

WW-74, "Adjustment"

.

• Never use an adhesive which is past its usable term. Shelf life of this product is limited to six

months after the date of manufacture. Carefully adhere to the expiration or manufacture date
printed on the box.

• Keep primers and adhesive in a cool, dry place. Ideally, they should be stored in a refrigerator.
• Never leave primers or adhesive cartridge unattended with their caps open or off.
• The vehicle should not be driven for at least 24 hours or until the urethane adhesive has com-

pletely cured. Curing time varies depending on temperature and humidity. The curing time
increases under lower temperature and lower humidity.

• If the substrate of the glass joining surface on the back door panel side is exploded to the air,

exchange the back door assembly without recoating.

• Never apply paint on the back door panel surface which is in contact with the glass when replacing

the back door assembly.

Inspection

INFOID:0000000006220821

REPAIRING WATER LEAKAGE FOR BACK DOOR WINDOW GLASS

Leakage can be repaired without removing the glass.
Determine the extent of leakage if water is leaking between the urethane adhesive material and body or glass.
This can be done by applying water to the back door window glass area while pushing glass outward.

PIIB5779E

GW-18

< REMOVAL AND INSTALLATION >

BACK DOOR WINDOW GLASS

Apply primer (if necessary) and then urethane adhesive to the leakage point to stop the leakage.

FRONT DOOR GLASS

GW-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

FRONT DOOR GLASS

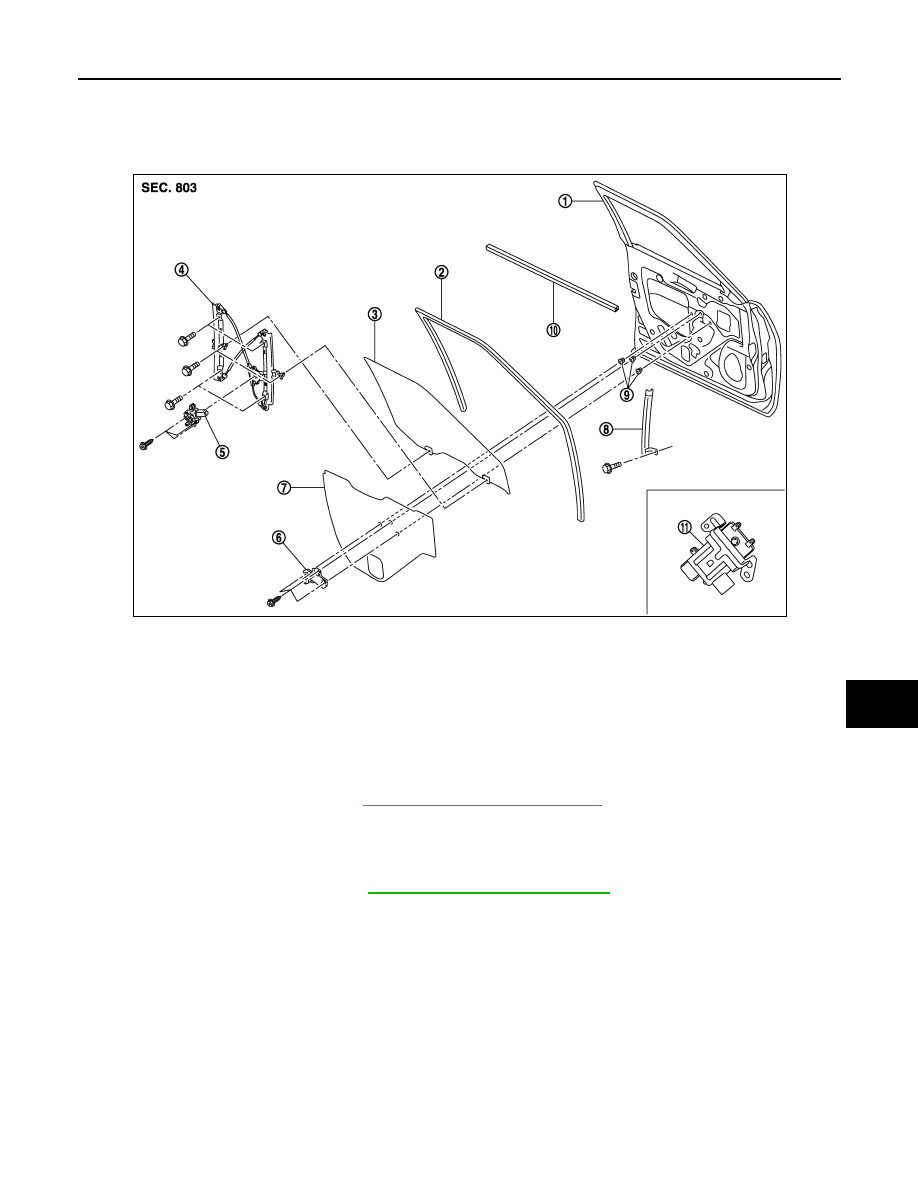

Exploded View

INFOID:0000000006220822

Removal and Installation

INFOID:0000000006220823

REMOVAL

1.

Remove front door finisher. Refer to

INT-14, "Removal and Installation"

.

2.

Disconnect door mirror harness connector and remove the fixing clip.

3.

Remove front door inside seal.

4.

Remove front door pull handle bracket.

5.

Remove front door speaker. Refer to

AV-216, "Removal and Installation"

.

6.

Remove front door speaker bracket from front door panel.

7.

Remove front door speaker harness from front door speaker bracket.

8.

Remove front door glass sealing screen with a cutter tool.
NOTE:
Cute the butyl-tape so that some parts of the butyl-tape do not remain on the sealing screen, if the sealing
screen is reused.

9.

Reconnect front power window main switch, and then operate the power window main switch to raise or
lower front door glass until the mounting bolts can be seen.

10. Remove front door glass mounting bolts.
11. Hold securely front door glass and pull it out of the sash to remove the front door glass from inside or out-

side front door panel.

12. Remove front door glass run.

1.    Front door panel

2.

Front door glass run

3.

Front door glass

4.

Front door regulator

5.

Front door power window motor

6.

Front door pull handle bracket

7.

Front door sealing screen

8.

Front door lower sash

9.

Grommet

10. Front door inside seal

11.

Power window controller

JMKIA5208ZZ
