12. Apply protective tape around the windshield glass to protect the painted surface from damage.

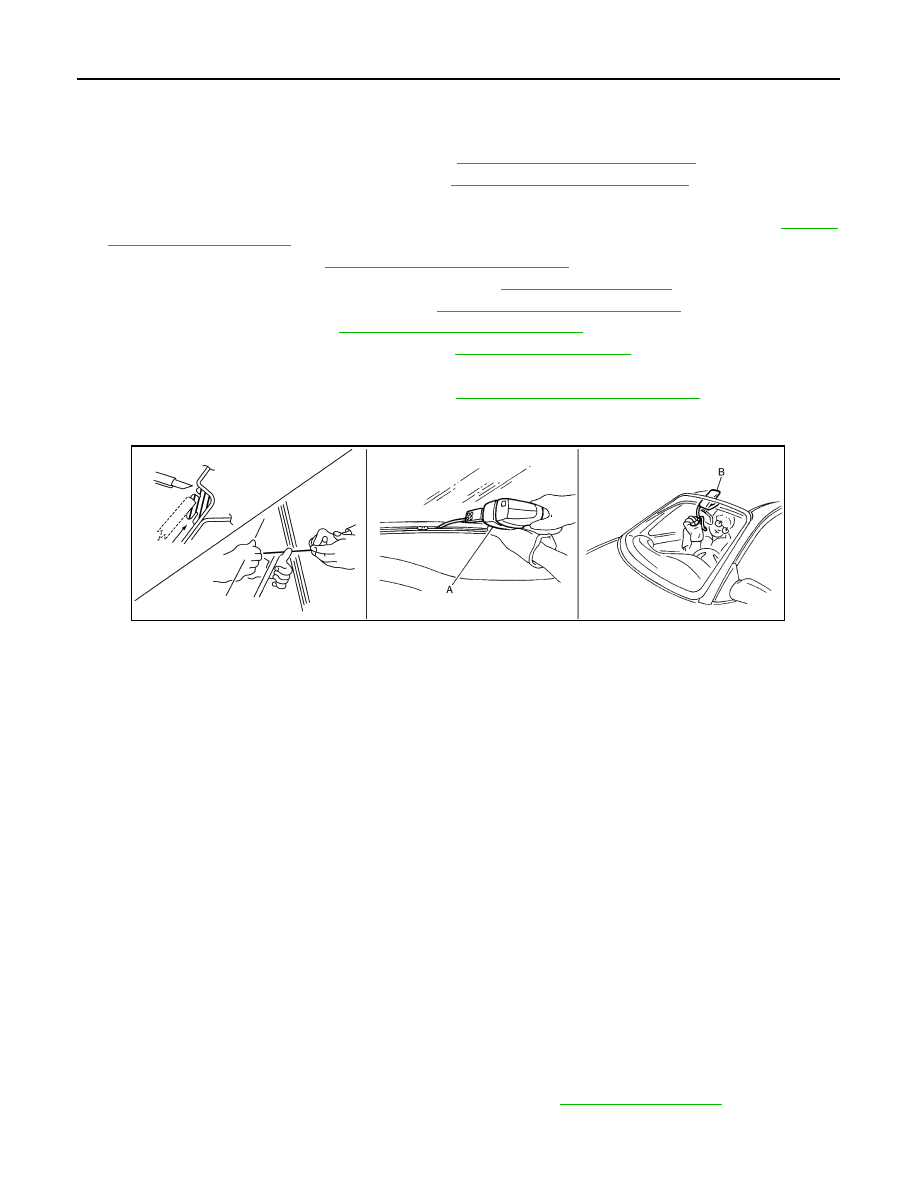

13. Remove glass using piano wire or power cutting tool (A) and an inflatable pump bag (B).

NOTE:
Mark the body and the glass with matching marks if the windshield glass is reused.

WARNING:

Always wear safety glasses and heavy gloves to prevent injury.

CAUTION:

• Never use a cutting knife or power cutting tool when the windshield glass is reused.
• Be careful not to scratch the glass when removing.
• Never set or stand the glass on its edge. Small chips may develop into cracks.

INSTALLATION

• The dam sealant rubber and insulator should be installed in position.
• Use a genuine Nissan Urethane Adhesive Kit (if available) or an equivalent and follow the instructions pro-

vided with it.

• Open a door window while the urethane adhesive is curing. This prevents the glass from being forced out by

passenger room air pressure when all door windows are closed.

• The molding must be installed securely so that it is in position and leaves no clearance.
• Inform the customer that the vehicle should remain stationary until the urethane adhesive has completely

cured (approximately 24 hours). Curing time varies with temperature and humidity.

WARNING:

• Keep heat and open flames away as primers and adhesive are flammable.
• The materials contained in the kit are harmful if swallowed, and may irritate skin and eyes. Never let

them come in contact with the skin and eyes.

• Use in an open, well ventilated location. Never breathe the vapors. They may be harmful if inhaled.

Move immediately to an area with fresh air if affected by vapor inhalation.

• Driving the vehicle before the urethane adhesive has completely cured may affect the performance

of the windshield in case of an accident.

CAUTION:

• Perform adjustment of front wiper arms stop location. Refer to

WW-66, "Adjustment"

PIIB5779E

WINDSHIELD GLASS

GW-13

< REMOVAL AND INSTALLATION >

• Never use an adhesive which is past its usable term. Shelf life of this product is limited to six months

after the date of manufacture. Carefully adhere to the expiration or manufacture date printed on the
box.

• Keep primers and adhesive in a cool, dry place. Ideally, they should be stored in a refrigerator.
• Never leave primers or adhesive cartridge unattended with their caps open or off.
• The vehicle should not be driven for at least 24 hours or until the urethane adhesive has completely

cured. Curing time varies depending on temperature and humidity. The curing time increases under
lower temperature and lower humidity.

Inspection

INFOID:0000000006220815

REPAIRING WATER LEAKAGE FOR WINDSHIELD GLASS

Leakage can be repaired without removing the glass.
Determine the extent of leakage if water is leaking between the urethane adhesive material and body or glass.
This can be done by applying water to the windshield area while pushing glass outward.
Apply primer (if necessary) and then urethane adhesive to the leakage point to stop the leakage.

GW-14

< REMOVAL AND INSTALLATION >

SIDE WINDOW GLASS

SIDE WINDOW GLASS

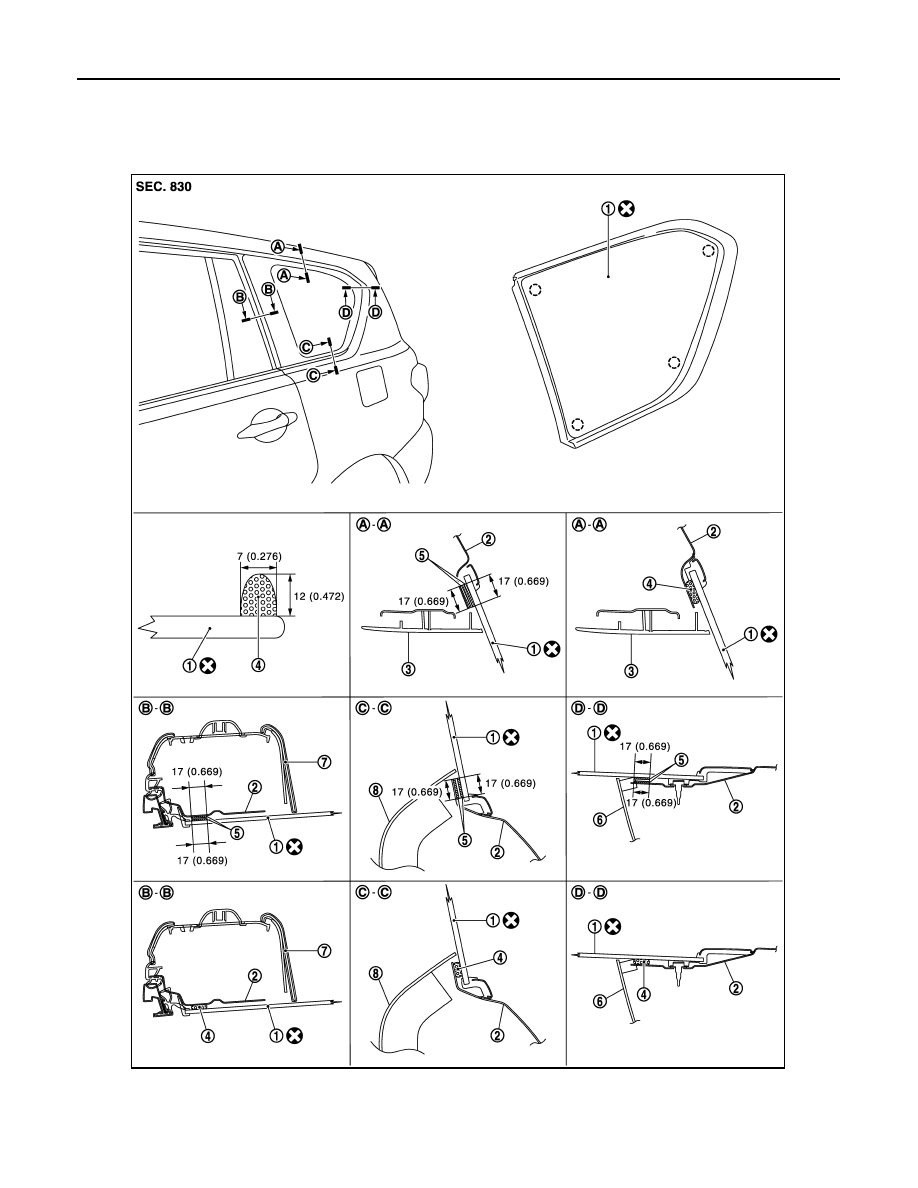

Exploded View

INFOID:0000000006220816

Side window glass

Body side outer panel

Luggage side upper finisher

Adhesive

Primer

Back pillar garnish

Rear pillar finisher

Luggage side lower finisher

JMKIA5206GB

SIDE WINDOW GLASS

GW-15

< REMOVAL AND INSTALLATION >

Removal and Installation

INFOID:0000000006220817

CAUTION:

Replace the side window glass assembly with a new part after removal as it cannot be reused.

REMOVAL

Remove third seat cushion and third seatback assembly. Refer to

SE-138, "Removal and Installation"

Remove luggage side lower finisher. Refer to

INT-36, "LUGGAGE SIDE LOWER FINISHER : Removal

and Installation"

Remove rear pillar finisher. Refer to

INT-37, "REAR PILLAR FINISHER : Removal and Installation"

Remove back pillar garnish. Refer to

INT-37, "BACK PILLAR GARNISH : Removal and Installation"

Remove luggage side upper finisher. Refer to

INT-38, "LUGGAGE SIDE UPPER FINISHER : Removal

and Installation"

Disconnect the harness connector from side window glass.

Apply protective tape around the side window to protect the painted surface from damage.

Remove the side window glass using piano wire.

WARNING:

Always wear safety glasses and heavy gloves to prevent injury.

CAUTION:

• Be careful not to scratch the glass when removing.
• Never set or stand the glass on its edge. Small chips may develop into cracks.

INSTALLATION

• Use a genuine Nissan Urethane Adhesive Kit (if available) or an equivalent and follow the instructions pro-

vided with it.

• Open a door window while the urethane adhesive is curing. This prevents the glass from being forced out by

passenger room air pressure when all door windows are closed.

• Inform the customer that the vehicle should remain stationary until the urethane adhesive has completely

cured (approximately 24 hours). Curing time varies with temperature and humidity.

WARNING:

• Keep heat and open flames away as primers and adhesive are flammable.
• The materials contained in the kit are harmful if swallowed, and may irritate skin and eyes. Never let

them come in contact with the skin and eyes.

• Use in an open, well ventilated location. Never breathe the vapors. They may be harmful if inhaled.

Move immediately to an area with fresh air if affected by vapor inhalation.

• Driving the vehicle before the urethane adhesive has completely cured may affect the performance

of the side window in case of an accident.

CAUTION:

• Never use an adhesive which is past its usable term. Shelf life of this product is limited to six months

after the date of manufacture. Carefully adhere to the expiration or manufacture date printed on the
box.

cured. Curing time varies depending on temperature and humidity. The curing time increases under
lower temperature and lower humidity.

Inspection

INFOID:0000000006220818

REPAIRING WATER LEAKAGE FOR SIDE WINDOW GLASS

Leakage can be repaired without removing glass.
Determine the extent of leakage if water is leaking between the urethane adhesive material and body or glass.
This can be done by applying water to the side window glass area while pushing glass outward.
Apply primer (if necessary) and then urethane adhesive to the leakage point to stop the leakage.

: Clip

: Do not reuse
