TIGHTENING TORQUE OF STANDARD BOLTS

GI-21

< HOW TO USE THIS MANUAL >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

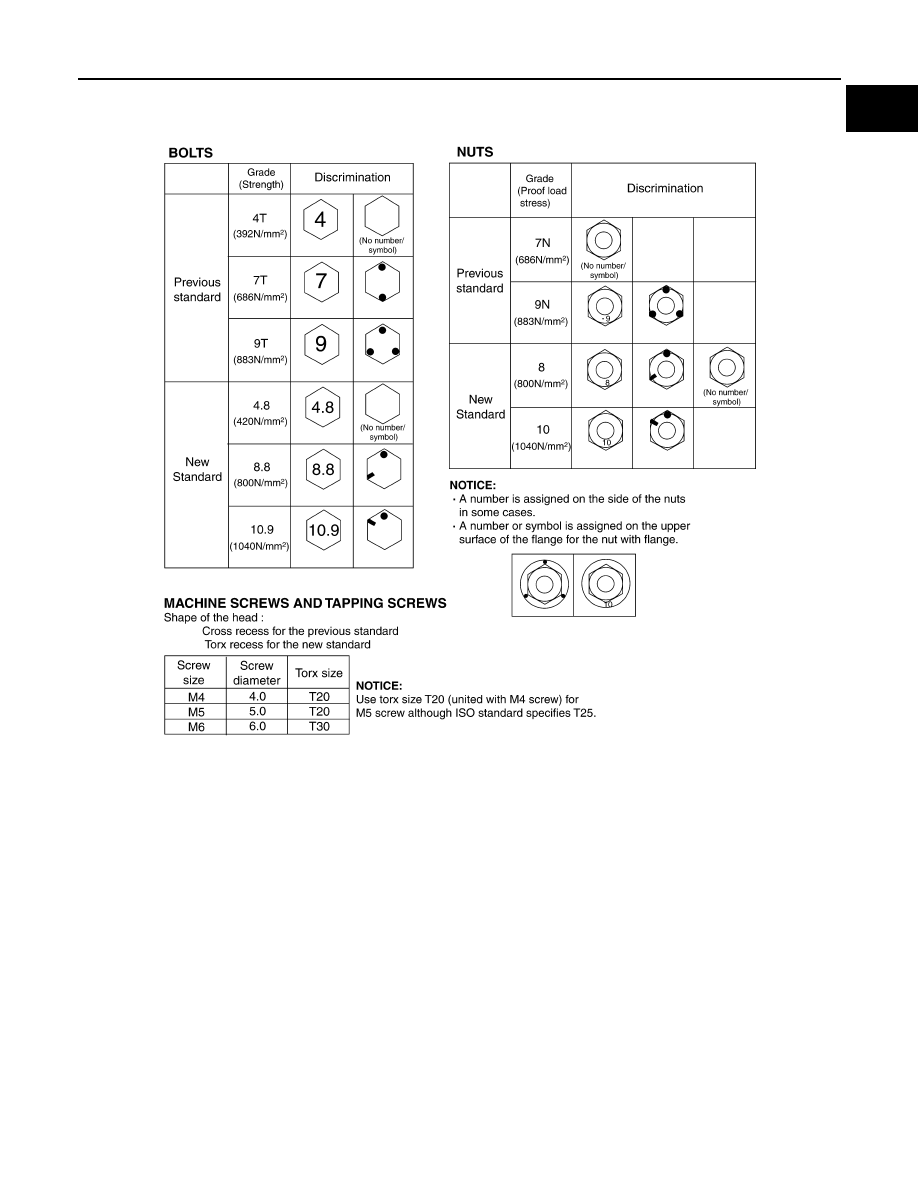

DISCRIMINATION OF BOLTS AND NUTS

SAIA0453E

GI-22

< HOW TO USE THIS MANUAL >

RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS

RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS

Recommended Chemical Products and Sealants

INFOID:0000000006280850

Refer to the following chart for help in selecting the appropriate chemical product or sealant.

Product Description

Purpose

Nissan North America

Part No. (USA)

Nissan Canada Part

No. (Canada)

Aftermarket Cross-

reference Part Nos.

1

Rear View Mirror Adhe-
sive

Used to permanently re-
mount rear view mirrors to
windows.

999MP-AM000P

99998-50505

Permatex 81844

2

Anaerobic Liquid Gas-
ket

For metal-to-metal flange
sealing.
Can fill a 0.38 mm (0.015
inch) gap and provide in-
stant sealing for most pow-
ertrain applications.

999MP-AM001P

99998-50503

Permatex 51813 and
51817

3

High Performance
Thread Sealant

Provides instant sealing on
any threaded straight or
parallel threaded fitting.
(Thread sealant only, no
locking ability.)
• Do not use on plastic.

999MP-AM002P

999MP-AM002P

Permatex 56521

4

Silicone RTV

Gasket Maker

999MP-AM003P
(Ultra Grey)

99998-50506
(Ultra Grey)

Permatex Ultra Grey
82194;
Three Bond
1207,1215, 1216,
1217F, 1217G and
1217H
Nissan RTV Part No.
999MP-A7007

Gasket Maker for Maxima/
Quest 5-speed automatic
transmission
(RE5F22A)

–

–

Three Bond 1281B
or exact equivalent in
its quality

5

High Temperature,
High Strength Thread
Locking Sealant (Red)

Threadlocker

999MP-AM004P

999MP-AM004P

Permatex 27200;
Three Bond 1360,
1360N, 1305 N&P,
1307N, 1335,
1335B, 1363B,
1377C, 1386B, D&E
and 1388
Loctite 648

6

Medium Strength
Thread Locking Seal-
ant (Blue)

Threadlocker (service tool
removable)

999MP-AM005P

999MP-AM005P

Permatex 24200,
24206, 24240,
24283 and 09178;
Three Bond 1322,
1322N, 1324 D&N,
1333D, 1361C,
1364D, 1370C and
1374

IDENTIFICATION INFORMATION

GI-23

< VEHICLE INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

VEHICLE INFORMATION

IDENTIFICATION INFORMATION

Model Variation

INFOID:0000000006280861

Model variation code (Prefix and suffix designations)

Information About Identification or Model Code

INFOID:0000000006280862

IDENTIFICATION NUMBER

Destination

Body

Transmission

Engine

Axle

Grade

Model

USA

Wagon

7A/T

VK56VD

4WD

LE

JPKNLHL-EU7

JPKNLHL-EU8

Premium

JPKNLJL-EU7

JPKNLJL-EU8

2WD

LE

JPKALHL-EU7

JPKALHL-EU8

Premium

JPKALJL-EU7

JPKALJL-EU8

CANADA

4WD

LE

JPKNLHL-EN7

JPKNLHL-EN8

JPAIA0807GB

GI-24

< VEHICLE INFORMATION >

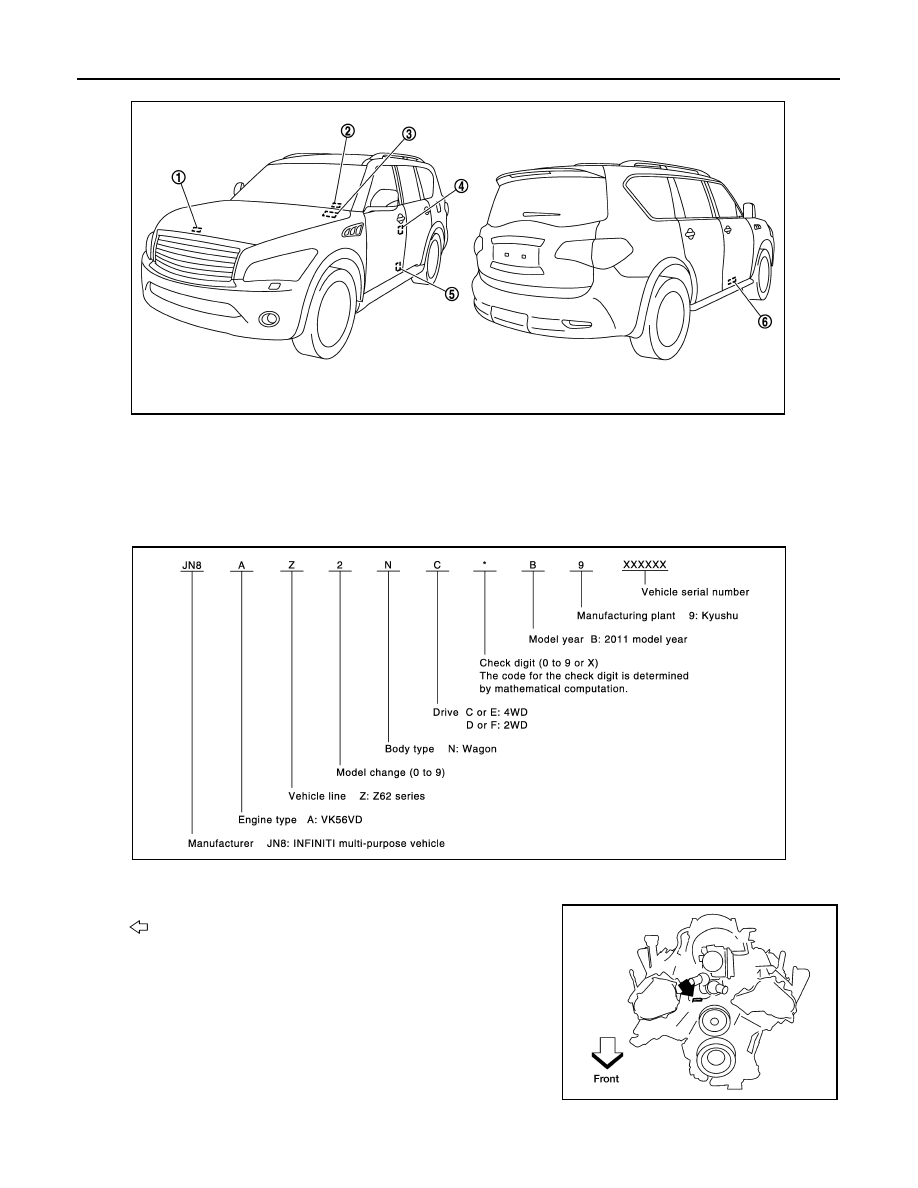

IDENTIFICATION INFORMATION

VEHICLE IDENTIFICATION NUMBER ARRANGEMENT

ENGINE SERIAL NUMBER

AUTOMATIC TRANSMISSION NUMBER

JPAIA0814ZZ

1.

Air conditioner specification label

2. Vehicle identification number plate

3.

Emission control information label

4.

Tire and loading information label

5. FMVSS certification label

6.

Vehicle identification number (Chassis
number)

JPAIA0806GB

: Vehicle front

JPAIA0735GB
