HEIGHT SENSOR

HEIGHT SENSOR

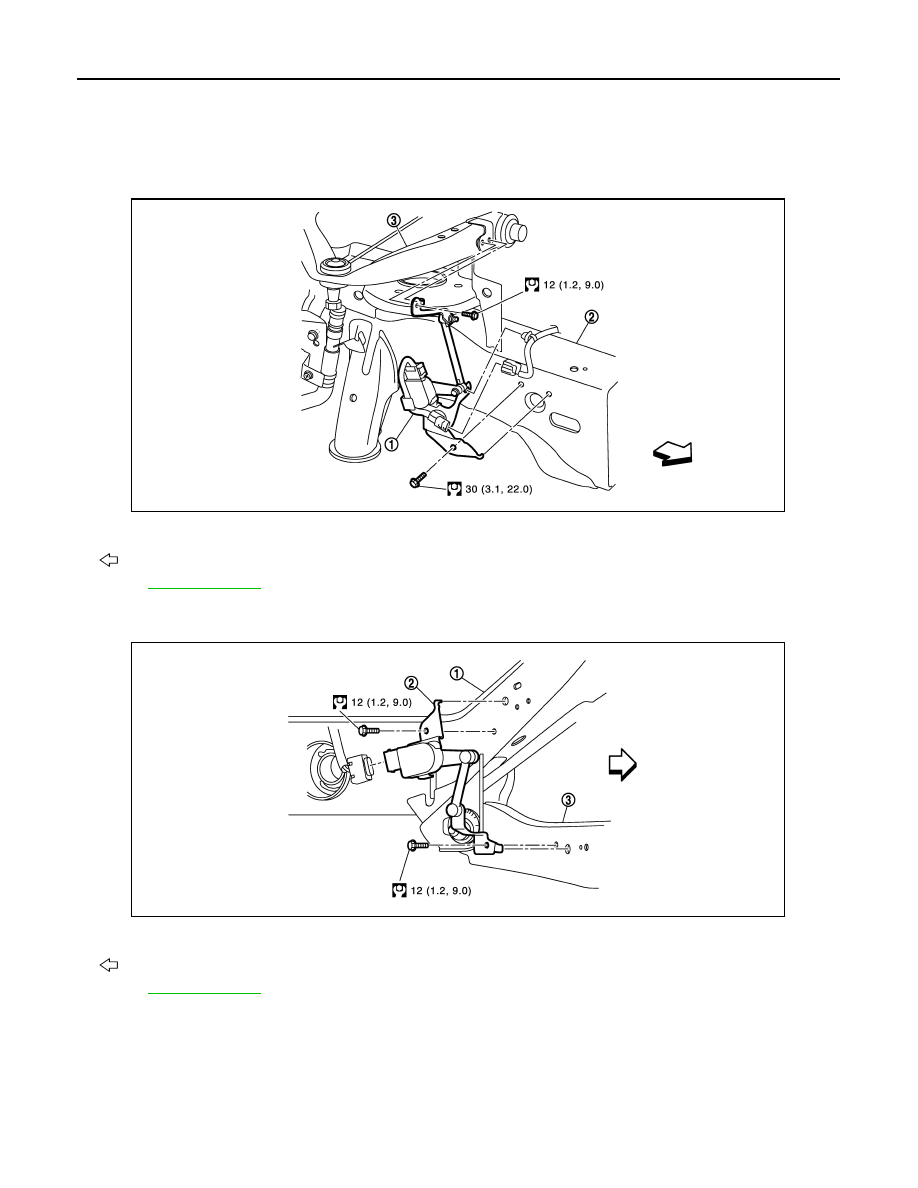

Exploded View

INFOID:0000000006369480

FRONT HEIGHT SERSOR

REAR HEIGHT SENSOR

Removal and Installation

INFOID:0000000006369481

REMOVAL

Front height sensor

1.

Disconnect height sensor connector.

2.

Remove height sensor mounting nuts.

1.

Front height sensor

2.

Front member side RH

3.

Front suspension upper link

: Vehicle front

Refer to

GI-4, "Components"

 for symbols in the figure.

JMLIA1124GB

1.

Rear suspension member

2.

Rear height sensor

3.

Rear suspension lower link

: Vehicle front

Refer to

GI-4, "Components"

 for symbols in the figure.

JMLIA1125GB

HEIGHT SENSOR

EXL-137

< REMOVAL AND INSTALLATION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

3.

Remove height sensor.

Rear height sensor

1.

Disconnect height sensor connector.

2.

Remove height sensor mounting nuts.

3.

Remove height sensor.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Perform the levelizer adjustment when removing the height sensor. Refer to

EXL-61, "LEVELIZER

ADJUSTMENT : Special Repair Requirement"

.

EXL-138

< REMOVAL AND INSTALLATION >

[XENON TYPE]

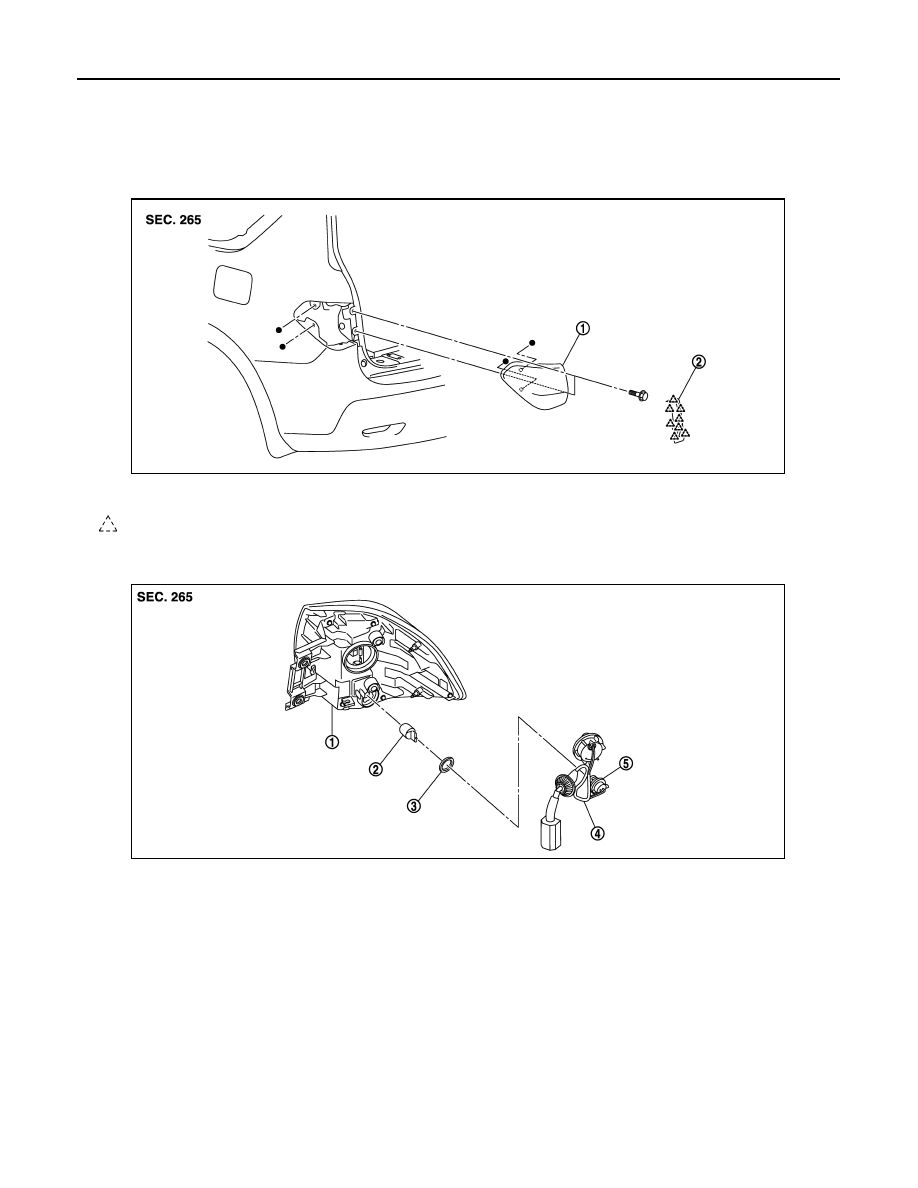

REAR COMBINATION LAMP
