FRONT FOG LAMP

FRONT FOG LAMP

Exploded View

INFOID:0000000006369467

Removal and Installation

INFOID:0000000006369468

CAUTION:

Disconnect the battery negative terminal or remove the fuse.

REMOVAL

1.

Remove front fender protector. Refer to

EXT-23, "FENDER PROTECTOR : Removal and Installation"

.

2.

Remove front fog lamp finisher.

3.

Disconnect front fog lamp harness connector.

4.

Remove front fog lamp fixing screw.

5.

Disengage pawl, and then remove front fog lamp.

INSTALLATION

Install in the reverse order of removal.
NOTE:
After installation, perform aiming adjustment. Refer to

EXL-123, "Description"

.

Replacement

INFOID:0000000006369469

CAUTION:

• Disconnect the battery negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.

Never touch bulb by hand while it is lit or right after being turned off.

• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

FRONT FOG LAMP BULB

1.

Remove front fender protector. Keep the service area. Refer to

EXT-23, "FENDER PROTECTOR :

Removal and Installation"

.

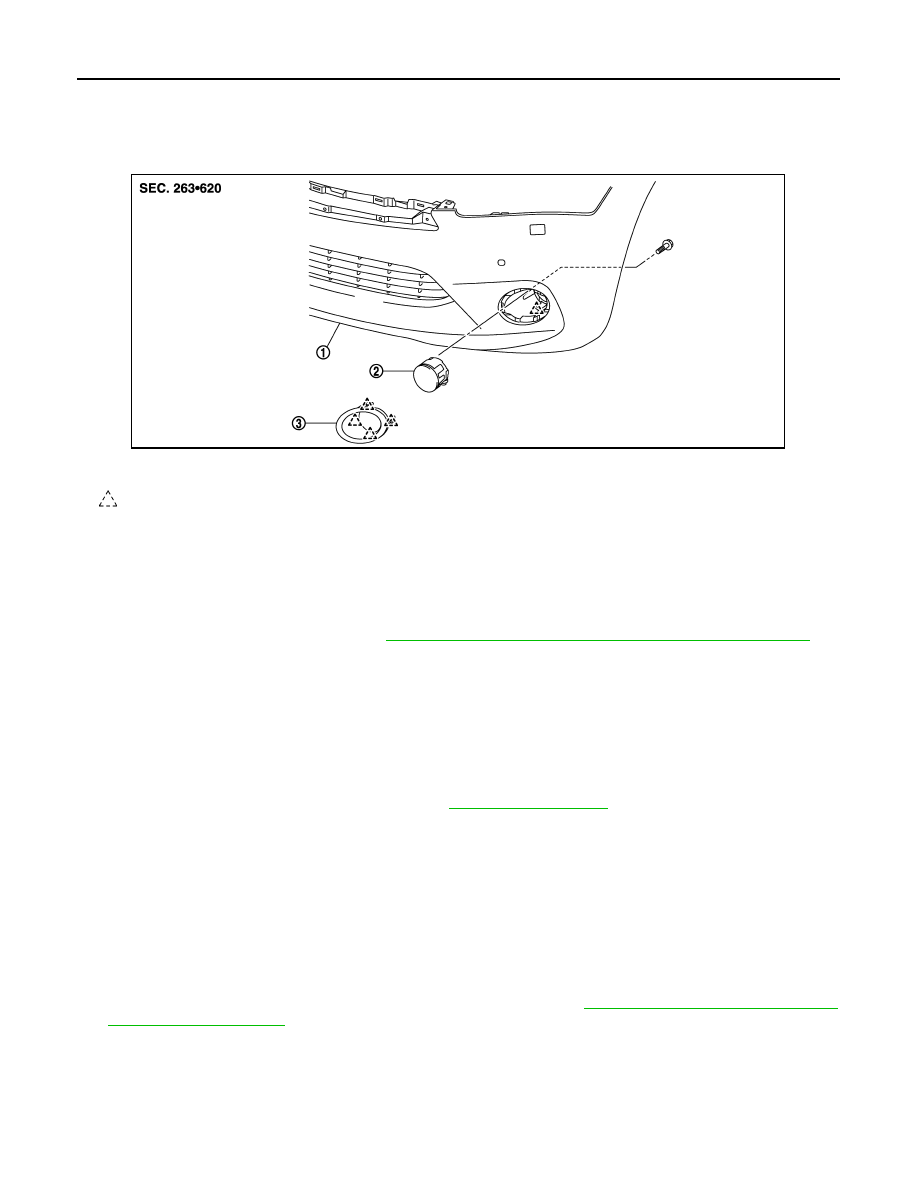

1.

Front bumper

2.

Front fog lamp

3.

Front fog lamp finisher

: Pawl

JMLIA1117ZZ

FRONT FOG LAMP

EXL-129

< REMOVAL AND INSTALLATION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

2.

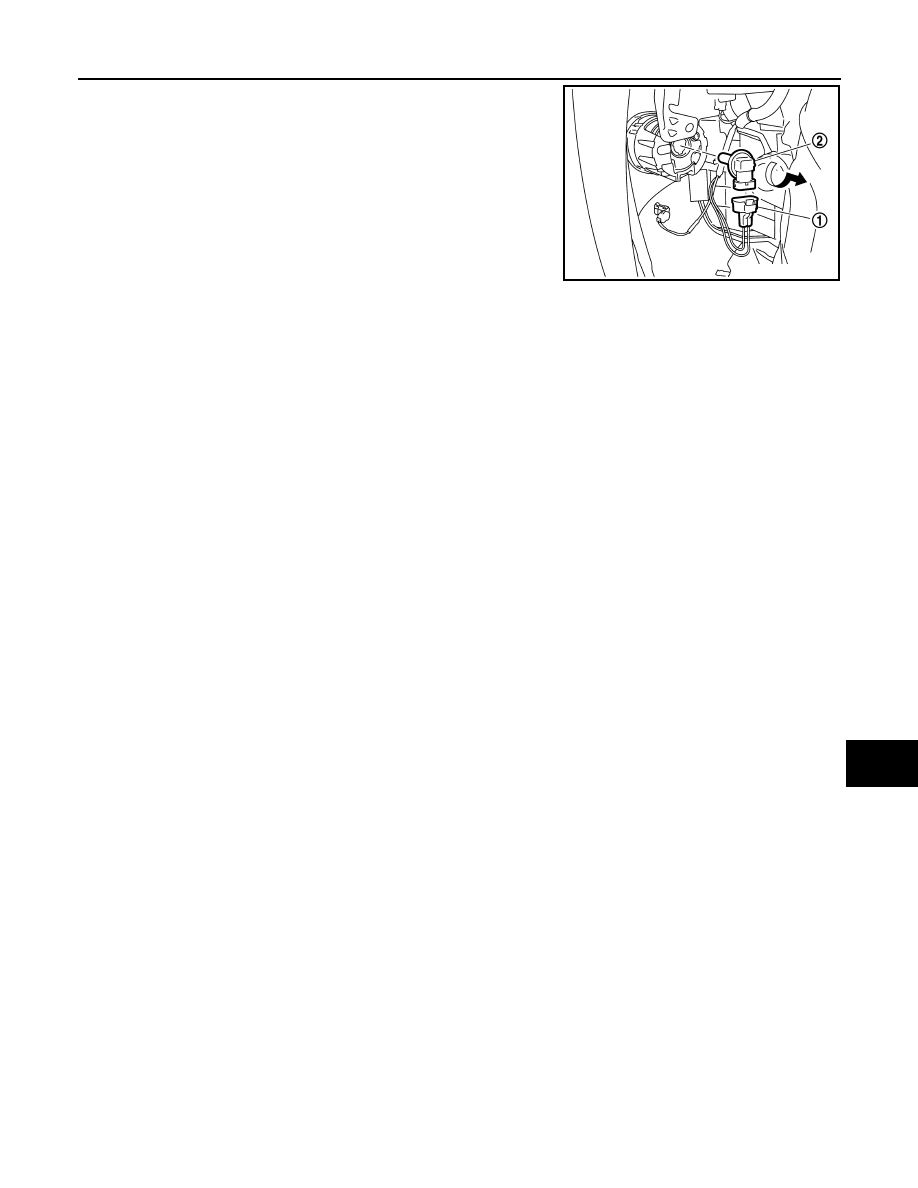

Remove front fog lamp bulb connector (1).

3.

Rotate bulb (2) counterclockwise and unlock it.

JPLIA0921ZZ

EXL-130

< REMOVAL AND INSTALLATION >

[XENON TYPE]

SIDE TURN SIGNAL LAMP

SIDE TURN SIGNAL LAMP

Exploded View

INFOID:0000000006369470

Removal and Installation

INFOID:0000000006369471

CAUTION:

Disconnect battery negative terminal or remove the fuse.

REMOVAL

1.

Remove the door mirror. Refer to

MIR-32, "DOOR MIRROR ASSEMBLY : Removal and Installation"

.

2.

Remove the door mirror glass. Refer to

MIR-35, "GLASS MIRROR : Removal and Installation"

.

3.

Remove the side camera finisher. Refer to

MIR-33, "DOOR MIRROR ASSEMBLY : Disassembly and

Assembly"

.

4.

Remove side turn signal lamp fixing screws (E), and then
remove side turn signal lamp (with side turn signal lamp models
only).
NOTE:
Pull slightly side camera finisher (1) covering side turn signal
lamp bottom screw.

INSTALLATION

Install in the reverse order of removal.

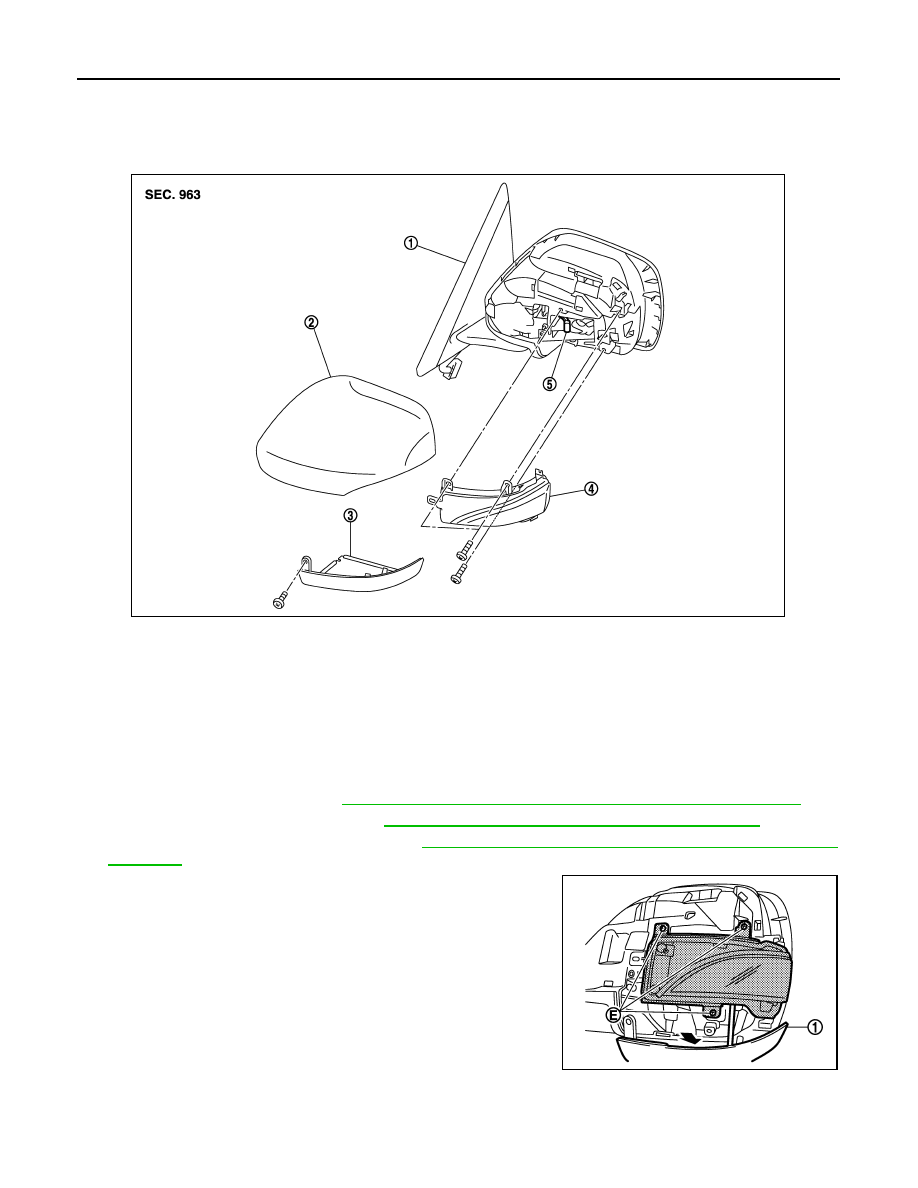

1.

Door mirror assembly

2.

Door mirror cover

3.

Side camera finisher

4.

Side turn signal lamp housing

5.

Side turn signal lamp bulb

JMLIA1110ZZ

JMLIA0914ZZ

OPTICAL SENSOR

EXL-131

< REMOVAL AND INSTALLATION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

OPTICAL SENSOR

Exploded View

INFOID:0000000006369472

Removal and Installation

INFOID:0000000006369473

REMOVAL

1.

Insert an appropriate tool between the optical sensor and the instrument upper panel. Pull out the optical
sensor upward.

2.

Disconnect optical sensor connector, and then remove optical sensor.

INSTALLATION

Install in the reverse order of removal.

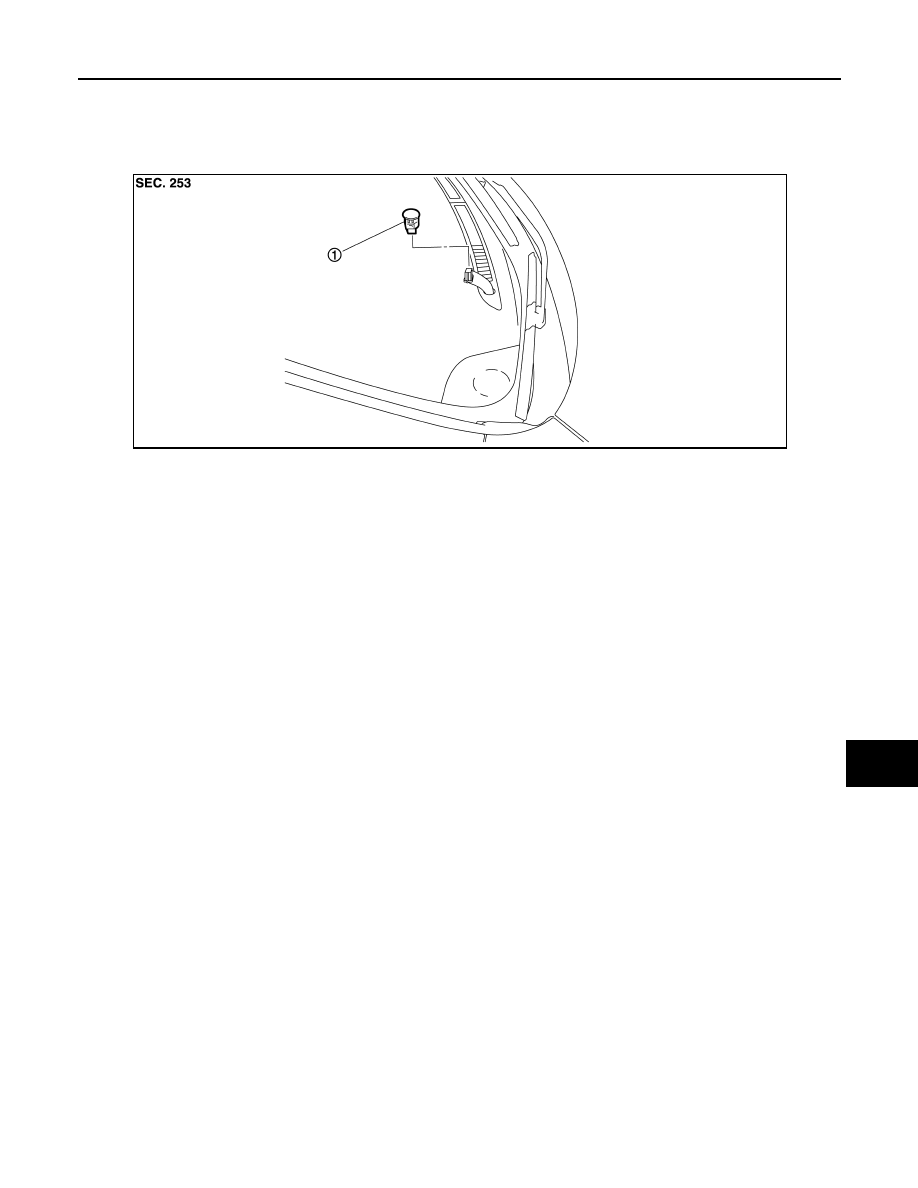

1.

Optical sensor

JPLIA0922ZZ
