Infiniti QX56 (Z62). Manual - part 708

EXL-124

< PERIODIC MAINTENANCE >

[XENON TYPE]

FRONT FOG LAMP AIMING ADJUSTMENT

Front fog lamp light distribution on the screen

JPLIA0008ZZ

A

: Cutoff line

B

: High illuminance area

H

: Horizontal center line of front fog lamp

V

: Vertical center line of front fog lamp

X

: Cutoff line height

FRONT COMBINATION LAMP

EXL-125

< REMOVAL AND INSTALLATION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

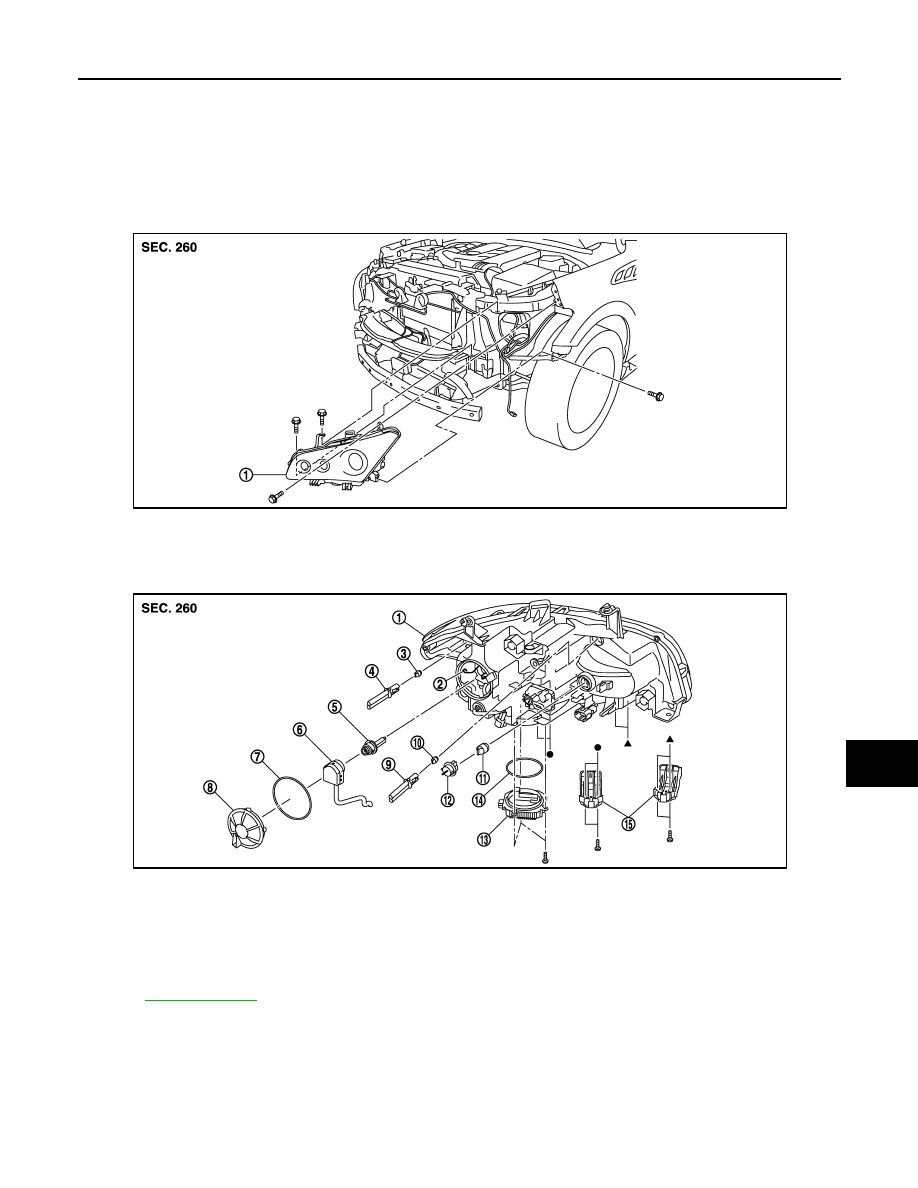

REMOVAL AND INSTALLATION

FRONT COMBINATION LAMP

Exploded View

INFOID:0000000006369463

REMOVAL

DISASSEMBLY

CAUTION:

HID control unit and xenon bulb socket cannot be disassembled.

Removal and Installation

INFOID:0000000006369464

REMOVAL

CAUTION:

1.

Front combination lamp

JMLIA1115ZZ

1.

Headlamp housing assembly

2.

Retaining spring

3.

Xenon bulb

4.

Side marker lamp bulb

5.

Side marker lamp bulb socket

6.

Xenon bulb socket

7.

Seal packing

8.

Resin cap

9.

Parking lamp bulb socket

10.

Parking lamp bulb

11. Front turn signal lamp bulb

12. Front turn signal lamp bulb socket

13.

HID control unit

14. Seal packing

15. Bumper bracket

Refer to

GI-4, "Components"

 for symbols not described above.

JMLIA1320ZZ

EXL-126

< REMOVAL AND INSTALLATION >

[XENON TYPE]

FRONT COMBINATION LAMP

Disconnect the battery negative terminal or remove the fuse.

1.

Remove front grille. Refer to

EXT-19, "Removal and Installation"

.

2.

Remove front bumper molding. Refer to

EXT-13, "Removal and Installation"

.

3.

Remove front bumper fascia. Refer to

EXT-13, "Removal and Installation"

.

4.

Remove headlamp mounting bolts.

5.

Pull out headlamp assembly forward vehicle.

6.

Disconnect connectors before removing headlamp assembly.

INSTALLATION

Install in the reverse order of removal.
NOTE:
After installation, perform aiming adjustment. Refer to

EXL-121, "description"

.

Replacement

INFOID:0000000006369465

CAUTION:

• Disconnect the battery negative terminal or remove the fuse.
• After installing the bulb, install the resin cap and the bulb socket securely for watertightness.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.

Never touch bulb by hand while it is lit or right after being turned off.

• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

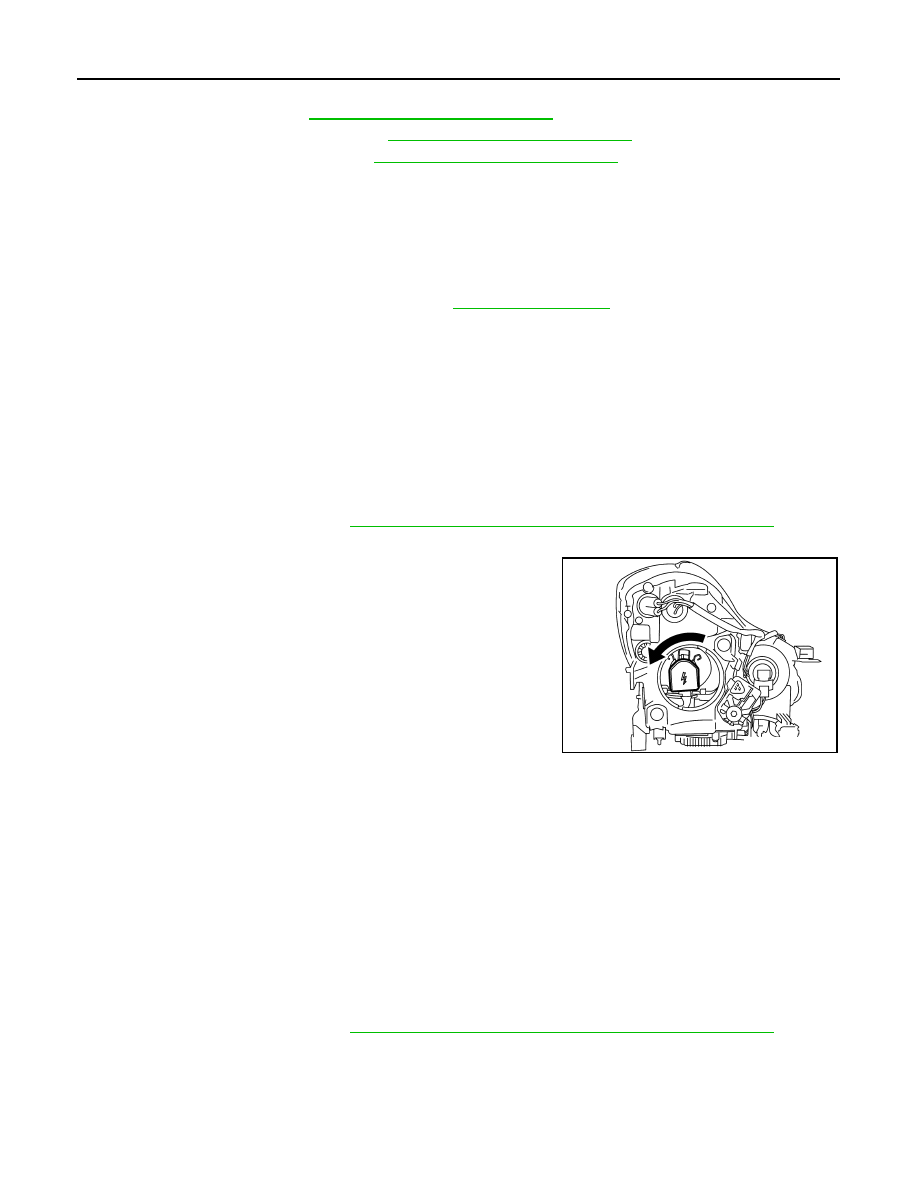

HEADLAMP BULB (HI/LO)

1.

Remove fender protector. Refer to

EXT-23, "FENDER PROTECTOR : Removal and Installation"

.

2.

Rotate resin cap counterclockwise and unlock it.

3.

Rotate bulb socket counterclockwise and unlock it.

4.

Remove retaining spring lock. And then remove bulb from
headlamp housing assembly.

CAUTION:

Never break the xenon bulb ceramic tube when replacing
the bulb.

PARKING LAMP BULB

1.

Remove hood switch

*

.

*:When replace a right.

2.

Rotate bulb socket counterclockwise and unlock it.

3.

Remove bulb from bulb socket.

FRONT TURN SIGNAL LAMP BULB

1.

Remove hood switch

*

.

*:When replace a right.

2.

Rotate bulb socket counterclockwise and unlock it.

3.

Remove bulb from bulb socket.

SIDE MARKER LAMP BULB

1.

Remove fender protector. Refer to

EXT-23, "FENDER PROTECTOR : Removal and Installation"

2.

Rotate bulb socket counterclockwise and unlock it.

3.

Remove bulb from bulb socket.

JPLIA0919ZZ

FRONT COMBINATION LAMP

EXL-127

< REMOVAL AND INSTALLATION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

Disassembly and Assembly

INFOID:0000000006369466

DISASSEMBLY

1.

Rotate resin cap counterclockwise and unlock it.

2.

Rotate xenon bulb socket counterclockwise and unlock it.

3.

Remove retaining spring lock. Remove xenon bulb.

4.

Remove bumper bracket.

5.

Rotate parking lamp bulb socket counterclockwise and unlock it.

6.

Remove bulb from parking lamp bulb socket.

7.

Rotate front turn signal lamp bulb socket counterclockwise and unlock it.

8.

Remove bulb from front turn signal lamp bulb socket.

9.

Rotate side marker lamp bulb socket counterclockwise and unlock it.

10. Remove bulb from bulb socket.

ASSEMBLY

Assemble in the reverse order of disassembly.

CAUTION:

• HID control unit and xenon bulb socket cannot be disassembled.
• After installing the bulb, install the resin cap and the bulb socket securely for watertightness.
