EX-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Removal and Installation

INFOID:0000000006289691

CAUTION:

• Be sure to use genuine exhaust system parts or equivalents which are specially designed for heat

resistance, corrosion resistance, and shape.

• Perform the operation with the exhaust system fully cooled down because the system will be hot

just after engine stops.

• Be careful not to cut your hand on the heat insulator edge.

PREPARATION

EX-3

< PREPARATION >

C

D

E

F

G

H

I

J

K

L

M

A

EX

N

P

O

PREPARATION

PREPARATION

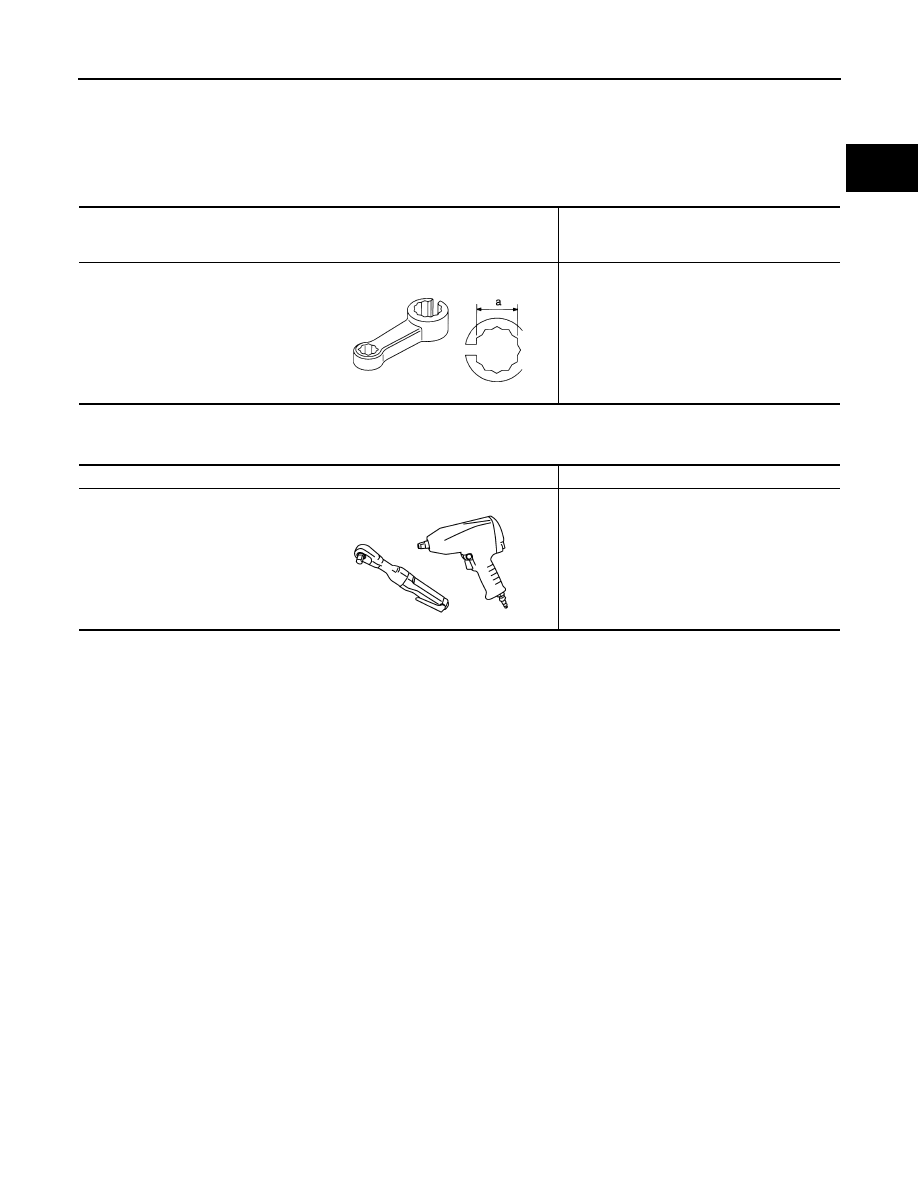

Special Service Tool

INFOID:0000000006289692

Commercial Service Tool

INFOID:0000000006289693

Tool number
(Kent-Moore No.)
Tool name

Description

KV10114400
(J-38365)
Heated oxygen sensor wrench

Loosening or tightening heated oxygen sen-
sor 2
For 22 mm (0.87 in) (a) width hexagon nut

S-NT636

Tool name

Description

Power tool

Loosening bolts and nuts

PBIC0190E

EX-4

< PERIODIC MAINTENANCE >

EXHAUST SYSTEM

PERIODIC MAINTENANCE

EXHAUST SYSTEM

Inspection

INFOID:0000000006289694

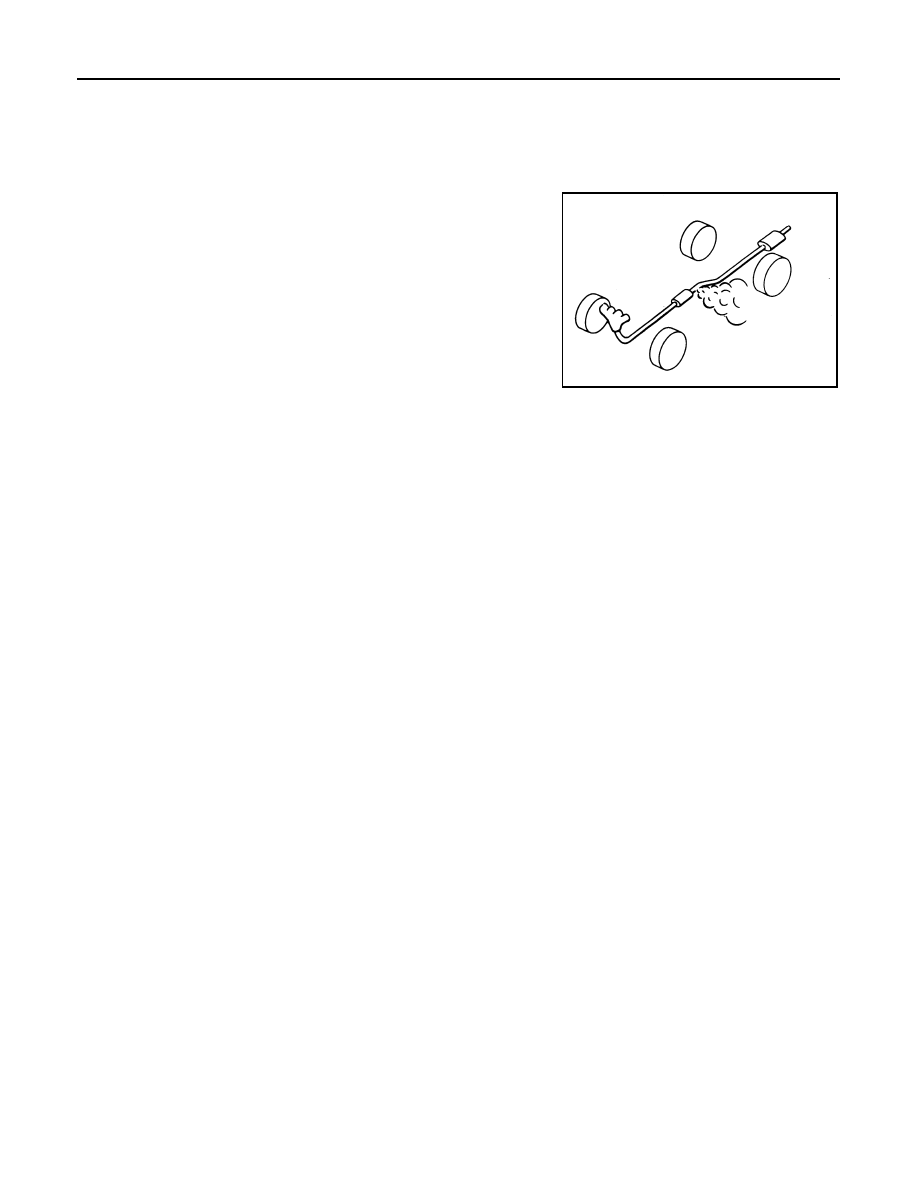

Check exhaust pipes, muffler and mounting for improper attachment,
leakage, cracks, damage or deterioration.
• If damage is found, repair or replace damaged parts.

SMA211A

EXHAUST SYSTEM

EX-5

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

EX

N

P

O

REMOVAL AND INSTALLATION

EXHAUST SYSTEM

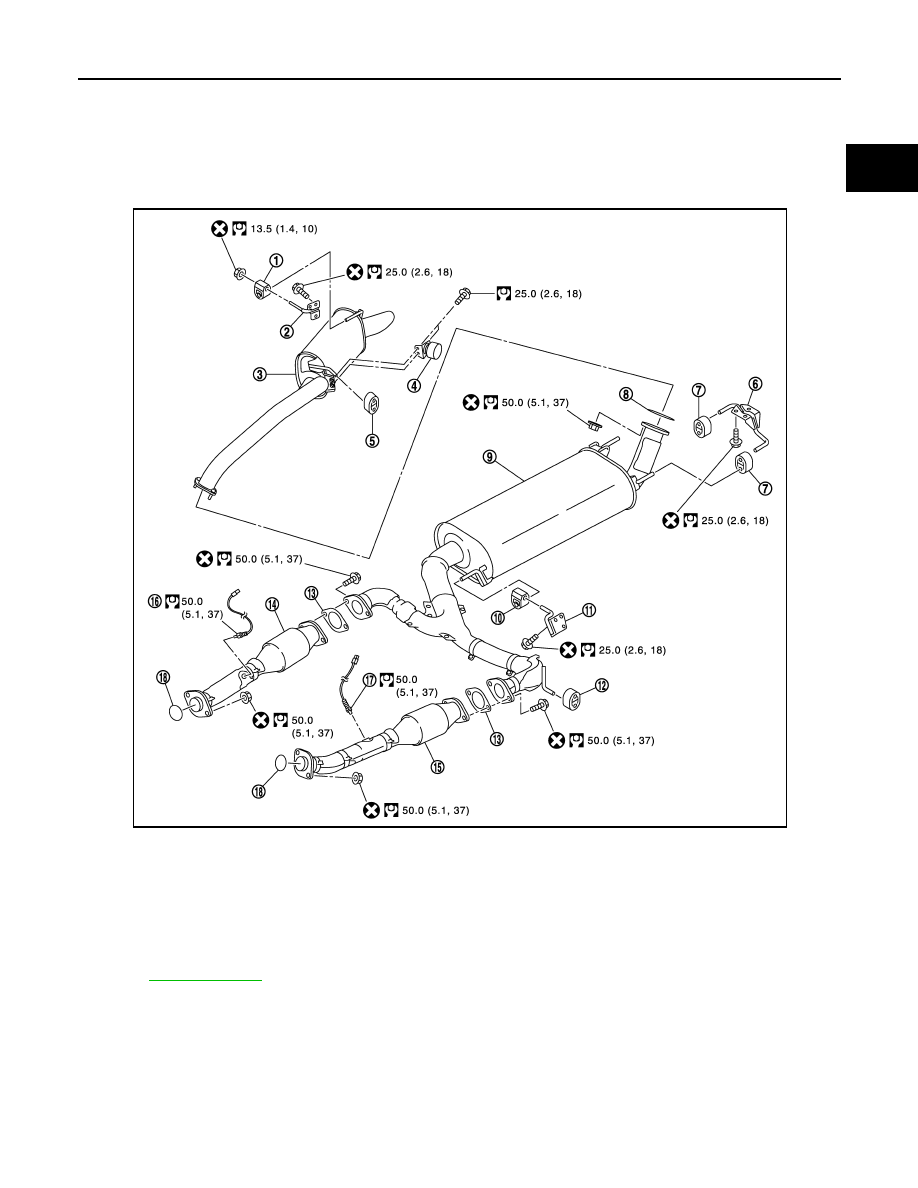

Exploded View

INFOID:0000000006289695

Removal and Installation

INFOID:0000000006289696

REMOVAL

• Disconnect each joint and mounting using power tool.
• Remove heated oxygen sensor 2, as follows:.

1.

Mounting rubber

2.

Mounting bracket

3.

Rear mufller

4.

Dynamic damper

5.

Mounting rubber

6.

Mounting bracket

7.

Mounting rubber

8.

Gasket

9.

Main muffler

10. Mounting rubber

11. Mounting bracket

12. Mounting rubber

13. Gasket

14. Exhaust front tube (RH)

15. Exhaust front tube (LH)

16. Heated oxygen sensor 2 (bank 2)

17. Heated oxygen sensor 2 (bank 1)

18. Ring gasket

Refer to

GI-4, "Components"

 for symbols in the figure.

JPBIA3265GB
