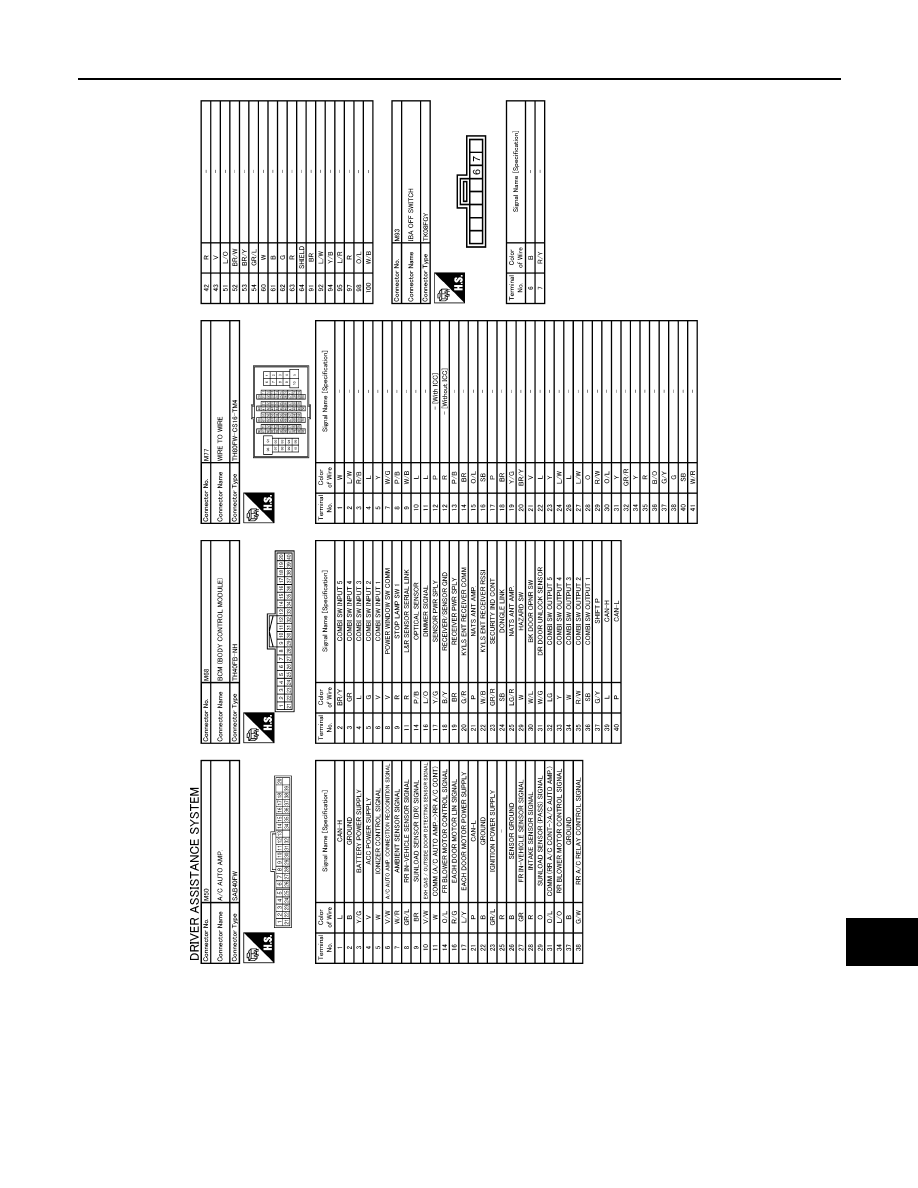

DAS-121

< WIRING DIAGRAM >

[DCA]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

JCOWM0364GB

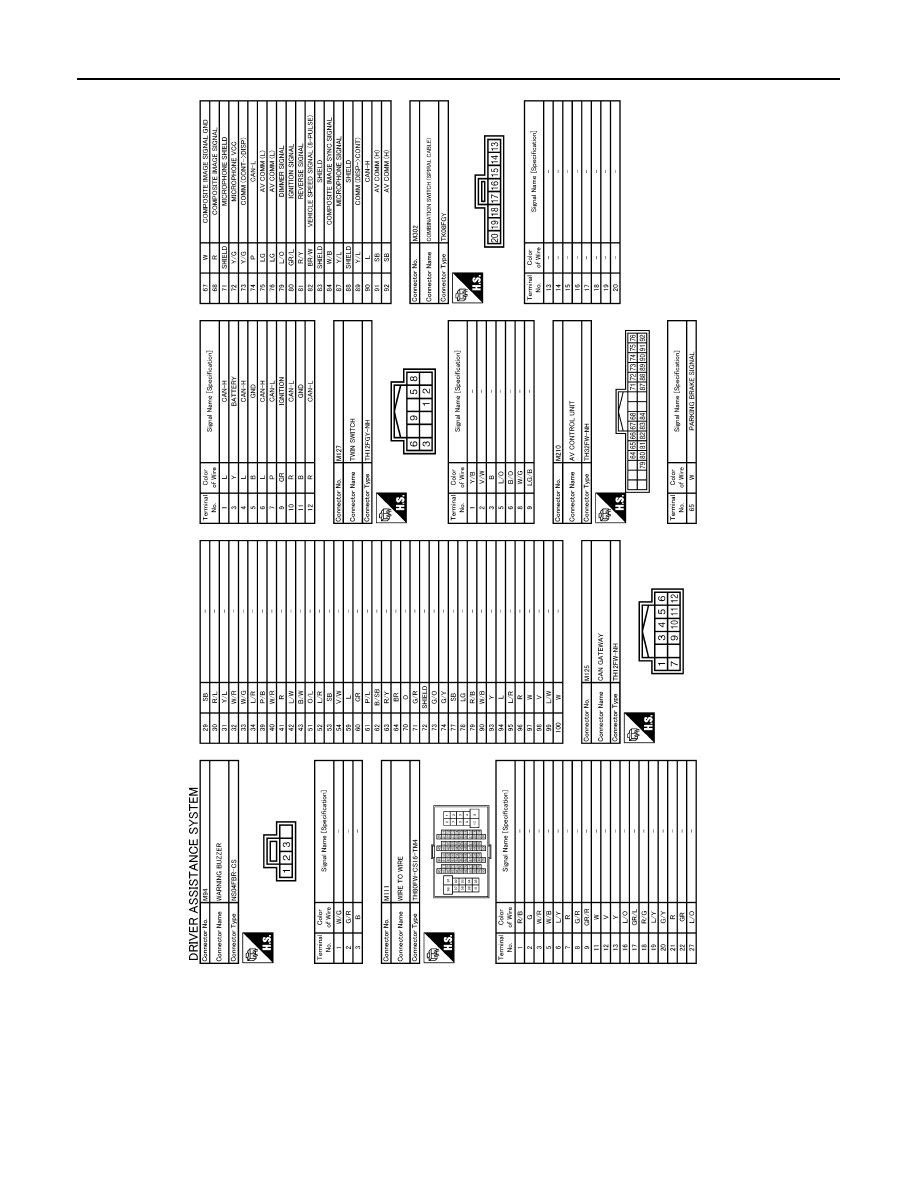

DAS-122

< WIRING DIAGRAM >

[DCA]

DRIVER ASSISTANCE SYSTEMS

JCOWM0365GB

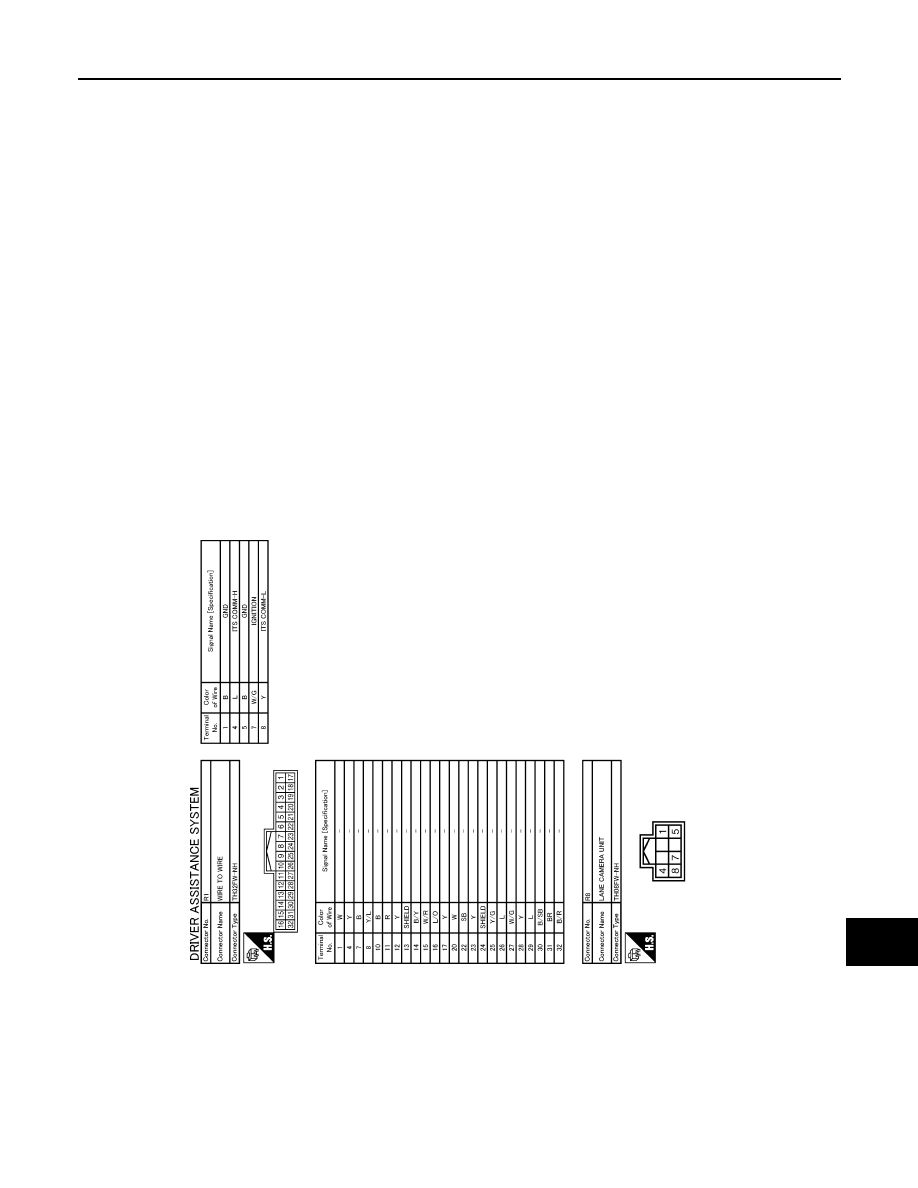

DAS

DRIVER ASSISTANCE SYSTEMS

DAS-123

< WIRING DIAGRAM >

[DCA]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

JCOWM0366GB

DAS-124

< BASIC INSPECTION >

[DCA]

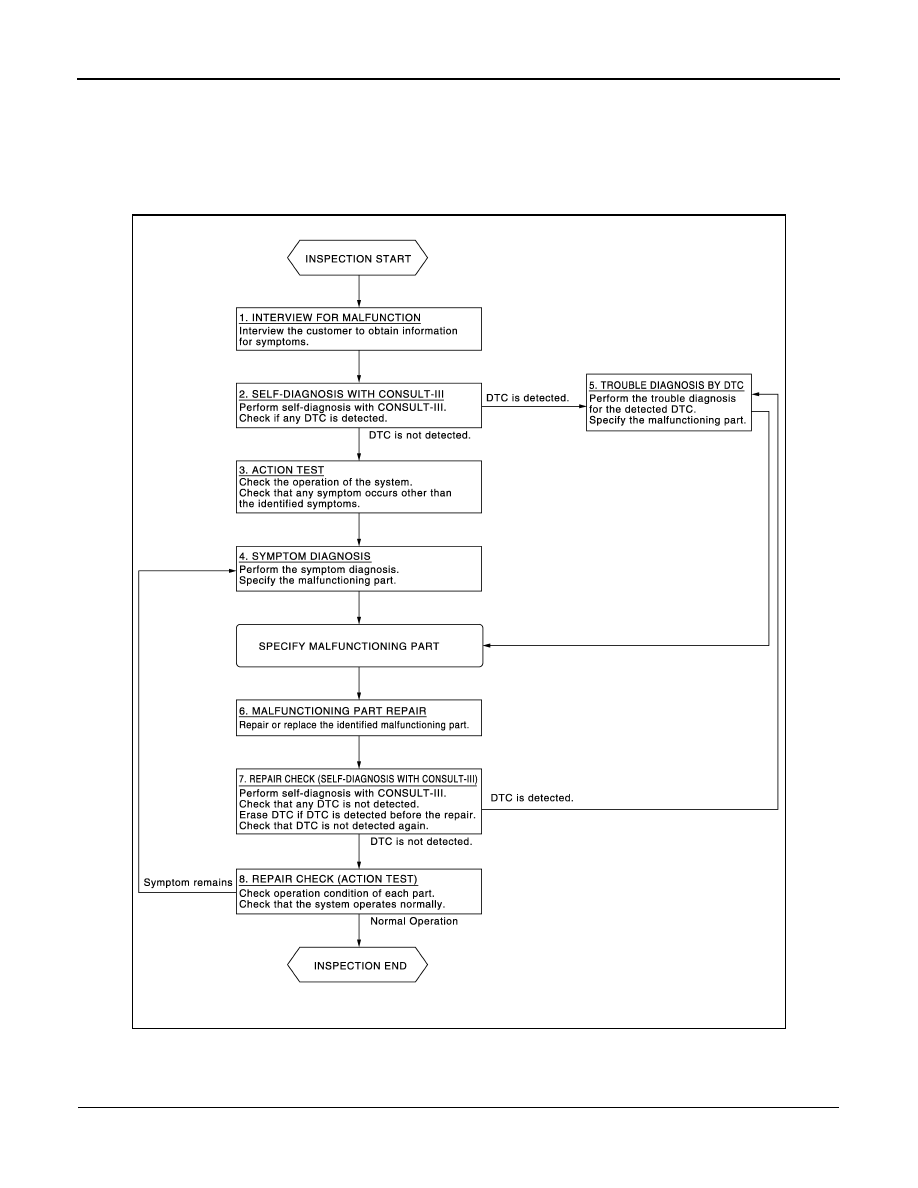

DIAGNOSIS AND REPAIR WORK FLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000006223522

OVERALL SEQUENCE

DETAILED FLOW

1.

INTERVIEW FOR MALFUNCTION

It is also important to clarify the customer concerns before starting the inspection. Interview the customer
about the concerns carefully and understand the symptoms fully.

JPOIA0171GB
