TRANSMISSION ASSEMBLY

TM-229

< UNIT DISASSEMBLY AND ASSEMBLY >

[7AT: RE7R01B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

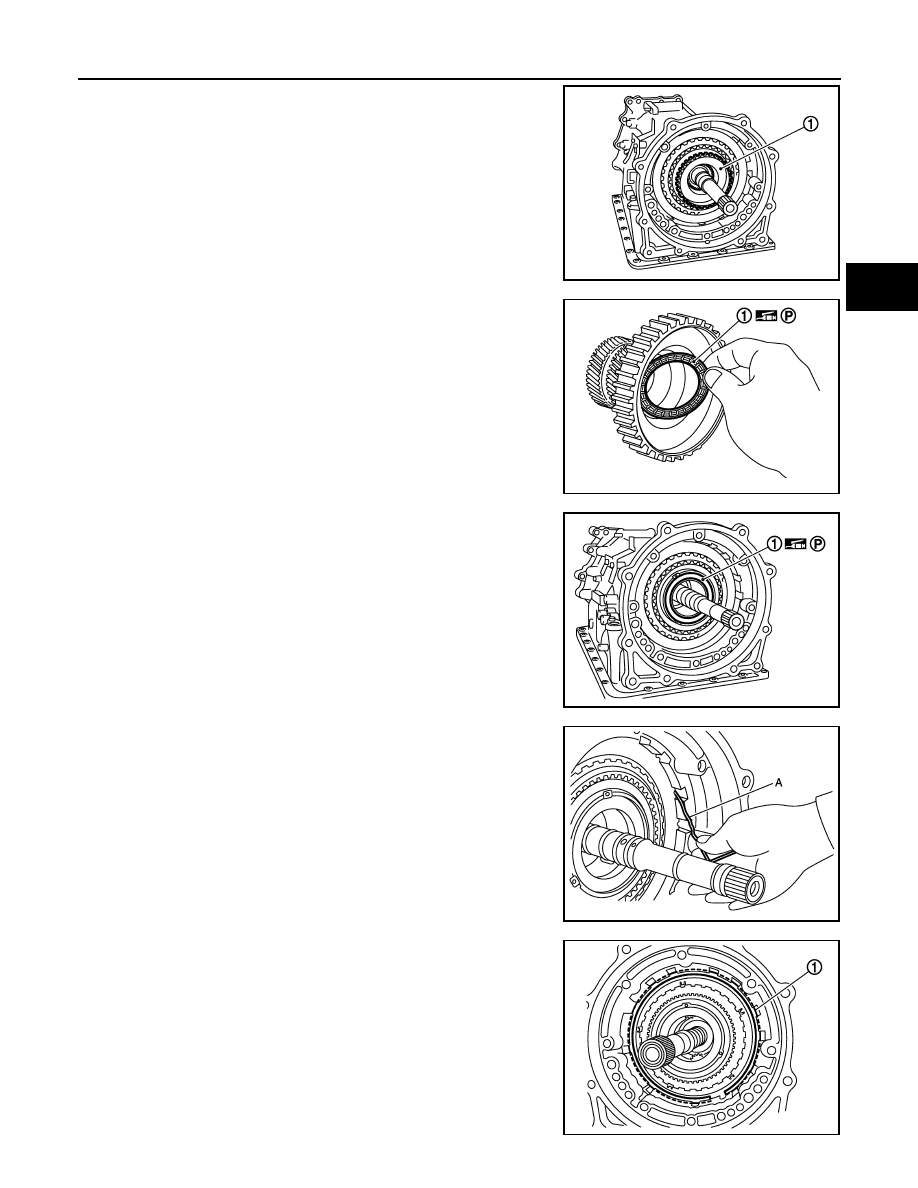

11. Remove under drive sun gear (1) from under drive carrier

assembly.

12. Remove needle bearing (1) from under drive sun gear.

13. Remove needle bearing (1) from under drive carrier assembly.

14. Remove front brake retaining plate, front brake drive plates,

front brake driven plates, and front brake dish plate from trans-
mission case by using a wire (A) with its tip bent like a hook.

15. Remove snap ring (1) from transmission case using a flat-

bladed screwdriver.

CAUTION:

• Be careful not to scratch transmission case and 1st one-

way clutch.

• Be careful not to damage snap ring.

JPDIA1112ZZ

JPDIA1113ZZ

JPDIA1114ZZ

JPDIA1115ZZ

JPDIA1116ZZ

TM-230

< UNIT DISASSEMBLY AND ASSEMBLY >

[7AT: RE7R01B]

TRANSMISSION ASSEMBLY

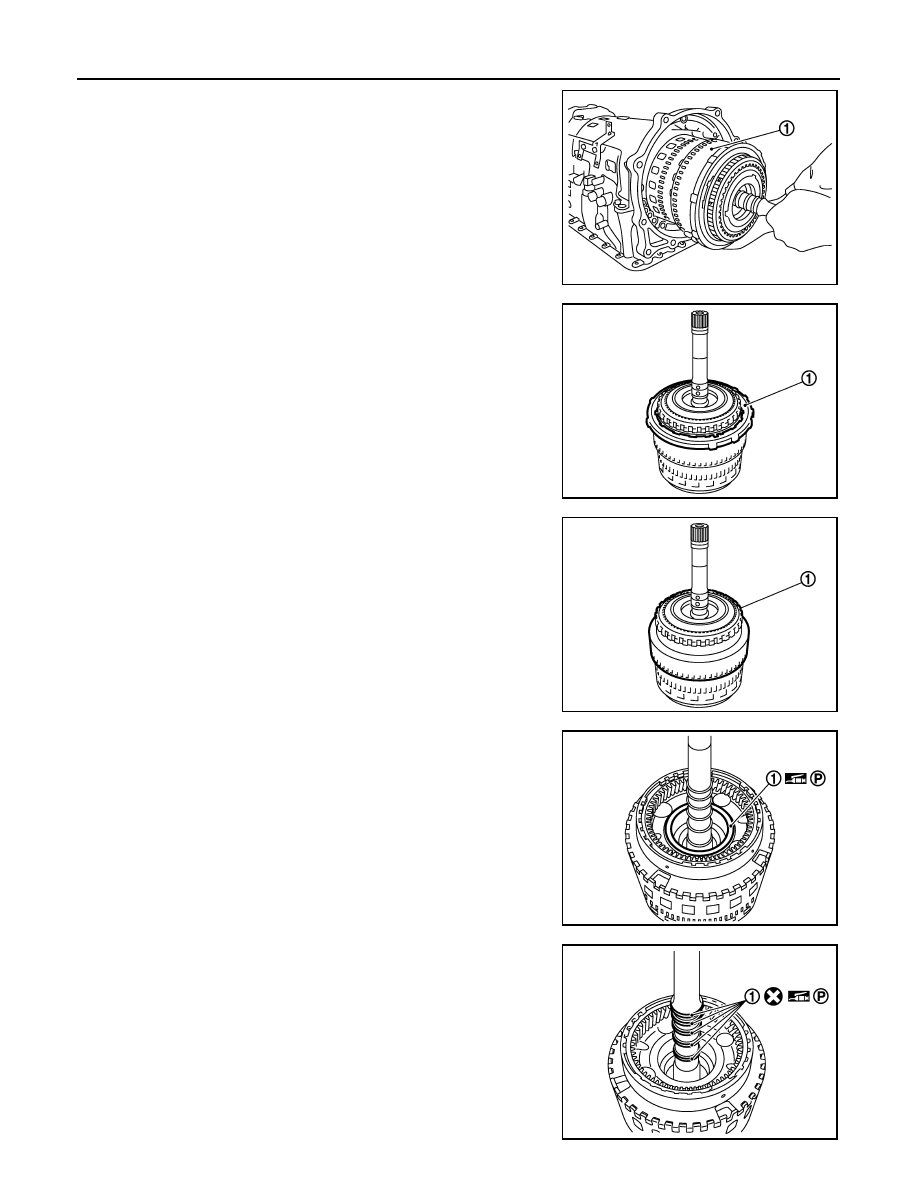

16. Remove input clutch assembly (with 1st one-way clutch, under

drive carrier assembly, front brake hub, front carrier assembly,
and rear internal gear) (1) from transmission case.

17. Remove 1st one-way clutch (1) from front brake hub.

18. Remove under drive carrier assembly (with front brake hub) (1)

from front carrier assembly.

19. Remove needle bearing (1) from front carrier assembly.

20. Remove seal rings (1) from input clutch assembly.

JPDIA1117ZZ

JPDIA1118ZZ

JPDIA1119ZZ

JPDIA1120ZZ

JPDIA1121ZZ

TRANSMISSION ASSEMBLY

TM-231

< UNIT DISASSEMBLY AND ASSEMBLY >

[7AT: RE7R01B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

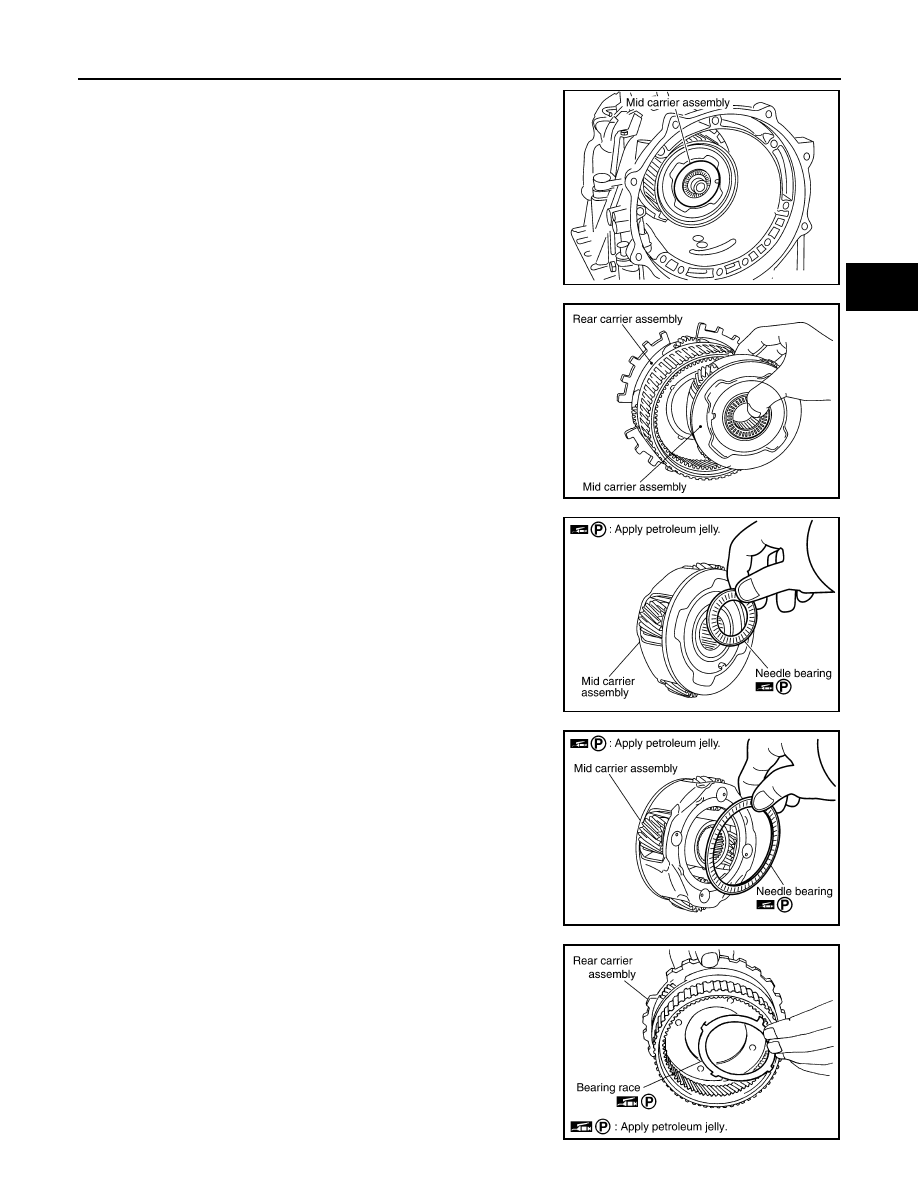

21. Remove mid carrier assembly and rear carrier assembly as a

unit.

22. Remove mid carrier assembly from rear carrier assembly.

23. Remove needle bearing (front side) from mid carrier assembly.

24. Remove needle bearing (rear side) from mid carrier assembly.

25. Remove bearing race from rear carrier assembly.

SCIA5017E

SCIA5697E

SCIA2805E

SCIA2804E

SCIA5175E

TM-232

< UNIT DISASSEMBLY AND ASSEMBLY >

[7AT: RE7R01B]

TRANSMISSION ASSEMBLY

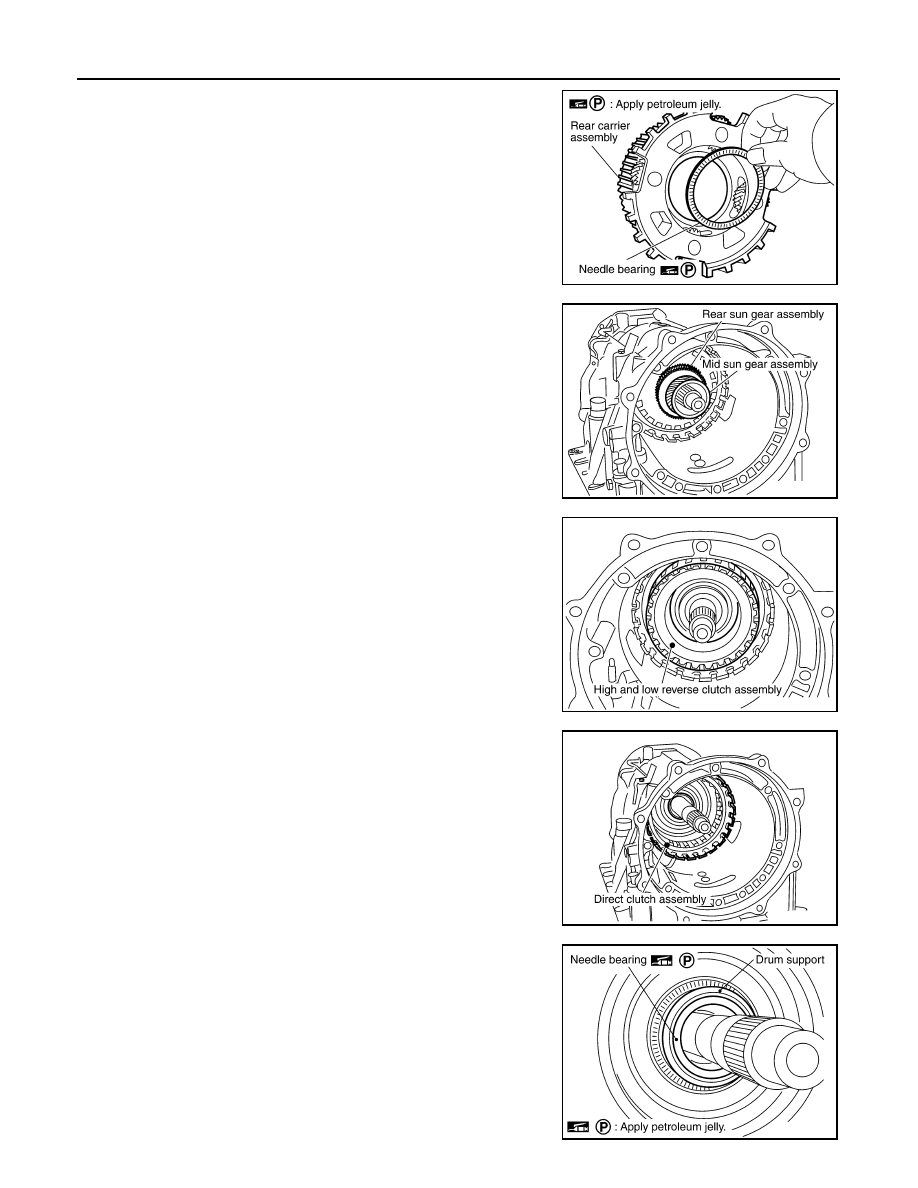

26. Remove needle bearing from rear carrier assembly.

27. Remove mid sun gear assembly, rear sun gear assembly, and

high and low reverse clutch hub as a unit.

CAUTION:

Be careful to remove then with bearing race and needle
bearing.

28. Remove high and low reverse clutch assembly from direct clutch

assembly.

CAUTION:

Make sure that needle bearing is installed to the high and
low reverse clutch assembly edge surface.

29. Remove direct clutch assembly from reverse brake.

30. Remove needle bearing from drum support.

SCIA2803E

SCIA5018E

SCIA2306E

SCIA5019E

SCIA5198E
