Infiniti QX56 (Z62). Manual - part 1328

TRANSMISSION ASSEMBLY

TM-221

< UNIT DISASSEMBLY AND ASSEMBLY >

[7AT: RE7R01B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

1.

Parking rod

2.

Manual plate

3.

Manual shaft

4.

Retaining pin

5.

Detent spring

6.

Oil seal

7.

Bracket

8.

O-ring

9.

Self-sealing bolt

10.

Baffle plate

11.

O-ring

12. Seal ring

13.

Snap ring

14. Oil pan gasket

15. Oil pan

16.

Clip

17. Oil pan mounting bolt

18. Overflow plug

19.

Drain plug

20. Drain plug gasket

21. Magnet

22.

Clip

23. Control valve & TCM

24. Joint connector

25.

Transmission case

26. Retaining pin

27. Output speed sensor

28.

Gasket

29. Needle bearing

30. Parking gear

31.

Seal ring

32. Output shaft

33. Bearing race

Refer to

GI-4, "Components"

 for symbols in the figure.

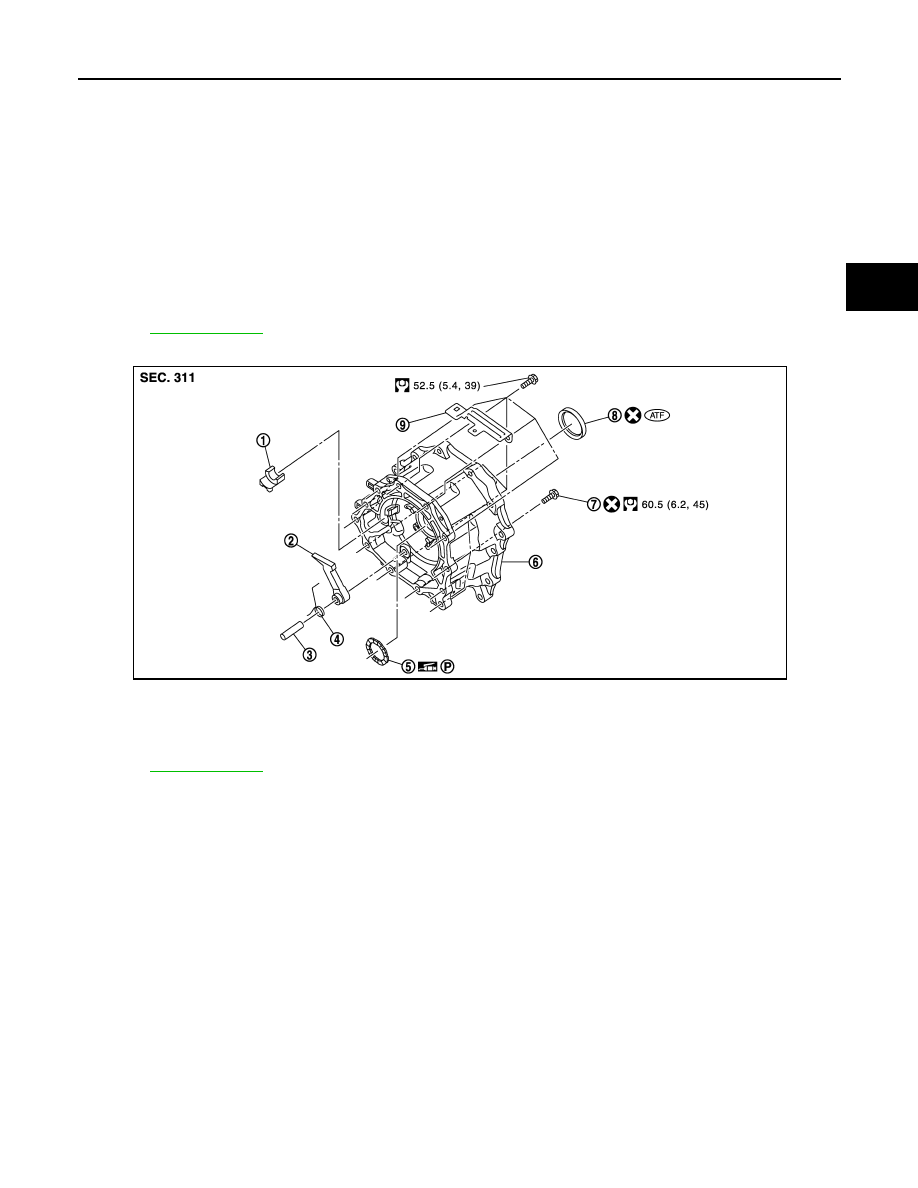

1.

Parking actuator support

2.

Parking pawl

3.

Pawl shaft

4.

Return spring

5.

Needle bearing

6.

Adapter case

7.

Self-sealing bolt

8.

Rear oil seal

9.

Bracket

Refer to

GI-4, "Components"

 for symbols in the figure.

JSDIA1766GB

TM-222

< UNIT DISASSEMBLY AND ASSEMBLY >

[7AT: RE7R01B]

TRANSMISSION ASSEMBLY

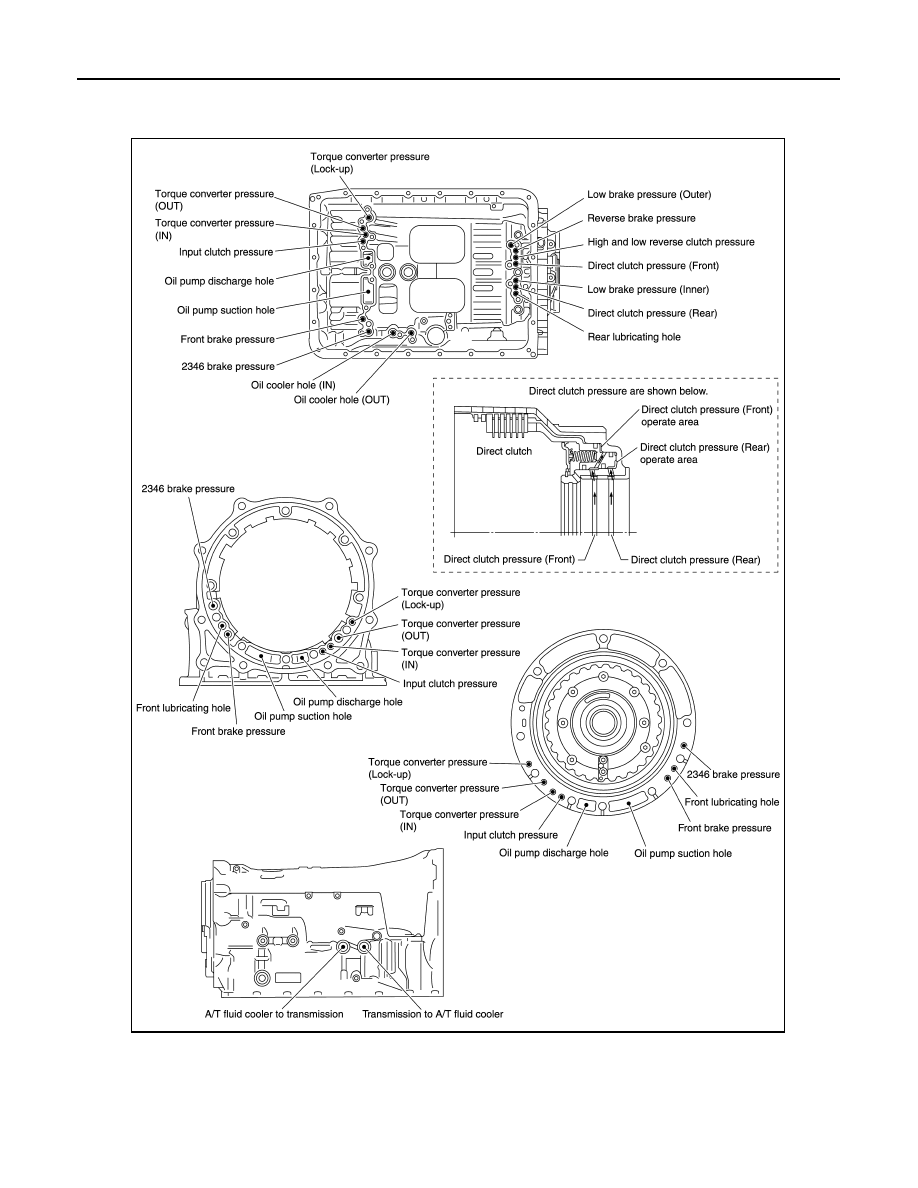

Oil Channel

INFOID:0000000006226914

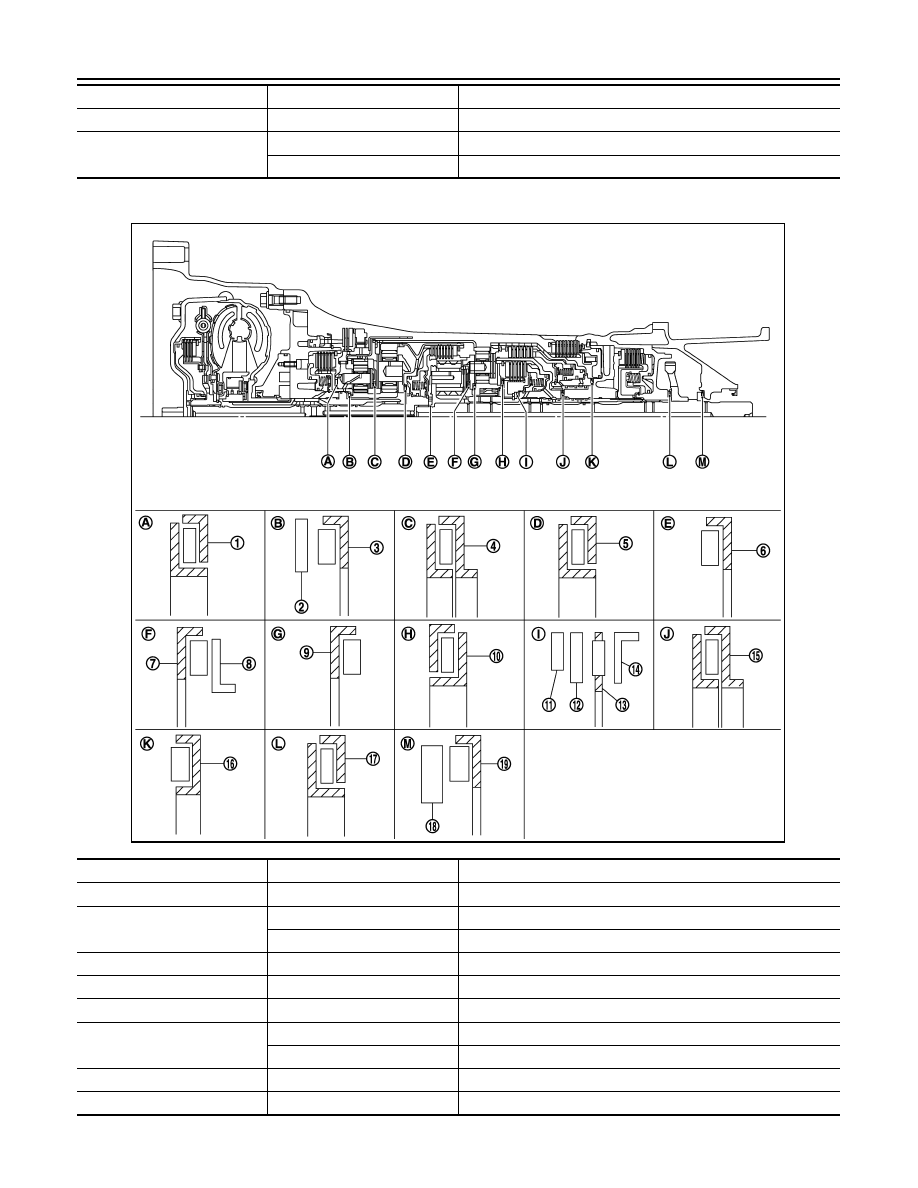

Location of Needle Bearings and Bearing Races

INFOID:0000000006226915

2WD MODELS

JSDIA1716GB

TRANSMISSION ASSEMBLY

TM-223

< UNIT DISASSEMBLY AND ASSEMBLY >

[7AT: RE7R01B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

JSDIA1731ZZ

Location

Item

Outer diameter

mm (in)

A

(1) Needle bearing

94 (3.701)

B

(2) Bearing race

58.6 (2.307)

(3) Needle bearing

60 (2.362)

C

(4) Needle bearing

84.6 (3.331)

D

(5) Needle bearing

77 (3.031)

E

(6) Needle bearing

47 (1.850)

F

(7) Needle bearing

84 (3.307)

(8) Bearing race

82 (3.228)

G

(9) Needle bearing

80 (3.150)

H

(10) Needle bearing

92 (3.622)

I

(11) Bearing race

60.0 (2.362)

(12) Bearing race

61.1 (2.406)

(13) Needle bearing

60 (2.362)

(14) Bearing race

61.9 (2.437)

J

(15) Needle bearing

62.8 (2.472)

K

(16) Needle bearing

92 (3.622)

TM-224

< UNIT DISASSEMBLY AND ASSEMBLY >

[7AT: RE7R01B]

TRANSMISSION ASSEMBLY

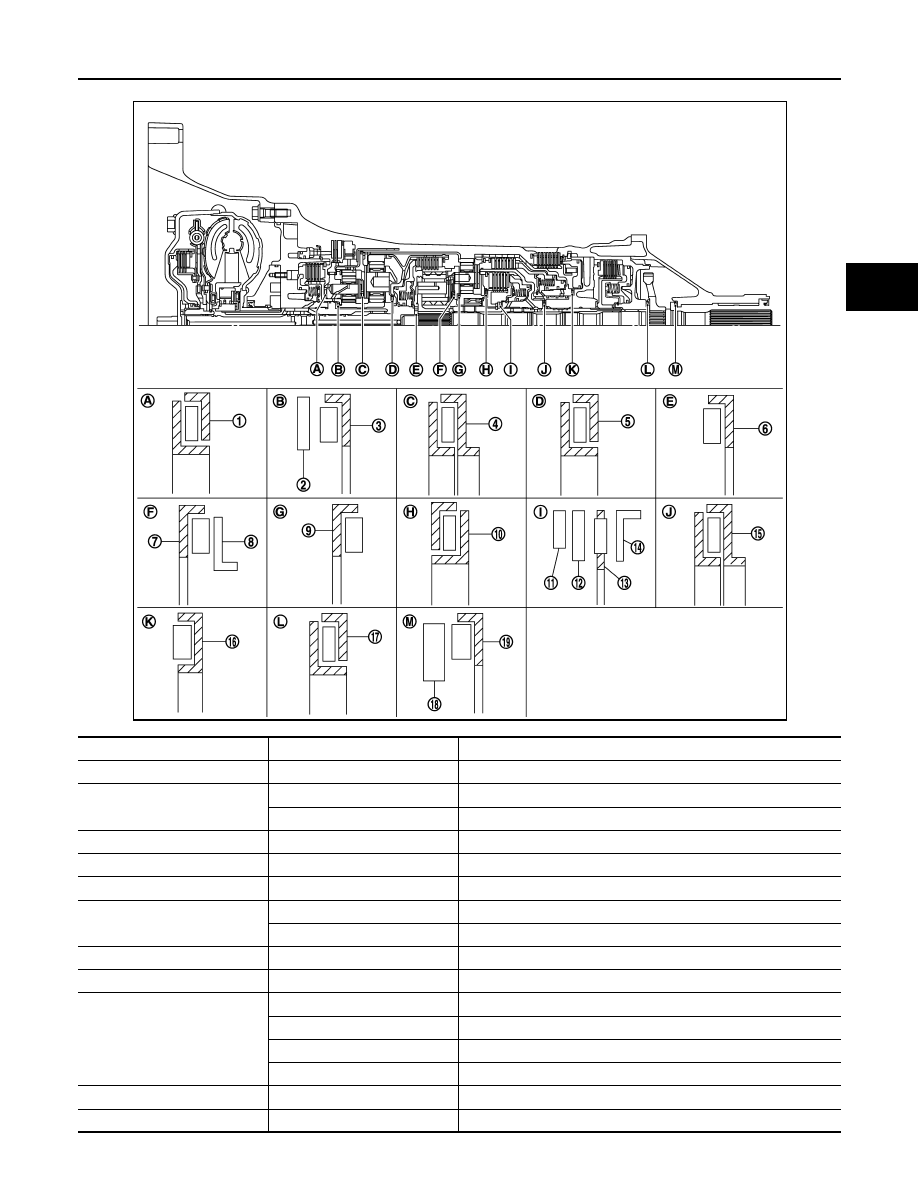

4WD MODELS

L

(17) Needle bearing

65 (2.559)

M

(18) Bearing race

58 (2.362)

(19) Needle bearing

58 (2.283)

Location

Item

Outer diameter

mm (in)

JSDIA1732ZZ

Location

Item

Outer diameter

mm (in)

A

(1) Needle bearing

94 (3.701)

B

(2) Bearing race

58.6 (2.307)

(3) Needle bearing

60 (2.362)

C

(4) Needle bearing

84.6 (3.331)

D

(5) Needle bearing

77 (3.031)

E

(6) Needle bearing

47 (1.850)

F

(7) Needle bearing

84 (3.307)

(8) Bearing race

82 (3.228)

G

(9) Needle bearing

80 (3.150)

H

(10) Needle bearing

92 (3.622)
