PREPARATION

PREPARATION

Commercial Service Tools

INFOID:0000000006222681

Tool name

Description

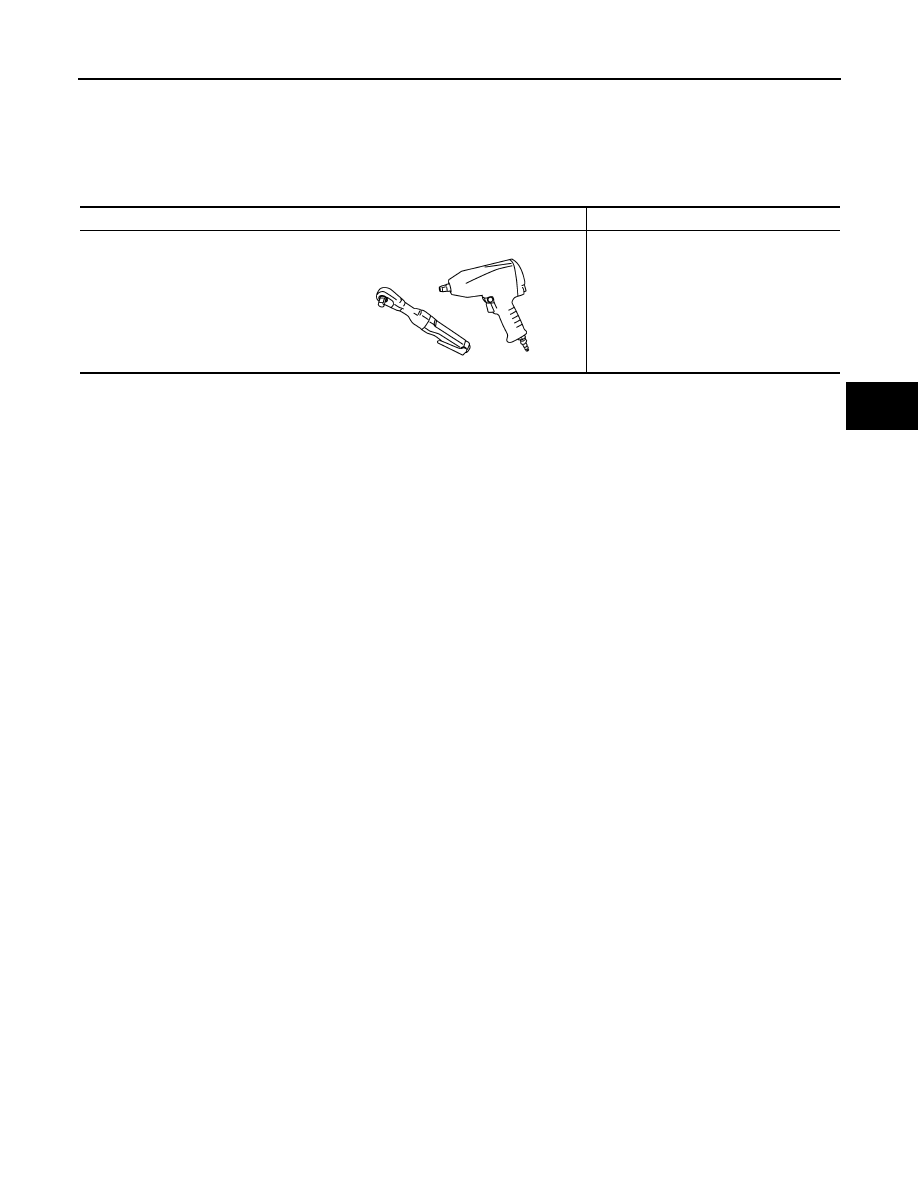

Power tool

Loosening bolts and nuts

PBIC0190E

BRC-10

< SYSTEM DESCRIPTION >

[WITH VDC]

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

Component Parts Location

INFOID:0000000006222559

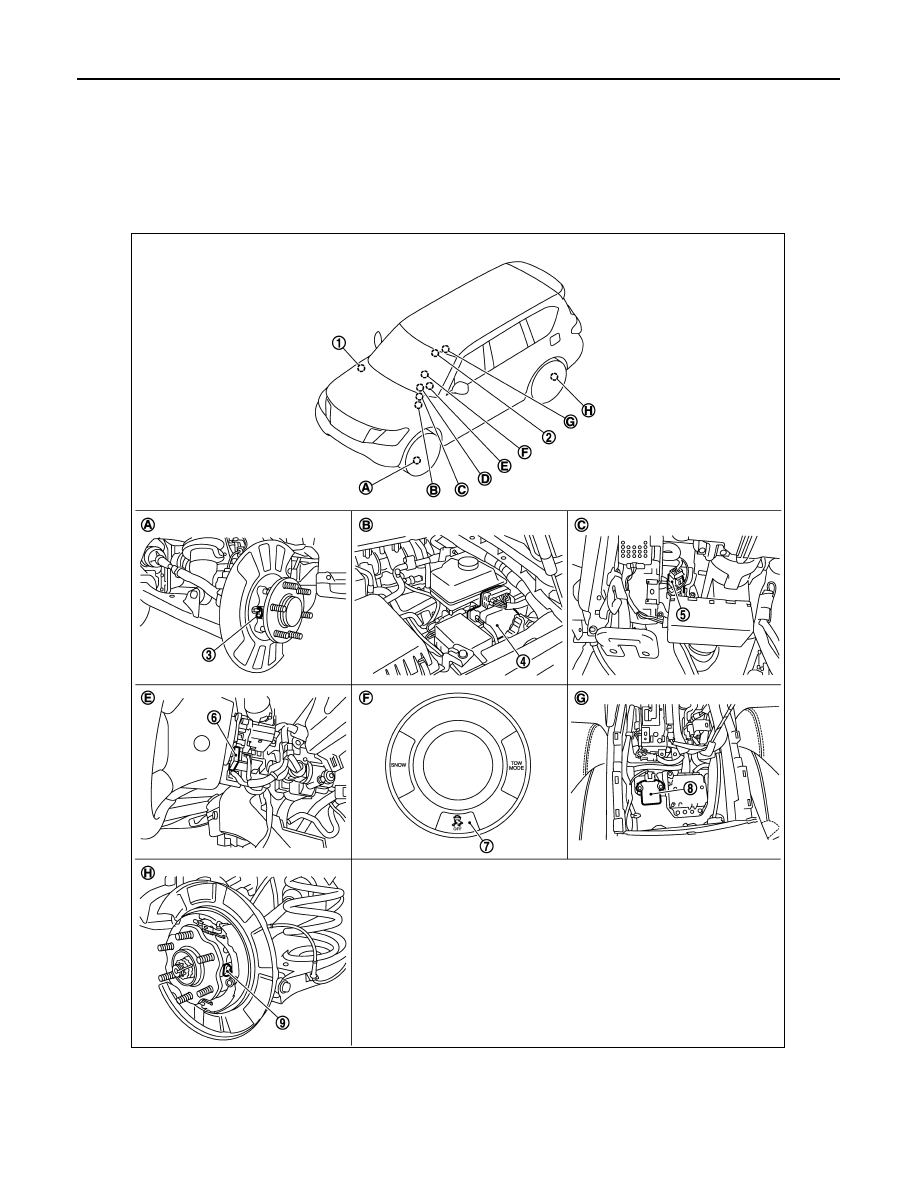

2WD

JPFIC0208ZZ

COMPONENT PARTS

BRC-11

< SYSTEM DESCRIPTION >

[WITH VDC]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

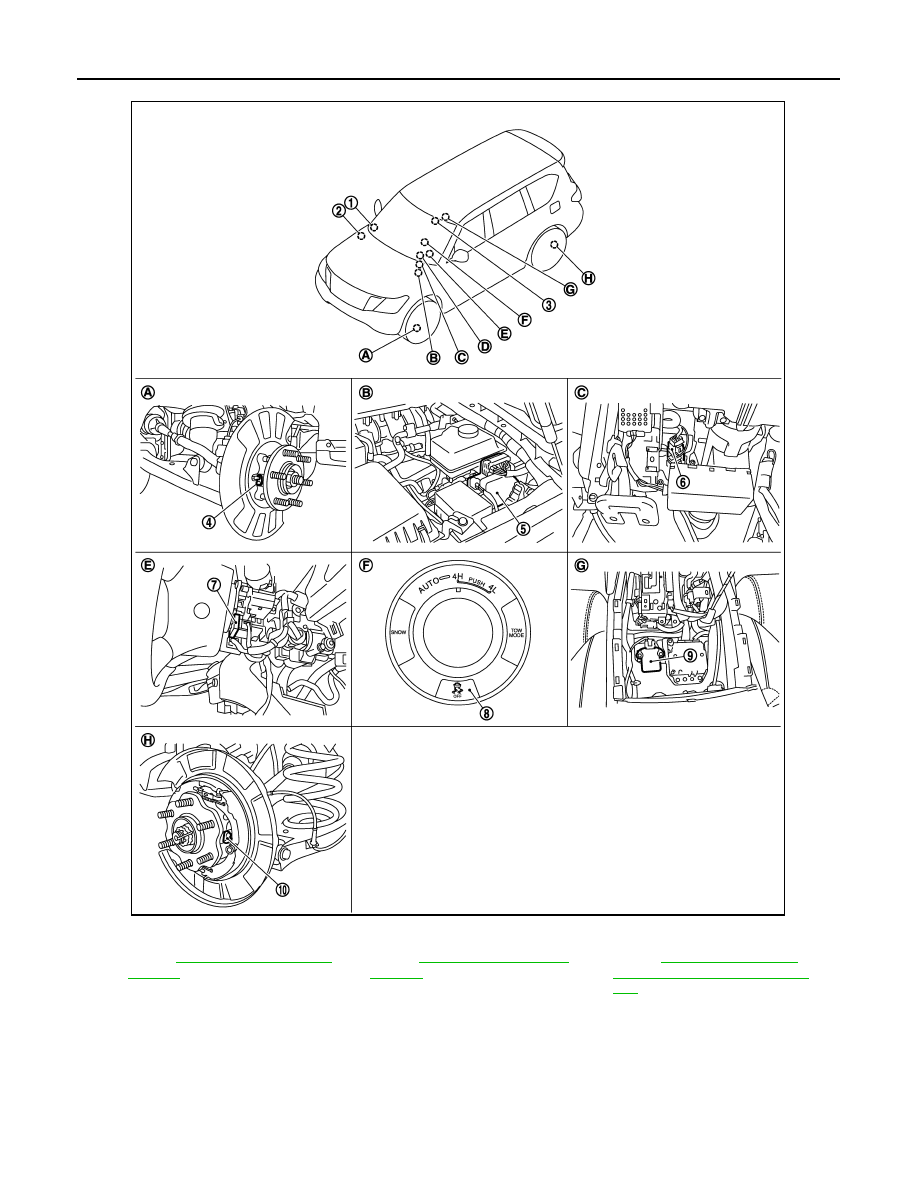

4WD

1.

ECM
Refer to

EC-16, "Component Parts

Location"

.

2.

Control valve & TCM
Refer to

TM-10, "A/T CONTROL

SYSTEM : Component Parts Loca-
tion"

.

3.

Front wheel sensor

4.

ABS actuator and electric unit (con-
trol unit)

5.

Stop lamp switch

6.

Steering angle sensor

7.

VDC OFF switch

8.

Yaw rate/side/decel G sensor

9.

Rear wheel sensor

A.

Front wheel hub and bearing assem-
bly

B.

Inside engine room

C.

Brake pedal

D.

ABS warning lamp, brake warning
lamp, VDC warning lamp, VDC OFF
indicator lamp

E.

Back of spiral cable assembly

F.

Center console assembly

G.

Under center console assembly

H.

Rear wheel hub and bearing assem-
bly

BRC-12

< SYSTEM DESCRIPTION >

[WITH VDC]

COMPONENT PARTS

1.

Transfer control unit
Refer to

DLN-10, "Component Parts

Location"

.

2.

ECM
Refer to

EC-16, "Component Parts

Location"

.

3.

Control valve & TCM
Refer to

TM-10, "A/T CONTROL

SYSTEM : Component Parts Loca-
tion"

.

4.

Front wheel sensor

5.

ABS actuator and electric unit (con-
trol unit)

6.

Stop lamp switch

7.

Steering angle sensor

8.

VDC OFF switch

9.

Yaw rate/side/decel G sensor

10. Rear wheel sensor

A.

Front wheel hub and bearing assem-
bly

B.

Inside engine room

C.

Brake pedal

JPFIC0186ZZ
