Input/Output Signal Chart

*: This signal is transmitted via communication line.

The TCM activates low brake solenoid valve and controls the low brake oil pressure to the low pressure level
if the driver does not intend to start the vehicle while the vehicle is being stopped in the “D” position. Therefore,
the low brake is in the release (slip) status and the power transmission route of A/T is the same status as the
“N” position. This can decrease the engine load and improves the fuel economy because the drive force of
engine is not transmitted to the output shaft of A/T.

Idle Neutral Control Start Condition

Idle neutral control starts when all of the following conditions are satisfied. However, the control ends when
any one of the following conditions becomes insufficient during idle neutral control.

NOTE:
The idle neutral control is terminated or prohibited when the TCM and ECM detect that the vehicle is in any of
the conditions as per the following.
• Engine cooling water temperature and A/T fluid temperature are below or above a prescribed temperature.
• A/T malfunction occurs.
• DTC is detected.
• Fail-safe mode activates.
• Idle neutral control is performed continuously for a certain period of time.

Idle Neutral Control Resume Condition

Idle neutral control can be resumed when its start condition is fulfilled after any of the following operations is
performed (unless a malfunction occurs in the vehicle).
• After driving at more than a prescribed speed.
• When idle neutral control start conditions are fulfilled for a certain period of time.

SHIFT PATTERN CONTROL

Item

Signal

TCM function

Actuator

Each sensor, switch and

control unit

⇒

TCM

⇒

ECM

⇒

TCM

Input speed sensor 1, 2

Input speed

N idle instruction

signal (Standby sig-

nal)*

N idle instruction

signal (Start signal)*

Idle neutral con-

trol

Low brake sole-
noid valve

Output speed sensor

Output shaft revolution

A/T fluid temperature
sensor

ATF temperature

Transmission range
switch

Selector lever position

ECM

Engine speed signal*

Accelerator pedal posi-
tion signal*

Throttle position signal*

BCM

Stop lamp switch signal*

Turn indicator signal*

ABS actuator electric
unit (control unit)

Pressure sensor signal*

Decel G sensor signal*

Combination meter

Vehicle speed signal*

Driving location

: Level road and gentle slope

Selector lever position

: “D” position

Vehicle speed

: 0 km/h (0 MPH)

Accelerator pedal opening

: 0.0 / 8

Brake pedal

: Depress

Engine speed

: Idle speed

Snow mode switch

: OFF

Turn signal lamp and hazard warning lamp

: OFF

TM-54

< SYSTEM DESCRIPTION >

[7AT: RE7R01B]

SYSTEM

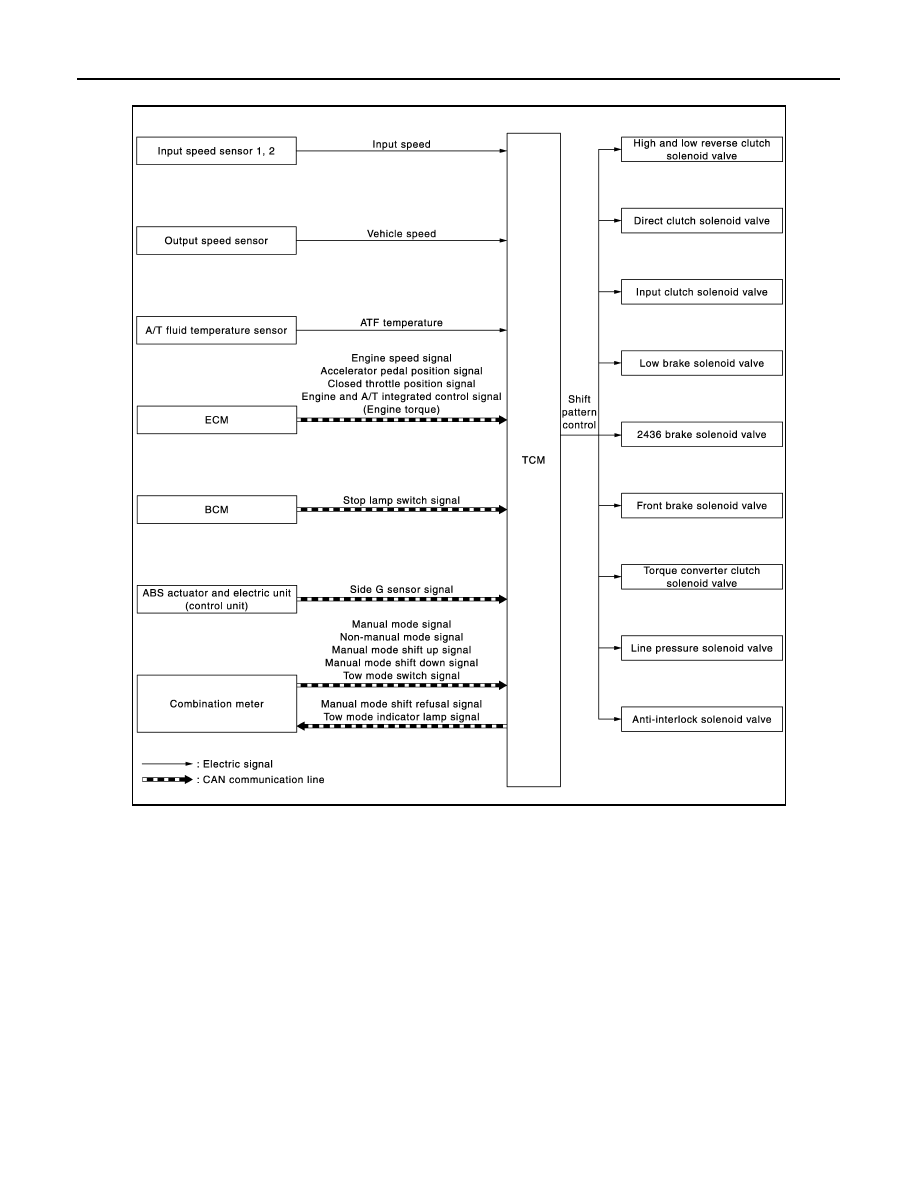

SHIFT PATTERN CONTROL : System Diagram

INFOID:0000000006226775

SHIFT PATTERN CONTROL : System Description

INFOID:0000000006226776

It automatically selects the shift pattern (such as road environment and driving style) suitable for the various
situations so as to allow the vehicle to be driven efficiently and smoothly.

ASC (ADAPTIVE SHIFT CONTROL)

JSDIA1854GB

SYSTEM

TM-55

< SYSTEM DESCRIPTION >

[7AT: RE7R01B]

Input/Output Signal Chart

*: This signal is transmitted via CAN communication line.

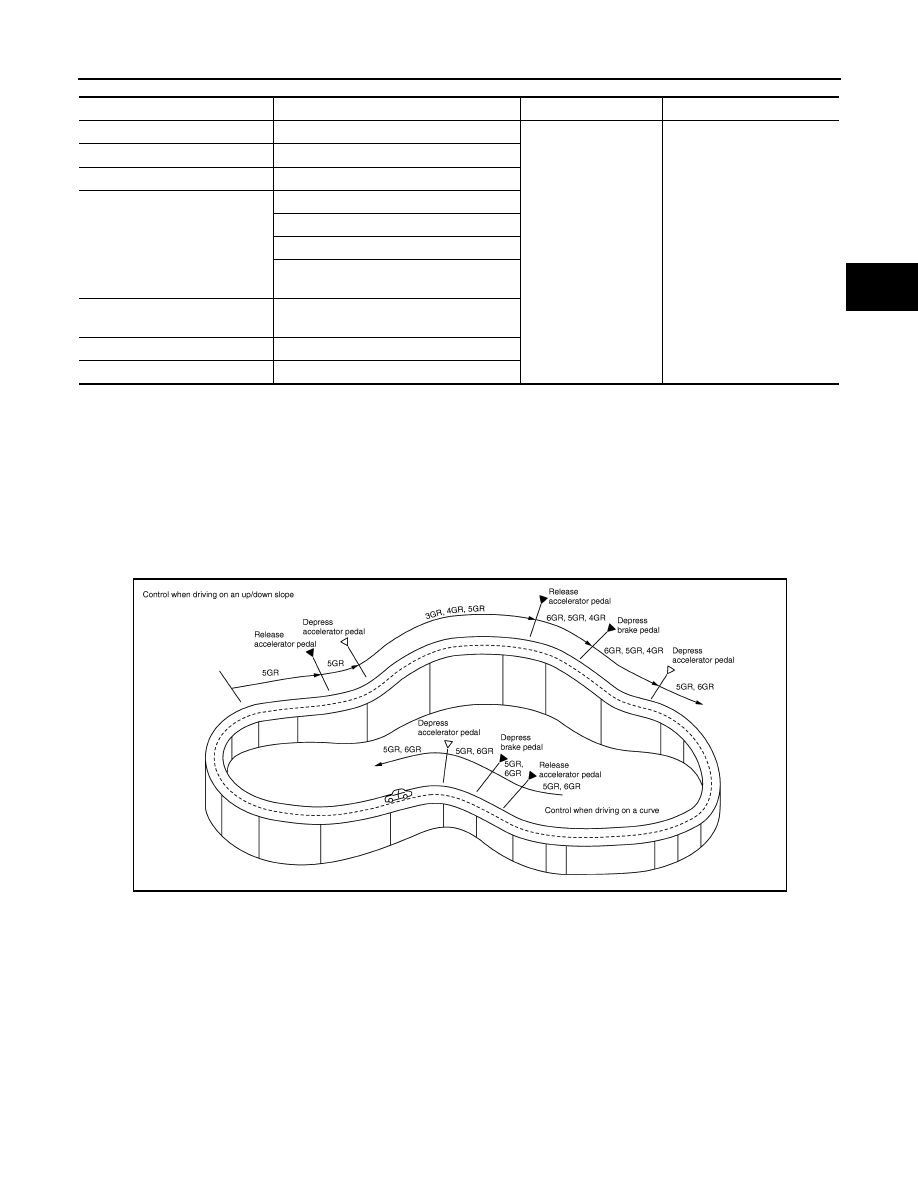

• When driving on an up/down slope

ASC judges up/down slope according to engine torque data transmitted from the ECM and vehicle speed.
Fixing at 4GR, 5GR or 6GR on an up-slope prevents shift hunting and controls the vehicle to gain optimum
driving force. On a down-slope, automatic shift-down to 4GR, 5GR or 6GR controls to gain optimum engine
brake.

• When driving on a curve

TCM receives the side G sensor signal from the ABS actuator and electric unit (control unit). It locks to 4GR,
5GR or 6GR position in moderate cornering or to 3GR position in sharp cornering based on this signal. This
prevents any upshift and kickdown during cornering, maintaining smooth vehicle travel.

Tow Mode

• High driving torque is required for towing a heavy load. The tow mode enables torque-oriented driving by

changing the shift schedule to that of delaying A/T gear shift timing (compared to normal driving).

• TCM receives tow mode switch signal from combination meter via CAN communication. The tow mode turns

ON when TCM receives the signal. TCM transmits a tow mode indicator lamp signal to the combination
meter via CAN communication to turn ON the tow mode indicator lamp mounted in the combination meter.

MANUAL MODE

Item

Signal

TCM function

Actuator

Input speed sensor 1, 2

Input speed

ASC (Adaptive shift

control)

• High and low reverse

clutch solenoid valve

• Direct clutch solenoid

valve

• Input clutch solenoid valve
• Low brake solenoid valve
• 2346 brake solenoid valve
• Front brake solenoid valve
• Torque converter clutch so-

lenoid valve

• Line pressure solenoid

valve

• Anti-interlock solenoid

valve

Output speed sensor

Vehicle speed

A/T fluid temperature sensor

ATF temperature

ECM

Engine speed signal*

Accelerator pedal position signal*

Closed throttle position signal*

Engine and A/T integrated control signal
(engine torque)*

ABS actuator and electric unit
(control unit)

Side G sensor signal*

BCM

Stop lamp switch signal*

Combination meter

Tow mode switch signal*

JSDIA1362GB

TM-56

< SYSTEM DESCRIPTION >

[7AT: RE7R01B]

SYSTEM

Input/Output Signal Chart

*: This signal is transmitted via CAN communication line.

• The TCM receives the manual mode signal, non-manual mode signal, manual mode shift up signal and

manual mode shift down signal from combination meter via CAN communication line. The TCM shifts shift
pattern control to the manual mode based on these signals, and then shifts the A/T by operating each sole-
noid valve according to the shift operation of the driver.

• The TCM prohibits the manual mode while being in fail-safe mode due to an A/T malfunction, etc. Refer to

TM-74, "Fail-Safe"

Manual Mode Information

• The TCM transmits the manual mode shift refusal signal to the combination meter if the TCM refuses the

transmission from the driving status of vehicle when the selector lever shifts to “UP (+ side)” or “DOWN (

−

side)” side. The combination meter blinks shift indicator on the combination meter and sounds the buzzer to
indicate the driver that the shifting is not performed when receiving this signal. However, the TCM does not
transmit the manual mode shift refusal signal in the conditions as per the following.

- When the selector lever shifts to “DOWN (

−

side)” side in 1GR.

- When the selector lever shifts to “UP (+ side)” side in 7GR.

LOCK-UP CONTROL

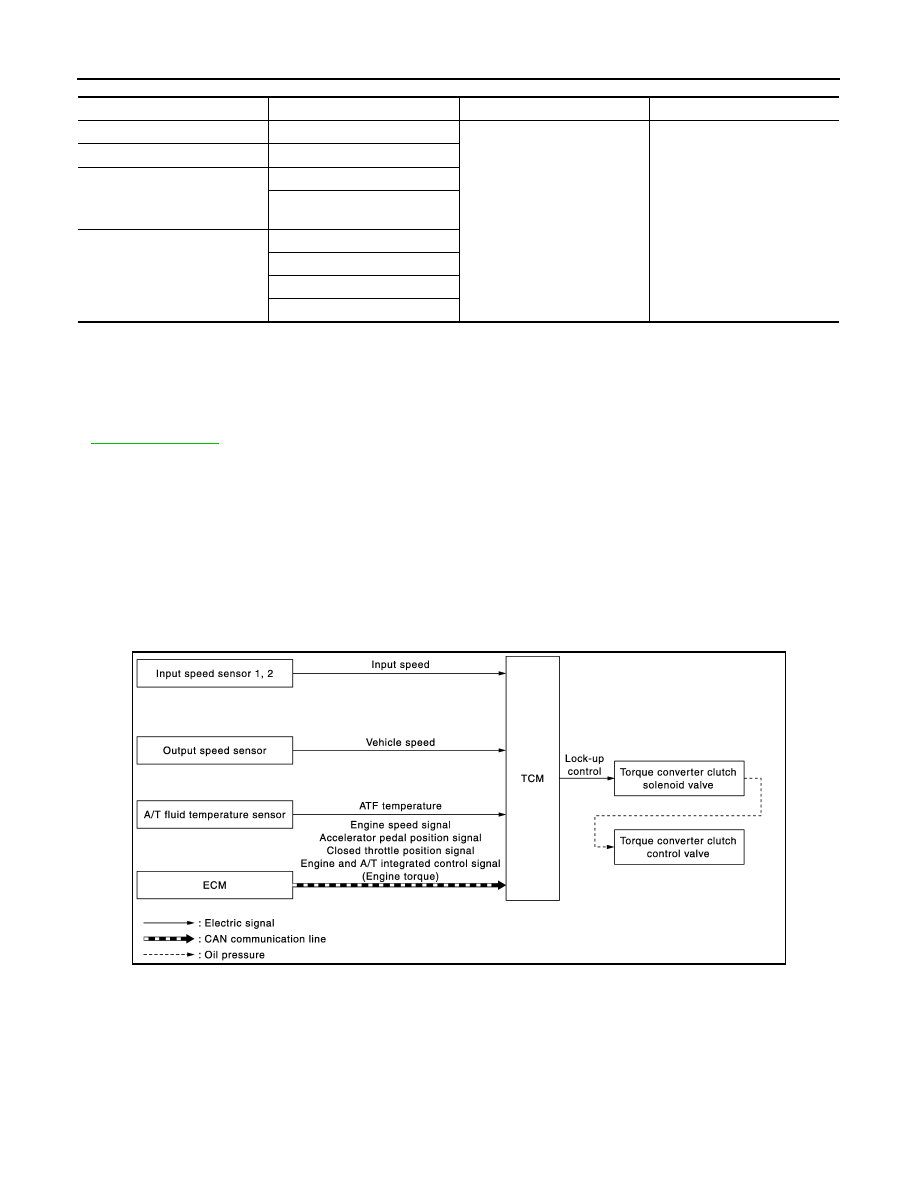

LOCK-UP CONTROL : System Diagram

INFOID:0000000006226777

LOCK-UP CONTROL : System Description

INFOID:0000000006226778

• The torque converter clutch piston in the torque converter is engaged to eliminate torque converter slip to

increase power transmission efficiency.

• Lock-up operation, however, is prohibited when A/T fluid temperature is too low.
• The torque converter clutch control valve operation is controlled by the torque converter clutch solenoid

valve, which is controlled by a signal from TCM, and the torque converter clutch control valve engages or
releases the torque converter clutch piston.

Item

Signal

TCM function

Actuator

Output speed sensor

Vehicle speed

Manual mode

• High and low reverse clutch

solenoid valve

• Direct clutch solenoid valve
• Input clutch solenoid valve
• Low brake solenoid valve
• 2346 brake solenoid valve
• Front brake solenoid valve
• Torque converter clutch sole-

noid valve

• Line pressure solenoid valve
• Anti-interlock solenoid valve

A/T fluid temperature sensor

ATF temperature

ECM

Engine speed signal*

Accelerator pedal position sig-
nal*

Combination meter

Manual mode signal*

Non-manual mode signal*

Manual mode shift up signal*

Manual mode shift down signal*

JSDIA1350GB
