Infiniti QX56 (Z62). Manual - part 1161

SEC-34

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

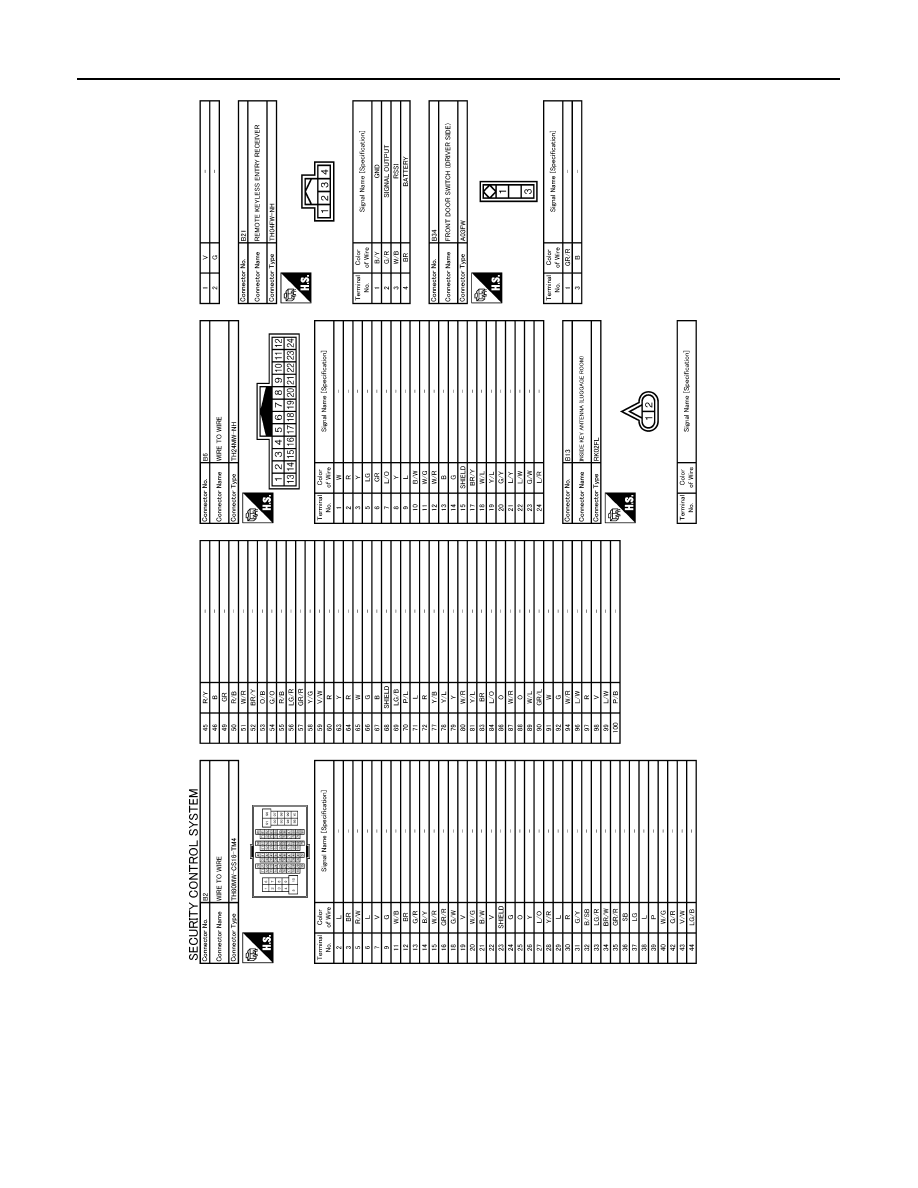

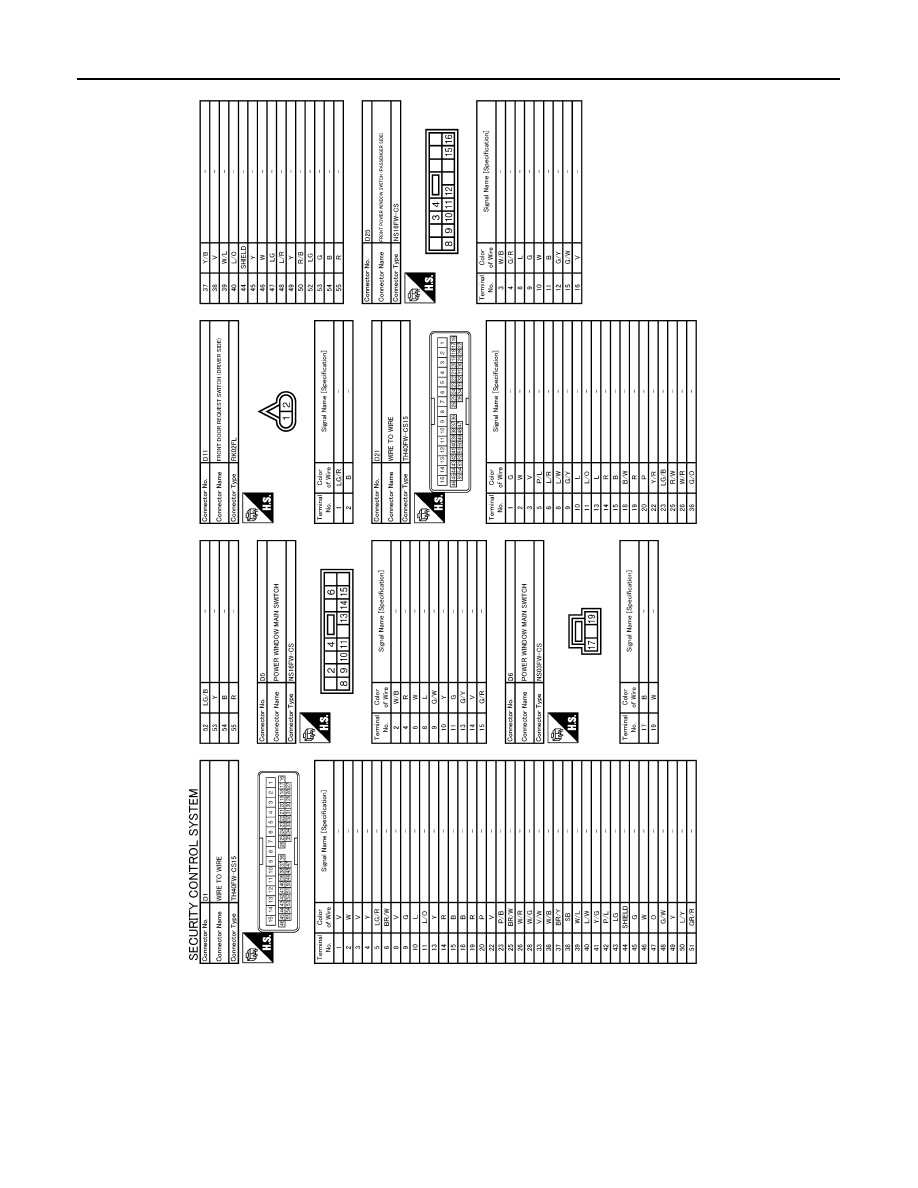

SECURITY CONTROL SYSTEM

JCKWM4459GB

SECURITY CONTROL SYSTEM

SEC-35

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

JCKWM4460GB

SEC-36

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

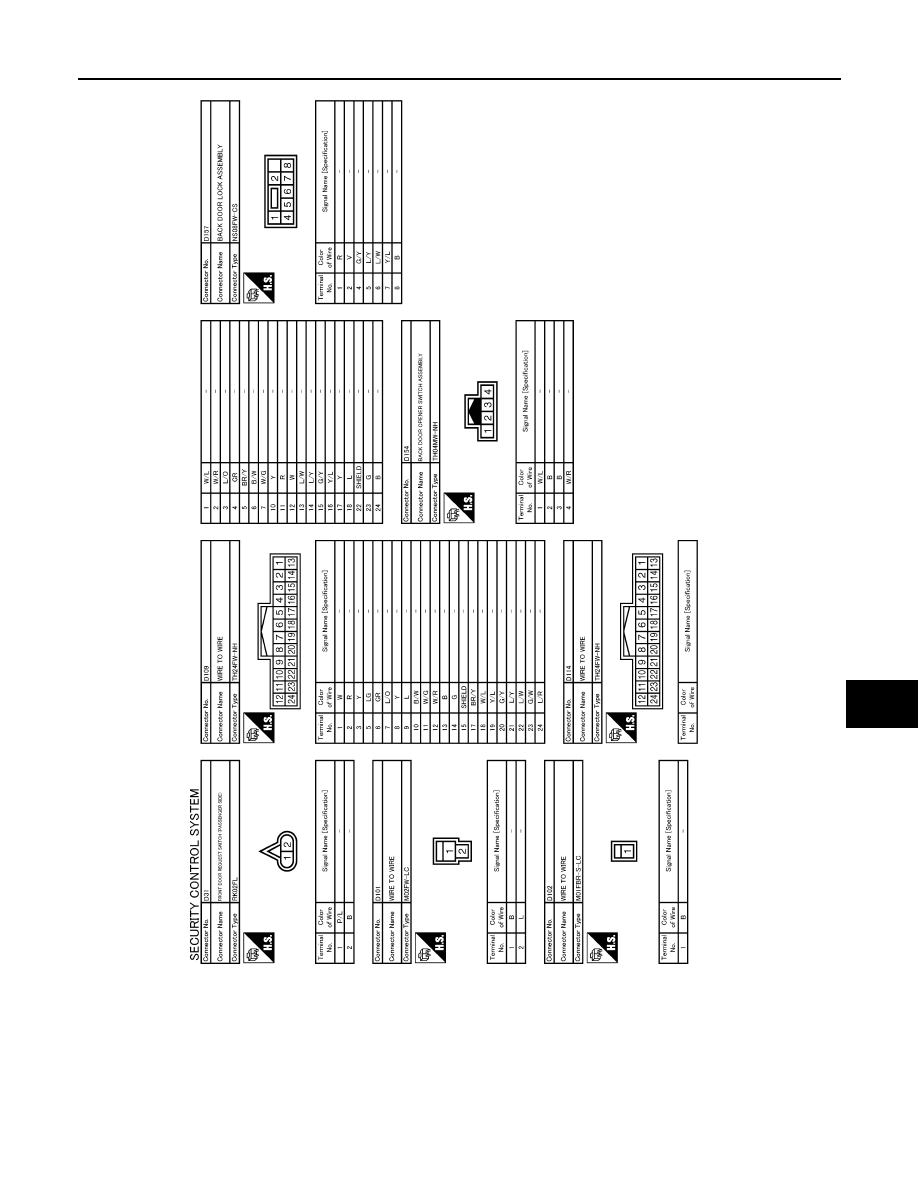

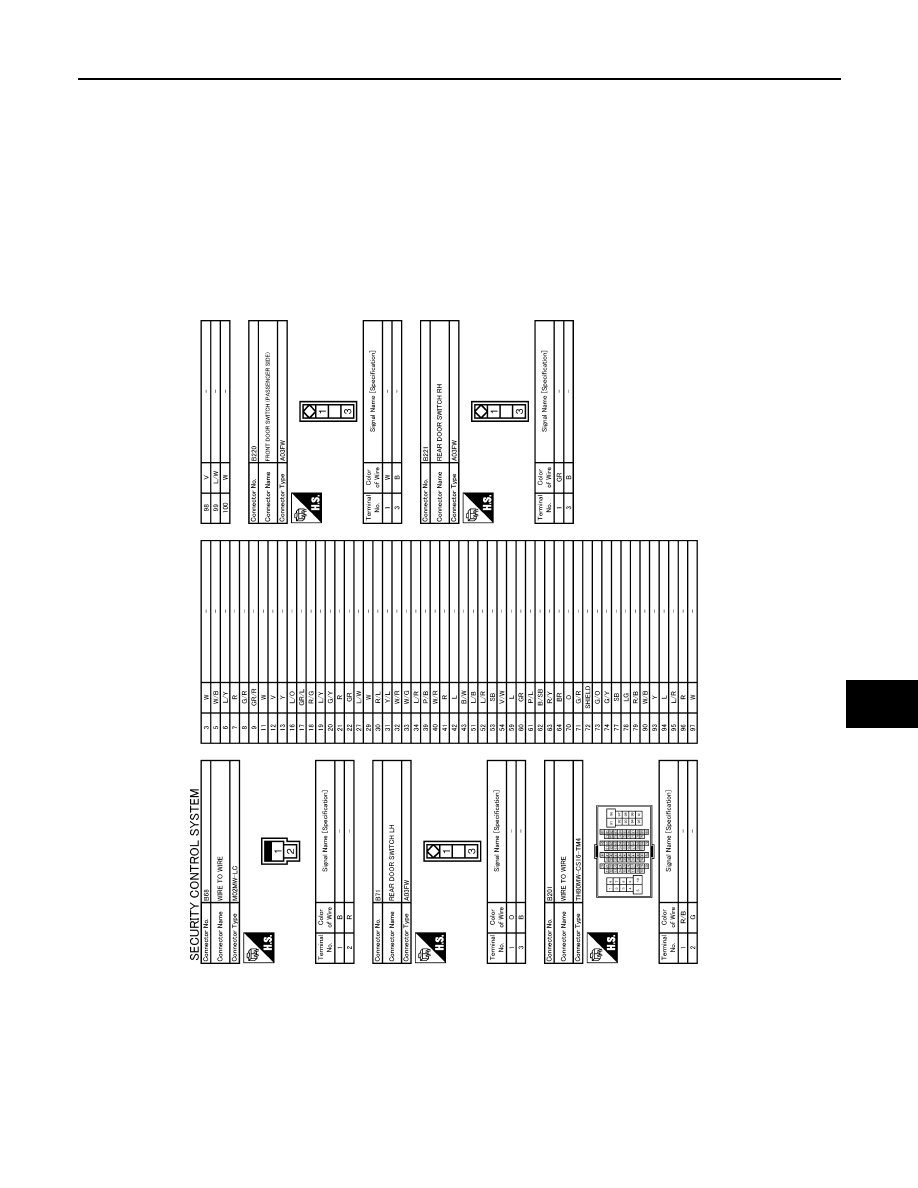

SECURITY CONTROL SYSTEM

JCKWM4461GB

SECURITY CONTROL SYSTEM

SEC-37

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

JCKWM4462GB
