SEC-30

< ECU DIAGNOSIS INFORMATION >

[WITH INTELLIGENT KEY SYSTEM]

ECM, IPDM E/R, BCM

ECU DIAGNOSIS INFORMATION

ECM, IPDM E/R, BCM

List of ECU Reference

INFOID:0000000006226193

ECU

Reference

ECM

Reference Value

EC-72, "Reference Value"

Fail-safe

EC-93, "Fail-safe"

DTC Inspection Priority Chart

EC-96, "DTC Inspection Priority Chart"

DTC Index

EC-98, "DTC Index"

IPDM E/R

Reference Value

PCS-15, "Reference Value"

Fail-safe

PCS-21, "Fail-Safe"

DTC Index

PCS-22, "DTC Index"

BCM

Reference Value

BCS-33, "Reference Value"

Fail-safe

BCS-54, "Fail-safe"

DTC Inspection Priority Chart

BCS-56, "DTC Inspection Priority Chart"

DTC Index

BCS-57, "DTC Index"

SECURITY CONTROL SYSTEM

SEC-31

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

WIRING DIAGRAM

SECURITY CONTROL SYSTEM

Wiring Diagram

INFOID:0000000006226195

For connector terminal arrangements, harness layouts, and alphabets in a

 (option abbreviation; if not

described in wiring diagram), refer to

GI-12, "Connector Information"

.

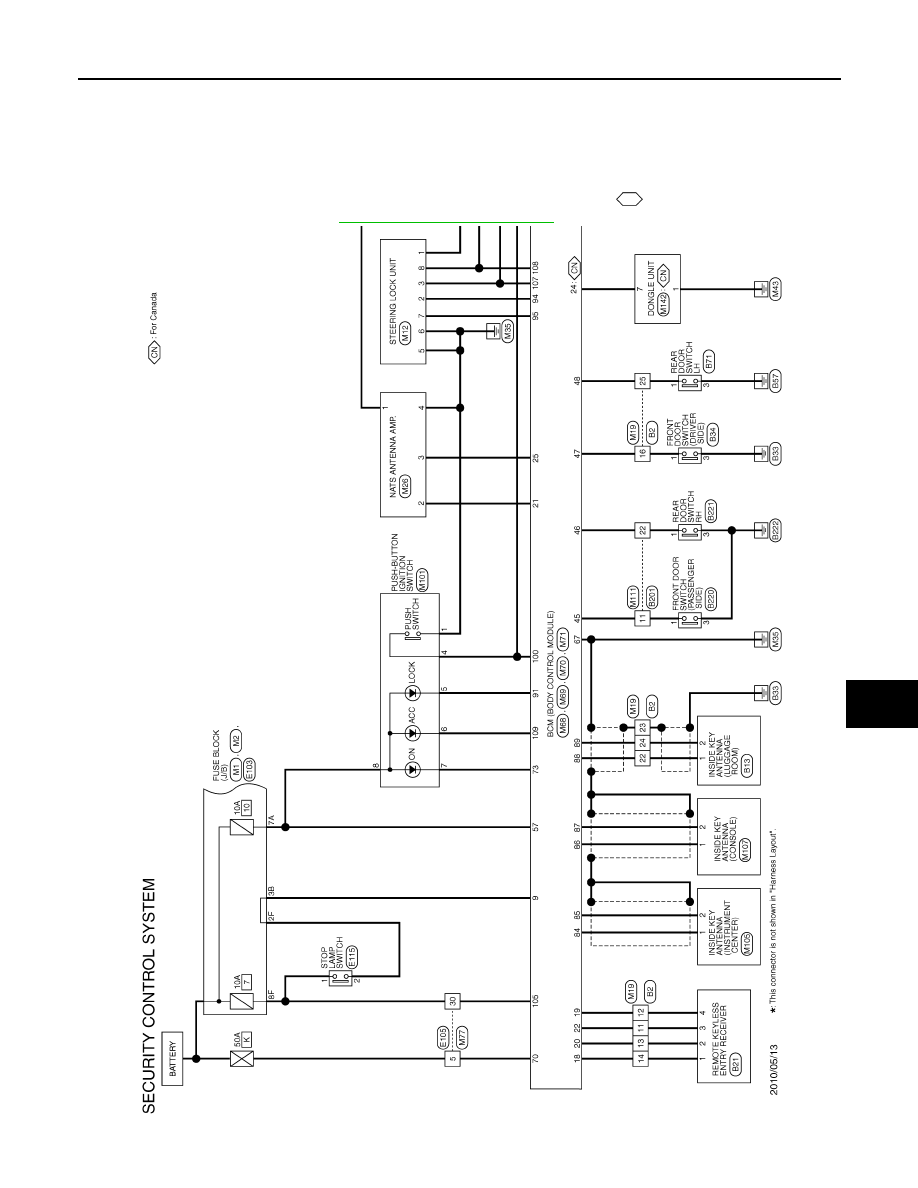

JCKWM4456GB

SEC-32

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

SECURITY CONTROL SYSTEM

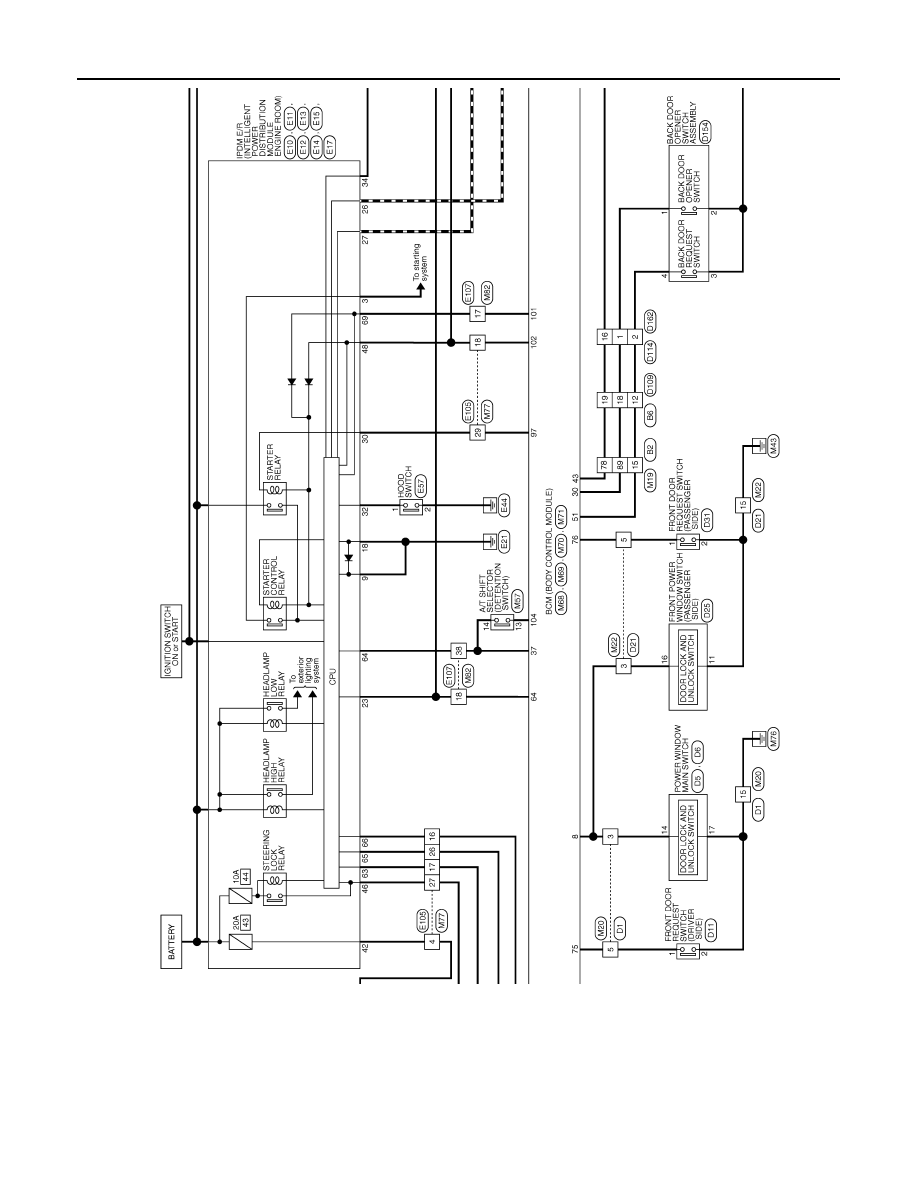

JCKWM4457GB

SECURITY CONTROL SYSTEM

SEC-33

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

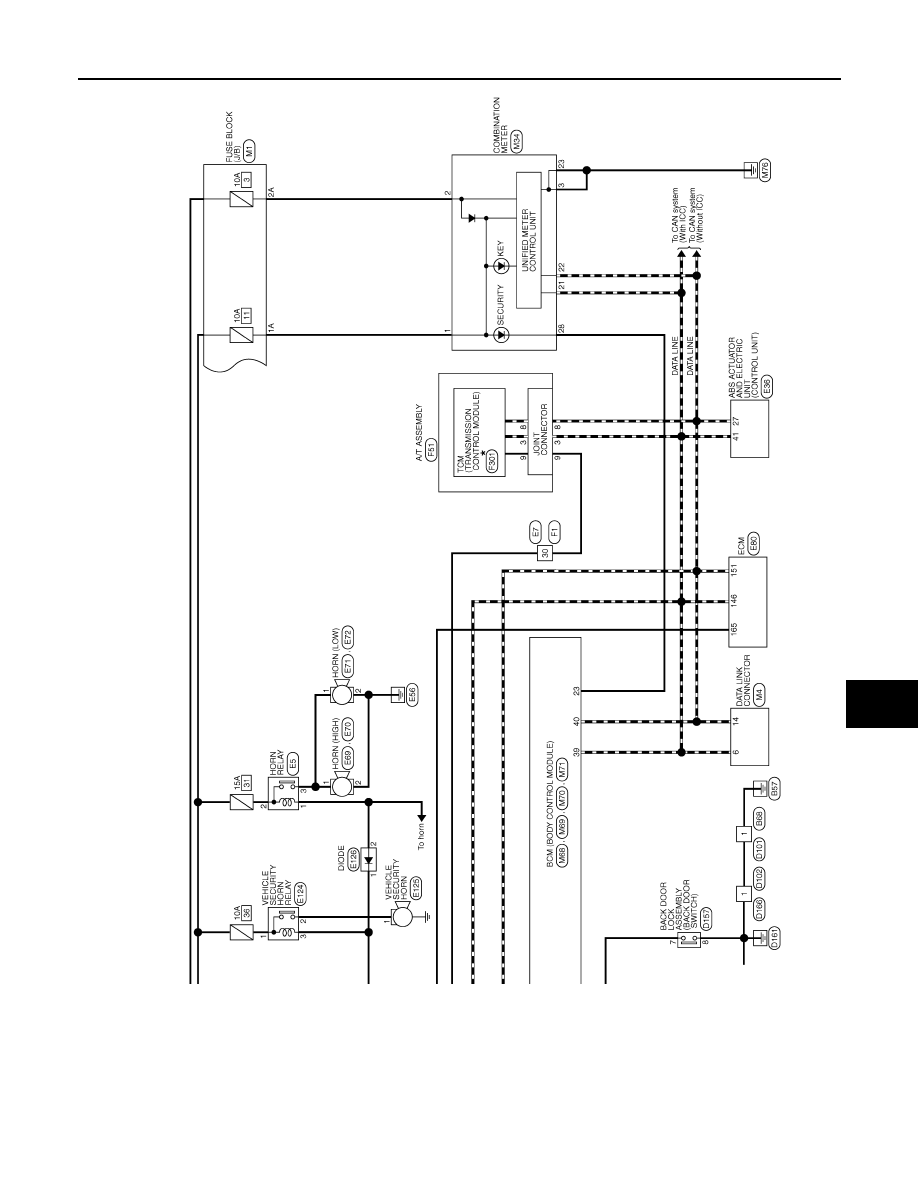

JCKWM4458GB
