Infiniti QX56 (Z62). Manual - part 1148

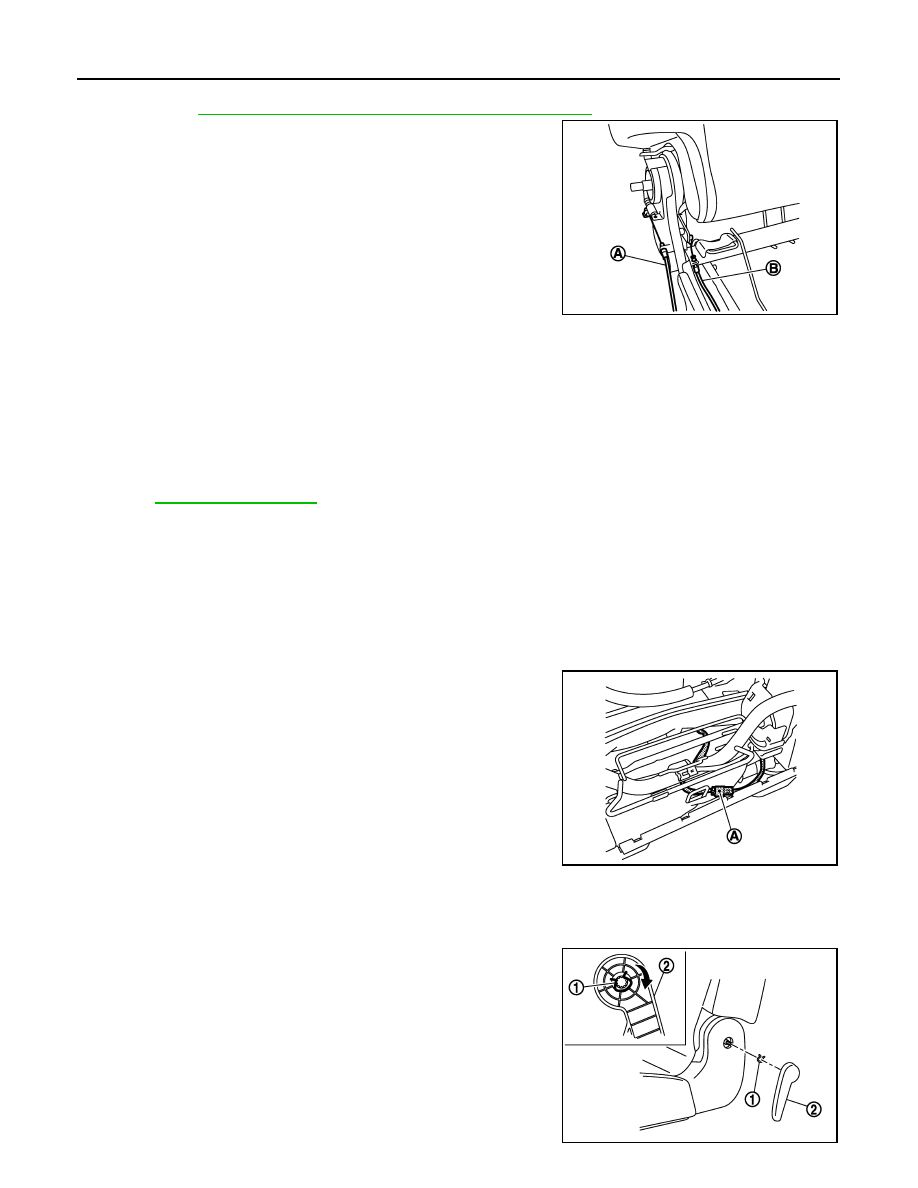

SE-130

< REMOVAL AND INSTALLATION >

SECOND SEAT

1.

Remove the reclining device outer cover (outside) and reclining device outer cover (inside).
Refer to

SE-130, "SEAT CUSHION : Disassembly and Assembly"

.

2.

Remove the seatback control wire (A) and seat cushion
control wire (B).

3.

Remove the reclining inner cover (outside).

4.

Remove the mounting bolts and then remove seatback frame.

ASSEMBLY

Assemble in the reverse order of disassembly.

CAUTION:

• Install the hog rings of seat trim in position, and then securely connect the trim or trim cord with the

seat frame.

• Adjust the cable when installing the seatback control wire and seat cushion control wire.

Refer to

SE-134, "Adjustment"

.

SEAT CUSHION

SEAT CUSHION : Disassembly and Assembly

INFOID:0000000006217432

DISASSEMBLY

BENCH SEAT (LH SIDE)

1.

Remove the seat cushion trim and seat cushion pad.
1.

Remove the seat cushion retainer.

2.

Move seat cushion so that harness connector (A) of seat
cushion heater is visible. (heater seat model only)

3.

Disconnect the seat cushion heater unit harness connector
(A). (heater seat model only)

4.

Remove the seat cushion trim and seat cushion pad from the seat cushion frame.

5.

Remove the hog rings and separate the seat cushion trim and seat cushion pad.

2.

Remove the reclining lever knob.
Remove snap ring (1) downward using a hook and pick tool.
Remove reclining lever knob (2).

JMJIA3886ZZ

JMJIA4472ZZ

JMJIA3881ZZ

SECOND SEAT

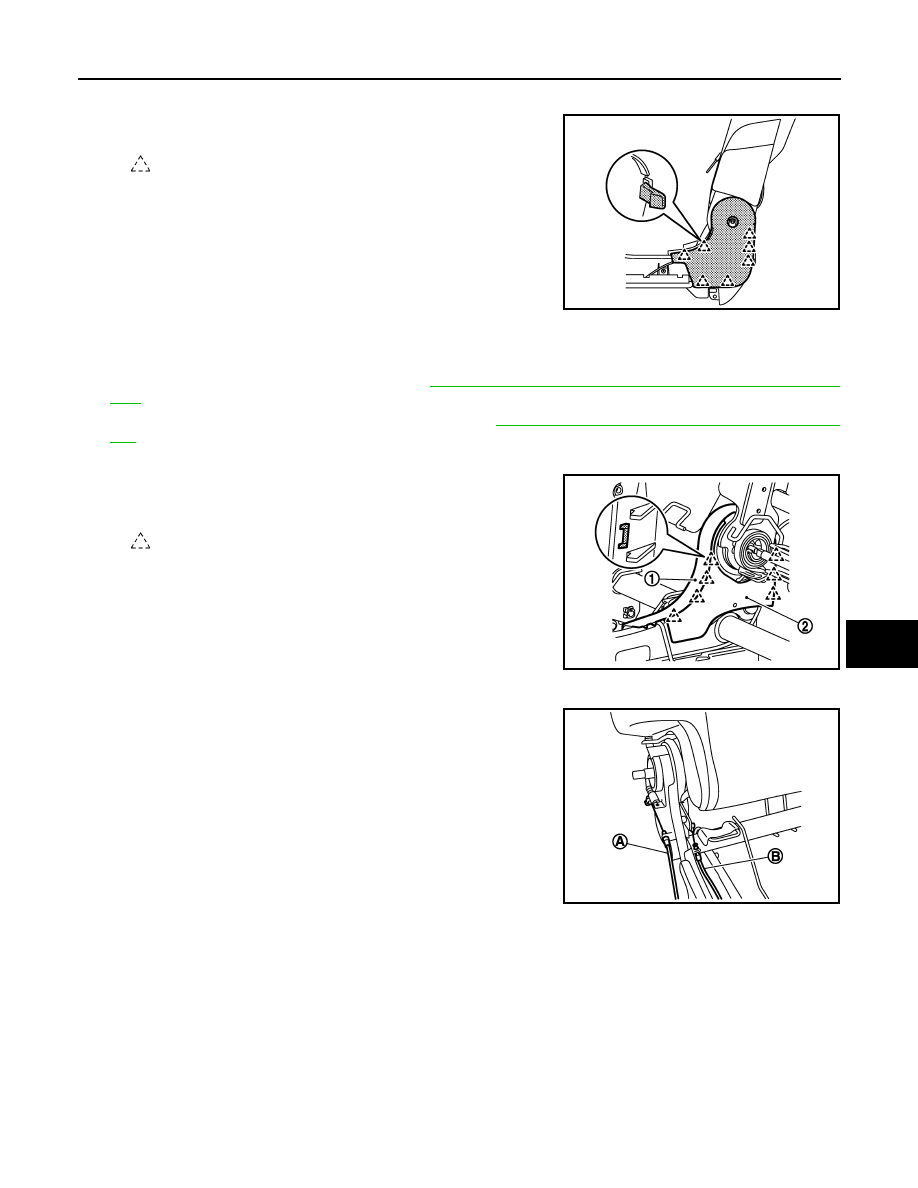

SE-131

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

3.

Remove the reclining device outer cover (outside)
Pull reclining device outer cover forward and disengage pawls.

4.

Remove the fixing screw and then remove seat cushion under cover.

5.

Remove the reclining device outer cover (inside).

6.

Remove the center seat belt anchor. Refer to

SB-13, "SEAT BELT RETRACTOR : Removal and Installa-

tion"

.

7.

Remove the seatback trim and seatback pad. Refer to

SE-126, "SEATBACK : Disassembly and Assem-

bly"

.

8.

Remove the device arm cover.

9.

Remove the reclining device inner cover (outside) (1) and reclin-
ing device inner cover (inside) (2).

10. Remove the seat cushion frame.

1.

Remove the seatback control wire (A) and seat cushion
control wire (B).

2.

Remove seatback control wire installed to seat cushion frame.

3.

Remove the mounting bolts and then remove seat cushion frame.

11. Remove the seat cushion hinge cover

: Pawl

JMJIA3882ZZ

: Pawl

JMJIA3887ZZ

JMJIA3886ZZ

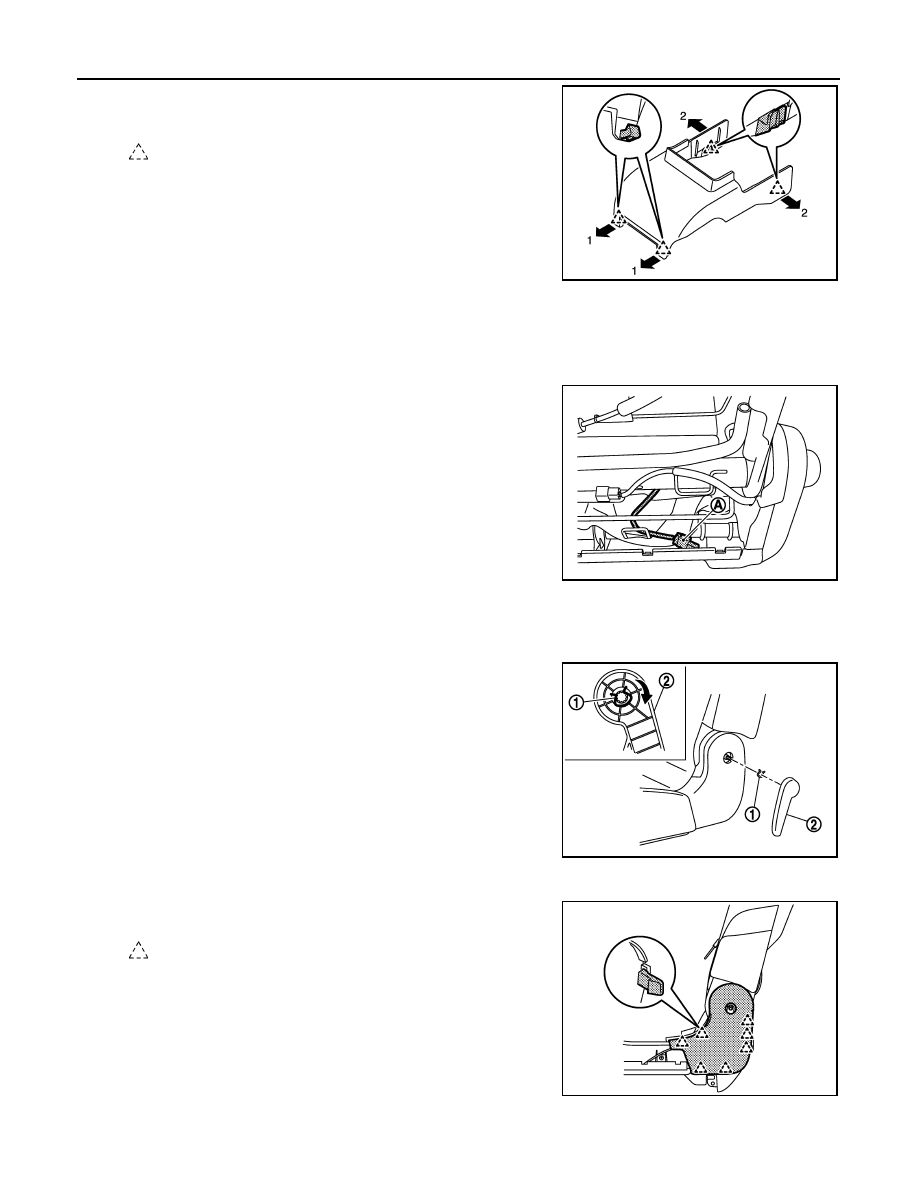

SE-132

< REMOVAL AND INSTALLATION >

SECOND SEAT

• Disengage pawls on front side of seat cushion hinge cover.
• Disengage pawls on rear side of seat cushion hinge cover.

12. Remove the mounting bolts and then remove seat hinge assembly.

BENCH SEAT (RH SIDE) AND CAPTAIN SEAT

1.

Remove the seat cushion trim and seat cushion pad.
1.

Remove the seat cushion retainer.

2.

Move seat cushion so that harness connector (A) of seat
cushion heater is visible. (heater seat model only)

3.

Disconnect the seat cushion heater unit harness connector
(A). (heater seat model only)

4.

Remove the seat cushion trim and seat cushion pad from the seat cushion frame.

5.

Remove the hog rings and separate the seat cushion trim and seat cushion pad.

2.

Remove the reclining lever knob.
Remove the snap ring (1) downward using a hook & pick tool.
Remove the reclining lever knob (2).

3.

Remove the reclining device outer cover (outside)
Pull reclining device outer cover forward and disengage pawls.

4.

Remove the reclining device outer cover (inside).

: Pawl

JMJIA3883ZZ

JMJIA4263ZZ

JMJIA3881ZZ

: Pawl

JMJIA3882ZZ

SECOND SEAT

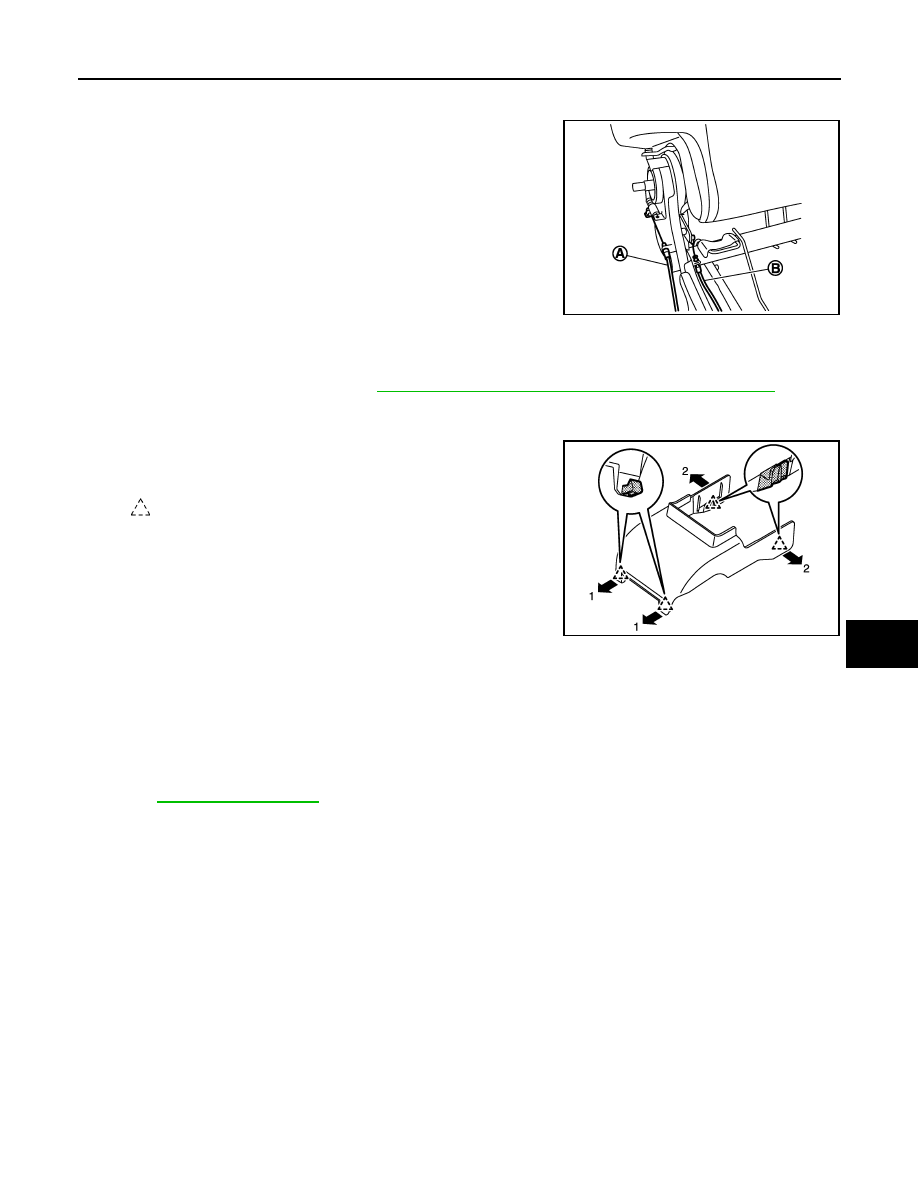

SE-133

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

5.

Remove the seat cushion frame.
1.

Remove the fixing screw and then remove seat cushion under cover.

2.

Remove the seatback control wire (A) and seat cushion
control wire (B).

3.

Remove the seatback control wire installed to seat cushion frame.

4.

Remove the mounting bolts and then remove seat cushion frame.

6.

Remove the seat belt buckle. Refer to

SB-16, "SEAT BELT BUCKLE : Removal and Installation"

.

7.

Remove the seat cushion carpet.

8.

Remove the seat cushion hinge cover
• Disengage pawls on front side of seat cushion hinge cover.
• Disengage pawls on rear side of seat cushion hinge cover.

9.

Remove the mounting bolts and then remove seat hinge assembly.

ASSEMBLY

Assemble in the reverse order of disassembly.

CAUTION:

• Install the hog rings of seat trim in position, and then securely connect the trim or trim cord with the

seat frame.

• Adjust the cable when installing the seatback control wire and seat cushion control wire.

Refer to

SE-134, "Adjustment"

.

ARMREST

ARMREST : Disassembly and Assembly

INFOID:0000000006217433

DISASSEMBLY

1.

Remove the mounting bolts. Remove the armrest outer bracket and the armrest inner cover RH from the
armrest assembly.

2.

Remove the fixing screws of the cup holder. Remove the cup holder from the armrest assembly.

JMJIA3886ZZ

: Pawl

JMJIA3883ZZ
