SECOND SEAT

7.

Remove seat from the vehicle.

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

INSTALLATION

Install in the reverse order of removal.

SEATBACK

SEATBACK : Disassembly and Assembly

INFOID:0000000006217431

DISASSEMBLY

BENCH SEAT (LH SIDE)

1.

Remove the armrest.
1.

Pull armrest outer cover (1) lower side forward and remove
pawls. Lift armrest outer cover upward to remove.

2.

Remove the armrest mounting nuts and then remove the armrest.

2.

Remove the seatback retainers (A), and then open the fasteners
(B).

3.

Remove the seatback board and the clips.
1.

Slide and align the clips (B) to the holes on the seatback as
shown in the figure, and then remove the seatback board
(A).

2.

Remove the clips after removing the seatback board.

4.

Disconnect the seatback heater unit harness connector (A).

: Pawl

JMJIA3876ZZ

JMJIA3874ZZ

JMJIA4076ZZ

SECOND SEAT

SE-127

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

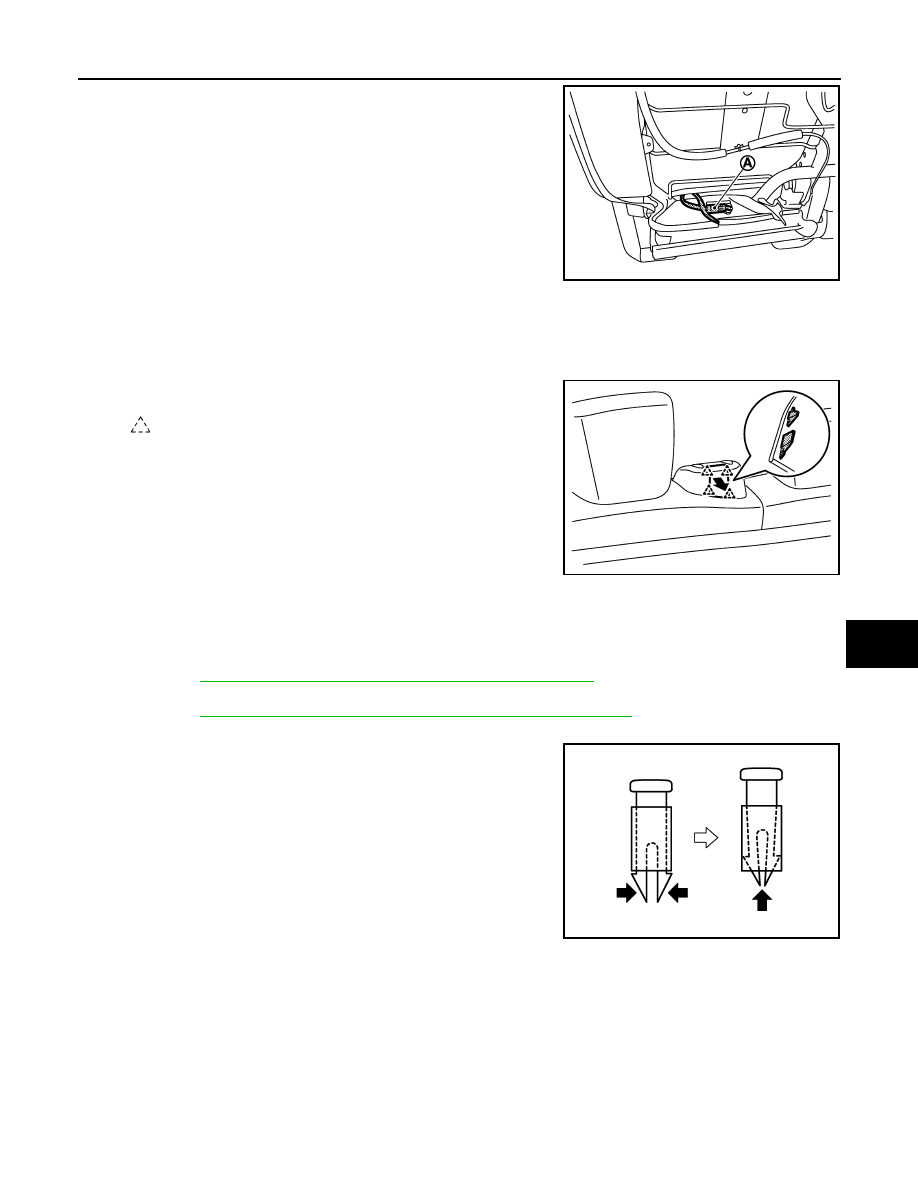

(heater seat model only)

5.

Remove the rear seat lever assembly.
1.

Remove the rear seat lever assembly fixing screws.

2.

Lift rear seat lever assembly and remove seatback control wire.

6.

Remove the seatback center finisher.
1.

Pull seatback center finisher cover rearward to remove.

2.

Remove the seatback center finisher fixing screws.

3.

Remove the seat belt from seatback center finisher.

7.

Remove the center seat belt anchor.
1.

Remove the seat cushion and seat cushion under cover.
Refer to

SE-130, "SEAT CUSHION : Disassembly and Assembly"

.

2.

Remove the center seat belt anchor.
Refer to

SB-13, "SEAT BELT RETRACTOR : Removal and Installation"

.

8.

Remove the seatback trim and seatback pad.
1.

Remove the headrest holder.

CAUTION:

Before installing headrest holder check its orientation.
(front/rear and right/left)

JMJIA4471ZZ

: Pawl

JMJIA3877ZZ

PIIB4084J

SE-128

< REMOVAL AND INSTALLATION >

SECOND SEAT

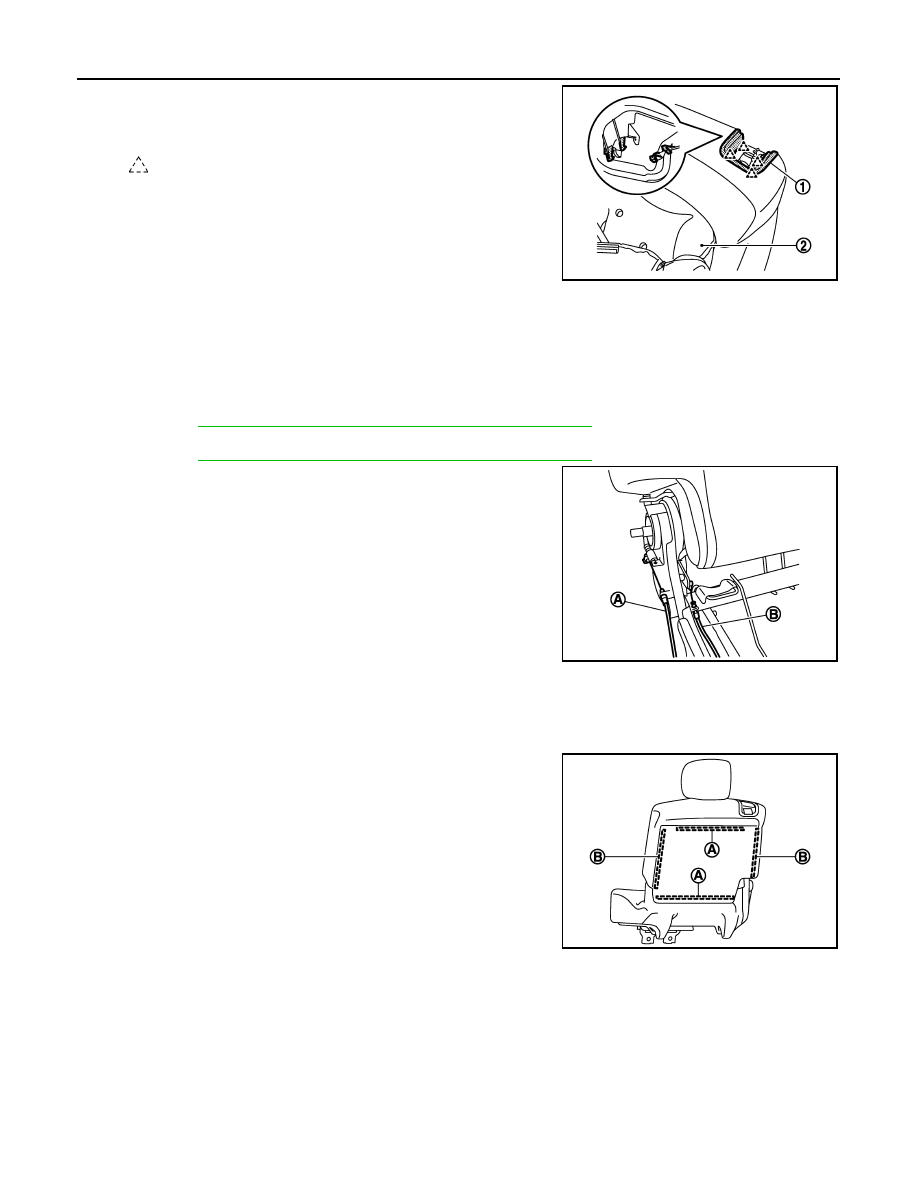

2.

Roll up seatback trim (2) from backward to forward so that
seat control lever escutcheon (1) is visible.

3.

Remove the seat control lever escutcheon (1).

4.

Remove the seatback trim and seatback pad from the seatback frame.

5.

Remove the hog rings, and separate the seatback trim and seatback pad.

9.

Remove the seat belt retractor.

10. Remove the seatback frame.

1.

Remove the device arm cover.

2.

Remove the reclining device inner cover (outside) and reclining device inner cover (inside).
Refer to

SE-130, "SEAT CUSHION : Disassembly and Assembly"

.

3.

Remove the reclining device outer cover (outside) and reclining device outer cover (inside).
Refer to

SE-130, "SEAT CUSHION : Disassembly and Assembly"

.

4.

Remove the seatback control wire (A) and seat cushion
control wire (B).

5.

Remove the reclining inner cover (outside).

6.

Remove the mounting bolts and then remove seatback frame.

BENCH SEAT (RH SIDE) AND CAPTAIN SEAT

1.

Remove the seatback retainers (A), and then open the fasteners
(B).

2.

Remove the seatback board and the clips.

: Pawl

JMJIA3878ZZ

JMJIA3886ZZ

JMJIA3875ZZ

SECOND SEAT

SE-129

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

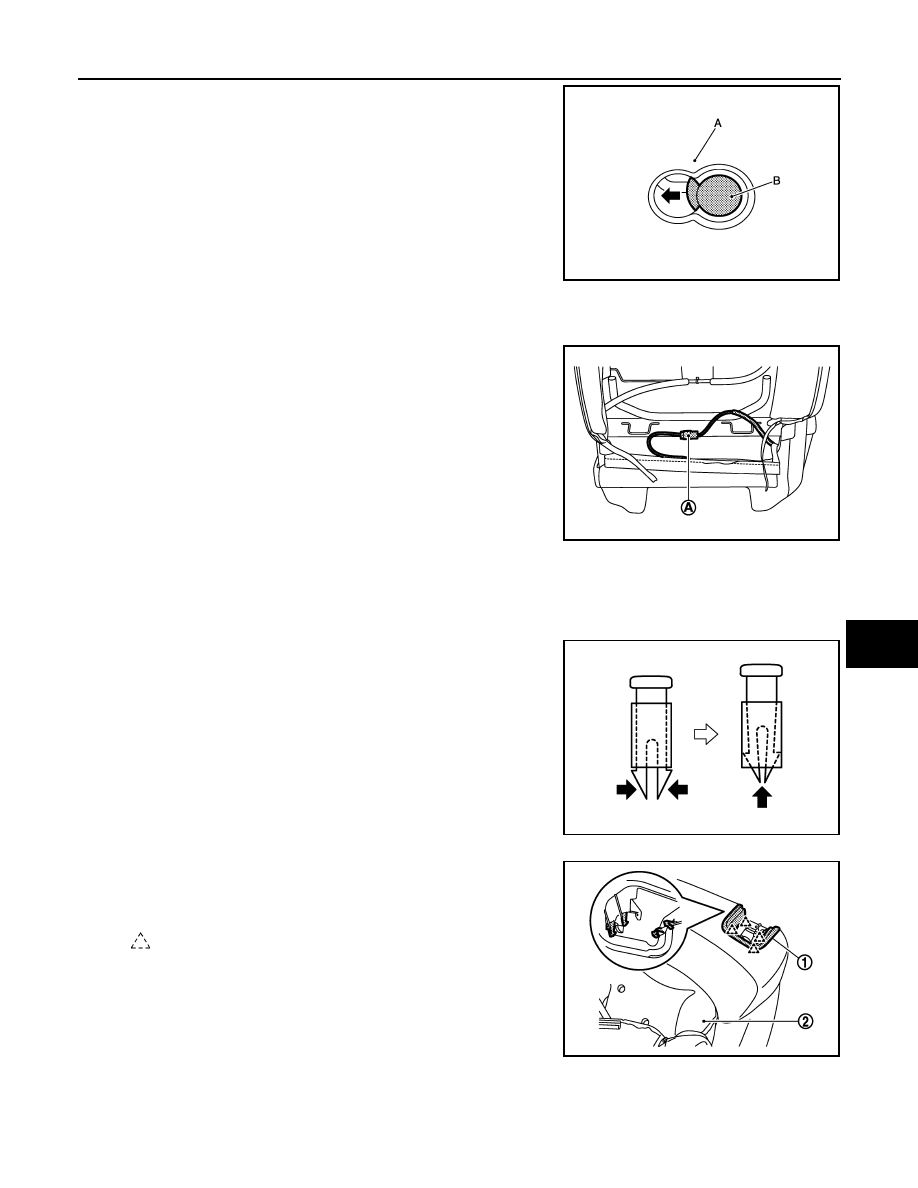

1.

Slide and align the clips (B) to the holes on the seatback as
shown in the figure, and then remove the seatback board
(A).

2.

Remove the clips after removing the seatback board.

3.

Disconnect the seatback heater unit harness connector (A).
(heater seat model only)

4.

Remove the rear seat lever assembly.
1.

Remove the rear seat lever assembly fixing screws.

2.

Lift rear seat lever assembly and remove seatback control wire.

5.

Remove the seatback trim and seatback pad.
1.

Remove the headrest holder.

CAUTION:

Before installing headrest holder check its orientation.
(front/rear and right/left)

2.

Roll up seatback trim (2) from backward to forward so that
seat control lever escutcheon (1) is visible.

3.

Remove the seat control lever escutcheon (1).

4.

Remove the seatback trim and seatback pad from the seatback frame.

5.

Remove the hog rings, and separate the seatback trim and seatback pad.

6.

Remove the seatback frame.

JMJIA4076ZZ

JMJIA4262ZZ

PIIB4084J

: Pawl

JMJIA3878ZZ
