SE-110

< REMOVAL AND INSTALLATION >

FRONT SEAT

16. Seat cushion trim

17. Seat cushion pad

18. Seat control unit

19. Seat cushion front finisher

20. Front inner slide cover

21. Front outer slide cover

22. Seat cushion climate controlled seat

duct finisher

23. Seat cushion thermal electric unit

24. Seat cushion climate controlled seat

hook (front)

25. Seat cushion climate controlled seat

duct

26. Seat cushion climate controlled seat

blower filter

27. Climate controlled seat cushion

blower motor

28. Seat cushion climate controlled seat

harness

29. Seat cushion climate controlled seat

hook (rear)

30. Seat cushion climate controlled seat

bracket

31. Climate controlled seat control unit

32. Seat cushion outer finisher

33. Seat slide and lifter switch knob

34. Seat reclining switch knob

35. Seat control switch

36. Lumber support switch

37. Seat control switch cover

38. Seat cushion outer finisher inside

(rear)

39. Seat cushion outer finisher inside

(front)

40. Seat harness

41. Rear outer slide cover

42. Seat cushion lower outer finisher

43. Side air bag module

44. Seatback board

45. Headrest display harness and upper

tube

46. Headrest display harness

47. Clip

48. Seatback climate controlled seat

duct

49. Climate controlled seatback blower

motor

50. Climate controlled seatback blower

motor bracket

51. Seatback climate controlled seat

blower filter

52. Seatback thermal electric unit

53. Seatback thermal electric unit brack-

et

54. Seatback climate controlled seat

duct finisher

55. Seat cushion lower inner finisher

56. Rear inner slide cover

57. Headrest display harness lower tube

58. Lumber support unit assembly

59. Seat frame assembly

: Pawl

: Metal clip

Refer to

GI-4, "Components"

 for symbols in the figure.

FRONT SEAT

SE-111

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

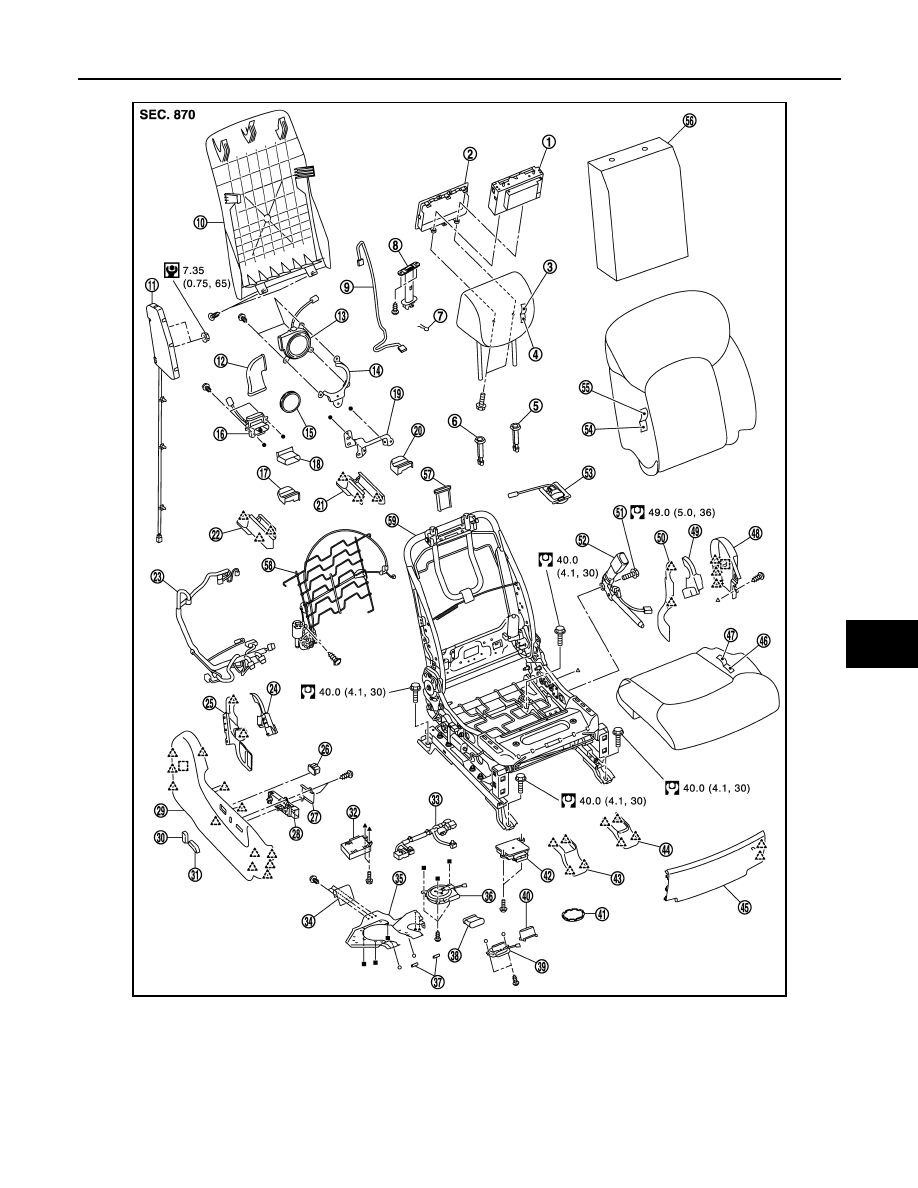

PASSENGER SEAT

JMJIA4579GB

1.

Headrest display

2.

Headrest display escutcheon

3.

Headrest trim

4.

Headrest pad and frame

5.

Headrest holder (locked)

6.

Headrest holder (free)

7.

Clip

8.

Headrest display harness and upper
tube

9.

Headrest display harness

10. Seatback board

11.

Side air bag module

12. Seatback climate controlled seat

duct

SE-112

< REMOVAL AND INSTALLATION >

FRONT SEAT

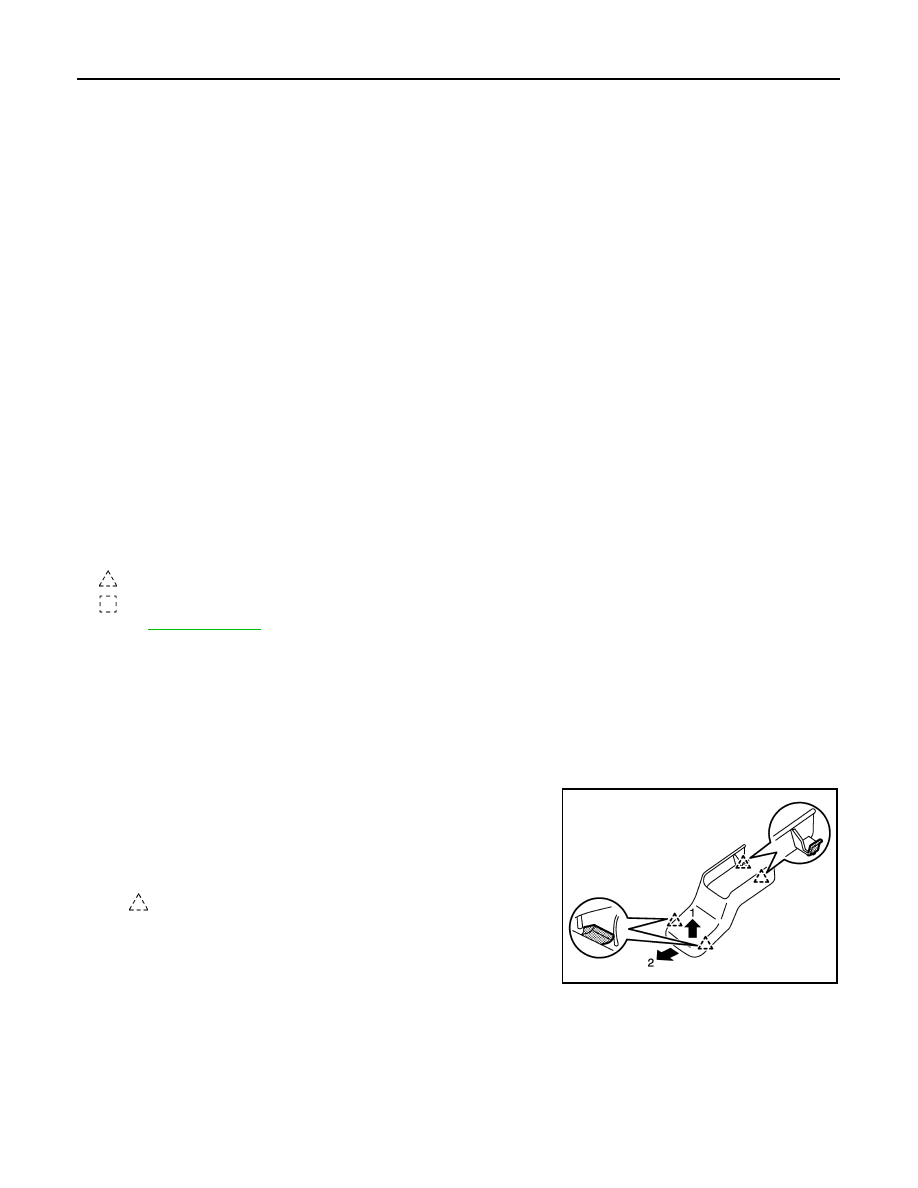

Removal and Installation

INFOID:0000000006217424

REMOVAL

CAUTION:

• When removing and installing, use shop cloths to protect parts from damage.
• When removing and installing, 2 workers are required so as to prevent it from dropping.

1.

Remove the front slide cover.

a.

Front outer slide cover
• Slide the seat to the rearmost position.
• Pull up the front edge of the front slide cover to release the

pawls.

• Slide the front slide cover forward to release the pawls.

13. Climate controlled seatback blower

motor

14. Climate controlled seatback blower

motor bracket

15. Seatback climate controlled seat

blower filter

16. Seatback thermal electric unit

17. Seat cushion lower outer finisher

18. Seatback climate controlled seat

duct finisher

19. Seatback thermal electric unit brack-

et

20. Seat cushion lower inner finisher

21. Rear inner slide cover

22. Rear outer slide cover

23. Seat harness

24. Seat cushion outer finisher inside

(front)

25. Seat cushion outer finisher inside

(rear)

26. Lumber support switch

27. Seat control switch cover

28. Seat control switch

29. Seat cushion outer finisher

30. Seat reclining switch knob

31. Seat slide and lifter switch knob

32. Climate controlled seat control unit

33. Seat cushion climate controlled seat

harness

34. Seat cushion climate controlled seat

hook (rear)

35. Seat cushion climate controlled seat

bracket

36. Climate controlled seat cushion

blower motor

37. Seat cushion climate controlled seat

hook (front)

38. Seat cushion climate controlled seat

duct

39. Seat cushion thermal electric unit

40. Seat cushion climate controlled seat

duct finisher

41. Seat cushion climate controlled seat

blower filter

42. Occupant detection system control

unit

43. Front outer slide cover

44. Front inner slide cover

45. Seat cushion front finisher

46. Seat cushion pad

47. Seat cushion trim

48. Seat cushion inner finisher

49. Seat cushion inner finisher inside

(front)

50. Seat cushion inner finisher inside

(rear)

51. Anchor bolt

52. Seat belt buckle pre-tensioner

53. Foot welcome lamp

54. Seatback pad

55. Seatback trim

56. Seatback silencer

57. Headrest display harness lower tube

58. Lumber support unit assembly

59. Seat frame assembly

: Pawl

: Metal clip

Refer to

GI-4, "Components"

 for symbols in the figure.

: Pawl

JMJIA3824ZZ

FRONT SEAT

SE-113

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

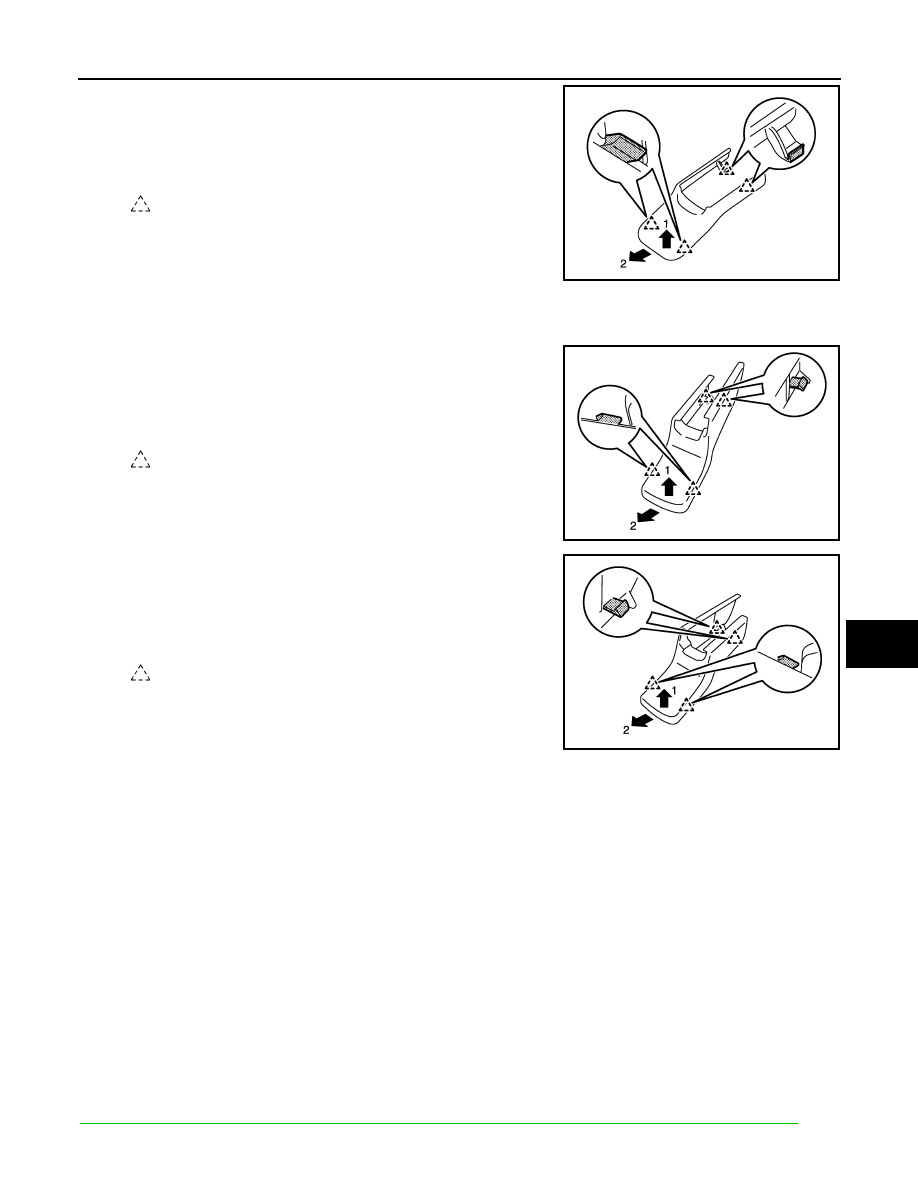

b.

Front inner slide cover
• Slide the seat to the rearmost position.
• Pull up the front edge of the front slide cover to release the

pawls.

• Slide the front slide cover forward to release the pawls.

2.

Remove the mounting bolts on the front side of the front seat.

3.

Remove the rear slide cover.

a.

Rear inner slide cover
• Slide the seat to the foremost position.
• Pull up the rear edge of the rear inner slide cover to release

the pawls.

• Slide the rear inner slide cover rearward to release the pawls.

b.

Rear outer slide cover
• Slide the seat to the foremost position.
• Pull up the rear edge of the rear outer slide cover to release

the pawls.

• Slide the rear outer slide cover rearward to release the pawls.

4.

Remove the mounting bolts on the rear side of the front seat.

5.

Set seatback in a standing position.

6.

Slide the seat to the rearmost position.

7.

Disconnect harness connectors under the seat and remove harness securing clips.

CAUTION:

Before removal, turn ignition switch OFF, disconnect battery negative terminal and then wait for at
least 3 minutes or more.

8.

Remove seat from the vehicle.

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Before installation, turn ignition switch OFF, disconnect battery negative terminal and then wait for

at least 3 minutes or more.

• Clamp the harness in position.
NOTE:
After installing the front seat, perform additional service when removing battery negative terminal. Refer to

ADP-51, "ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL : Description"

.

: Pawl

JMJIA3823ZZ

: Pawl

JMJIA3826ZZ
