Infiniti QX56 (Z62). Manual - part 1064





SUNROOF UNIT ASSEMBLY

RF-39

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

5.

Remove grip bracket.

6.

Remove sunroof bracket bolts.

7.

Remove nuts from the front end and side rail, and then remove sunroof unit assembly from roof panel.

8.

Remove sunroof unit assembly through the passenger compartment while being careful not to damage
the seats and trim.

INSTALLATION

1.

Temporarily tighten the mounting nuts to the side rail of sunroof unit assembly.

2.

Temporarily tighten the mounting nuts to the front end of sunroof unit assembly.

3.

Temporarily tighten the mounting bolts to the sunroof brackets (LH,RH).

4.

Tighten the installation points diagonally excluding the installation points of the sunroof brackets around
the roof opening.

5.

Tighten the mounting nuts to the front end and side rail.

6.

Tighten the sunroof bracket bolts of the vehicle side, and then tighten the bolt of the rail side.

7.

Install the glass lid.
NOTE:
After installation, perform fitting adjustment. Refer to

RF-33, "Adjustment"

.

8.

Connect drain hoses.

9.

Install headlining. Refer to

INT-29, "Removal and Installation"

.

Disassembly and Assembly

INFOID:0000000006141252

DISASSEMBLY

1.

Remove sunshade stopper mounting from the rear end of sunroof frame.

2.

Remove rear drain assembly from sunroof guide assembly.

3.

Remove sunshade from the rear end of sunroof frame.

ASSEMBLY

Assemble in the reverse order of disassembly.

RF-40

< REMOVAL AND INSTALLATION >

SUNSHADE

SUNSHADE

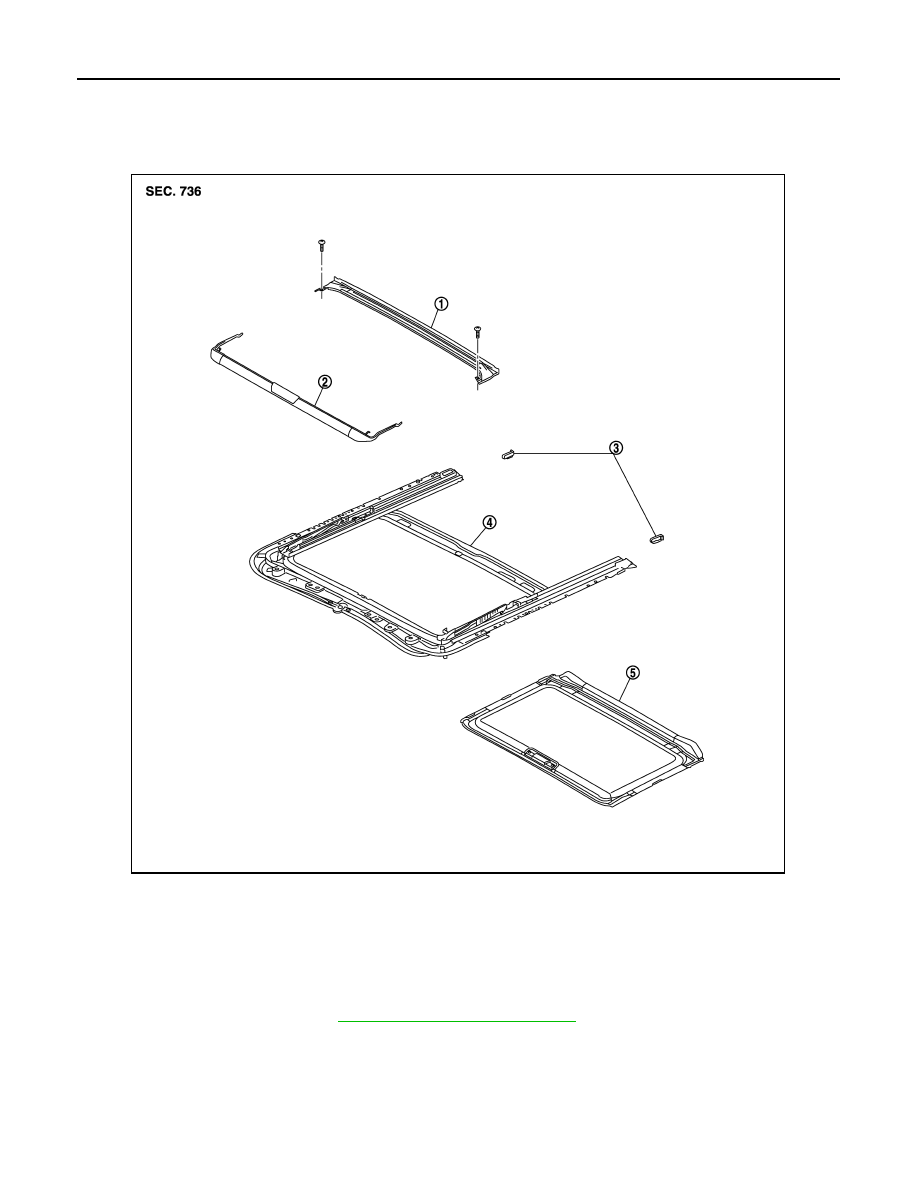

Exploded View

INFOID:0000000006141253

Removal and Installation

INFOID:0000000006141254

REMOVAL

1.

Remove the headlining. Refer to

INT-29, "Removal and Installation"

.

2.

Remove the sunshade stopper mounting from the rear end of sunroof frame.

3.

Remove the sunshade from the rear end of sunroof frame.

INSTALLATION

Install in the reverse order of removal.

1.

Rear drain assembly

2.

Wind deflector

3.

Sunshade stopper

4.

Sunroof frame

5.

Sunshade

JMKIA5378ZZ

SUNROOF SWITCH

RF-41

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

SUNROOF SWITCH

Removal and Installation

INFOID:0000000006141255

Removal

Remove the map lamp assembly (sunroof switch). Refer to

INT-29, "Removal and Installation"

.

Installation

Install in the reverse order of removal.

RSU-1

SUSPENSION

C

D

F

G

H

I

J

K

L

M

SECTION

RSU

A

B

RSU

N

O

P

CONTENTS

REAR SUSPENSION

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precautions for Suspension  ......................................

2

PREPARATION ............................................

3

PREPARATION ...................................................

3

Special Service Tools ................................................

3

Commercial Service Tools  ........................................

3

SYMPTOM DIAGNOSIS  ...............................

4

NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING  .............................

4

NVH Troubleshooting Chart  ......................................

4

PERIODIC MAINTENANCE ..........................

5

REAR SUSPENSION ASSEMBLY  .....................

5

Inspection ..................................................................

5

WHEEL ALIGNMENT ..........................................

6

Inspection ..................................................................

6

Adjustment ................................................................

6

REMOVAL AND INSTALLATION ................

8

REAR LOWER LINK & COIL SPRING  ...............

8

Exploded View  ..........................................................

8

Removal and Installation ...........................................

8

Inspection ..................................................................

9

REAR SHOCK ABSORBER  ..............................

10

Exploded View  ........................................................

10

Removal and Installation  .........................................

10

Inspection and Adjustment  ......................................

11

Disposal ...................................................................

12

SUSPENSION ARM  ..........................................

13

Exploded View .........................................................

13

Removal and Installation  .........................................

13

Inspection and Adjustment  ......................................

13

FRONT LOWER LINK .......................................

15

Exploded View .........................................................

15

Removal and Installation  .........................................

15

Inspection ................................................................

15

REAR STABILIZER  ..........................................

17

Exploded View .........................................................

17

Removal and Installation  .........................................

17

Inspection ................................................................

17

UNIT REMOVAL AND INSTALLATION ......

18

REAR SUSPENSION MEMBER .......................

18

Exploded View .........................................................

18

Removal and Installation  .........................................

18

Inspection and Adjustment  ......................................

19

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

20

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

20

Wheel Alignment  .....................................................

20

Ball Joint  ..................................................................

20

Wheel Height  ...........................................................

20
