RF-32

< REMOVAL AND INSTALLATION >

GLASS LID

REMOVAL AND INSTALLATION

GLASS LID

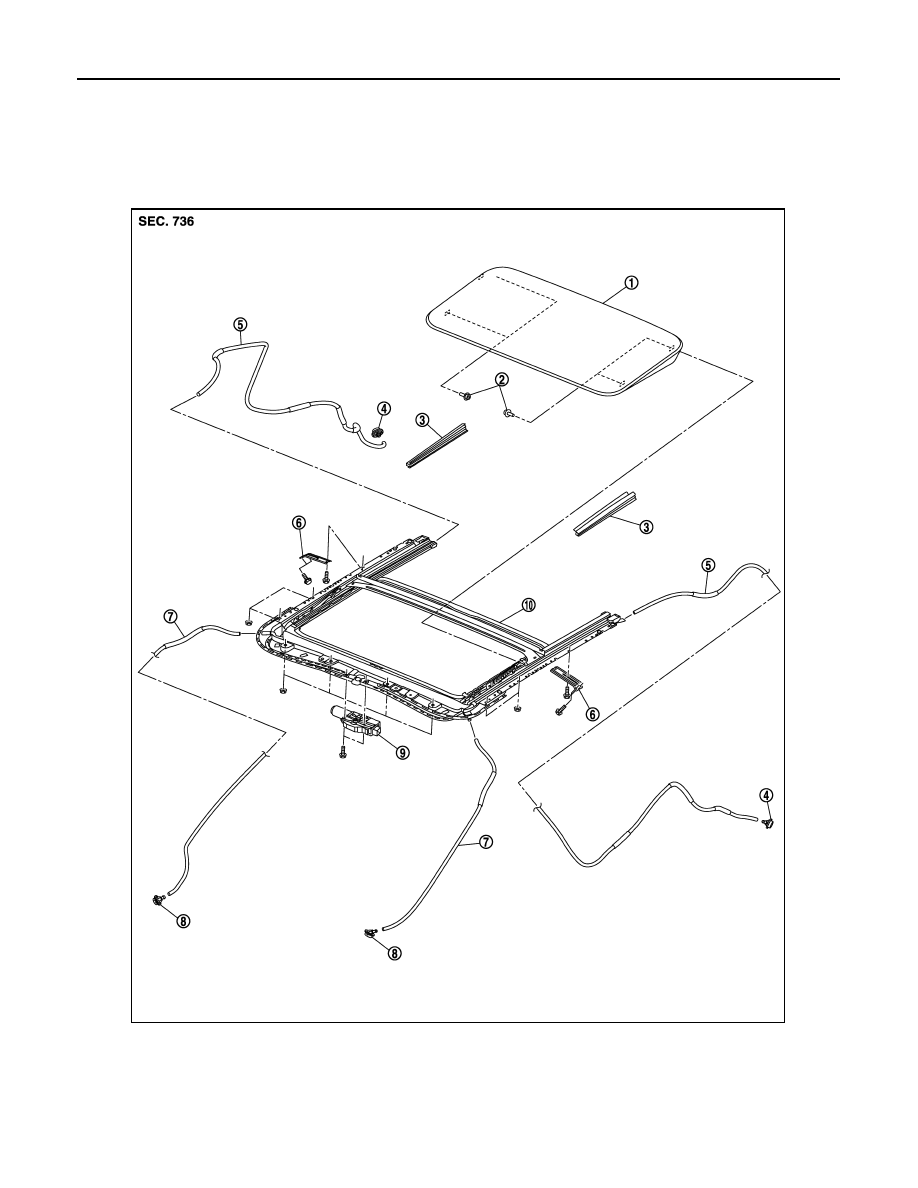

Exploded View

INFOID:0000000006141245

1.

Glass lid

2.

TORX bolt

3.

Side trim

4.

Rear drain connector

5.

Rear drain hose

6.

Sunroof bracket (LH,RH)

7.

Front drain hose

8.

Front drain connector

9.

Sunroof motor assembly

10. Sunroof unit assembly

JMKIA5212ZZ

GLASS LID

RF-33

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

Removal and Installation

INFOID:0000000006141246

CAUTION:

• Always work with a helper.
• Fully close the glass lid, before removal, then never operate sunroof motor after removal.

REMOVAL

1.

Remove the side trims (LH, RH).

2.

Remove the TORX bolts (A) and remove glass lid.

INSTALLATION

CAUTION:

After installing the glass lid, perform the leak test and check the there is no malfunction.
NOTE:
After installation carry out fitting adjustment. Refer to

RF-33, "Adjustment"

.

Install in the reverse order of removal.

Adjustment

INFOID:0000000006141247

Glass lid Adjustment and Surface Mismatch Adjustment
1.

Remove side trims.

2.

After loosening glass lid from TORX bolts (left and right).

3.

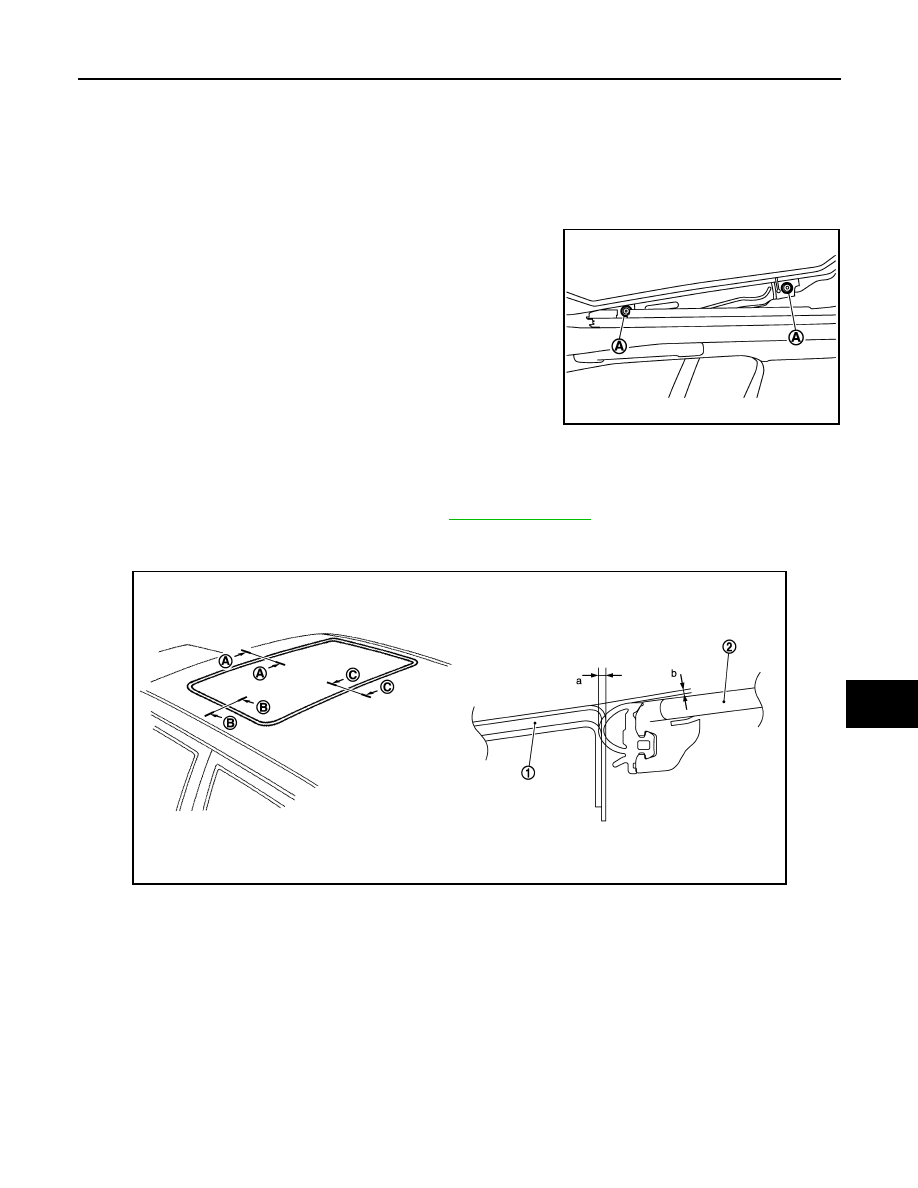

Adjust glass lid from outside of vehicle so it resembles “A – A”,“B – B”“C – C”.

JMKIA0029ZZ

JMKIA5137ZZ

1.

Roof panel

2.

Glass lid

Portion

a (Clearance)

b (Surface height difference)

A – A

0.6 – 2.2 mm (0.024 – 0.087 in)

−

1.5) – (+1.5) mm

[(

−

0.059) – (+0.059) in]

RF-34

< REMOVAL AND INSTALLATION >

GLASS LID

4.

To prevent glass lid from moving after adjustment, first tighten the TORX bolts of front left, and then
tighten the TORX bolts of rear right.

5.

Tighten remaining TORX bolts, being careful to prevent glass lid from moving.

6.

Tilt glass lid up and down several times to check that it moves smoothly.

NOTE:
After adjustment the sunroof unit assembly, perform additional service. Refer to

RF-17, "ADDITIONAL SER-

VICE WHEN REPLACING CONTROL UNIT : Description"

.

B – B

0.6 – 2.2 mm (0.024 – 0.087 in)

−

1.5) – (+1.5) mm

[(

−

0.059) – (+0.059) in]

C – C

0.6 – 2.2 mm (0.024 – 0.087 in)

−

1.5) – (+1.5) mm

[(

−

0.059) – (+0.059) in]
