REAR DRIVE SHAFT

RAX-17

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

RAX

N

O

P

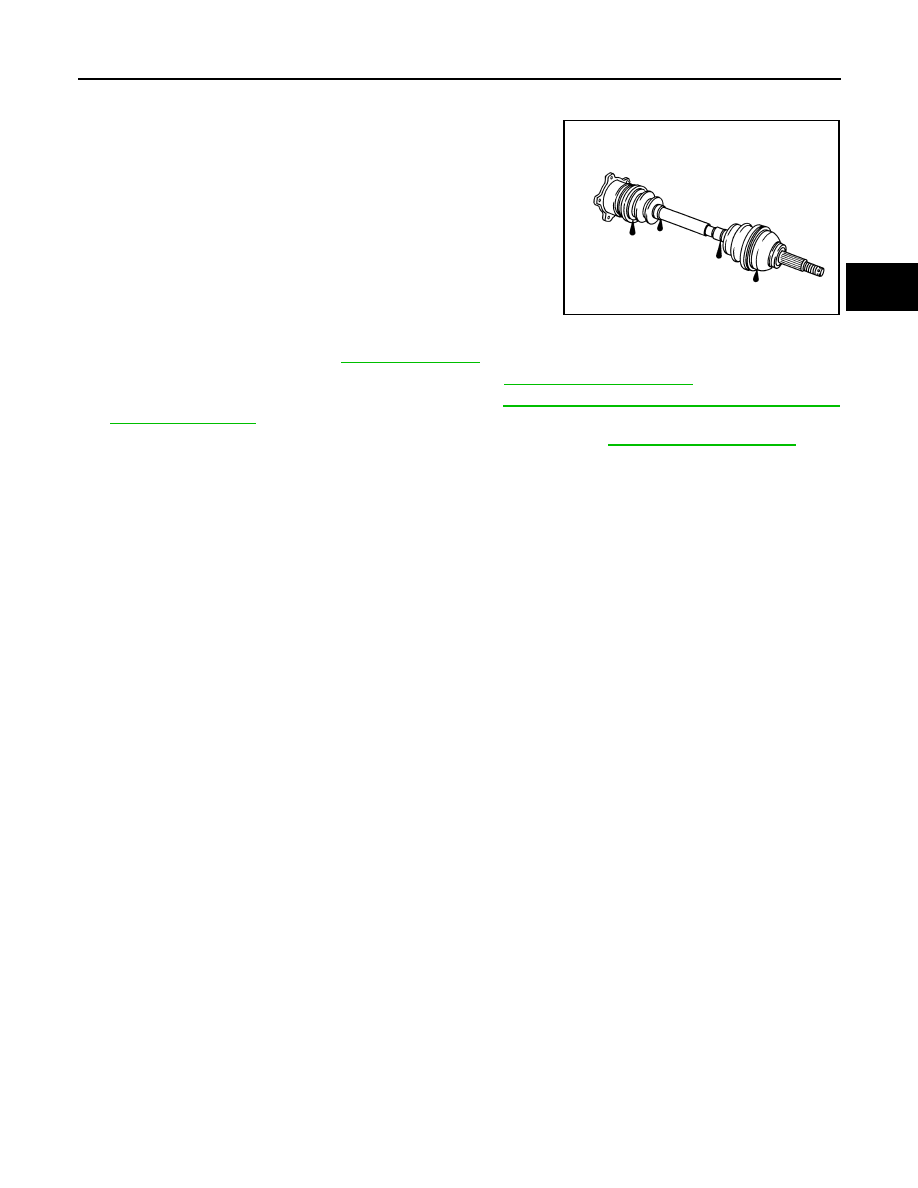

• Move joint up/down, left/right, and in the axial direction. Check for any rough movement or significant loose-

ness.

• Check boot for cracks or other damage, and also for grease leak-

age.

• If a malfunction is found, disassemble drive shaft, and then replace

with new one.

INSPECTION AFTER INSTALLATION

1.

Check wheel alignment. Refer to

RSU-6, "Inspection"

.

2.

Adjust neutral position of steering angle sensor. Refer to

BRC-64, "Work Procedure"

.

3.

Adjust levelizer adjustment of height sensor. Refer to

EXL-61, "LEVELIZER ADJUSTMENT : Special

Repair Requirement"

.

4.

Check standard vehicle height setting of vehicle height sensor. Refer to

SCS-67, "Work Procedure"

.

RAA0030D

RAX-18

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Wheel Hub and Bearing Assembly

INFOID:0000000006225473

Drive Shaft

INFOID:0000000006225474

Item

Standard

Axial end play

0.05 mm (0.002 in) or less

Item

Standard

Wheel side

Final drive side

Grease quantity

145 – 165 g (5.11 – 5.82 oz)

175 – 195 g (6.17 – 6.88 oz)

Boots installed length

134.5 mm (5.30 in)

147.9 mm (5.82 in)

RF-1

BODY EXTERIOR, DOORS, ROOF & VEHICLE SECURITY

C

D

E

F

G

H

I

J

L

M

SECTION

RF

A

B

RF

N

O

P

CONTENTS

ROOF

PRECAUTION ...............................................

3

PRECAUTIONS ...................................................

3

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

3

PREPARATION ............................................

4

PREPARATION ...................................................

4

Commercial Service Tool  ..........................................

4

SYSTEM DESCRIPTION  ..............................

5

COMPONENT PARTS  ........................................

5

Component Parts Location ......................................

5

Component Description ............................................

5

SYSTEM ..............................................................

6

System Diagram .......................................................

6

System Description  ...................................................

6

ECU DIAGNOSIS INFORMATION ...............

7

BCM (BODY CONTROL MODULE) ....................

7

List of ECU Reference  ..............................................

7

SUNROOF SYSTEM ...........................................

8

Reference Value  .......................................................

8

WIRING DIAGRAM  .......................................

9

SUNROOF MOTOR ASSEMBLY ........................

9

Wiring Diagram  .........................................................

9

BASIC INSPECTION  ...................................

16

DIAGNOSIS AND REPAIR WORKFLOW  .........

16

WorkFlow ................................................................

16

INSPECTION AND ADJUSTMENT ....................

17

ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT  ........................................................

17

ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT : Description .................................

17

ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT : Special Repair Requirement ......

17

DTC/CIRCUIT DIAGNOSIS  .........................

18

POWER SUPPLY AND GROUND CIRCUIT  ....

18

Diagnosis Procedure ..............................................

18

VEHICLE SPEED SIGNAL CIRCUIT ................

20

Component Function Check ..................................

20

Diagnosis Procedure ..............................................

20

SUNROOF SWITCH ..........................................

21

Component Function Check ..................................

21

Diagnosis Procedure ..............................................

21

Component Inspection .............................................

22

SYMPTOM DIAGNOSIS  ..............................

23

SUNROOF DOES NOT OPERATE PROPER-
LY ......................................................................

23

Description ...............................................................

23

Diagnosis Procedure  ...............................................

23

SUNROOF DOES NOT OPERATE ANTI-
PINCH FUNCTION ............................................

24

Diagnosis Procedure  ...............................................

24

RETAINED POWER OPERATION DOES NOT
OPERATE PROPERLY .....................................

25

Diagnosis Procedure  ...............................................

25

SQUEAK AND RATTLE TROUBLE DIAG-
NOSES ..............................................................

26

Work Flow ................................................................

26

Inspection Procedure ...............................................

28

Diagnostic Worksheet ..............................................

30

REMOVAL AND INSTALLATION  ...............

32

GLASS LID ........................................................

32
