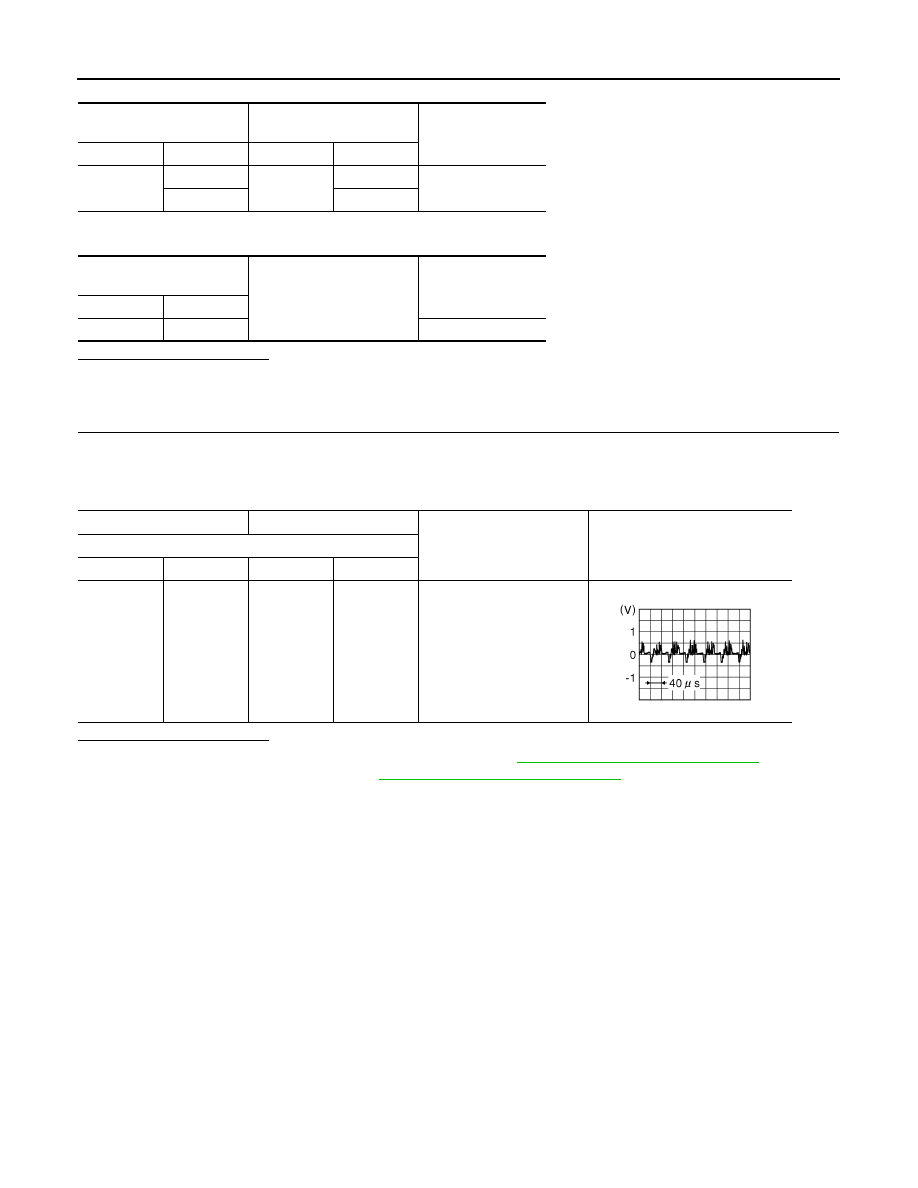

AV-186

< DTC/CIRCUIT DIAGNOSIS >

REAR CAMERA IMAGE SIGNAL CIRCUIT

4.

Check continuity between around view monitor control unit harness connector and ground.

Is inspection result normal?

YES

>> GO TO 4.

NO

>> Repair harness or connector.

4.

CHECK REAR CAMERA IMAGE SIGNAL

1.

Connect around view monitor control unit connector and rear camera connector.

2.

Turn ignition switch ON.

3.

Check signal between around view monitor control unit harness connector.

Is inspection result normal?

YES

>> Replace around view monitor control unit. Refer to

AV-233, "Removal and Installation"

.

NO

>> Replace rear camera. Refer to

AV-235, "Removal and Installation"

.

Around view monitor control

unit

Rear camera

Continuity

Connector

Terminals

Connector

Terminals

M48

39

D164

5

Existed

40

1

Around view monitor control

unit

Ground

Continuity

Connector

Terminals

M48

39, 40

Not existed

(+)

(

−

)

Condition

Reference value

Around view monitor control unit

Connector

Terminal

Connector

Terminal

M48

39

M48

40

“CAMERA” switch is ON or
shift position is “R”.

JSNIA0834GB

AV

SIDE CAMERA LH COMMUNICATION SIGNAL CIRCUIT

AV-187

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SIDE CAMERA LH COMMUNICATION SIGNAL CIRCUIT

Description

INFOID:0000000006216358

• Around view monitor control unit supplies to the front camera, rear camera and side camera. And then it

superimpose the images from each camera and outputs then to the front display unit.

• Superimpose the guiding lines, predictive course line and sonar indicator to the camera image that outputs

to the front display unit.

• Around view monitor control unit performs the reception/transmission of communication signal with each

camera.

Diagnosis Procedure

INFOID:0000000006216359

1.

CHECK CONTINUITY COMMUNICATION SIGNAL CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect around view monitor control unit connector and door mirror (driver side) connector.

3.

Check continuity between around view monitor control unit harness connector and door mirror (driver
side) harness connector.

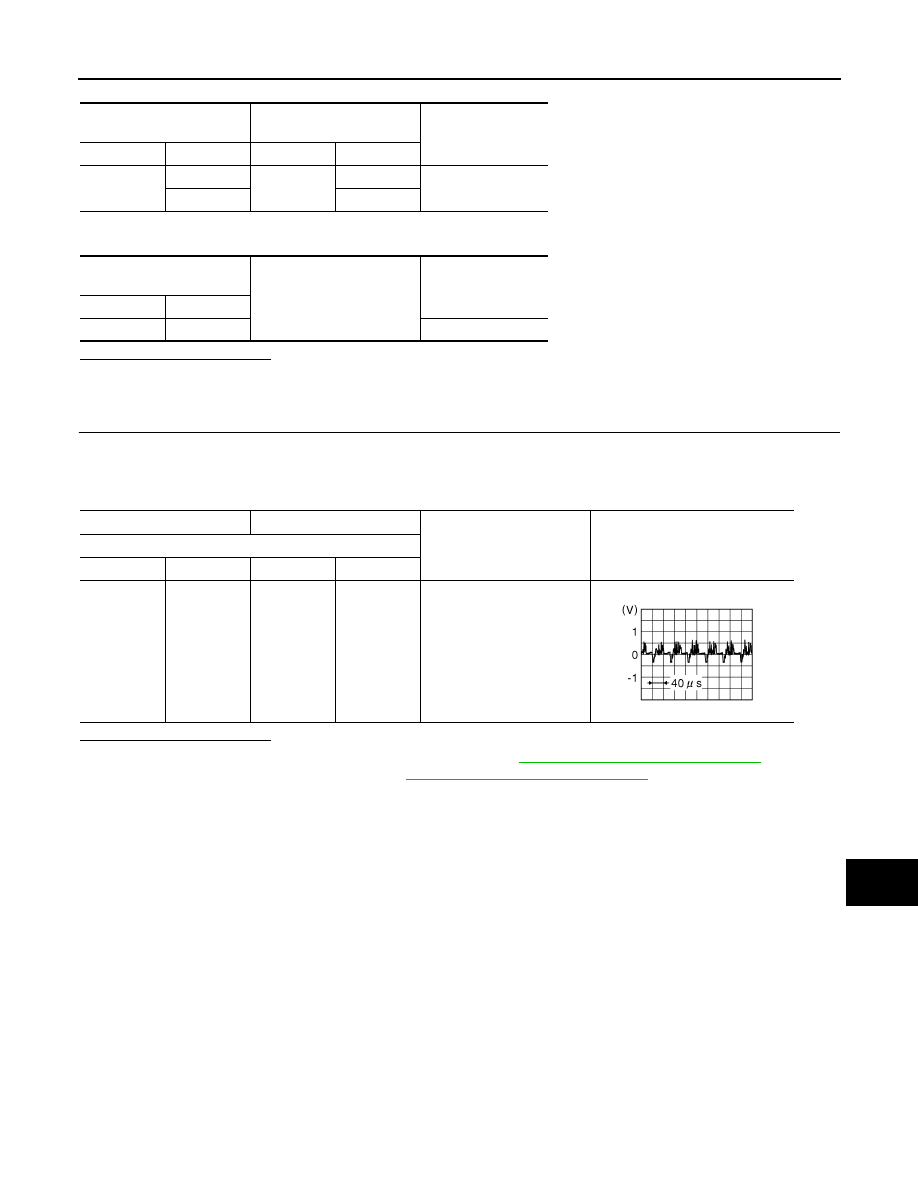

4.

Check continuity between around view monitor control unit harness connector and ground.

Is inspection result normal?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK COMMUNICATION SIGNAL

1.

Connect around view monitor control unit connector and door mirror (driver side) connector.

2.

Turn ignition switch ON.

3.

Check signal between around view monitor control unit harness connector and ground.

Is inspection result normal?

YES

>> Replace around view monitor control unit. Refer to

AV-233, "Removal and Installation"

.

NO

>> Replace side camera LH. Refer to

AV-236, "Removal and Installation"

.

Around view monitor control

unit

Door mirror

(driver side)

Continuity

Connector

Terminal

Connector

Terminal

M49

47

D3

3

Existed

Around view monitor control

unit

Ground

Continuity

Connector

Terminal

M49

47

Not existed

(+)

(

−

)

Condition

Reference value

Around view monitor control

unit

Connector

Terminal

M49

47

Ground

“CAMERA” switch is ON or shift
position is “R”.

JSNIA0836GB

AV-188

< DTC/CIRCUIT DIAGNOSIS >

SIDE CAMERA LH IMAGE SIGNAL CIRCUIT

SIDE CAMERA LH IMAGE SIGNAL CIRCUIT

Description

INFOID:0000000006216360

• Around view monitor control unit supplies to the front camera, rear camera and side camera. And then it

superimpose the images from each camera and outputs then to the front display unit.

• Superimpose the guiding lines, predictive course line and sonar indicator to the camera image that outputs

to the front display unit.

• Around view monitor control unit performs the reception/transmission of communication signal with each

camera.

Diagnosis Procedure

INFOID:0000000006216361

1.

CHECK CONTINUITY SIDE CAMERA LH POWER SUPPLY AND GROUND CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect around view monitor control unit connector and door mirror (driver side) connector.

3.

Check continuity between around view monitor control unit harness connector and door mirror (driver
side) harness connector.

4.

Check continuity between around view monitor control unit harness connector and ground.

Is inspection result normal?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK VOLTAGE SIDE CAMERA LH POWER SUPPLY

1.

Connect around view monitor control unit connector and door mirror (driver side) connector.

2.

Turn ignition switch ON.

3.

Check voltage between around view monitor control unit harness connector and ground.

Is inspection result normal?

YES

>> GO TO 3.

NO

>> Replace around view monitor control unit. Refer to

AV-233, "Removal and Installation"

.

3.

CHECK CONTINUITY SIDE CAMERA LH IMAGE SIGNAL CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect around view monitor control unit connector and door mirror (driver side) connector.

3.

Check continuity between around view monitor control unit harness connector and door mirror (driver
side) harness connector.

Around view monitor control

unit

Door mirror (driver side)

Continuity

Connector

Terminals

Connector

Terminals

M49

48

D3

6

Existed

50

18

Around view monitor control

unit

Ground

Continuity

Connector

Terminal

M49

48

Not existed

(+)

(

−

)

Condition

Voltage

(Approx.)

Around view monitor control

unit

Connector

Terminal

M49

48

Ground

“CAMERA” switch is ON or
shift position is “R”.

6.0 V

AV

SIDE CAMERA LH IMAGE SIGNAL CIRCUIT

AV-189

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

4.

Check continuity between around view monitor control unit harness connector and ground.

Is inspection result normal?

YES

>> GO TO 4.

NO

>> Repair harness or connector.

4.

CHECK SIDE CAMERA LH IMAGE SIGNAL

1.

Connect around view monitor control unit connector and door mirror (driver side) connector.

2.

Turn ignition switch ON.

3.

Check signal between around view monitor control unit harness connector.

Is inspection result normal?

YES

>> Replace around view monitor control unit. Refer to

AV-233, "Removal and Installation"

.

NO

>> Replace side camera LH. Refer to

AV-236, "Removal and Installation"

.

Around view monitor control

unit

Door mirror (driver side)

Continuity

Connector

Terminals

Connector

Terminals

M49

51

D3

5

Existed

52

17

Around view monitor control

unit

Ground

Continuity

Connector

Terminals

M49

51, 52

Not existed

(+)

(

−

)

Condition

Reference value

Around view monitor control unit

Connector

Terminal

Connector

Terminal

M49

51

M49

52

“CAMERA” switch is ON or
shift position is “R”.

JSNIA0834GB
