• Video signals are transmitted from the USB connector to the AV control unit. The data and files are displayed

on the headrest display unit screen.

• iPod

is recharged when connected to USB connector.

• Only files that meet the following conditions will be played.

NOTE:
• iPod

is a trademark of Apple inc., registered in the U.S. and other countries.

• Image signals cannot be received from iPod

• Use the enclosed USB harness when connecting iPod

to USB connector.

• If a video-sound codec combination is not satisfied, its video file may not be played.
• Signals cannot be transmitted to video distributor under the following conditions:
- Only sound signal or only image viewer data is stored in iPod

- Only sound signal or only image viewer data is stored in USB memory

FRONT AUXILIARY INPUT FUNCTION

• Image and sound can be output from an external device by connecting a device with front auxiliary input

jacks.

• AUX image signals are transmitted to each unit as follows:
- To the front display unit via AV control unit.
- To the headrest display unit via AV control unit and video distributor.
• AUX sound signals are transmitted to each unit as follows:
- To each speaker via AV control unit and BOSE amp.
- To the video distributor via AV control unit, and headphone sound signals are transmitted to infrared commu-

nication between headrest display unit and headphone.

MOBILE ENTERTAINMENT SYSTEM

• Image and sound (DVD, USB memory-stored video data and front auxiliary input) played by AV control unit

can be enjoyed in rear seat using headrest display unit and headphone.

• Image and sound of external device connected to rear auxiliary input jacks for rear seat can be enjoyed in

rear seat using headrest display unit and headphone. Also, image and sound from rear auxiliary input jacks
can be selected and played individually on each side as well as on both sides.

• Headrest display unit has the self-diagnosis function. Refer to

AV-49, "On Board Diagnosis Function"

NOTE:
Image signal and sound signal from rear auxiliary input jacks is not transmitted to front display unit and each
speaker.

Operating Signal

• The mobile entertainment system can be controlled by one of the rear seat remote controller.
• It receives the operation signal of the rear seat remote controller by the remote control receiver built into

headrest display unit, and then transmits it to the AV control unit and the video distributor.

Headphone Sound

• Sound signal output from AV control unit or rear auxiliary input jacks are transmitted to headrest display unit

via video distributor.

• Headphone sound signals are transmitted to infrared communication between headrest display unit and

headphone.

Screen headrest display

• Image signal output from AV control unit or rear auxiliary input jacks are transmitted to headrest display unit

via video distributor.

• Image switch signal is input from headrest display unit to AV control unit or from headrest display unit to

video distributor, according to rear seat remote controller operation.

• When image switch signal is transmitted from headrest display unit to AV control unit via AV communication,

image played by AV control unit (DVD, USB memory-stored video data, and front auxiliary input) switches.

• When image switch signal is input from headrest display unit to video distributor via hard wire, image output

from AV control unit and image output from rear auxiliary input jacks switch.

Music file

Video file

Image viewer file

File format

“MP3”, “WMA”, “AAC”, “M4A”

“DivX”, “MPEG4 (ASF)”

“JPEG”

File extension

“.mp3”, “.wma”, “.aac”, “.m4a”

“.divx”, “.afs”, “.avi”

“.jpg”, “.jpeg”

Maximum file size

2 GB

2 MB

SYSTEM

AV-19

< SYSTEM DESCRIPTION >

HANDS-FREE PHONE FUNCTION

• AV control unit includes hands-free phone function.
• Hands-free communication can be operated by connecting using Bluetooth

™

communication with cellular

phone.

• Operation is performed by steering switch, and operating condition is indicated on display.
• Guide sound that is heard during operation is input from AV control unit to BOSE amp., and is output from

front speaker and center speaker.

When A Call Is Originated

Spoken voice sound output from the microphone (microphone signal) is input to AV control unit. AV control unit
outputs to cellular phone with Bluetooth

™

communication as a TEL voice signal. Voice sound is then heard at

the other party.

When Receiving A Call

Voice sound is input to own cellular phone from the other party. TEL voice signal is output to door speaker, and
the signal is input to BOSE amp. via AV control unit by establishing Bluetooth

™

communication from cellular

phone.

TOUCH PANEL SYSTEM

Each operation of multi AV system can be performed by directly touching a front display.

AROUND VIEW MONITOR FUNCTION

• This system is equipped with wide-angle high-resolution cameras on the front and rear of the vehicle and on

both right and left door mirrors. The images from front view, rear view, front-side view (RH side), and birds-
eye view that shows the view from the top of the vehicle are displayed to monitor the vehicle surroundings.

• Around view monitor control unit cuts out and expands the image received from each camera to create each

view.

• The sonar indicator is displayed on display (superimposed on the camera image) in combination with the

camera assistance sonar system to warm of the approach of an obstacle.

• In front view and rear view, the vehicle width, distance lines and predictive course lines are superimposed

and displayed. In front-side view, the vehicle distance guiding line and vehicle width guiding line are dis-
played.

• The Birds-Eye view converts the images from 4 cameras into the overhead view and displays the status of

the vehicle on display. The vehicle icon and sonar indicator that are displayed on the Birds-Eye view display
are rendered by around view monitor control unit.

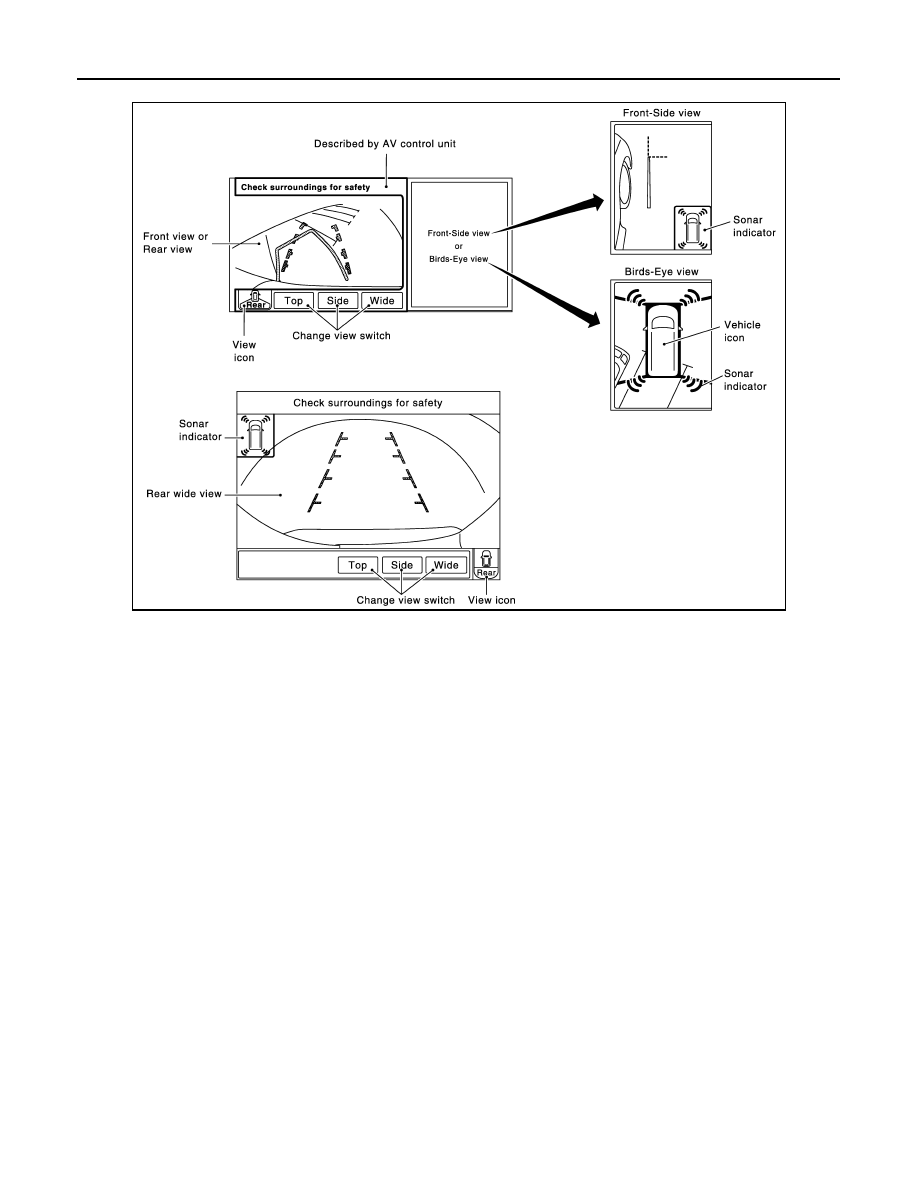

Around View Monitor Screen

• Around view monitor combines and displays the travel direction view and “Birds-Eye view”, “Front-Side view”

and then it displays the sonar indicator on the “Birds-Eye view”, “Front-Side view”, “Rear wide view”.

• AV control unit renders the “Change View” switch, view icon, warning message on display.

AV-20

< SYSTEM DESCRIPTION >

SYSTEM

Screen constitution

Operation Description

• Around view monitor operates by pressing the “CAMERA” switch of multifunction switch and shifting the

selector switch to the reverse position.

• When the selector lever is in any position other than the reverse position, the screen is switched to the

around view monitor by pressing the “CAMERA” switch.

• The screen is switched to the around view monitor by shifting the selector lever to the reverse position.
• In the around view monitor, Birds-Eye view, Front-side view and rear wide view (rear only) can be switched

by pressing the “CAMERA” switch.

• The around view monitor is cancelled 3 minutes after pressing the “CAMERA” switch, and then the screen

returns to the screen before displaying the around view monitor when selector lever is in a position other
than the reverse position.

• ON/OFF setting of sonar indicator display on the Front-Side view screen can be performed.
• In the Birds-Eye view, the invisible area is displayed on the image to specify the boundary of the 4 cameras.

The invisible area is displayed in yellow in the Birds-Eye view after turning the ignition switch ON.

• The sonar (both of buzzer and indicator) operates only when the camera screen is displayed.

NOTE:
The first, second, and third camera image displayed when switched to the camera image display depends
on the settings of “Camera View Priority”.

JSNIA2332GB

SYSTEM

AV-21

< SYSTEM DESCRIPTION >

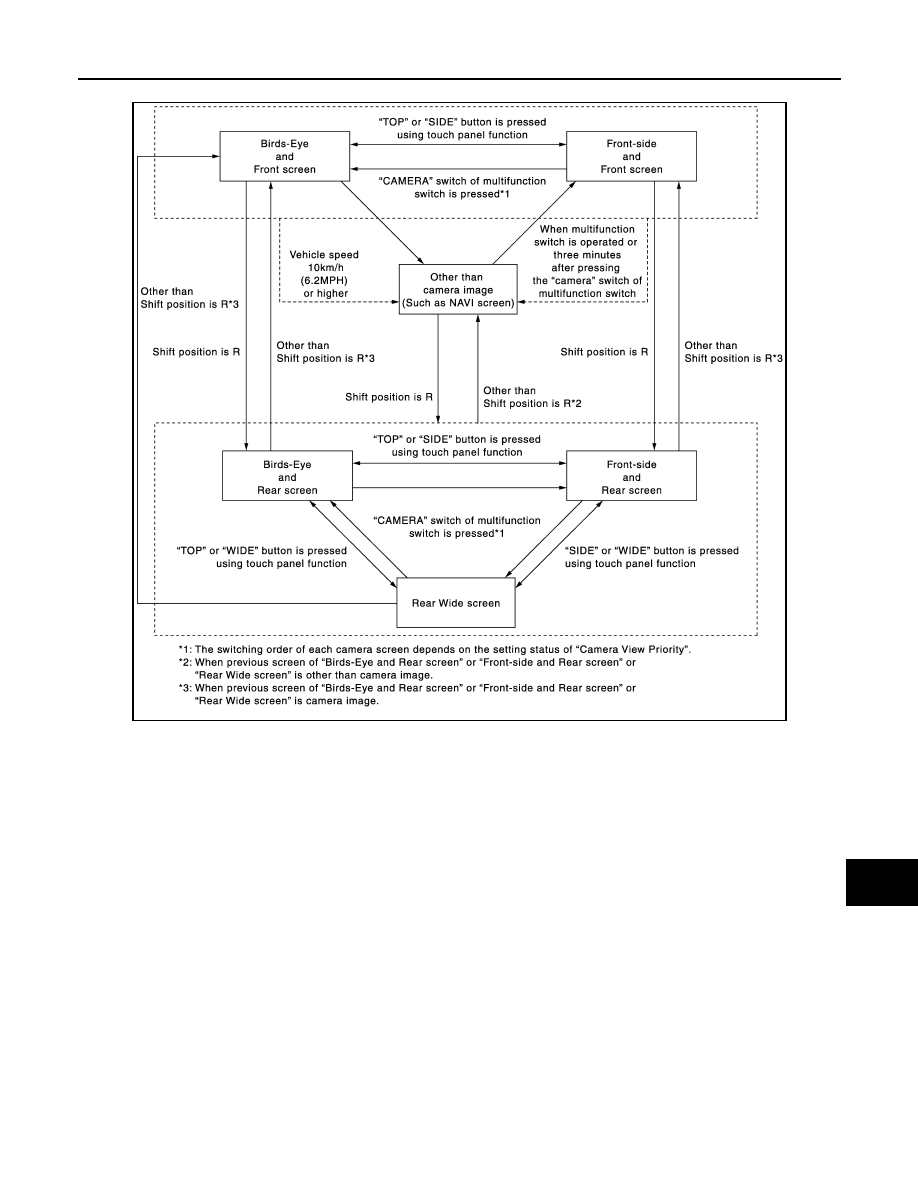

Around view monitor screen transition

FRONT VIEW

• The front view image is from the front camera.
• When the selector lever is in any position other than the reverse position, the front view is displayed by

pressing the “CAMERA” switch. It improves the visibility of obstacles in front of the vehicle and helps driving
by the images displayed from Birds-Eye view and Front-Side view.

• Display the vehicle width guiding line and vehicle distance guiding line in front view and display the predic-

tive course line according to the steering angle.

• If the steering angle is within approximately 90 degrees, the predictive course lines on the left/right side are

displayed. If the steering angle is exceeding approximately 90 degrees, only the predictive course line on the
outside (in the opposite side of steering direction) is displayed.

• AV control unit is connected to the steering angle sensor and receives the steering angle signal via CAN

communication. AV control unit is transmits steering angle signal to around view monitor control unit via AV
communication.

• Around view monitor control unit controls the direction and distance of the predictive course line according to

the sensor signal from steering angle sensor.

JSNIA3112GB
