Infiniti QX56 (Z62). Manual - part 39

AV-10

< SYSTEM DESCRIPTION >

COMPONENT PARTS

Component Description

INFOID:0000000006216214

Squawker RH

Center speaker

Corner sensor front RH

Squawker LH

Front camera

Corner sensor front LH

Side camera LH

Front door speaker LH

Headrest display unit LH

10. Rear door tweeter LH

11. Rear door speaker LH

12. Roof speaker LH

13. Woofer

14. Corner sensor rear LH

15. Satellite radio antenna

16. Rear camera

17. Corner sensor rear RH

18. BOSE amp.

19. Roof speaker RH

20. Antenna amp.

21. Rear door speaker RH

22. Rear door tweeter RH

23. Headrest display unit RH

24. Front door speaker RH

25.

Side camera RH and infrared LED
(auxiliary lighting)

26. Front display unit

27. Steering switch

28. Sonar control unit

29. Steering angle sensor

30. Preset switch

31. Around view monitor control unit

32. USB connector

33. Front auxiliary input jacks

34. Rear auxiliary input jacks

35. AV control unit

36. Video distributor

37. Multifunction switch

38. GPS antenna

39. Microphone

Luggage side lower finisher LH re-
moved condition

Luggage side lower finisher RH re-
moved condition

Headlining assembly removed condi-
tion

Instrument lower panel LH removed
condition

Spiral cable part

Cluster lid C removed condition

Within center console

Instrument panel rear side

Part name

Description

AV control unit

• Integrates hard disk drive (HDD) allowing map data and music data to be stored.
• It is the master unit of the MULTI AV system, and it is connected to each control

unit by communication. It operates each system according to communication sig-
nals from the AV control unit.

• The AV control unit includes the audio, hands-free phone, navigation, USB con-

nection, DVD play and vehicle information functions.

• It is connected to ECM and combination meter via CAN communication to obtain

necessary information for the vehicle information function.

• It inputs the illumination signals that are required for the front display dimming con-

trol.

• It inputs the signals for driving status recognition (vehicle speed, reverse and park-

ing brake).

• The RGB digital image signal and composite image signal are output to front dis-

play unit.

• Switches image and sound output to video distributor, inputting image switch sig-

nal from headrest display unit via AV communication.

• Amp. ON signal and mode change signal transmitted to BOSE amp.
• Update of map data is performed with the DVD-ROM.

Front display unit

• Front display image is controlled by the serial communication from AV control unit.
• RGB digital image signal is input from AV control unit.
• Composite image signal is input from AV control unit.
• Camera image signal is input from around view monitor control unit.
• Touch panel function can be operated for each system by touching a display di-

rectly.

Headrest display unit

• Composite image signal [USB (video data), DVD and auxiliary input images] is in-

put from the video distributor.

• It receives the DVD/AUX/USB sound signal from the video distributor, and then

transmits it to the headphones.

• Outputs image switch signal to video distributor via hard wire, according to rear

seat remote controller operation.

• Outputs image switch signal to AV control unit via AV communication, according to

rear seat remote controller operation.

COMPONENT PARTS

AV-11

< SYSTEM DESCRIPTION >

Video distributor

• It receives the image signal and sound signal from the AV control unit and then

transmits it to the headrest display unit.

• It receives the image signal and sound signal from the auxiliary input jacks and

then transmits it to the headrest display unit.

• Switches image and sound output to headrest display unit, inputting image switch

signal from headrest display unit via hard wire.

Front auxiliary input jacks

Image signal and sound signal of auxiliary input is transmitted to AV control unit.

Rear auxiliary input jacks
(Mobile entertainment system)

Image signal and sound signal of auxiliary input is transmitted to video distributor.

BOSE amp.

Inputs sound signal from AV control unit, and outputs sound signal to each speaker.

Front door speaker

• Outputs sound signal from BOSE amp.
• Outputs high, mid and low range sounds.

Rear door speaker

• Outputs sound signal from BOSE amp.
• Outputs high, mid and low range sounds.

Squawker

• Outputs sound signal from BOSE amp.
• Outputs high and mid range sounds.

Rear door tweeter

• Outputs sound signal from BOSE amp.
• Outputs high range sounds.

Roof speaker

• Outputs sound signal from BOSE amp.
• Outputs high and mid range sounds.

Center speaker

• Outputs sound signal from BOSE amp.
• Outputs high and mid range sounds.

Woofer

• Outputs sound signal from BOSE amp.
• Outputs low range sounds.

Multifunction switch

• Operation panel is equipped with the centralized switch where audio, auxiliary in-

put and navigation, etc. operations are integrated.

• Connected with preset switch via hardwire and operation signal is transmitted to

AV control unit via AV communication.

Preset switch

• Operation panel is equipped with the centralized switch where audio and air con-

ditioner, etc. operations are integrated.

• Connected with multifunction switch via hardwire, and operation signal is transmit-

ted to AV control unit via AV communication.

• The disk ejection operating signal is performed by hardwire.

Steering switch

• Operations for audio, hands-free phone and navigation, etc. are possible.
• Steering switch signal (operation signal) is output to AV control unit.

Around view monitor control unit

• It supplies power to front camera, rear camera, and side camera. And then it su-

perimposes the images from each camera and outputs them to front display unit.

• Superimpose the guiding line, predicted course line and sonar indicator to the

camera image that outputs to front display unit.

• It performs the reception/transmission of communication signal with each camera.
• It transmits the sonar operation signal from sonar control unit and receives the so-

nar information from sonar control unit via AV communication.

• It transmits the information received/transmitted with sonar control unit via AV

communication to AV control unit.

Front camera

• It inputs the power supply from around view monitor control unit and outputs the

image of the vehicle front to around view monitor control unit.

• It performs the reception/transmission of the communication signal with around

view monitor control unit.

Rear camera

• It inputs the power supply from around view monitor control unit and outputs the

image of the vehicle rear to around view monitor control unit.

• It performs the reception/transmission of the communication signal with around

view monitor control unit.

Side camera LH

• It inputs the power supply from around view monitor control unit and outputs the

image of the vehicle LH to around view monitor control unit.

• It performs the reception/transmission of the communication signal with around

view monitor control unit.

Part name

Description

AV-12

< SYSTEM DESCRIPTION >

COMPONENT PARTS

*1: Image signals cannot be received from iPod

Side camera RH

• It inputs the power supply from around view monitor control unit and outputs the

image of the vehicle RH to around view monitor control unit.

• It performs the reception/transmission of the communication signal with around

view monitor control unit.

Infrared LED
(Auxiliary lighting)

• It illuminates around the front RH wheel by the power supply from around view

monitor control unit to improve nighttime visibility of front-side view.

• The infrared LED is an invisible light ray.

Sonar control unit

• It is connected with around view monitor control unit via AV communication and

receives the sonar operation signal from around view monitor control unit.

• It transmits the sonar detection status to around view monitor control unit via AV

communication.

• It judges the warning level according to the signal from corner sensor.

Corner sensor

The obstacle distance is detected. The signal is transmitted to sonar control unit.

Steering angle sensor

It is connected to the AV control unit and transmits the steering angle sensor signal
via CAN communication.

Microphone

• Used for hands-free phone operation.
• Microphone signal is transmitted to AV control unit.
• Power (Microphone VCC) is supplied from AV control unit.

GPS antenna

GPS signal is received and transmitted to AV control unit.

Satellite radio antenna

Receives the satellite radio waves and outputs it to AV control unit.

Antenna amp.

• Radio signal received by glass antenna (main) is amplified and transmitted to AV

control unit.

• Power (antenna amp. ON signal) is supplied from AV control unit.

USB connector

Image signal

and sound signal of USB input is transmitted to AV control unit.

Part name

Description

SYSTEM

AV-13

< SYSTEM DESCRIPTION >

SYSTEM

MULTI AV SYSTEM

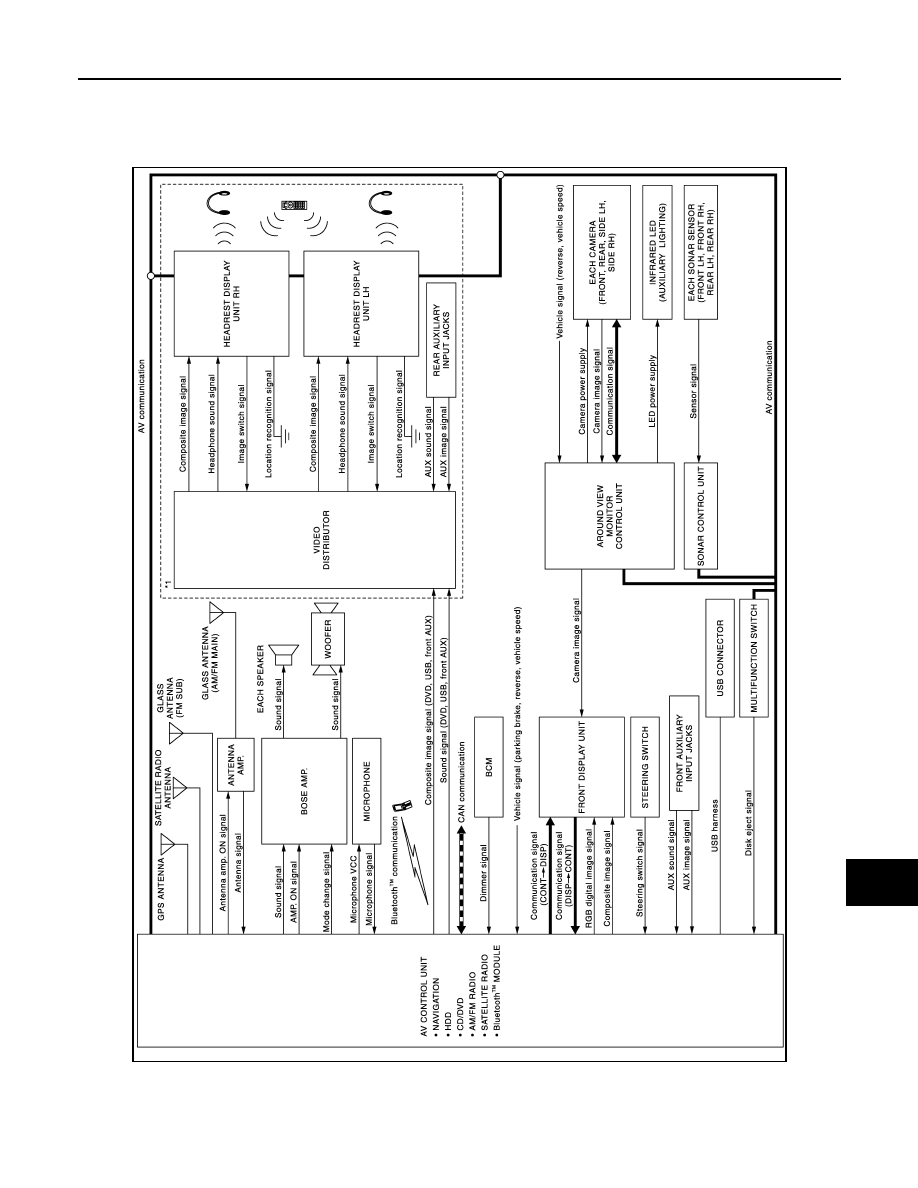

MULTI AV SYSTEM : System Diagram

INFOID:0000000006216215

• *1: With mobile entertainment system.
NOTE:
The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION
SWITCH virtually.

JSNIA3186GB
