POWER SEAT

SE-95

C

D

E

F

G

H

J

K

L

M

A

B

SE

through body grounds B17, B57 (LH) B217, B256 (RH).

When power and ground are supplied, rear power seat slide moves forward.
This seat does slide forward.
When rear power seat sliding switch is backward, ground is supplied

to rear power seat control unit terminal 18,

through power seat switch terminal 7 (LH), 8 (RH),

through power seat switch terminal 2,

through body grounds B17, B57 (LH) and B217, B256 (RH).

When rear power seat control unit receives sliding switch backward signal, power is supplied

to rear power seat sliding motor terminal 11,

through rear power seat control unit terminal 11.

Then ground is supplied

to rear power seat sliding motor terminal 4,

through rear power seat control unit terminal 4,

through rear power seat control unit terminals 15,

through body grounds B17, B57 (LH) and B217, B256 (RH).

When power and ground are supplied, rear power seat slide moves backward.

REAR SEAT TURNOUT/RETURN FUNCTION

When auto return cancel switch ON and rear door open, ground is supplied

to rear power seat control unit terminal 43,

through door lock assembly rear (Door switch) terminal 1,

through door lock assembly rear (Door switch) terminal 2,

through body grounds B17, B57 (LH) and B217, B256 (RH).

When rear power seat control unit receives rear door switch open signal, power is supplied

through rear power seat control unit terminal 11,

to rear power seat sliding motor terminal 11.

Then ground is supplied

to rear power seat sliding motor terminal 4,

through rear power seat control unit terminal 4,

through rear power seat control unit terminals 15,

through body grounds B17, B57 (LH) and B217, B256 (RH).

When power and ground are supplied, rear power seat slide moves backward.
When rear power seat sliding motor is operated, ground is supplied

to rear power seat control unit terminal 21,

through rear power seat sliding motor terminal 21,

through rear power seat sliding motor terminal 74,

through rear power seat control unit terminal 74,

through rear power seat control unit terminals 28,

through body grounds B17, B57 (LH) and B217, B256 (RH).

Then power seat control unit receives rear power seat sliding sensor signal.
The rear power seat control unit controls the seat position of the system operation with the signal.

SE-96

POWER SEAT

Schematic

NIS0013I

TIWM0733E

POWER SEAT

SE-97

C

D

E

F

G

H

J

K

L

M

A

B

SE

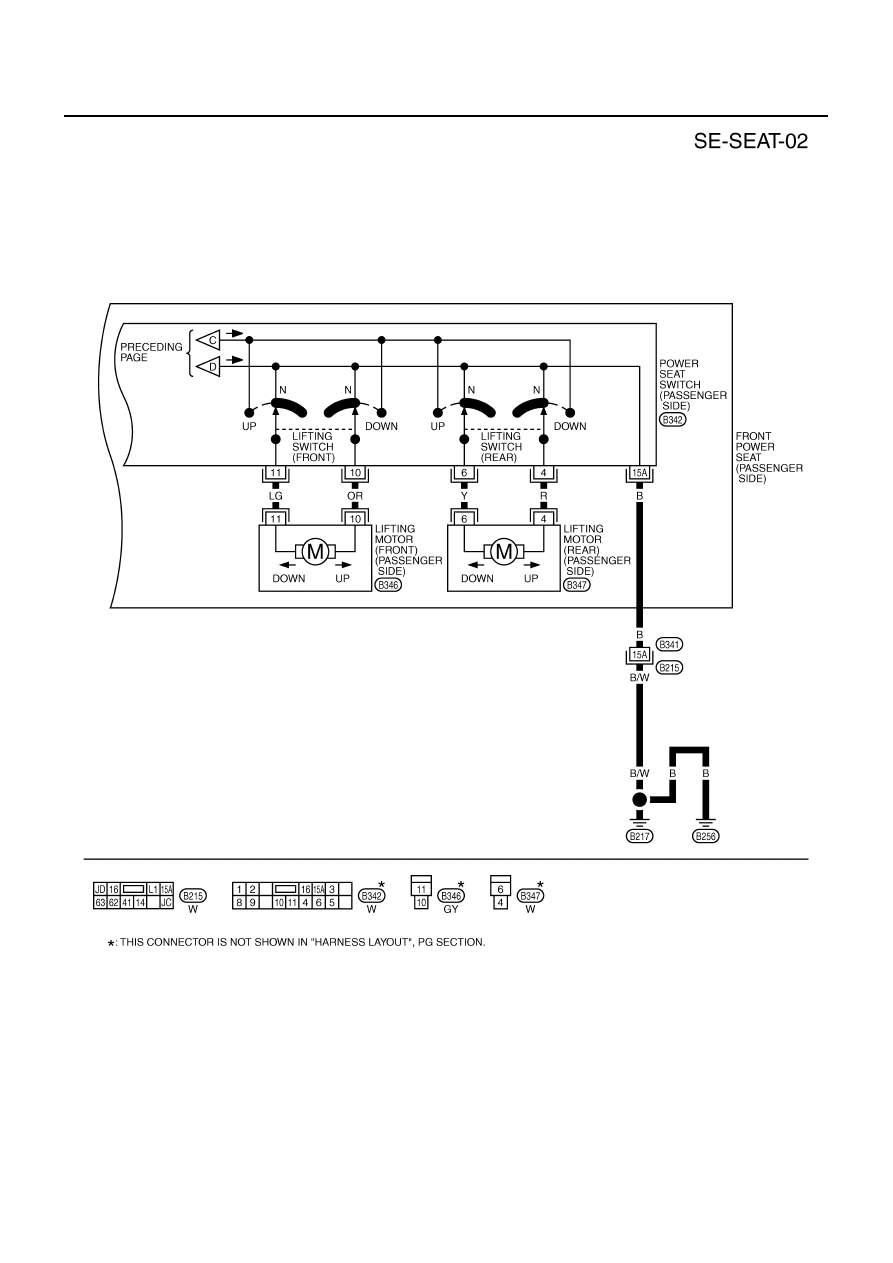

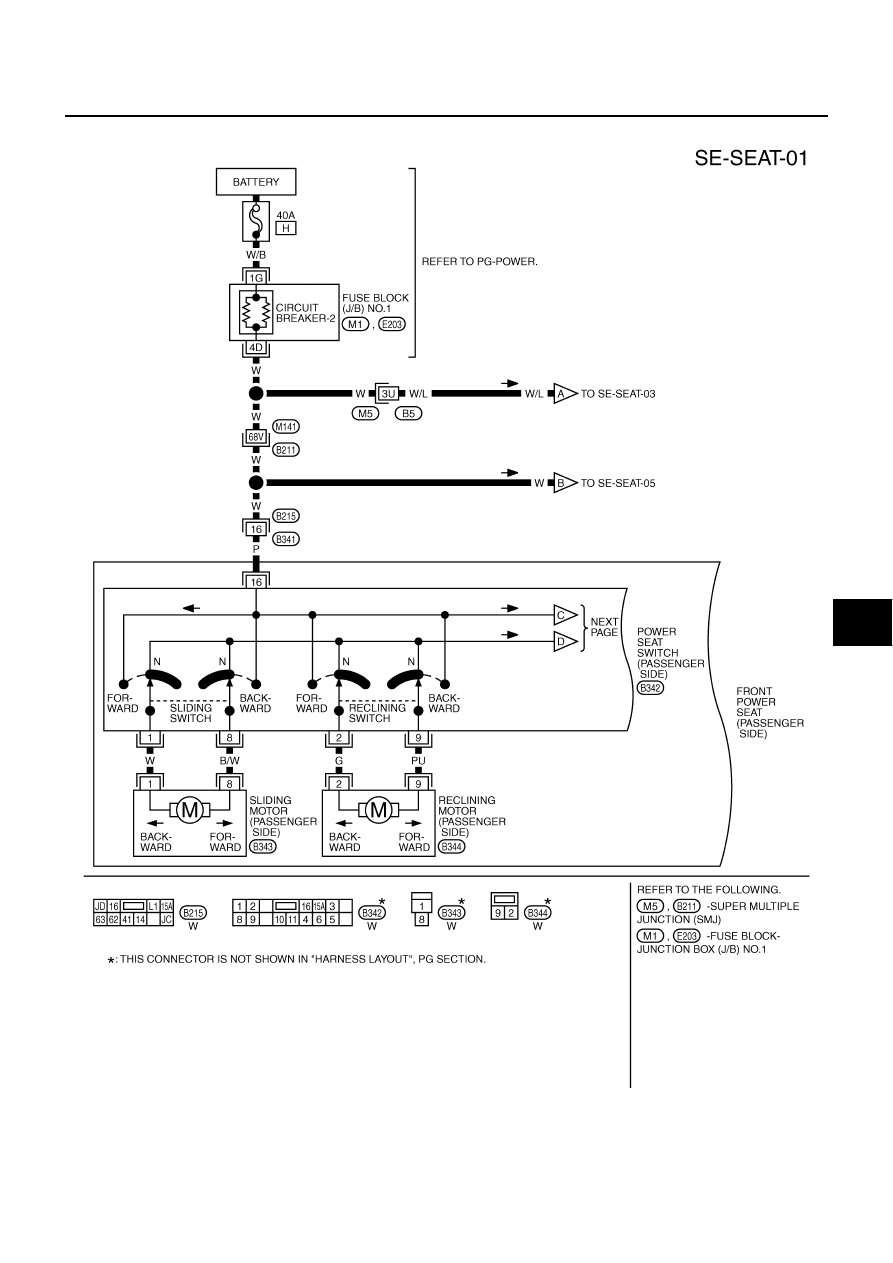

Wiring Diagram — SEAT —

NIS0013J

TIWM1582E

SE-98

POWER SEAT

TIWM1395E
