AUTOMATIC DRIVE POSITIONER

SE-43

C

D

E

F

G

H

J

K

L

M

A

B

SE

WORK SUPPORT
Display Item List

Refer to

SE-35, "SETTING CHANGE FUNCTION"

 .

SELF-DIAGNOSIS RESULTS
Display Item List

Malfunctioning system

Malfunction detecting condition

Diagnostic procedure

Reference page

SEAT SLIDE

 When the sliding sensor pulse changes 2 times or less,
while the sliding motor moves the seat backward for 2.5
seconds, and then forward for 2.5 seconds.

Sliding motor circuit check

Sliding sensor circuit check

SE-54
SE-63

SEAT RECLINING

 When the reclining sensor pulse changes 2 times or
less, while the reclining motor moves the seat forward
for 2.5 seconds, and then backward for 2.5 seconds.

Reclining motor circuit check

Reclining sensor circuit check

SE-55
SE-64

SEAT LIFTER–FR

 When the lifter sensor (front end) pulse changes  2
times or less, while the lifter motor (front end) moves the
seat downward for 2.5 seconds, and then upward for
2.5 seconds.

Front lifting motor circuit check

Front lifting sensor circuit check

SE-56
SE-65

SEAT LIFTER–RR

 When the lifter sensor (rear end) pulse changes 2 times
or less, while  the lifter motor (rear end) moves the seat
downward for 2.5 seconds, and then upward for 2.5
seconds.

Rear lifting motor circuit check

Rear lifting sensor circuit check

SE-58
SE-66

STEERING TILT

,When the tilt sensor output voltage is 0.2V or less,
while the tilt motor moves the steering wheel upward for
1 second, and then downward for 1 second.

Tilt motor circuit check

Tilt sensor circuit check

SE-61
SE-69

STEERING TELESCO

When the telescoping sensor output voltage is 0.2V or
less. while the telescope motor moves the steering
wheel forward for 1 second, and then backward for 1
second,

Telescopic motor circuit check

Telescopic sensor circuit check

SE-59
SE-68

DOOR MIRROR–
LH·UP–DOWN

When LH door mirror sensor detects 0.2V or lower, or
4.5V or higher, for 0.5 seconds or more.

Mirror sensor circuit check

GW-114

DOOR MIRROR–
LH·L–R

DOOR MIRROR–
RH·UP–DOWN

When RH door mirror sensor detects 0.2V or lower, or
4.5V or higher, for 0.5 seconds or more.

Mirror sensor circuit check

GW-114

DOOR MIRROR–
RH·L–R

VEHICLE SPEED
SENSOR

When the vehicle speed is less than 7 km/h (4 MPH)  for
15 seconds after the diagnosis for the seat and steering
wheel is completed.

Vehicle speed signal check

SE-73

SE-44

AUTOMATIC DRIVE POSITIONER

Auto Drive Positioner Incident  Memory

It stores the incident records of the input/output system related to the auto driving position system, and dis-
plays them on the CONSULT–II screen.

DATA MONITOR
Display Item List

Malfunctioning system

Malfunction detecting condition

Diagnostic procedure

Reference page

SEAT SLIDE
"PAST OUTPUT FAIL"

If the following conditions are met, the seat sliding
output system is judged malfunctioning. If there is no
manual input in the past or any auto operation output,
and then within 2.5 seconds the sliding sensor receives
an input signal showing that the seat has slid by 6 mm
or more.

Sliding motor circuit check

Sliding sensor circuit check

SE-54
SE-63

SEAT RECLINING
"PAST OUTPUT FAIL"

If the following conditions are met, the seat reclining
output system is judged malfunctioning. If there is no
manual input in the past nor any auto operation output,
and then within 2.5 seconds the reclining sensor
receives an input signal showing that the seat has
reclined by 2.22 or more.

Reclining motor circuit check

Reclining sensor circuit check

SE-55
SE-64

STEERING TILT
"PAST OUTPUT FAIL"

If the following conditions are met, the steering tilt
output system is judged malfunctioning. If there is no
manual input in the past nor any auto operation output,
and then within 2.5 seconds the steering tilt sensor
receives an input signal showing that the steering wheel
is tilted by 1

°

 or more.

Tilt motor circuit check

Tilt sensor circuit check

SE-61
SE-69

DETENTION SW
"PAST INPUT FAIL"

With the A/T selector lever in P-position (Detention
switch

OFF), if the vehicle speed of 7 km/h (4 MPH) or

higher was input for at least 2 seconds, the detention
switch input system is judged malfunctioning.

Detention switch circuit check

SE-67

TELESCO SENSOR
"PAST"

If the voltage value detected by the telescopic sensor
was 0.1V or less, or 4.9 V or more, the telescoping
sensor is judged malfunctioning.

Telescopic sensor circuit

check

SE-68

TILT SENSOR
"PAST"

If the voltage value detected by the tilt sensor was 0.1V
or less, or 4.9 V or more, the tilt sensor is judged
malfunctioning.

Tilt sensor circuit check

SE-69

Monitor item

[OPERATION or UNIT]

Contents

SLIDE SW–FR

"ON/OFF"

ON/OFF status judged from the sliding switch (FR) signal is displayed.

SLIDE SW–RR

"ON/OFF"

ON/OFF status judged from the sliding switch (RR) signal is displayed.

RECLIN SW–FR

"ON/OFF"

ON/OFF status judged from the reclining switch (FR) signal is displayed.

RECLIN SW–RR

"ON/OFF"

ON/OFF status judged from the reclining switch (RR) signal is displayed.

LIFT FR SW–UP

"ON/OFF"

ON/OFF status judged from the FR lifter switch (UP) signal is displayed.

LIFT FR SW–DN

"ON/OFF"

ON/OFF status judged from the FR lifter switch (DOWN) signal is displayed.

LIFT RR SW–UP

"ON/OFF"

ON/OFF status judged from the RR lifter switch (UP) signal is displayed.

LIFT RR SW–DN

"ON/OFF"

ON/OFF status judged from the RR lifter switch (DOWN) signal is displayed.

MIR CON SW–UP

"ON/OFF"

ON/OFF status judged from the door mirror remote control switch (UP) signal is displayed.

MIR CON SW–DN

"ON/OFF"

ON/OFF status judged from the door mirror remote control switch (DOWN) signal is displayed.

MIR CON SW–RH

"ON/OFF"

ON/OFF status judged from the door mirror remote control switch (RIGHT) signal is displayed.

MIR CON SW–LH

"ON/OFF"

ON/OFF status judged from the door mirror remote control switch (LEFT) signal s displayed.

MIR CHNG SW–R

"ON/OFF"

ON/OFF status judged from the door mirror remote control switch (switching to RIGHT)
signal is displayed.

MIR CHNG SW–L

"ON/OFF"

ON/OFF status judged from the door mirror remote control switch (switching to LEFT)
signal is displayed.

SET SW

"ON/OFF"

ON/OFF status judged from the setting switch signal is displayed.

AUTOMATIC DRIVE POSITIONER

SE-45

C

D

E

F

G

H

J

K

L

M

A

B

SE

*: Abnormal value indicates that the sensor output voltage is 0.2V or lower, or 4.5V or higher.

ACTIVE TEST
Display Item List

TELESCO SW–FR

"ON/OFF"

ON/OFF status judged from the telescoping switch (FR) signal is displayed.

TELESCO SW–RR

"ON/OFF"

ON/OFF status judged from the telescoping switch (RR) signal is displayed.

TILT SW–UP

"ON/OFF"

ON/OFF status judged from the tilt switch (UP) signal is displayed.

TILT SW–DOWN

"ON/OFF"

ON/OFF status judged from the tilt switch (DOWN) signal is displayed.

MEMORY SW1

"ON/OFF"

ON/OFF status judged from the seat memory switch 1 signal is displayed.

MEMORY SW2

"ON/OFF"

ON/OFF status judged from the seat memory switch 2 signal is displayed.

CANCEL SW

"ON/OFF"

Setting status is displayed with the display unit: "Active (ON)/inactive (OFF)"

DOOR SW DR

"ON/OFF"

ON (Door open) / OFF (door closed) status judged from the driver door switch is displayed.

VHCL SPEED SE

"7km/7km"

The present vehicle speed (less than 7 km/h (4 MPH), or 7 km/h (4 MPH) or higher) is displayed.

DETENT SW

"ON/OFF"

The selector lever position "ON (P position) / OFF (other than P position)" judged from the
detention switch signal is displayed.

IGN ON SW

"ON/OFF"

Ignition key switch ON (IGN ON)/OFF (ignition switch START, ACC, or OFF) status judged from
the ignition switch signal is displayed.

IGN ACC SW

"ON/OFF"

Ignition key switch ON (ACC or IGN ON)/ OFF (ignition switch START, or OFF) status judged from
the ignition switch signal is displayed.

IGN START SW

"ON/OFF"

Ignition key switch ON (START, ON) /OFF (ignition switch IGN, ACC, or OFF) status judged from
the ignition switch signal is displayed.

IGN KEY SW

"ON/OFF"

Key inserted (ON)/key removed (OFF) status judged from the key detection switch is displayed.

R POSITION SW

"ON/OFF"

R position (ON)/Other than R position of shift position signal from back–up lamp relay is displayed.

TILT SEN

"V"

The tilt position (voltage) judged from the tilt sensor signal is displayed.

TELESCO SEN

"V"

The telescoping position (voltage) judged from the telescoping sensor signal is displayed.

MIR/SE RH R–L

"ON/OFF"

ON (normal value)/OFF (abnormal value) *of voltage value judged from RH door mirror sensor
output voltage (LH/RH) is displayed.

MIR/SE RH U–D

"ON/OFF"

ON (normal value)/OFF (abnormal value) *of voltage value judged from RH door mirror sensor
output voltage (UP/DOWN) is displayed.

MIR/SE LH R–L

"ON/OFF"

ON (normal value)/OFF (abnormal value) *of voltage value judged from LH door mirror sensor
output voltage (LH/RH) is displayed.

MIR/SE LH U–D

"ON/OFF"

ON (normal value)/OFF (abnormal value) *of voltage value judged from LH door mirror sensor
output voltage (UP/DOWN) is displayed.

Monitor item

[OPERATION or UNIT]

Contents

Test item

Description

TILT MOTOR

The tilt motor is activated by receiving the drive signal.

TELESCO MOTOR

The telescopic motor is activated by receiving the drive signal.

SEAT SLIDE

The sliding motor is activated by receiving the drive signal.

SEAT RECLINING

The reclining motor is activated by receiving the drive signal.

SEAT LIFTER FR

The front end lifter motor is activated by receiving the drive signal.

SEAT LIFTER RR

The rear end lifter motor is activated by receiving the drive signal.

MEMORY SW INDCTR

The memory switch indicator is lit by receiving the drive signal.

MIRROR MOTOR RH

The RH mirror motor moves the mirror UP/DOWN and LEFT/RIGHT by receiving the drive signal.

MIRROR MOTOR LH

The LH mirror motor moves the mirror UP/DOWN and LEFT/RIGHT by receiving the drive signal.

SE-46

AUTOMATIC DRIVE POSITIONER

On Board Diagnosis

NIS0012O

BCM can check each local unit (LCU), switches, loads, and malfunctions in communication with the self-diag-
nosis.

DIAGNOSIS ITEM

COMMUNICATION DIAGNOSIS

Check the communication between BCM and each local control unit (LCU).

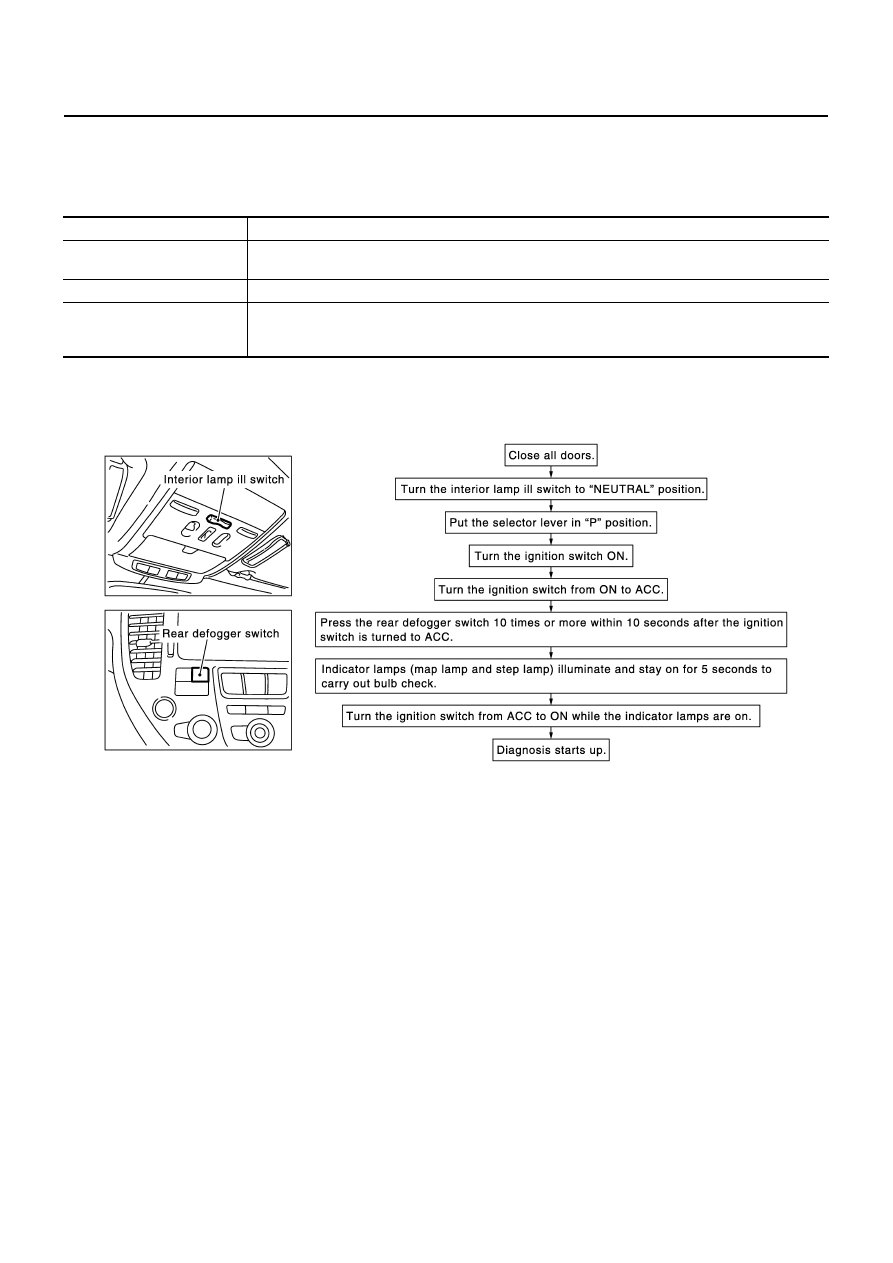

Operation Procedure

Diagnosis Result Display

The indicator lamps (the map  lamp and step lamp) turn ON (illuminate) for 2 seconds and OFF (go off) for
2 seconds to indicate that the diagnosis has started, then indicate the diagnosis trouble code.

To indicate the diagnosis trouble code, the indicator lamps illuminate or flash.

At first, the lamps indicate the second place by ON/OFF with 0.5 second-interval, then OFF for 1.5 sec-
onds. Next, they indicate the first place by ON/OFF with 0.5 second interval.

If there are multiple malfunctioning parts, the lamps indicate them in sequence from the smallest diagno-
sis trouble code.

The diagnosis results repeat until the diagnosis is cancelled.

If a malfunction is indicated, carry out the communication diagnosis again to check that the same diagno-
sis trouble code is indicated.

Diagnosis item

Description

Communication diagnosis

It can check the communication line between BCM and each LCU, and also each LCU, for a
communication  malfunction.

Switch monitor

It can check the switch systems which send data to BCM and each LCU for a malfunction.

Self-diagnosis for auto drive
positioner

Diagnosis malfunctions in each motor and sensor in the electrical load parts of the driver power seat
system (sliding, reclining, and lifter [front/rear]), of the steering wheel system (tilt, telescoping), and of
door mirror.

PIIA2871E















Content   ..  820  821  822  823   ..
