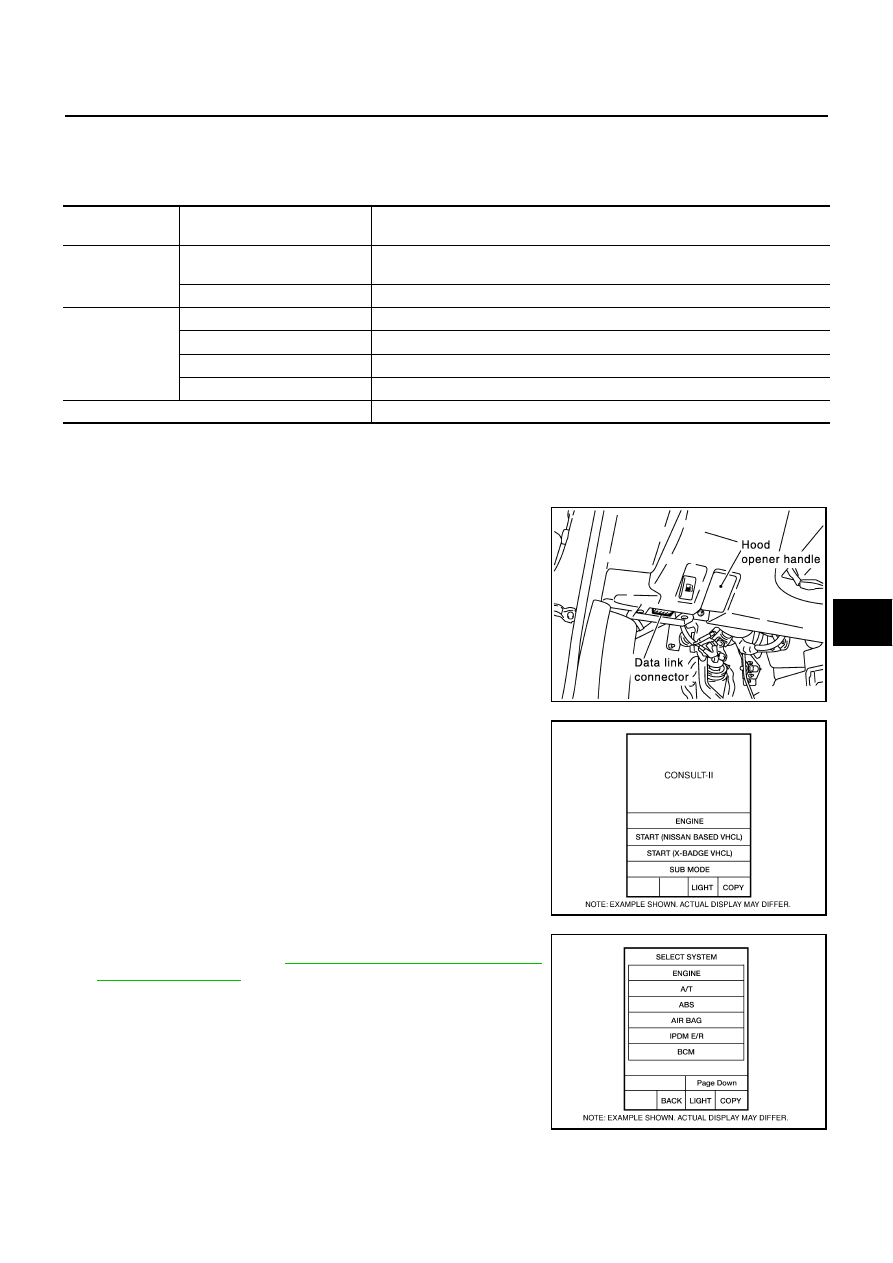

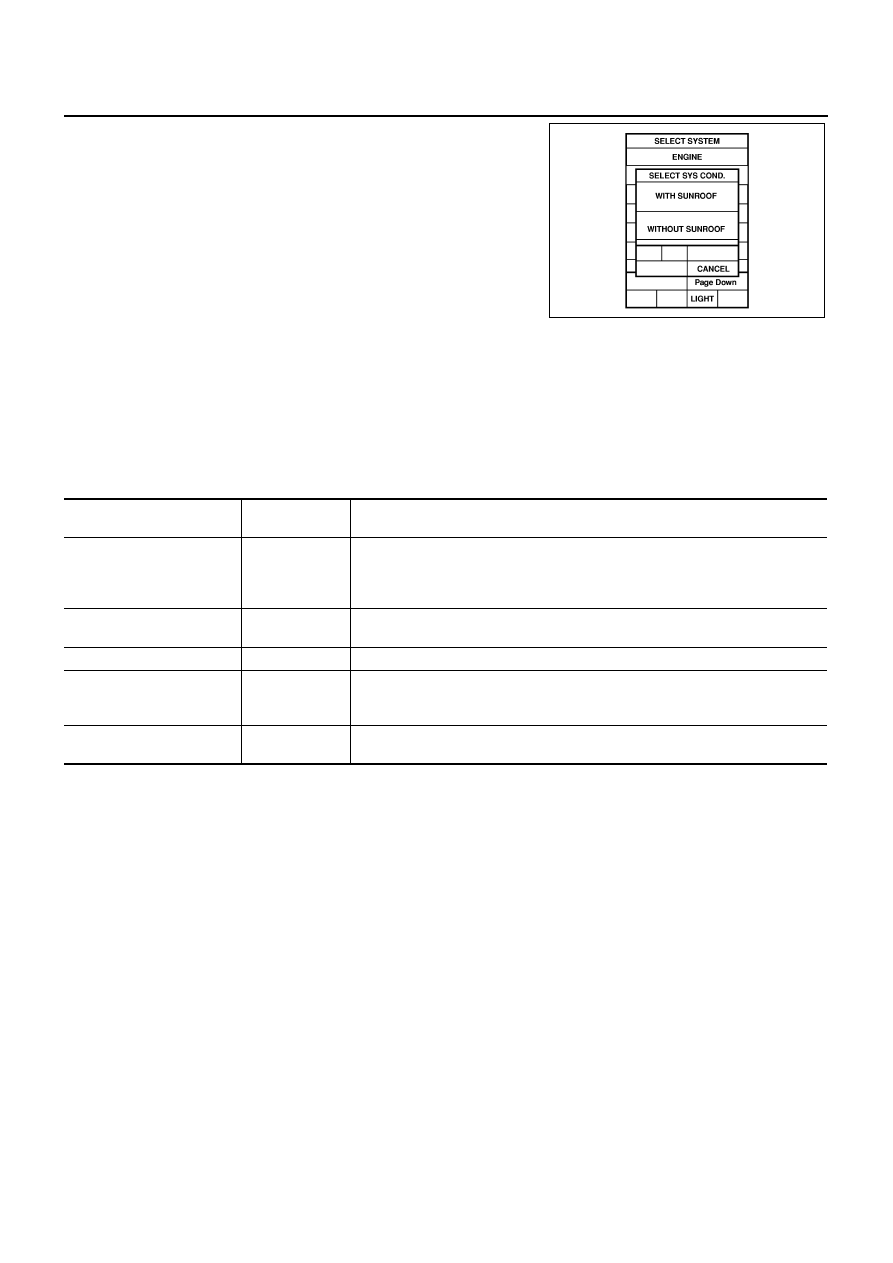

AUTOMATIC DRIVE POSITIONER SE-39 C D E F G H J K L M A B SE CONSULT-II Function NIS0012N CONSULT–II executes the following functions by combining data received and transmits command transmis- *: For setting seat and steering functions only. CONSULT-II BASIC OPERATION PROCEDURE 1. Turn ignition switch “OFF”. 2. Connect “CONSULT-II” and CONSULT-II CONVERTER to data 3. Turn ignition switch “ON”. 4. Touch “START(NISSAN BASED VHCL)”. 5. Touch “IVMS”on the “SELECT SYSTEM” screen. GI-37, "CONSULT-II Data Link Con- IVMS diagnosis items Inspection item, self-diagnosis mode Content IVMS – IVMS – COMM DIAGNOSIS Diagnoses a communication malfunction, inactive communication, and sleep WAKE – UP DIAGNOSIS Diagnoses the wake-up signals output from each LCU. AUTO DRIVE WORK SUPPORT* Changes the setting for each function. SELF– DIG RESULTS Perform the self-diagnosis. DATA MONITOR Displays the input data of the BCM and each LCU on real-time basis. ACTIVE TEST Gives a drive signal to a load to check the operation. BCM PART NUMBER Displays BCM part No. PBIB1069E BCIA0029E BCIA0030E |
