Infiniti Q45. Manual - part 812





SE-3

C

D

E

F

G

H

J

K

L

M

A

B

SE

Circuit ................................................................... 173
Check Climate Controlled Seat Switch Ground Cir-
cuit ........................................................................ 174
Check Seat Cushion Thermal Electric Device Cir-
cuit ........................................................................ 175
Check Seat Cushion Thermal Electric Device Sen-
sor Circuit  ............................................................. 176
Check Seatback Thermal Electric Device Circuit . 177
Check Seatback Thermal Electric Device Sensor
Circuit ................................................................... 178
Check Blower Motor Power Supply Circuit  .......... 178
Check Blower Motor Speed Control Circuit .......... 180
Check Blower Motor Tachometer Signal Circuit  ... 180
Check Climate Controlled Seat Control Unit  ........ 181

FRONT SEAT .......................................................... 182

Removal and Installation  ...................................... 182

DRIVER SIDE POWER SEAT  .......................... 182
CLIMATE CONTROLLED SEAT  ....................... 184
PASSENGER SIDE POWER SEAT  .................. 186
REMOVAL ......................................................... 187
INSTALLATION ................................................. 187

Disassembly and Assembly  ................................. 187

DISASSEMBLY OF SEATBACK TRIM AND PAD

. 187

ASSEMBLY OF SEATBACK TRIM AND PAD ... 189
REMOVAL OF SEATBACK ASSEMBLY ........... 189
INSTALLATION OF SEATBACK ASSEMBLY  ... 189
DISASSEMBLY OF SEAT CUSHION TRIM AND

PAD ................................................................... 189
ASSEMBLY OF SEAT CUSHION TRIM AND PAD .189
CLIMATE CONTROLLED SEAT  ....................... 190

REAR SEAT  ............................................................ 191

Removal and Installation  ...................................... 191

MANUAL SEAT (BENCH SEAT)  ....................... 191
POWER SEAT (SPLIT CUSHION) .................... 192
CENTER SEATBACK ASSEMBLY .................... 193
REMOVAL OF MANUAL SEAT (BENCH SEAT)

. 194

INSTALLATION OF MANUAL SEAT (BENCH
SEAT) ................................................................ 194
REMOVAL OF POWER SEAT (SPLIT SEAT) ... 194
INSTALLATION OF POWER SEAT (SPLIT
SEAT) ................................................................ 195

Disassembly and Assembly .................................. 195

DISASSEMBLY OF SLIDING MOTOR & UNIT . 195
ASSEMBLY OF SLIDING MOTOR & UNIT  ....... 196
DISASSEMBLY OF CENTER SEATBACK
ASSEMBLY ....................................................... 196
ASSEMBLY OF CENTER SEATBACK ASSEM-
BLY .................................................................... 197

SE-4

PRECAUTIONS

PRECAUTIONS

PFP:00001

Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”

NIS00126

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.

WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.

Service Notice

NIS00127

When removing or installing various parts, place a cloth or padding onto the vehicle body to prevent
scratches.

Handle trim, molding, instruments, grille, etc. carefully during removing or installing. Be careful not to oil or
damage them.

Apply sealing compound where necessary when installing parts.

When applying sealing compound, be careful that the sealing compound does not protrude from parts.

When replacing any metal parts (for example body outer panel, members, etc.), be sure to take rust pre-
vention measures.

Precautions for Work

NIS00128

When removing or disassembling each component, be careful not to damage or deform it. If a component
may be subject to interference, be sure to protect it with a shop cloth.

When removing (disengaging) components with a screwdriver or similar tool, be sure to wrap the compo-
nent with a shop cloth or vinyl tape to protect it.

Protect the removed parts with a shop cloth and keep them.

Replace a deformed or damaged clip.

If a part is specified as a non-reusable part, always replace it with new one.

Be sure to tighten bolts and nuts securely to the specified torque.

After re-installation is completed, be sure to check that each part works normally.

Follow the steps below to clean components.

Water soluble foul: Dip a soft cloth into lukewarm water, and wring the water out of the cloth to wipe the
fouled area.
Then rub with a soft and dry cloth.

Oily foul: Dip a soft cloth into lukewarm water with mild detergent (concentration: within 2 to 3%), and wipe
the fouled area.
Then dip a cloth into fresh water, and wring the water out of the cloth to wipe the detergent off. Then rub
with a soft and dry cloth.

Do not use organic solvent such as thinner, benzene, alcohol, and gasoline.

For genuine leather seats, use a genuine leather seat cleaner.

PRECAUTIONS

SE-5

C

D

E

F

G

H

J

K

L

M

A

B

SE

Trouble Diagnosis Precaution

NIS00129

When carrying out the IVMS control unit input/output signal inspection, be sure to connect the checking
adapter III (special service tool) to prevent incorrect diagnosis.

With the battery connected, if each local control unit (LCU) connector is left disconnected for at least 1
minute, the IVMS control unit stores a communication inactive failure. After reconnecting the connector,
any of the following steps shall be done. "Disconnect the IVMS control unit battery power supply" or
"Using CONSULT-II, execute Erase memory".

SE-6

PREPARATION

PREPARATION

PFP:00002

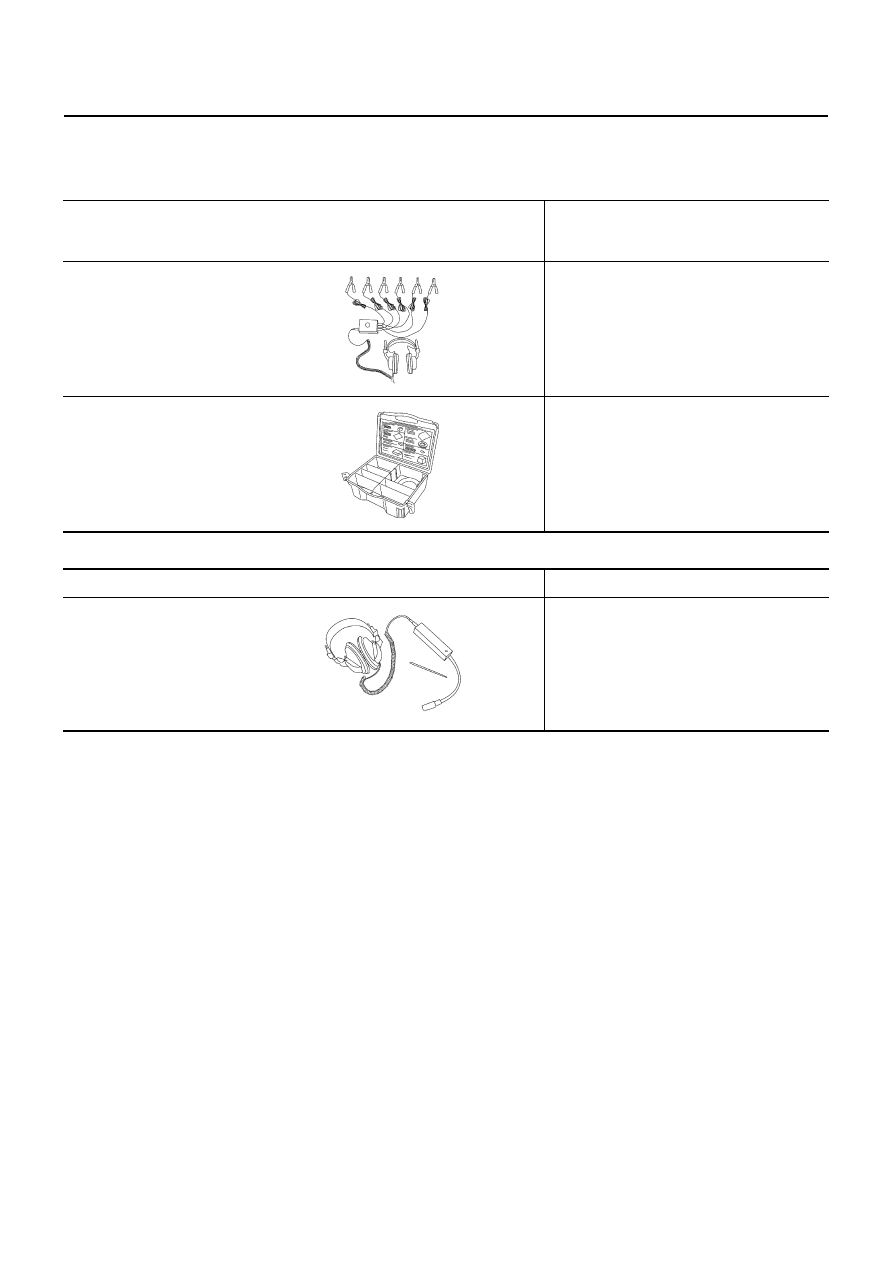

Special Service Tools

NIS0012A

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tools

NIS0012B

Tool number
(Kent-Moore No.)
Tool name

Description

(J-39570)
Chassis ear

Locating the noise

(J-43980)
NISSAN Squeak and Rattle
Kit

Repairing the cause of noise

SIIA0993E

SIIA0994E

Tool name

Description

Engine ear

Locating the noise

SIIA0995E
