POWER STEERING GEAR

PS-17

C

D

E

F

H

I

J

K

L

M

A

B

PS

Disassembly and Assembly

NGS0002W

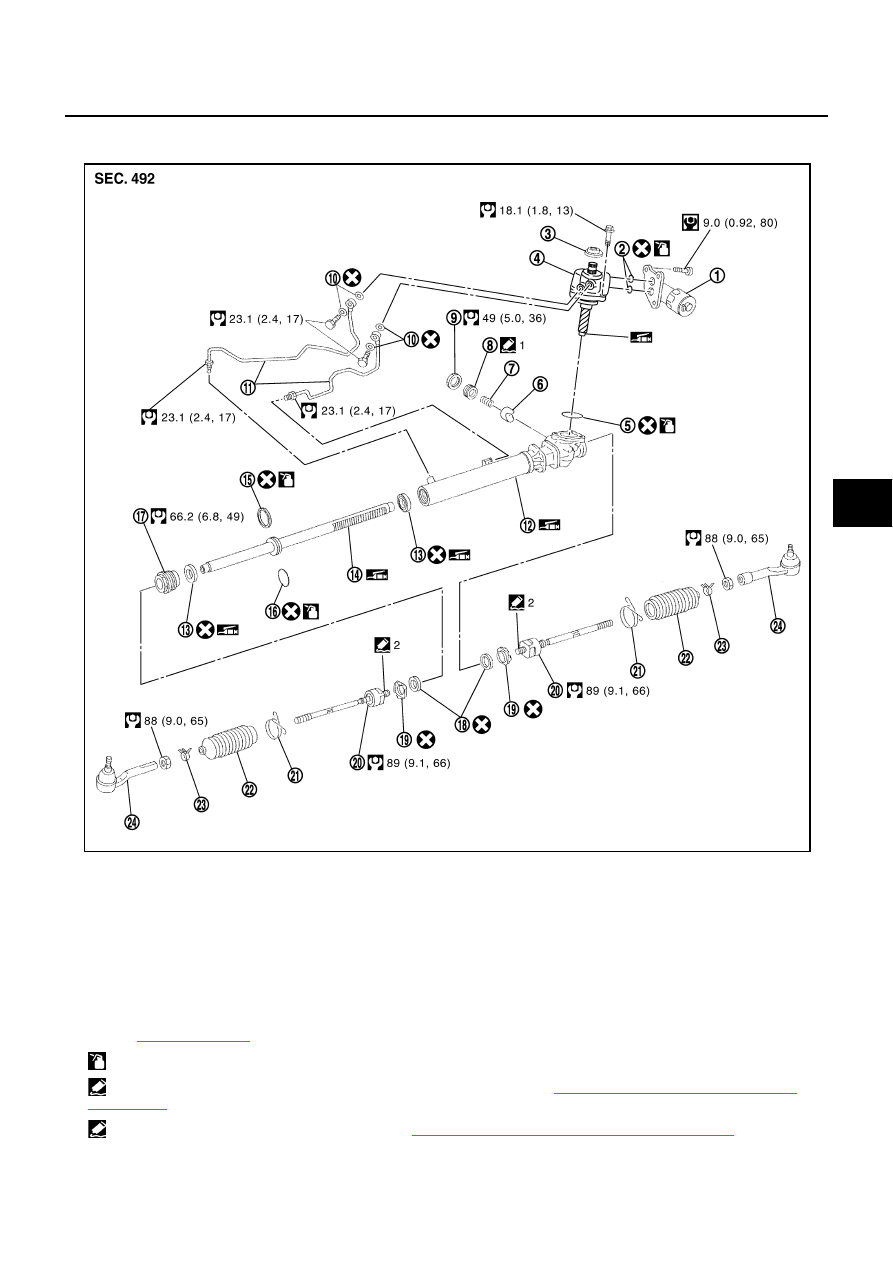

COMPONENT

1.

Power steering solenoid valve

2.

O-ring

3.

Rear cover cap

4.

Gear sub-assembly

5.

O-ring

6.

Retainer

7.

Spring

8.

Adjusting screw

9.

Lock nut

10. Copper washer

11.

Cylinder tube

12. Gear housing assembly

13. Rack oil seal

14. Rack assembly

15. Rack Teflon ring

16. O-ring

17. End cover assembly

18. Spacer ring

19. Lock plate

20. Inner socket

21. Boot clamp

22. Boot

23. Boot clamp

24. Outer socket

Refer to

GI-9, "Components"

  and the followings for the symbols in the figure.

: Apply Genuine Nissan PSF or equivalent.

1: Apply Genuine High Strength Thread Locking Sealant or equivalent. Refer to

GI-45, "Recommended Chemical Products

and Sealants"

 .

2: Apply Genuine Silicone RTV or equivalent. Refer to

GI-45, "Recommended Chemical Products and Sealants"

 .

SGIA1591E

PS-18

POWER STEERING GEAR

DISASSEMBLY

CAUTION:

Disassemble and assemble steering gear by securing the mounting area in a vise using copper
plates.

Clean steering gear with kerosene before disassembling. Be careful to avoid splashing or apply-
ing any kerosene over connector of discharge port or return port.

1.

Remove power steering solenoid valve.

CAUTION:

Never attempt to disassemble power steering solenoid valve.

2.

Remove cylinder tubes from gear housing assembly.

3.

Remove rear cover cap from gear sub-assembly.

4.

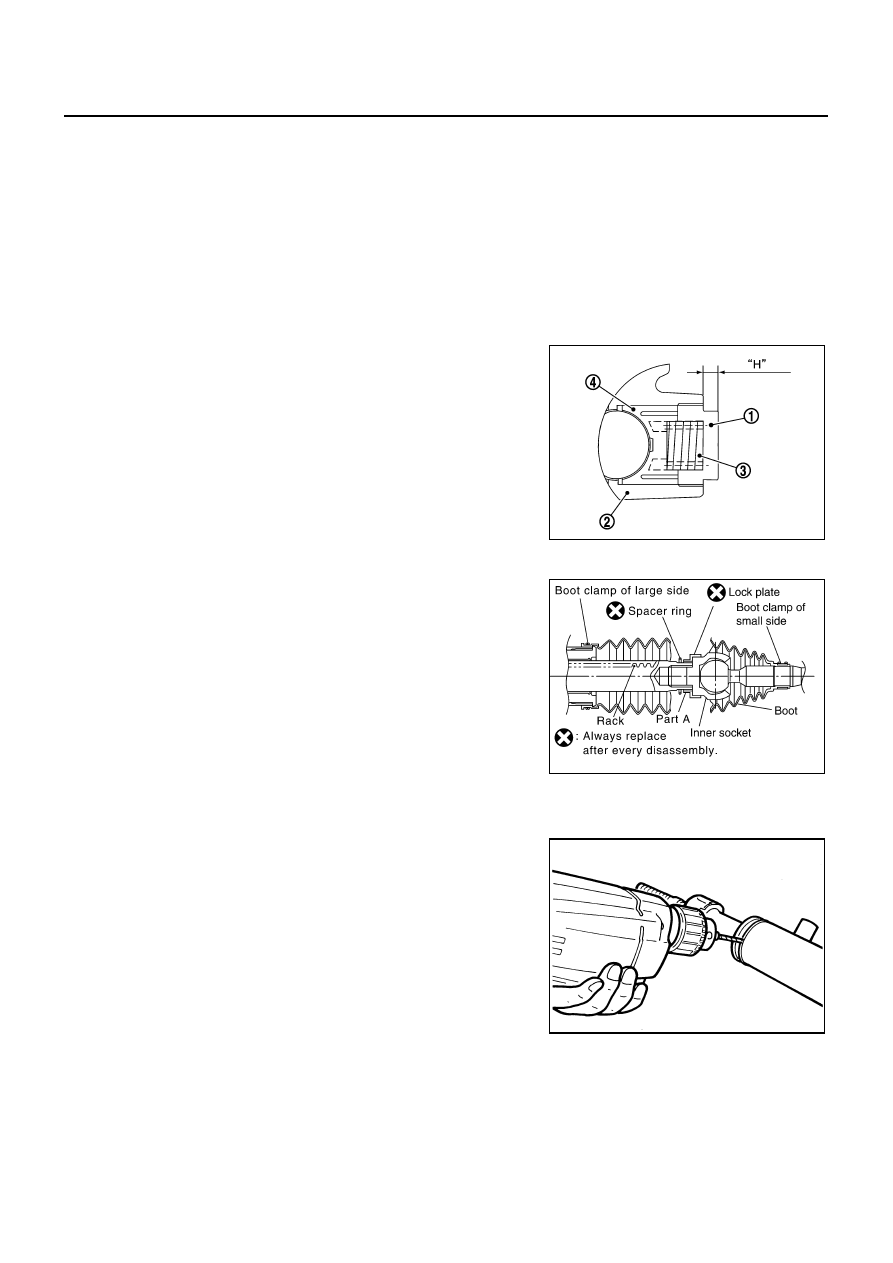

Measure adjusting screw (1) of height “H” from gear housing
assembly (2), then loosen lock nut.

5.

Remove adjust screw (1), spring (3) and retainer (4) from gear
housing assembly (2).

6.

Remove mounting bolts of gear sub-assembly, then remove
gear sub-assembly from gear housing assembly.

CAUTION:

Never overhaul gear sub-assembly because it is non over-
haul part. If there is something wrong with gear sub-assem-
bly, change it to new one.

7.

Remove O-ring from gear housing assembly.

8.

Loosen lock nut of outer socket, and remove outer socket.

9.

Remove boot clamps of the small side and the large side, then
remove boots.

CAUTION:

When removing boots, be careful not to damage inner
socket and gear housing assembly. If they are damaged,
change them to avoid oil leaks.

10. Move spacer ring to rack assembly side, raise clinching part (at

two points of part A) of lock plate and loosen inner socket, then
remove inner socket from rack assembly.

CAUTION:

When removing lock plate, be careful not to damage the
surface of rack assembly. If damaged rack assembly sur-
face will cause an oil leak. Therefore, if the rack assembly surface is damaged, replace rack
assembly.

11. Drill out the clinching part of gear housing assembly (end cover

assembly side) outer rim with a 3 mm (0.12 in) drill bit. [Drill for
approximately 1.5 mm (0.059 in) depth.]

SGIA1378E

SGIA0363E

STC0013D

POWER STEERING GEAR

PS-19

C

D

E

F

H

I

J

K

L

M

A

B

PS

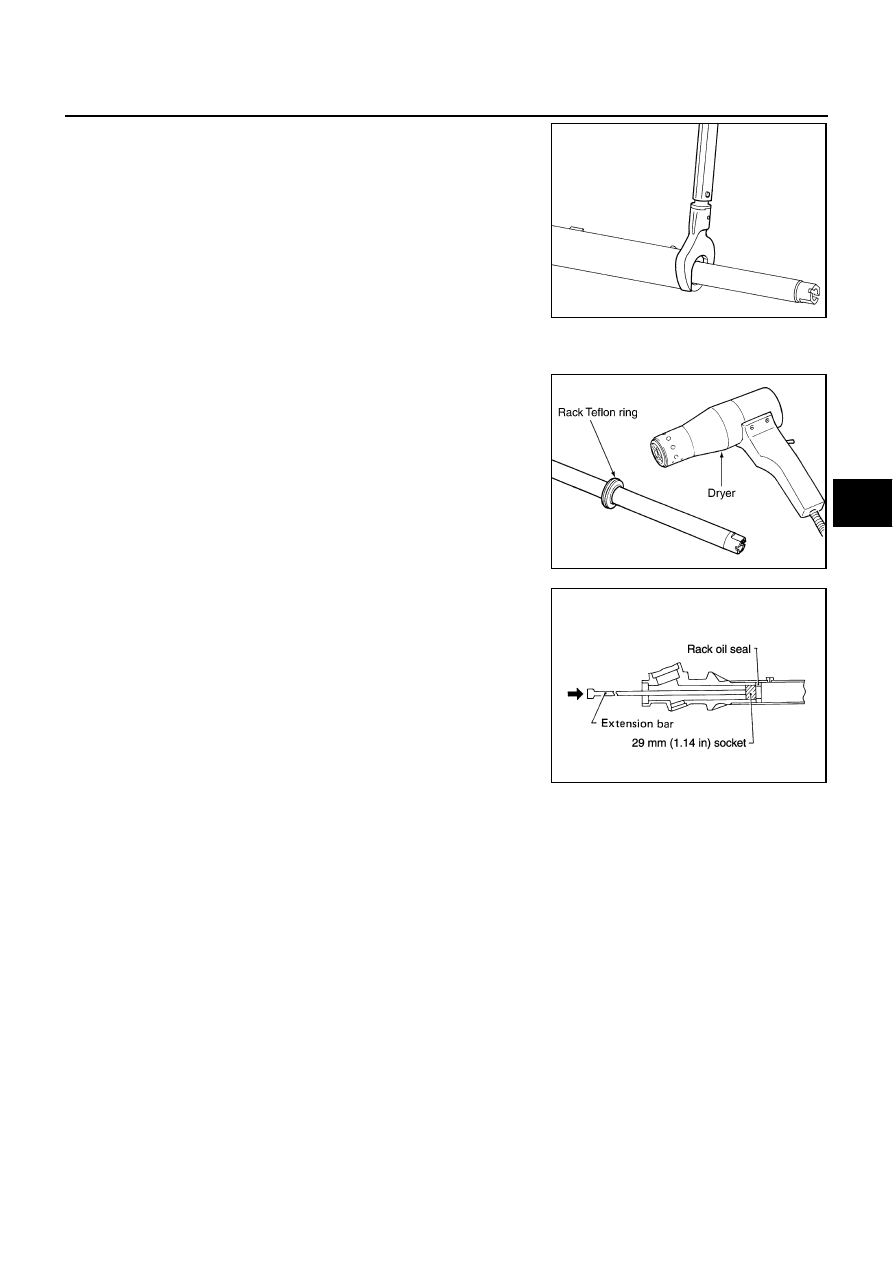

12. Remove end cover assembly with a 45 mm (1.77 in) open head

(suitable tool).

CAUTION:

Never damage the rack assembly surface when remov-
ing.

Rack assembly must be replaced if damaged because it
may cause fluid leakage.

13. Pull rack assembly together with rack oil seal (outer side) out

from gear housing assembly.

CAUTION:

Never damage the cylinder inner wall when removing the
rack assembly.

Gear housing assembly must be replaced if damaged because it may cause fluid leakage.

14. Heat rack Teflon ring to approximately 40

°

C (104

°

F) with a

dryer, then remove it and O-ring from rack.

CAUTION:

Never damage the rack assembly. Rack assembly must be
replaced if damaged because it may cause fluid leakage.

15. Push rack oil seal inside with a 29 mm (1.14 in) socket and an

extension bar to push out rack oil seal (inner side) from gear
housing assembly.

CAUTION:

Never damage the gear housing assembly and cylinder
inner wall.

Gear housing assembly must be replaced if damaged
because it may cause fluid leakage.

INSPECTION AFTER DISASSEMBLY
Boot

Check boot for cracks and deformation. Replace it, if there are.

Rack

Check rack for damage and wear. Replace it, if there are.

Gear Sub-Assembly

Check pinion gear for damage and wear. Replace gear sub-assembly, if necessary.

Check bearing while rotating it. Replace gear sub-assembly if bearing ball race was dented, worn, or dam-
aged.

Gear Housing Assembly

Check gear housing assembly for damage and scratches (inner wall). Replace it, if necessary.

SST081B

SGIA0151E

SGIA0179E

PS-20

POWER STEERING GEAR

Outer Socket and Inner Socket

Swing torque

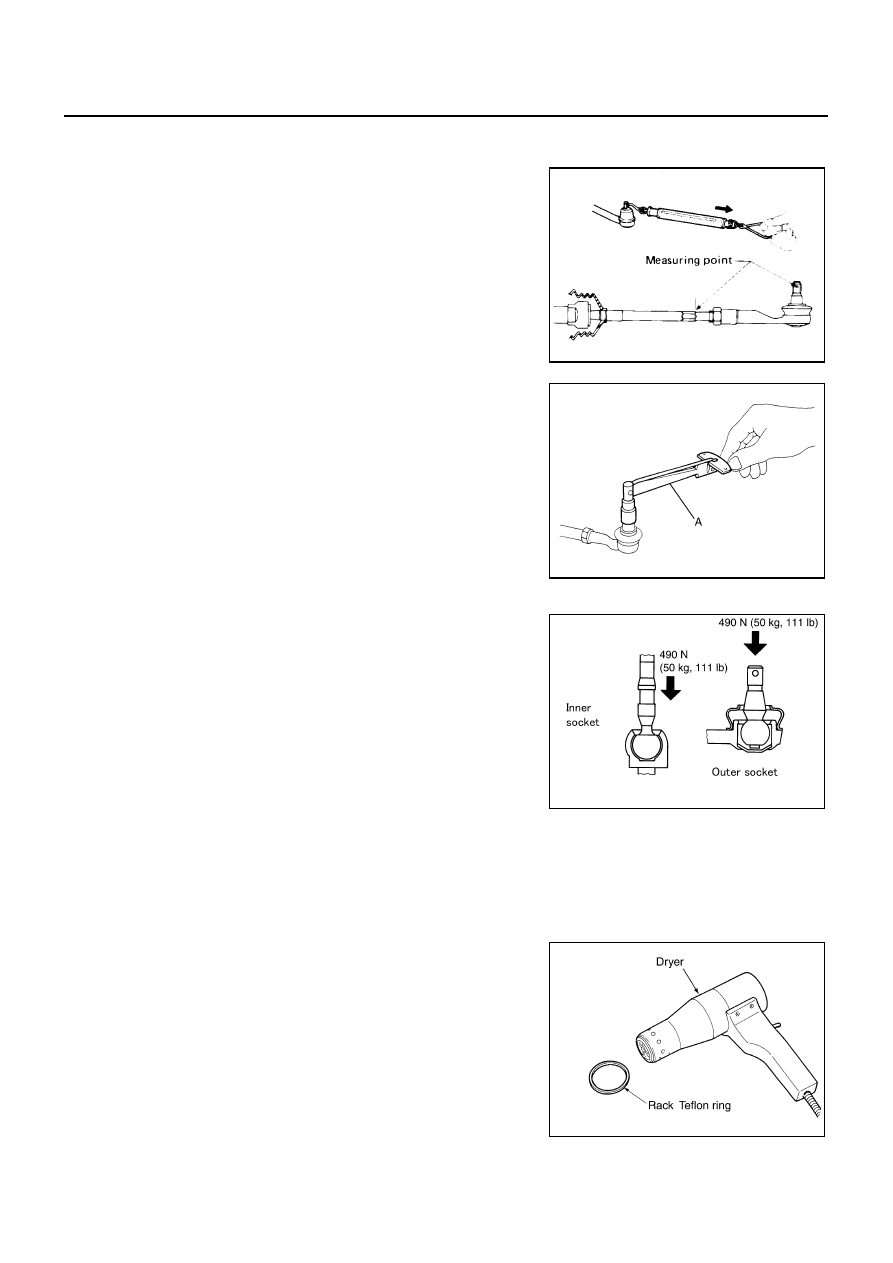

Hook a spring balance at the point shown in the figure and pull
the spring balance. Make sure that the spring balance reads the
specified value when ball stud and inner socket start to move.
Replace outer socket and steering gear assembly if they are
outside the standard.

Rotating torque

Make sure that the reading is within the following specified
range using Tool. Replace outer socket if the reading is outside
the specified value.

Axial end play

Apply an axial load of 490 N (50 kg, 111 lb) to ball stud using a
dial gauge. Measure amount of stud movement, and then make
sure that the value is within the following specified range.
Replace outer socket and inner socket if the measured value is
outside the standard.

ASSEMBLY

CAUTION:

Assemble steering gear assembly by securing the mounting area in a vise using copper plates.

1.

Apply Genuine Nissan PSF or equivalent to O-ring. Put an O-ring into rack Teflon ring.

CAUTION:

Never reuse the O-ring.

2.

Heat rack Teflon ring to approximately 40

°

C (104

°

F) with a

dryer. Assemble it to mounting groove of rack assembly.

CAUTION:

Never reuse the rack Teflon ring.

Outer socket:

4.81 – 45.7 N (0.50 – 4.6 kg, 1.09 – 10.2 lb)

Inner socket:

8.9 – 64 N (0.91 – 6.5 kg, 2.00 – 14.3 lb)

Tool number

A: ST3127S000 (

)

Outer socket:

0.3 – 2.9 N·m (0.03 – 0.29 kg-m, 3 - 25 in-lb)

SST333B

SGIA1382E

Outer socket

: 0.5 mm (0.02 in) or less

Inner socket

: 0.2 mm (0.008 in) or less

SGIA0057E

SGIA0153E
