Infiniti Q45. Manual - part 631





DOOR MIRROR

GW-117

C

D

E

F

G

H

J

K

L

M

A

B

GW

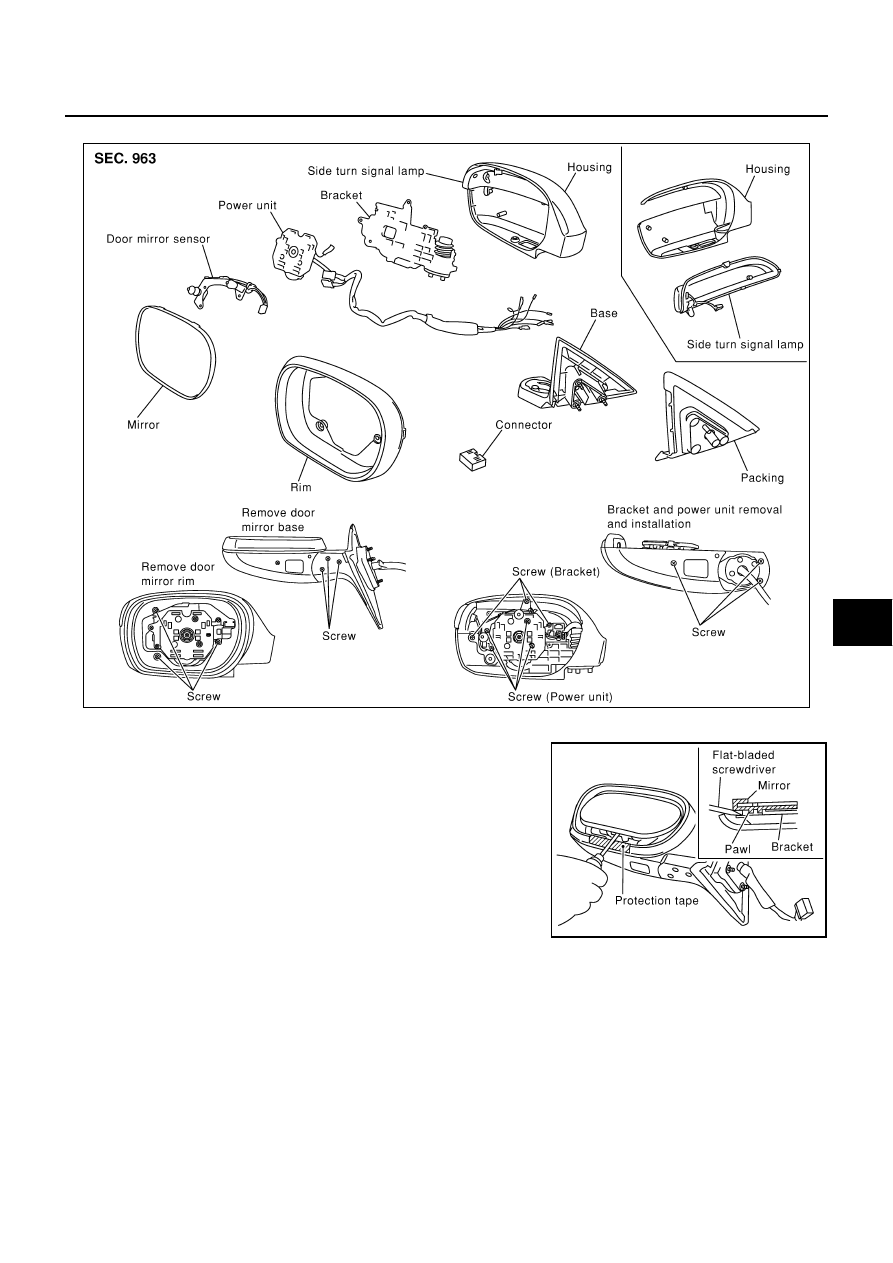

Disassembly and Assembly

NIS0010C

DISASSEMBLY

1.

Place the mirror body with the mirror glass facing upward.

2.

Put a strip of protective tape on the mirror body.

3.

As shown in the figure, insert a small slotted screwdriver
wrapped with tape into the recess between the mirror face (mir-
ror holder) and mirror holder bracket, and push up the lower
pawls to remove the mirror holder lower half.

NOTE:
When pushing up the pawls, do not attempt to use 1 recess only,
be sure to push up with both recesses.
Insert screwdriver into recesses, and push up while rotating
(twist) to make work easier.

4.

Lightly lift up lower side of mirror surface from mirror surface, and detach pawls of upper side as if pulling
out. Remove mirror surface from mirror body.

NOTE:
Be certain not to allow grease on sealing agent in center of mirror body assembly or back side of mirror
surface (mirror holder).

PIIA0047E

PIIA0048E

GW-118

DOOR MIRROR

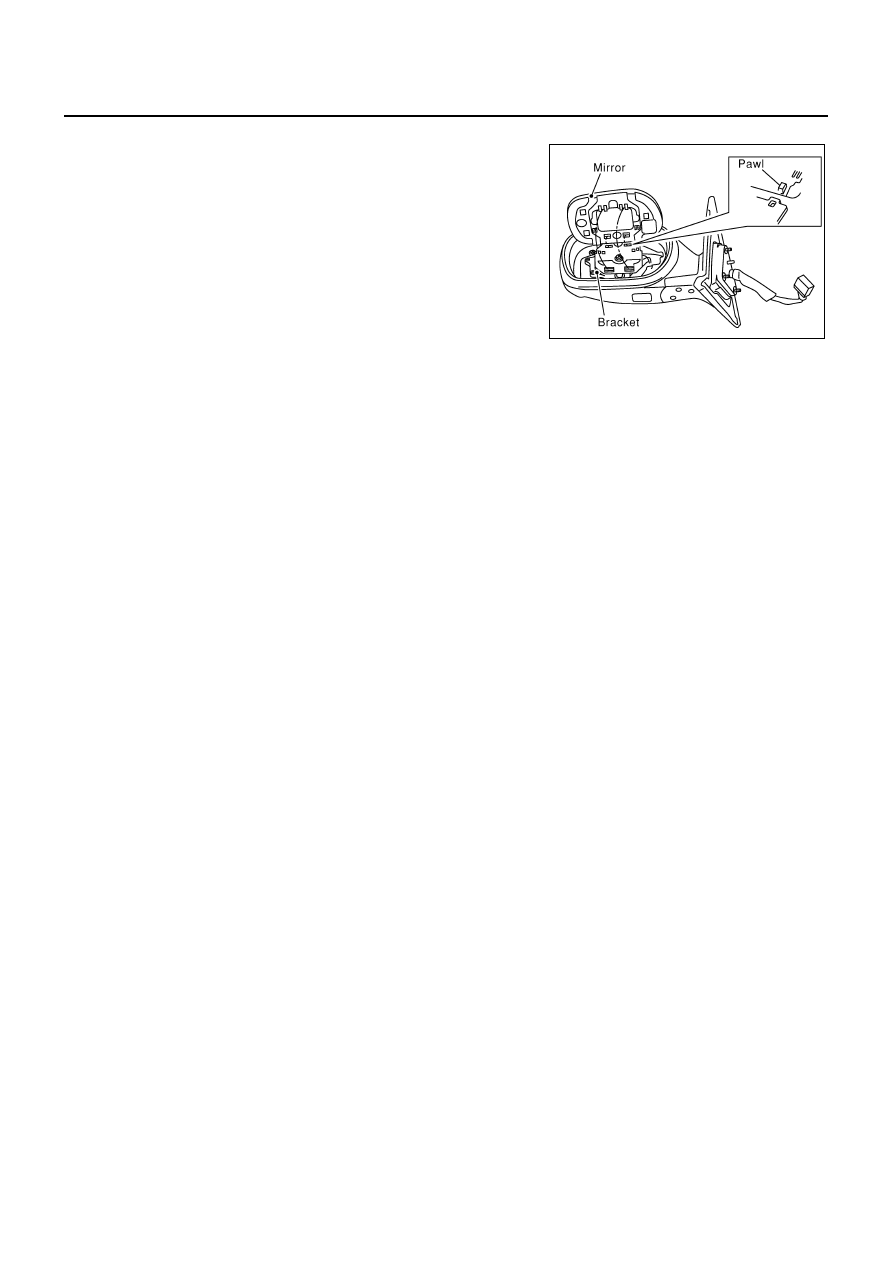

ASSEMBLY

1.

Place the mirror holder bracket and mirror body assembly in a
horizontal position.

2.

Fit the upper tab on the mirror face onto the mirror holder
bracket first, then press the lower side of the mirror face until a
click sound is heard to engage the lower pawls.

NOTE:
After installation, visually check that the lower pawls are
securely engaged from the bottom of the mirror face.

PIIA0049E

IDX-1

A

C

D

E

F

G

H

I

J

K

L

B

IDX

ALPHABETICAL INDEX

M  INDEX

SECTION

IDX

IDX-2

ALPHABETICAL INDEX

A

A/C air flow  ......................................................

ATC-33

A/C component layout  .....................................

ATC-22

A/C compressor clutch removal and installation ...........

ATC-150

A/C compressor precaution  ...............................

ATC-9

A/C compressor special service tool ................

ATC-13

A/C control operation (auto A/C) ......................

ATC-31

A/C diagnostic work flow (auto A/C)  ................

ATC-35

A/C evaporator ...............................................

ATC-159

A/C HFC134a (R134a) system precaution  ........

ATC-5

A/C HFC134a (R134a) system service procedure  .......

ATC-146

A/C HFC134a (R134a) system service tools  ...

ATC-14

A/C HFC134a system service equipment precaution  ...

ATC-9

A/C lubricant (R134a)  ......................................

ATC-23

A/C operational check ......................................

ATC-62

A/C performance chart .....................................

ATC-97

A/C performance test diagnoses  .....................

ATC-95

A/C reray ..........................................................

ATC-92

A/C self-diagnoses (auto A/C)  .........................

ATC-53

A/C system description (auto A/C) ...................

ATC-26

A/C trouble diagnoses (auto A/C)  ....................

ATC-35

A/C, A - Wiring diagram  ...................................

ATC-40

A/T fluid checking  ......................

AT-13

AT-51

MA-19

A/T fluid cooler cleaning  ....................................

AT-14

A/T fluid replacement .............................

AT-12

MA-21

A/T fluid temperature sensor  ...........................

AT-129

A/T IND - Wiring diagram ....................................

DI-49

A/T indicator ........................................................

DI-49

A/T self-diagnoses  .............................................

AT-97

A/T shift lock system ........................................

AT-219

A/T shift lock system - Wiring diagram  ............

AT-220

A/T trouble diagnoses ........................................

AT-42

A/T Wiring diagram AT - CAN ..........................

AT-100

A/T Wiring diagram AT - FTS  ..........................

AT-130

A/T Wiring diagram AT - MAIN  ........................

AT-173

A/T Wiring diagram AT - MMSW  .....................

AT-162

A/T Wiring diagram AT - NONDTC ..................

AT-180

A/T Wiring diagram AT - PNP/SW  ...................

AT-108

A/T Wiring diagram AT - STSIG  ......................

AT-103

A/T Wiring diagram AT - VSS A/T  ...................

AT-115

Accelerator control system  ...............................

ACC-3

Accelerator pedal position (APP) sensor  ........

EC-647

EC-654

EC-668

Accelerator pedal released position learning .....

EC-77

Active damper suspension control unit inspection table

SCS-20

Active damper suspension control unit inspection table
(EPS) ...............................................................

STC-12

Active damper suspension system  ...................

SCS-4

Active damper suspension system - parts location .......

SCS-8

Active damper suspension system - trouble diagnoses

SCS-7

Active damper suspension system description .

SCS-4

Active damper suspension system description (EPS)  ..

STC-6

Active damper suspension system diagram  .....

SCS-6

Active damper suspension system diagram (EPS) .......

STC-7

AF1B1-Wiring diagram  ......

EC-239

EC-248

EC-257

EC-267

EC-678

AF1B2-Wiring diagram  ......

EC-241

EC-250

EC-259

EC-269

EC-680

AF1HB1-Wiring diagram  ..................................

EC-174

AF1HB2-Wiring diagram  ..................................

EC-176

Aiming adjustment  .............................................

LT-30

Air bag  ..............................................................

SRS-3

Air bleeding for brake system  ..............................

BR-9

Air cleaner and air duct  .....................................

EM-17

Air cleaner filter replacement  ............................

MA-15

Air conditioner cut control  ..................................

EC-28

Air flow meter - See Mass air flow sensor .......

EC-195

EC-204

Air fuel ratio sensor 1  .........

EC-236

EC-246

EC-255

EC-264

EC-676

Air fuel ratio sensor 1 heater ............................

EC-173

Air mix door control linkage adjustment  ..........

ATC-75

Air mix. door motor  .........................

ATC-73

ATC-141

Alternator ...........................................................

SC-16

Ambient sensor  .............................

ATC-110

ATC-126

Angular tightening application .............................

EM-4

Antenna .............................................................

AV-57

APPS1 - Wiring diagram  ..................................

EC-649

APPS2 - Wiring diagram  ..................................

EC-656

APPS3 - Wiring diagram  ..................................

EC-670

ASC/BS - Wiring diagram  ................................

EC-606

ASC/SW - Wiring diagram  ...............................

EC-588

ASCBOF - Wiring diagram ...............................

EC-688

ASCD .................................................................

EC-29

ASCD (automatic speed control device)  ...........

ACS-3

ASCIND - Wiring diagram  ................................

EC-696

Ashtray illumination(Front)  ...............................

LT-182

Ashtray illumination(Rear)  ...................

LT-182

DI-227

Audio ....................................................................

AV-5

AUDIO / With Satellite Radio - Wiring diagram ....

AV-9

AUDIO / Without Satellite Radio - Wiring diagram ........

AV-19

Audio and A/C control removal and installation - See
Instrument panel  .................................................

IP-11

AUT/DP - Wiring diagram  ..................................

SE-21

Auto air conditioner - Wiring diagram  .............

ATC-40

Auto anti-dazzling inside mirror  ..........

GW-59

GW-60

Automatic amplifier  ...........................

ATC-50

ATC-64

Automatic drive positioner  .................................

SE-13

AV and NAVI control unit  ..................................

DI-151

AV control unit  ..................................................

DI-151

Axle ...................................................................

MA-26

Axle housing (rear)  ...........................................

RAX-7

B

BACK/L - Wiring diagram .................................

LT-104

Back-up lamp  ...................................................

LT-104

Ball joint (front) ................................................

FSU-13
