FAX-1

FRONT AXLE

D  DRIVELINE/AXLE

CONTENTS

C

E

F

G

H

I

J

K

L

M

SECTION

FAX

A

B

FAX

FRONT AXLE

PREPARATION ........................................................... 2

Special Service Tools (SST) ..................................... 2
Commercial Service Tools ........................................ 2

NOISE, VIBRATION AND HARSHNESS (NVH)
TROUBLESHOOTING ................................................ 3

NVH Troubleshooting Chart  ..................................... 3

FRONT WHEEL HUB AND KNUCKLE ...................... 4

On-Vehicle Inspection and Service  .......................... 4

WHEEL BEARING INSPECTION  ......................... 4

Removal and Installation  .......................................... 4

REMOVAL ............................................................. 4
INSPECTION AFTER REMOVAL  ......................... 5
INSTALLATION ..................................................... 5

SERVICE DATA AND SPECIFICATIONS (SDS)  ........ 7

Wheel Bearing  .......................................................... 7

FAX-2

PREPARATION

PREPARATION

PFP:00002

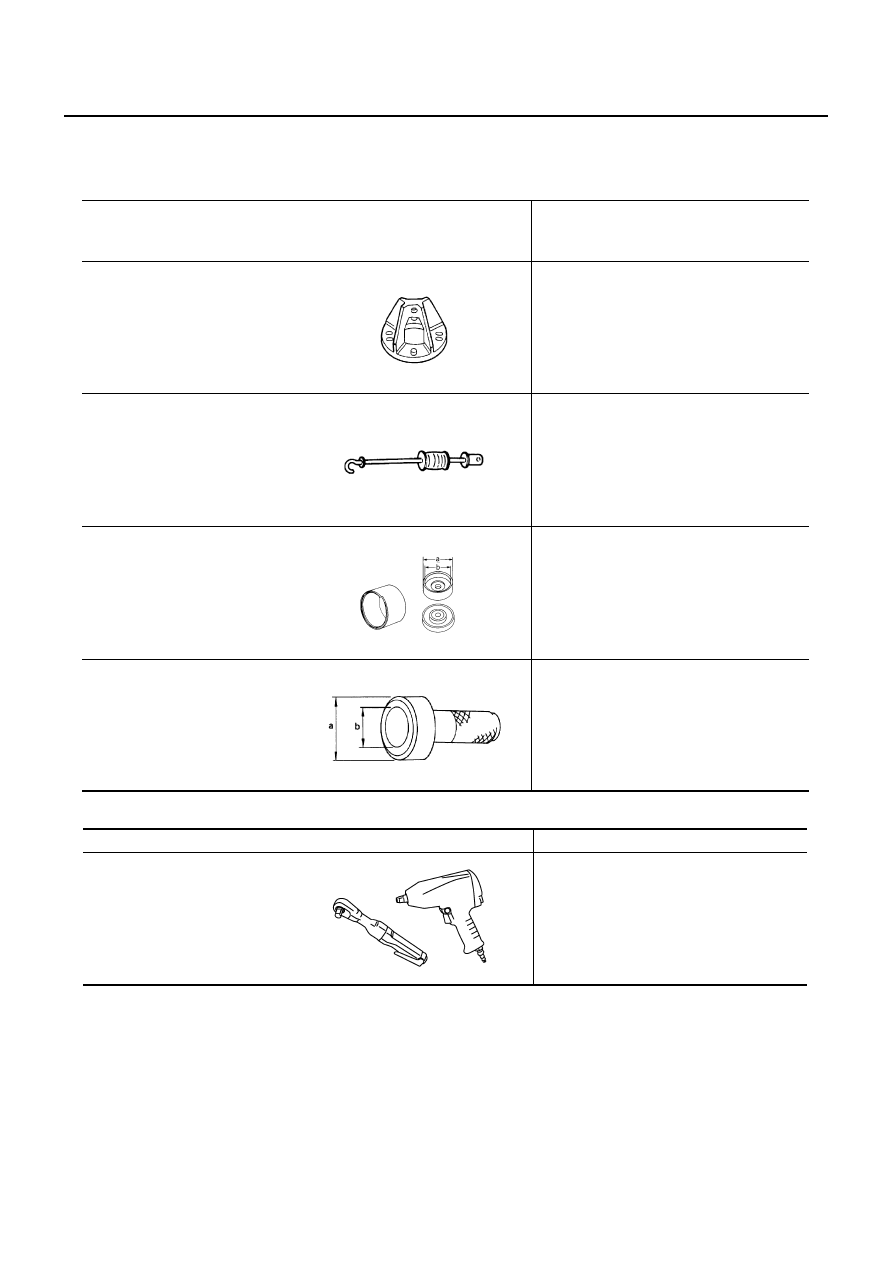

Special Service Tools (SST)

NDS0006D

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tools

NDS0006E

Tool number
(Kent-Moore No.)
Tool name

Description

KV40104100
(

—

)

Attachment

Removing wheel hub and bearing assembly

ST36230000
(J25840-A)
Sliding hammer

Removing wheel hub and bearing assembly

KV40105220
(

—

)

Drift
a:75 mm (2.95 in) dia.
b:62 mm (2.44 in) dia.

Removing sensor rotor

KV38100500
(

—

)

Drift
a:80 mm (3.15 in) dia.
b:60 mm (2.36 in) dia.

Installing hub cap

ZZA0804D

ZZA0803D

ZZA1101D

ZZA0701D

Tool name

Description

Power tool

●

Removing wheel nuts

●

Removing brake caliper assembly

PBIC0190E

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

FAX-3

C

E

F

G

H

I

J

K

L

M

A

B

FAX

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

PFP:00003

NVH Troubleshooting Chart

NDS0006F

Use chart below to help you find the cause of the symptom. If necessary, repair or replace these parts.

×

: Applicable

Reference page

F

AX-

4

—

F

AX-

4

NVH i

n

 W

T

 s

e

c

tio

n

.

NVH i

n

 W

T

 s

e

c

tio

n

.

NVH i

n

 PS s

e

c

tio

n

.

Possible cause and SUSPECTED PARTS

Im

pr

ope

r i

n

st

al

la

ti

on,

 l

o

o

s

ene

ss

Par

ts

 i

n

te

rf

er

enc

e

Wh

eel

 b

ear

in

g d

a

m

a

ge

TIRES

ROAD W

H

EELS

STEERING

Symptom

FRONT AXLE

Noise

×

×

×

×

×

Shake

×

×

×

×

×

Vibration

×

×

×

×

Shimmy

×

×

×

×

×

Judder

×

×

×

×

Poor quality ride or handling

×

×

×

×

×

FAX-4

FRONT WHEEL HUB AND KNUCKLE

FRONT WHEEL HUB AND KNUCKLE

PFP:40202

On-Vehicle Inspection and Service

NDS0006G

Make sure the mounting conditions (looseness, backlash) of each component and component conditions
(wear, damage) are normal.

WHEEL BEARING INSPECTION

●

Move wheel hub and bearing assembly in the axial direction by hand. Make sure there is no looseness of
wheel bearing.

●

Rotate wheel hub and make sure there are no unusual noises or other irregular condition. If there are any
irregular conditions, replace wheel hub and bearing assembly.

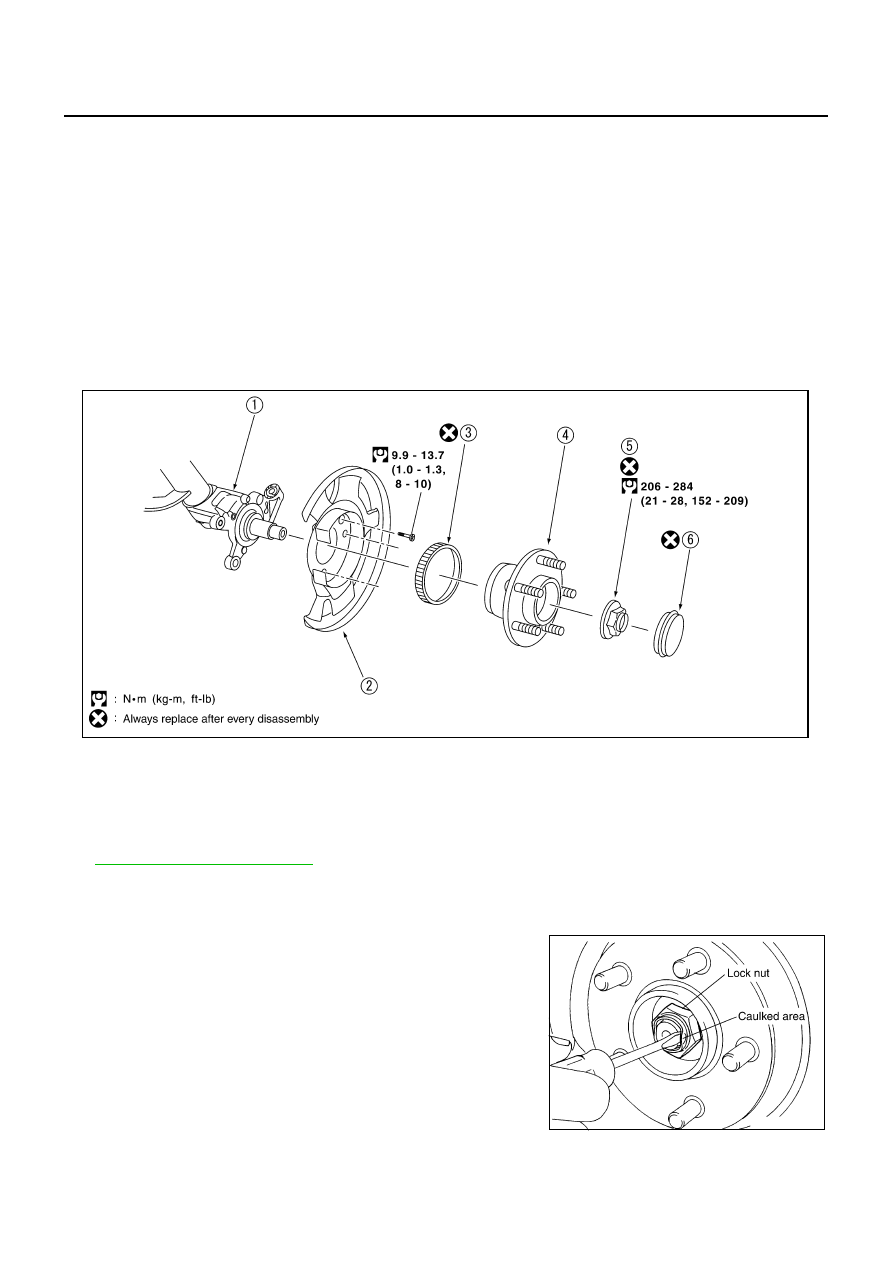

Removal and Installation

NDS0006H

REMOVAL

1.

Remove tire from vehicle with a power tool.

2.

Remove brake caliper with a power tool. Hang it in a place where it will not interfere with work. Refer to

BR-23, "FRONT DISC BRAKE"

 .

NOTE:
Avoid depressing brake pedal while brake caliper is removed.

3.

Use a hub cap pliers (suitable tool) to remove hub cap from wheel hub and bearing assembly.

4.

Pull up caulked area of lock nut with a flat-bladed screwdriver.

Axial end play

: 0.05 mm (0.002 in) or less

1.

Strut assembly

2.

Splash guard

3.

Sensor rotor

4.

Wheel hub and bearing assembly

5.

Lock nut

6.

Hub cap

SDIA1836E

SDIA2276E
