CYLINDER BLOCK

EM-101

C

D

E

F

G

H

I

J

K

L

M

A

EM

Piston To Piston Pin Clearance

(Piston to piston pin clearance) = (Piston pin hole diameter) – (Piston
pin outer diameter)

If out of the standard, replace piston/piston pin assembly.

Refer to piston selection table to replace piston/piston pin
assembly. Refer to

EM-94, "HOW TO SELECT PISTON"

 .

NOTE:

Piston is available together with piston pin as assembly.

Piston pin (piston pin hole) grade is provided only for the parts
installed at the plant. For service parts, no grades can be
selected. (Only “0” grade is available.)

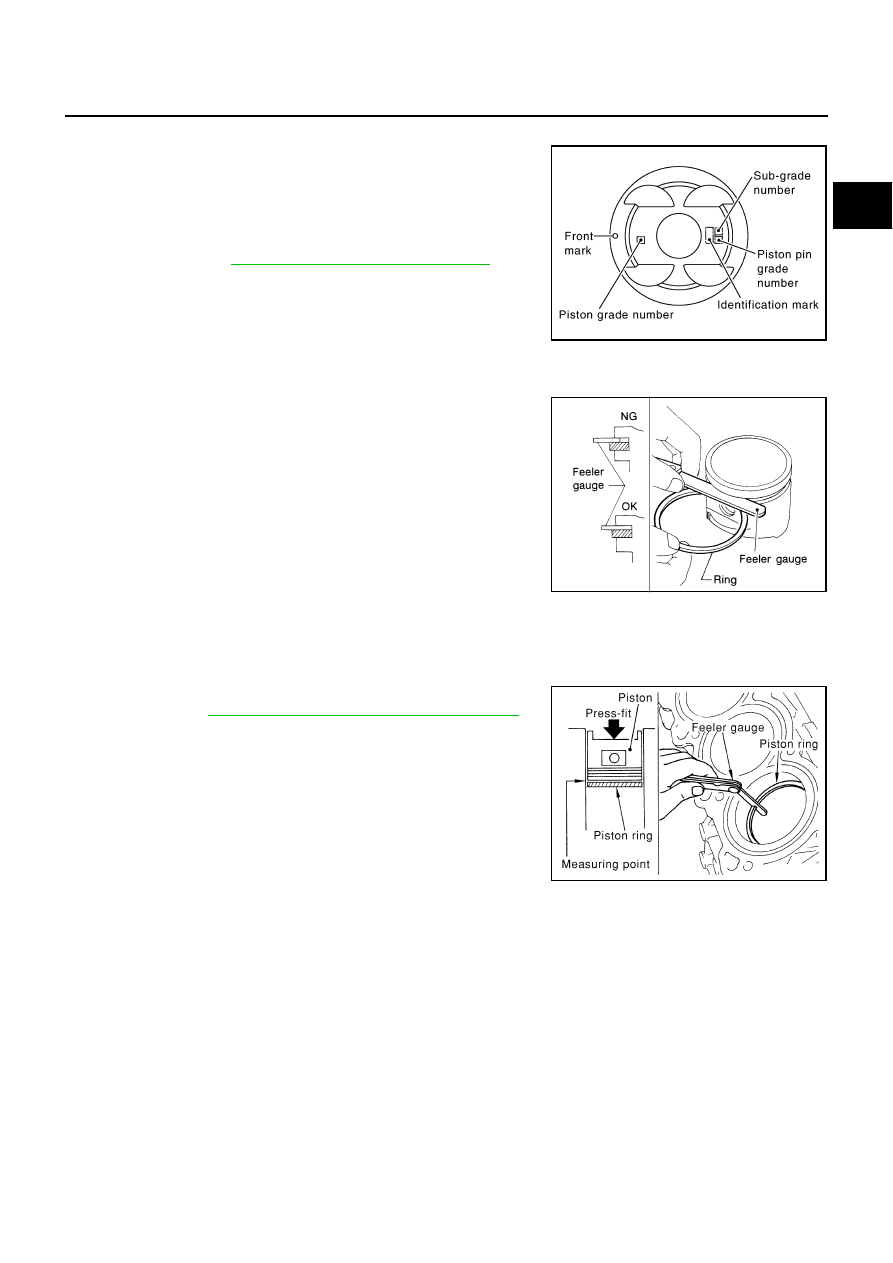

PISTON RING SIDE CLEARANCE

Measure the side clearance of piston ring and piston ring groove
with a feeler gauge.

If the measured value exceeds the limit, replace piston ring, and measure again. If it still exceeds the limit,
replace piston.

PISTON RING END GAP

Check if the inner diameter of cylinder bore is within the specifi-
cation. Refer to

EM-105, "Piston to Cylinder Bore Clearance"

 .

Lubricate with new engine oil to piston and piston ring, and then
insert piston ring until middle of cylinder with piston, and mea-
sure piston ring end gap with a feeler gauge.

If the measured value exceeds the limit, replace piston ring, and measure again. If it still exceeds the limit,
re-bore cylinder and use oversize piston and piston rings.

Standard

: 0.002 - 0.006 mm (0.0001 - 0.0002 in)

PBIC2372E

Standard:

Top ring

: 0.045 - 0.080 mm (0.0018 - 0.0031 in)

2nd ring

: 0.030 - 0.070 mm (0.0012 - 0.0028 in)

Oil ring

: 0.065 - 0.135 mm (0.0026 - 0.0053 in)

Limit:

Top ring

: 0.11 mm (0.0043 in)

2nd ring

: 0.10 mm (0.0039 in)

SEM024AA

Standard:

Top ring

0.22 - 0.32 mm (0.0087 - 0.0126 in)

2nd ring

0.22 - 0.32 mm (0.0087 - 0.0126 in)

Oil ring

0.20 - 0.50 mm (0.0079 - 0.0197 in)

Limit:

Top ring

0.56 mm (0.0220 in)

2nd ring

0.56 mm (0.0220 in)

Oil ring

0.86 mm (0.0339 in)

PBIC0118E

EM-102

CYLINDER BLOCK

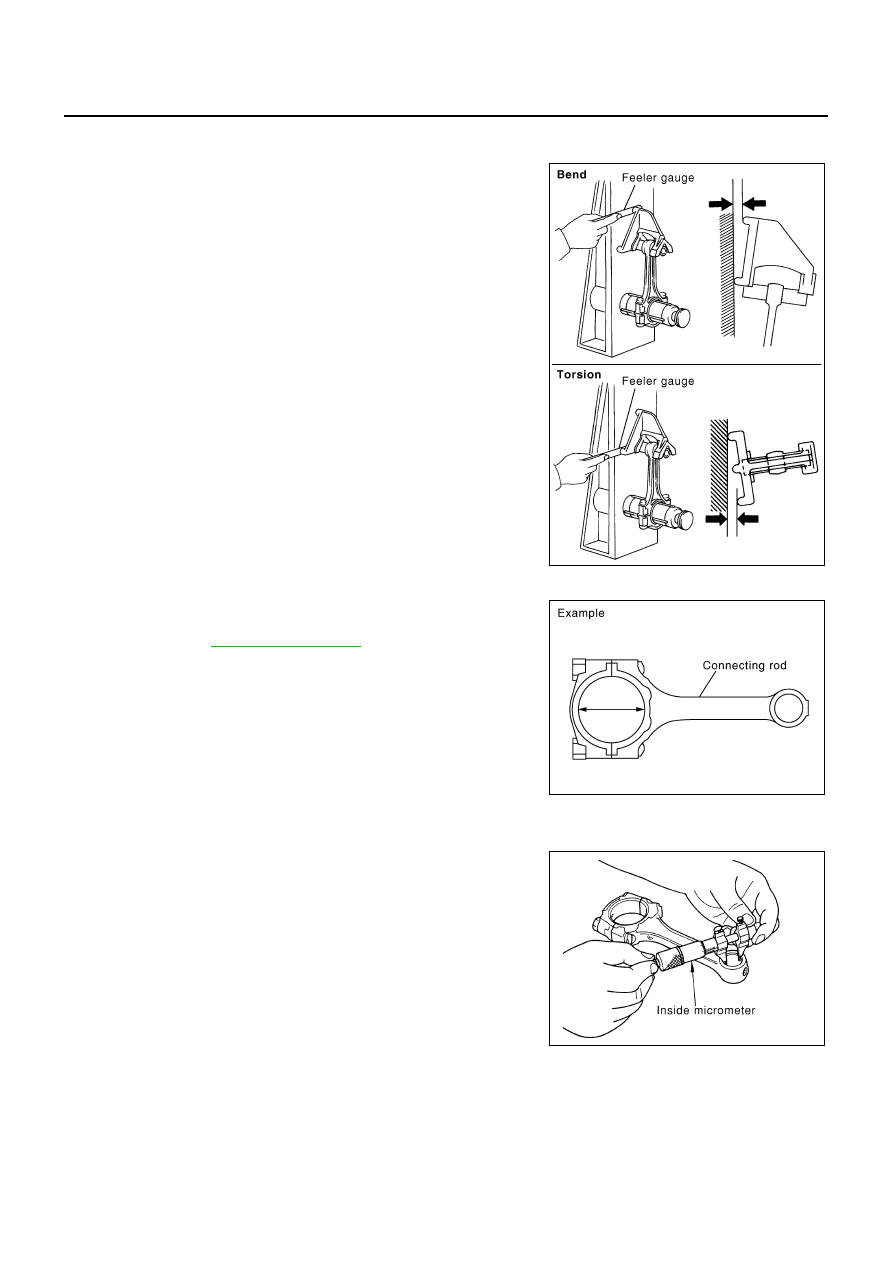

CONNECTING ROD BEND AND TORSION

Check with connecting rod aligner.

If it exceeds the limit, replace connecting rod assembly.

CONNECTING ROD BIG END DIAMETER

Install connecting rod bearing cap without installing connecting
rod bearing, and tighten connecting rod bolts to the specified
torque. Refer to

EM-88, "ASSEMBLY"

  for the tightening proce-

dure.

Measure the inner diameter of connecting rod big end with an
inside micrometer.

If out of the standard, replace connecting rod assembly.

CONNECTING ROD BUSHING OIL CLEARANCE
Connecting Rod Bushing Inner Diameter

Measure the inner diameter of connecting rod bushing with an inside
micrometer.

Bend:

Limit : 0.15 mm (0.0059 in) per 100 mm (3.94 in) length

Torsion:

Limit : 0.30 mm (0.0118 in) per 100 mm (3.94 in) length

PBIC2077E

Standard

: 55.000 - 55.013 mm (2.1654 - 2.1659 in)

PBIC1641E

Standard

: 22.000 - 22.012 mm (0.8661 - 0.8666 in)

PBIC0120E

CYLINDER BLOCK

EM-103

C

D

E

F

G

H

I

J

K

L

M

A

EM

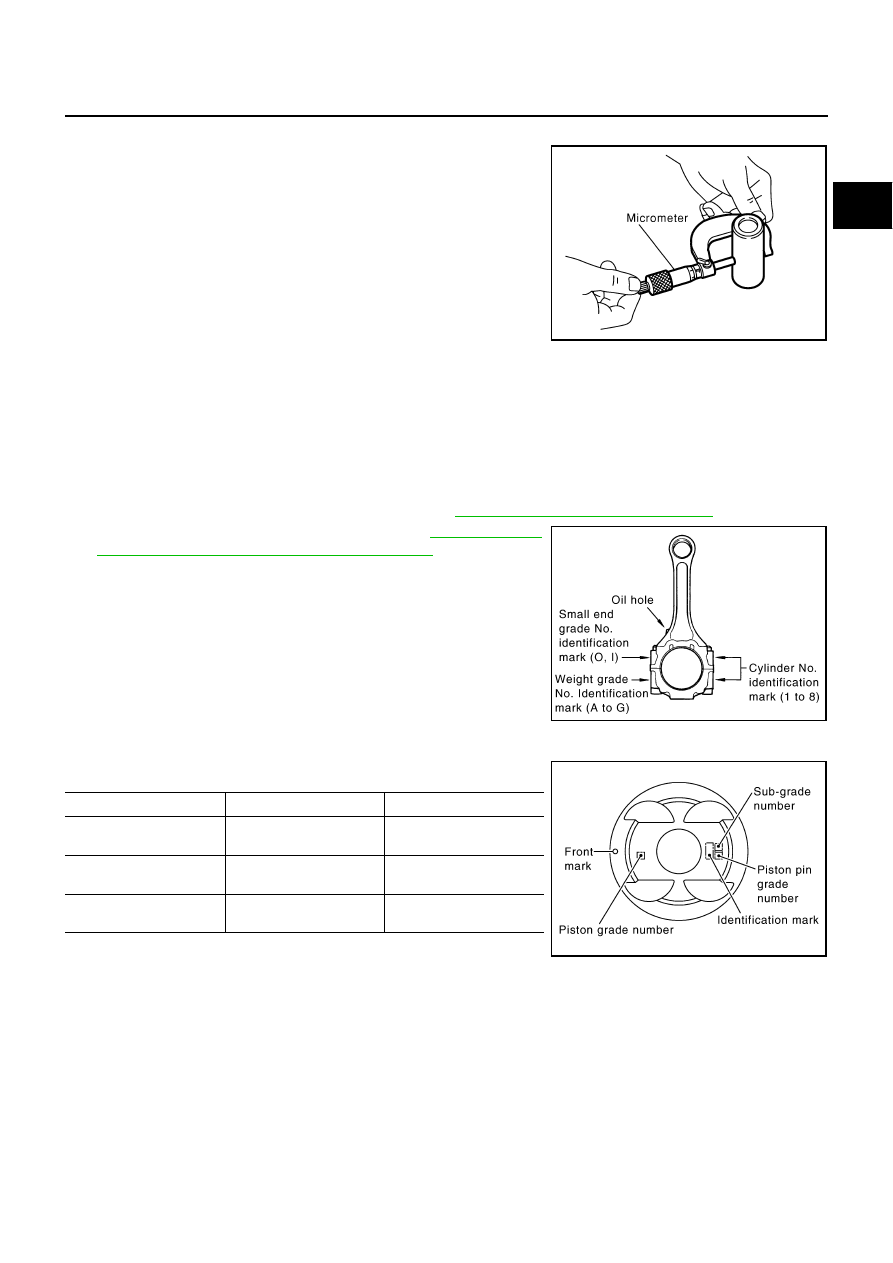

Piston Pin Outer Diameter

Measure the outer diameter of piston pin with a micrometer.

Connecting Rod Bushing Oil Clearance

(Connecting rod bushing oil clearance) = (Connecting rod bushing inner diameter) – (Piston pin outer diame-
ter)

If the calculated value exceeds the limit, replace connecting rod assembly and/or piston and piston pin
assembly.

If replacing piston and piston pin assembly, refer to

EM-94, "HOW TO SELECT PISTON"

 .

If replacing connecting rod assembly, refer to

EM-107, "CON-

NECTING ROD BEARING OIL CLEARANCE"

  to select the

connecting rod bearing.

Factory installed parts grading:

Service parts apply only to grade “0”.

Unit: mm (in)

*: After installing in connecting rod

CYLINDER BLOCK DISTORTION

Using a scraper, remove gasket on the cylinder block surface, and also remove engine oil, scale, carbon,
or other contamination.

CAUTION:

Be careful not to allow gasket flakes to enter the engine oil or engine coolant passages.

Standard

: 21.989 - 22.001 mm (0.8657 - 0.8662 in)

PBIC0117E

Standard

: 0.005 - 0.017 mm (0.0002 - 0.0007 in)

Limit

: 0.030 mm (0.0012 in)

PBIC2164E

               Grade

                    0

                    1

Connecting rod bushing
inner diameter *

         22.000 - 22.006
       (0.8661 - 0.8664)

         22.006 - 22.012
        (0.8664 - 0.8666)

Piston pin hole diameter

        21.993 - 21.999
       (0.8659- 0.8661)

         21.999 - 22.005
        (0.8661 - 0.8663)

Piston pin outer diameter

        21.989 - 21.995
       (0.8657 - 0.8659)

         21.995 - 22. 001
        (0.8659 - 0.8662)

PBIC2372E

EM-104

CYLINDER BLOCK

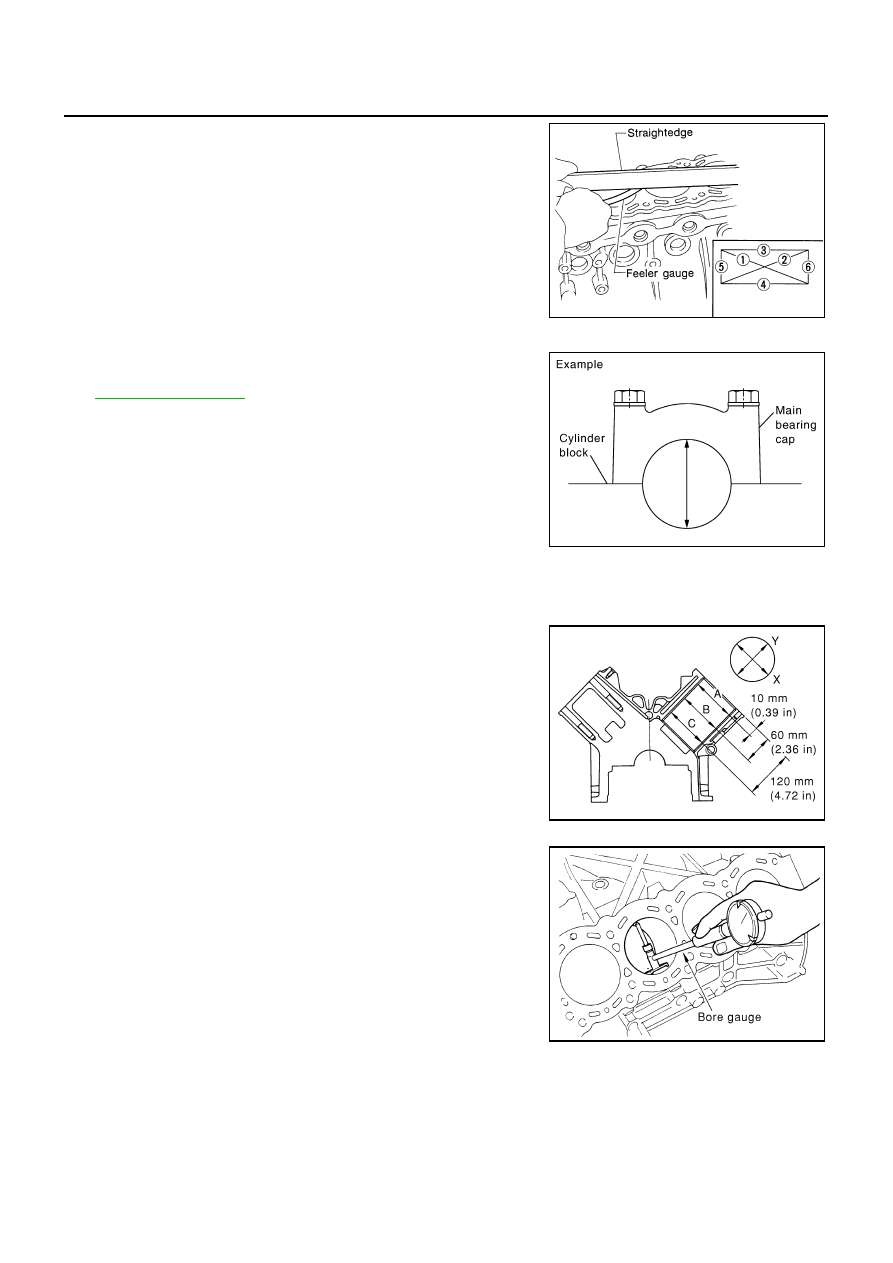

Measure the distortion on the cylinder block upper face at some
different points in six directions with a straightedge and a feeler
gauge.

If it exceeds the limit, replace cylinder block.

MAIN BEARING HOUSING INNER DIAMETER

Install main bearing caps without installing main bearings, and
tighten main bearing cap bolts to the specified torque. Refer to

EM-88, "ASSEMBLY"

  for the tightening procedure.

Using a bore gauge, measure the inner diameter of the main
bearing housing.

If out of the standard, replace cylinder block and main bearing
caps as an assembly.

NOTE:
These components cannot be replaced as a single unit, because
they were processed together.

PISTON TO CYLINDER BORE CLEARANCE
 Cylinder Bore Inner Diameter

Using a bore gauge, measure the cylinder bore diameter for
wear, out-of-round and taper at six different points on each cylin-
der. (“X” and “Y” directions at “A”, “B” and “C”)

NOTE:
When determining cylinder bore grade, measure the cylinder
bore at B position.

If the measured value exceeds the limit, or if there are scratches
and/or seizure on the cylinder inner wall, hone or bore the inner wall.

Oversize piston is provided. When using oversize piston, hone cylinder so that the clearance between pis-
ton and cylinder satisfies the standard.

Limit

: 0.1 mm (0.004 in)

SEM123C

Standard

: 68.944 - 68.968 mm (2.7143 - 2.7153 in)

PBIC1643E

PBIC0123E

Standard inner diameter

: 93.000 - 93.030 mm (3.6614 - 3.6626 in)

Wear limit

: 0.20 mm (0.0079 in)

Out-of-round limit (Difference between“X” and“Y”)

: 0.015 mm (0.0006 in)

Taper limit (Difference between “A” and “C”)

: 0.010 mm (0.0004 in)

Oversize (OS)

: 0.2 mm (0.008 in)

PBIC0124E
