Infiniti Q45. Manual - part 339





COMPASS

DI-223

C

D

E

F

G

H

I

J

L

M

A

B

DI

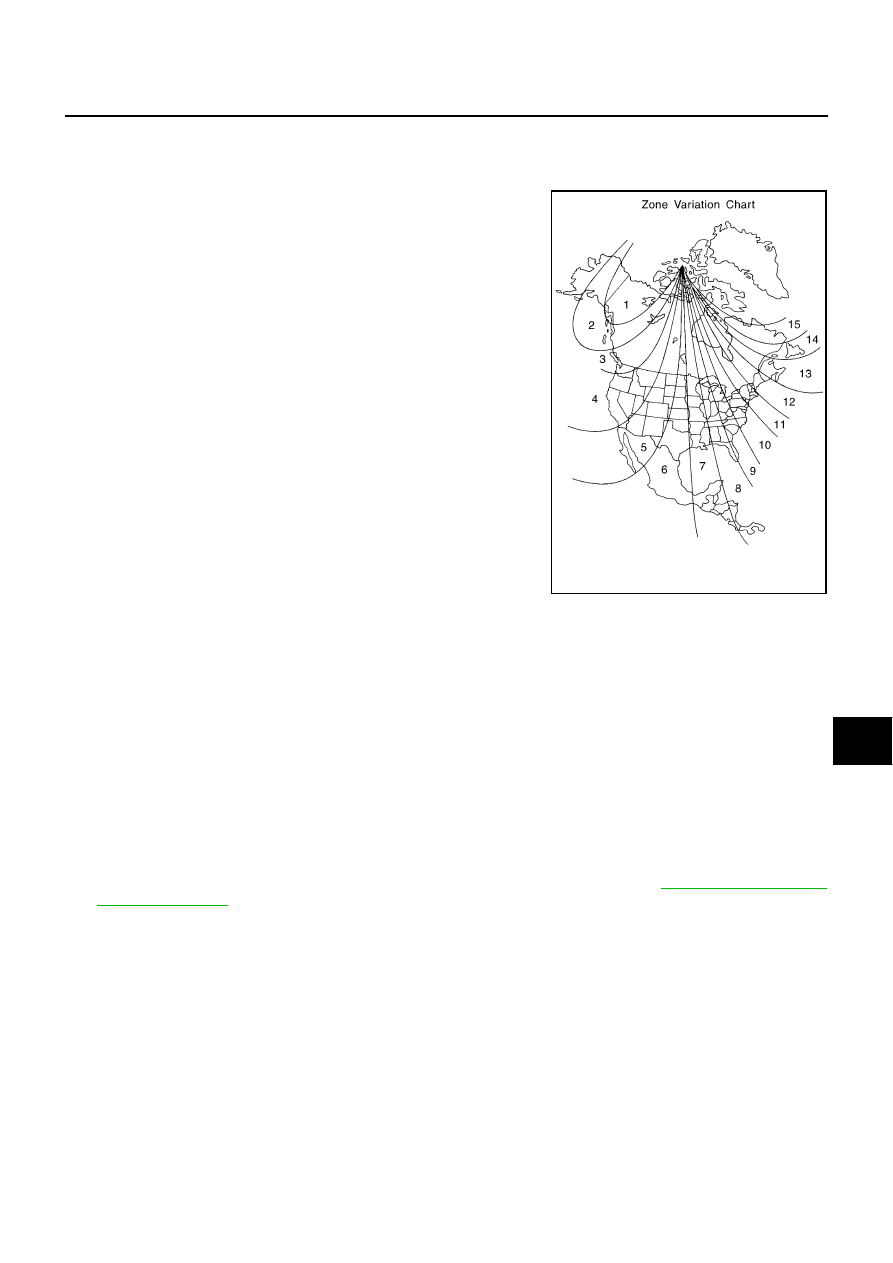

Zone Variation Setting Procedure

NKS002JC

NOTE:
The zone setting is factory preset (“default” setting) to zone 8.
1.

Press and hold the inside mirror switch for 6 – 9 seconds.

2.

The current zone setting appears on the compass display.

3.

Find the current geographical location number in the Zone Varia-
tion Chart.

4.

Select the new zone number. (Press the inside mirror switch
until the new zone number appears on the compass display.)

5.

After select the new zone number, the compass display will
automatically shows a direction within a few seconds.

6.

Preform the following Calibration Procedure for more accurate
indications.

Calibration Procedure

NKS002JD

NOTE:
The compass calibrates itself under normal driving conditions. However, occasional circumstances may cause
the compass to operate inaccurately. Example: Driving from rural (wide open) areas to crowded city areas, or
if an aftermarket (i.e., non original equipment) antenna with a magnetic base is attached to the vehicle. Cali-
brate the mirror compass if the display shows only one direction or a limited number of directions.

NOTE:

If “magnetic hats” are used in the dealership for vehicle identification, remove the hat from the vehicle
before performing the following steps. Do NOT put the hat back on the vehicle after the procedure is com-
pleted.

Drive the vehicle to an open level area; away from large metallic objects, structures, and overhead power
lines.

Turn off “non-essential” electrical accessories (rear window defrost, heater/air conditioning, wipers) and
close the doors.

1.

Verify the correct compass zone setting for the geographical location. Refer to

DI-223, "Zone Variation

Setting Procedure"

 .

2.

Press and hold the inside mirror switch for more than 9 seconds.

3.

“C” is displayed on the compass display, when calibration starts.

4.

Drive slowly [less than 8 km/h (5 mph)] in a circle until the “C / CAL” is replaced with primary headings (N,
NE, E, SE, S, SW, W, or NW).

NOTE:
This will require driving at least 2 complete 360 degree circles; 3 complete circles may be required.

5.

The compass calibration procedure is now complete. The compass should operate normally.

NOTE:
If at any time the compass continually displays the incorrect direction or the reading is erratic or locked,
repeat the calibration procedure.

SEL168Y

DI-224

COMPASS

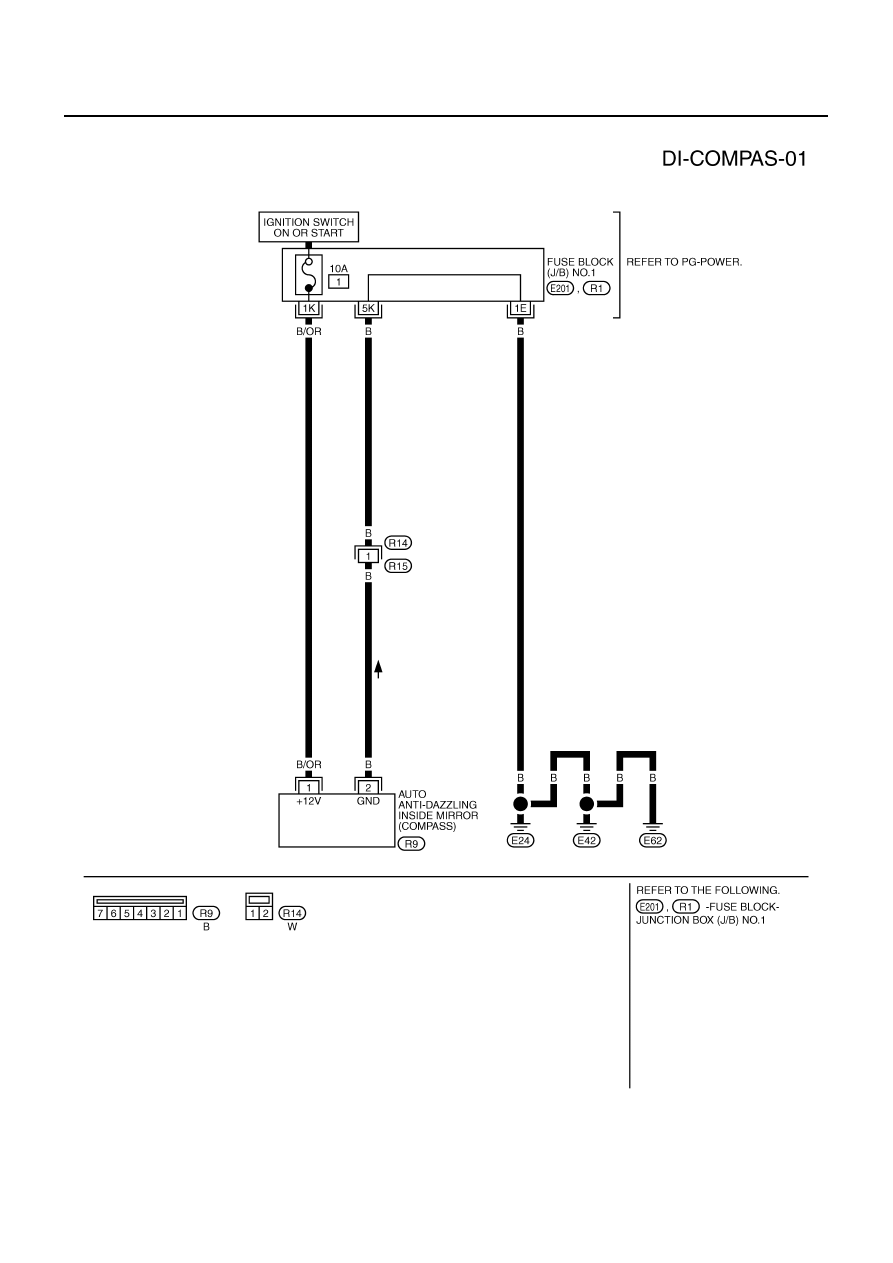

Wiring Diagram — COMPAS —

NKS001BL

TKWM1539E

COMPASS

DI-225

C

D

E

F

G

H

I

J

L

M

A

B

DI

Removal and Installation of Compass

NKS001BM

Refer to

GW-60, "AUTO ANTI–DAZZLING INSIDE MIRROR"

 .

DI-226

CLOCK

CLOCK

PFP:25820

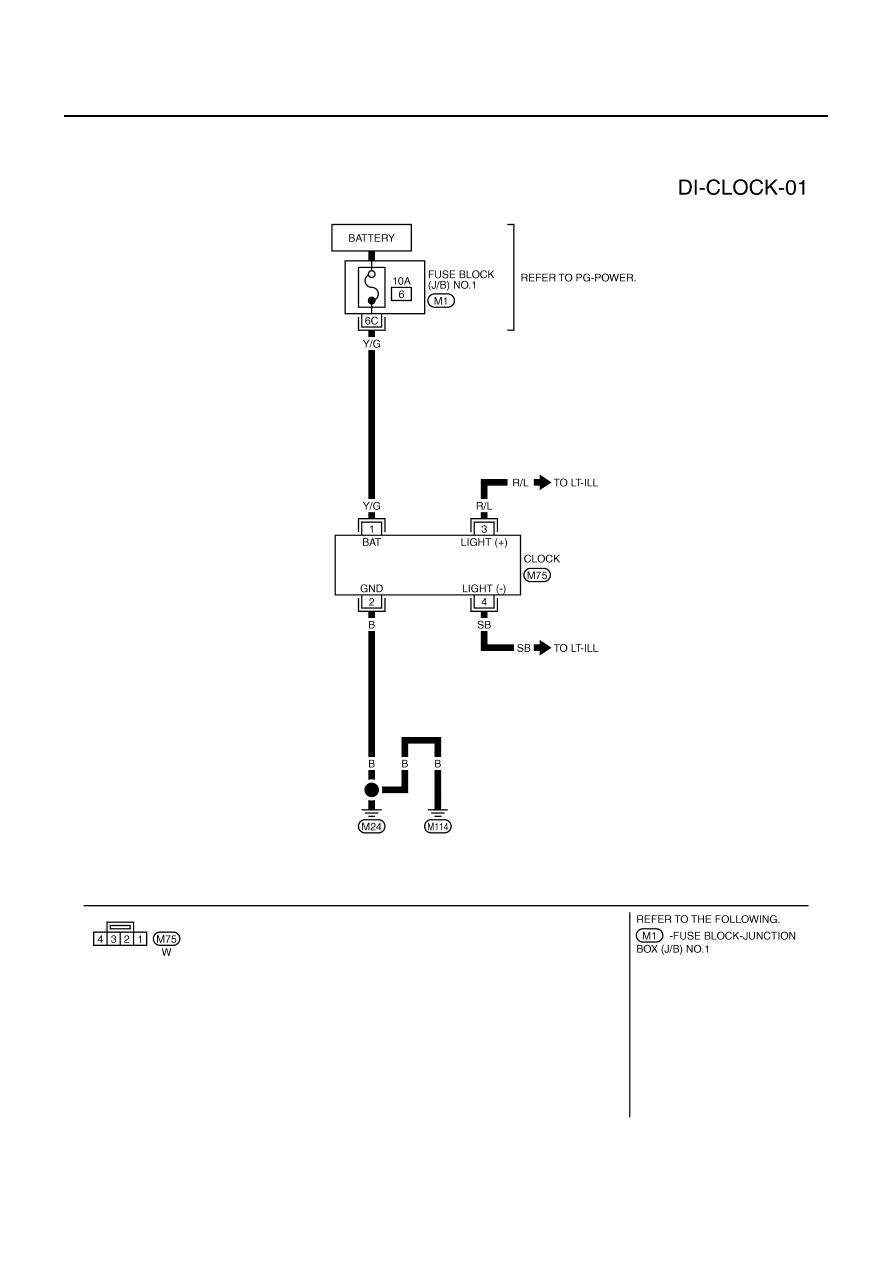

Wiring Diagram — CLOCK —

NKS001EZ

TKWM1580E
