VOICE ACTIVATED CONTROL SYSTEM

DI-211

C

D

E

F

G

H

I

J

L

M

A

B

DI

*: With NAVI

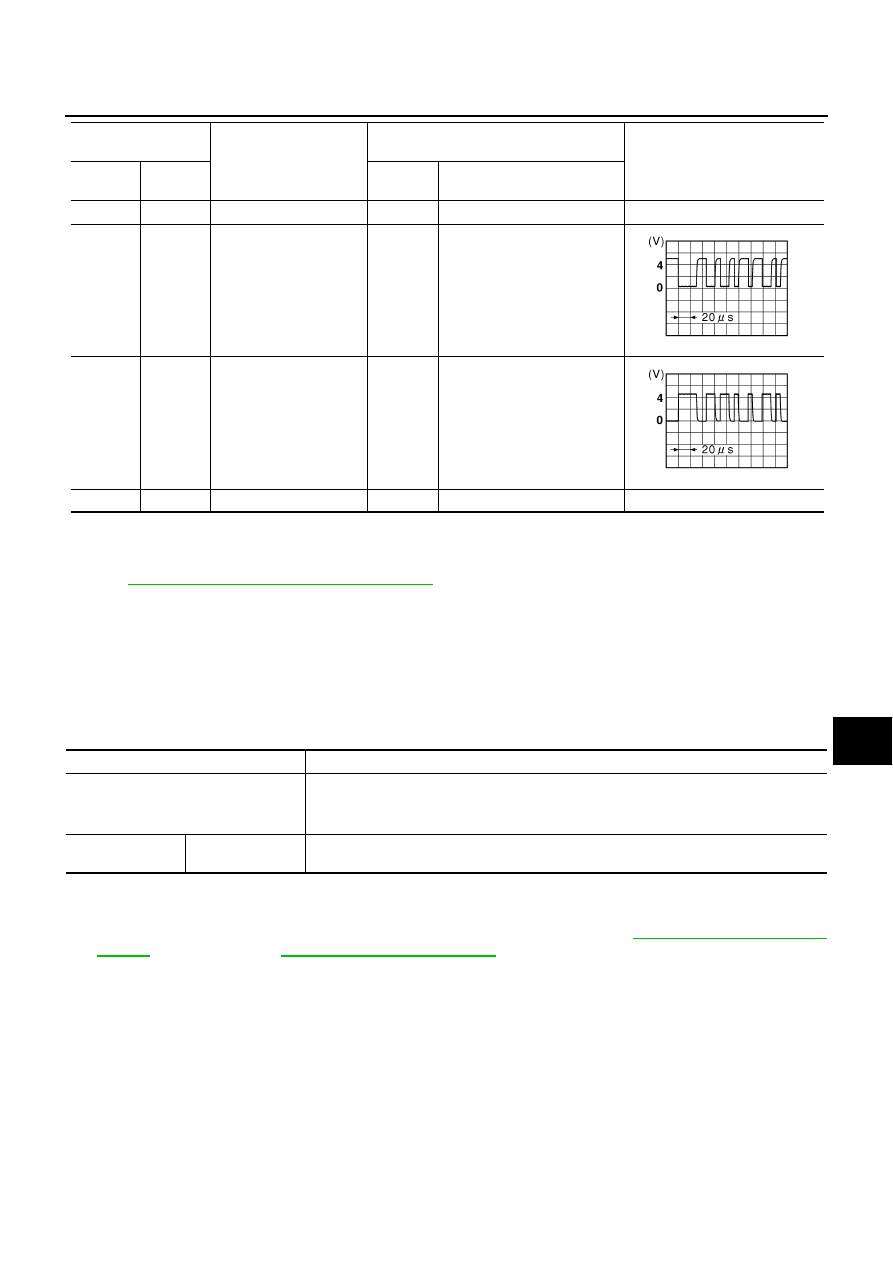

CONSULT-II Function (MULTI AV)

NKS001EP

Refer to

AV-115, "CONSULT-II Function (MULTI AV)"

 .

On Board Self-Diagnosis Function (Without CONSULT-II)

NKS001EQ

DESCRIPTION

●

Diagnosis function consists of the self-diagnosis mode, and the “CONFIRMATION/ADJUSTMENT” mode.

●

Self-diagnosis mode checks for connection between AV and NAVI control unit (with NAVI) or AV control
unit (without NAVI) and voice activated control module. And analyzes each unit, then displays the results.

●

“CONFIRMATION/ADJUSTMENT” function analyzes each microphone.

DIAGNOSIS ITEM

SELF-DIAGNOSIS MODE
Operation Procedure

●

To start the self-diagnosis mode and to check the diagnosis result, refer to

DI-126, "SELF-DIAGNOSIS

MODE"

  (without NAVI) or

AV-102, "Self-Diagnosis Mode"

  (with NAVI).

37

—

Shield

—

—

—

38 (PU)*

Ground

Communication
signal (–)

ON

—

39 (LG)*

Ground

Communication
signal (+)

ON

—

40*

—

Shield

—

—

—

Terminal No.

(Wire color)

Item

Condition

Reference value (V)

(+)

(–)

Ignition

switch

Operation

SKIB7379E

SKIB7378E

Mode

Description

SELF-DIAGNOSIS

●

Checks for the connections between AV and NAVI control unit or AV control unit and
voice activated control module.

●

Performs the unit diagnosis of voice activated control module.

CONFIRMATION/
ADJUSTMENT

Voice Mic. Test

●

Checks microphone.

DI-212

VOICE ACTIVATED CONTROL SYSTEM

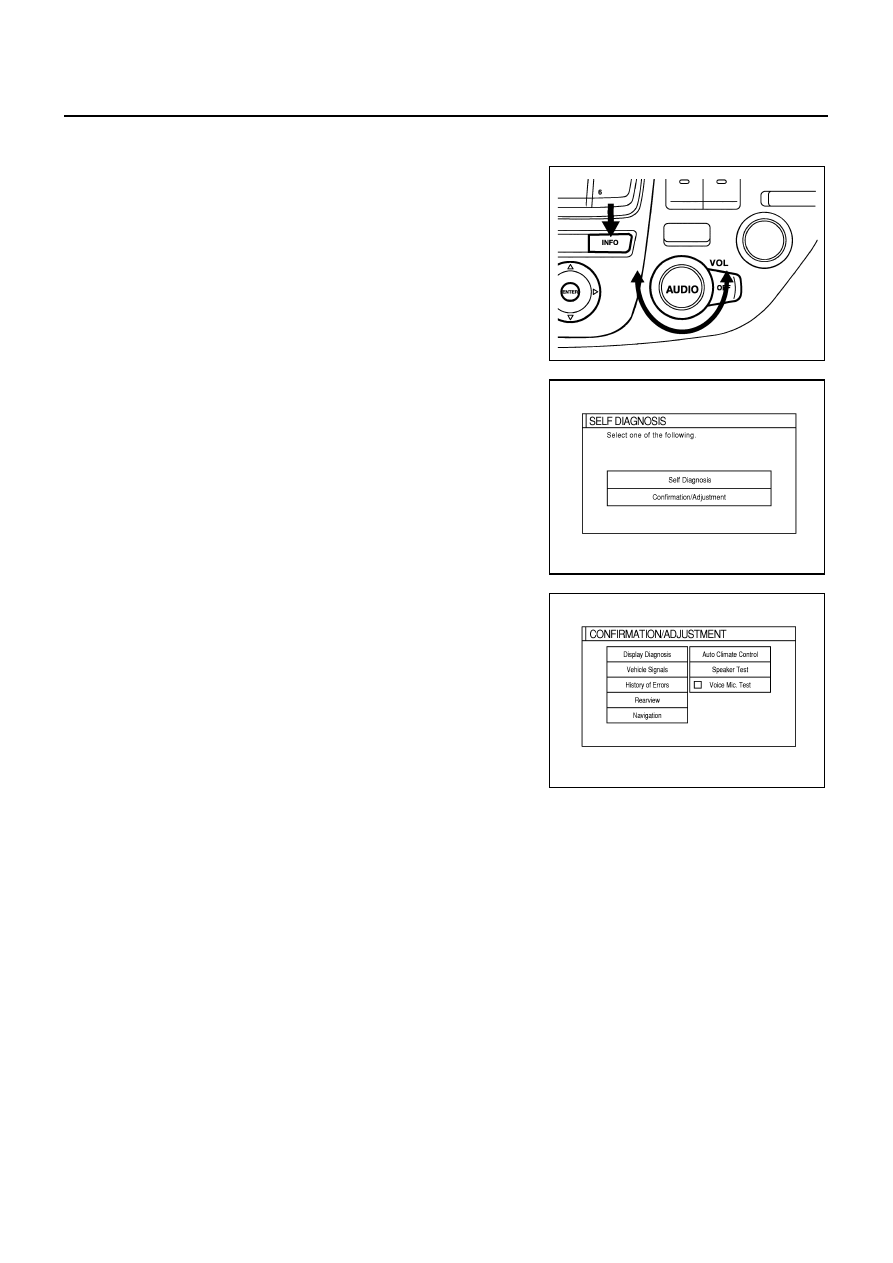

CONFIRMATION/ADJUSTMENT MODE
Operation Procedure

1.

Start the engine.

2.

Turn the audio system off.

3.

While pressing the “INFO” switch, turn the volume control dial
clockwise or counterclockwise for 30 clicks or more.

4.

The initial trouble diagnosis screen will be shown, and items
“Self Diagnosis” and “Confirmation/Adjustment” will become
selective.

5.

When “Confirmation/Adjustment” is selected on the trouble diag-
nosis screen, the operation will enter the Confirmation/Adjust-
ment mode. In this mode, check and adjustment of each item
will become possible.

6.

When “Voice Mic. Test” is selected with joystick, icon indicator
turns on (green) and voice input into microphone is sent out
through speakers.
NOTE:
Voice from speakers may sound echoic.

Trouble Diagnosis

NKS001ER

THIS CONDITION IS NOT MALFUNCTION
Example of Basic Operational Errors

The system should respond correctly to all voice commands. Follow the solutions given in this guide for the
appropriate error when any of the following symptom is encountered.
Where the solutions are listed by number, try each solution in turn, starting with number one, until the symp-
tom is resolved.

PKIB0256E

SKIA0381E

SKIA0361E

VOICE ACTIVATED CONTROL SYSTEM

DI-213

C

D

E

F

G

H

I

J

L

M

A

B

DI

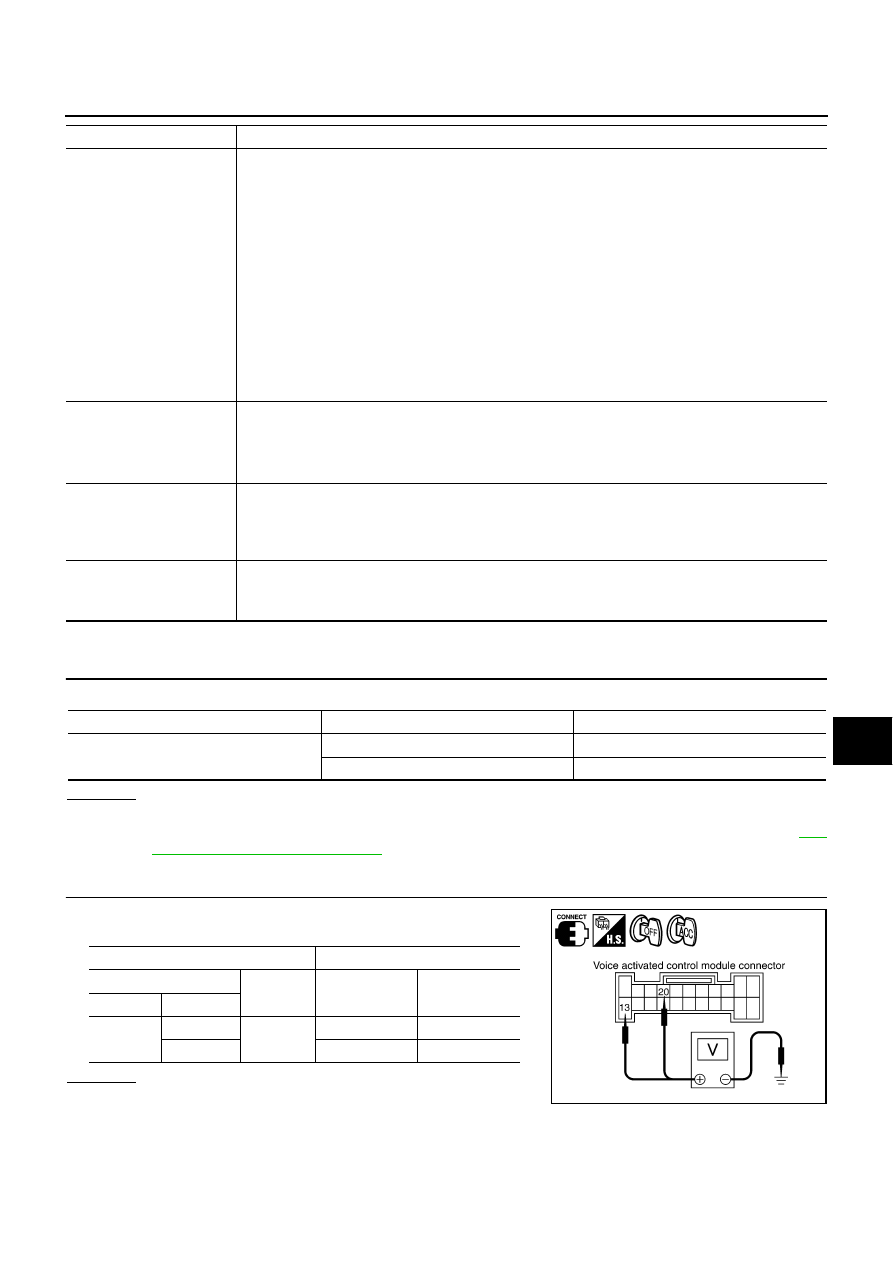

Power Supply and Ground Circuit Inspection

NKS001ES

1.

CHECK FUSES

Check that any of the following fuses for voice activated control module is blown.

OK or NG

OK

>> GO TO 2.

NG

>> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Refer to

PG-

2, "POWER SUPPLY ROUTING"

 .

2.

CHECK POWER SUPPLY CIRCUIT

Check voltage between voice activated control module harness con-
nector B69 terminals 13, 20 and ground.

OK or NG

OK

>> GO TO 3.

NG

>> Check harness between voice activated control module

and fuse.

Symptom

Remedy

Displays “COMMAND NOT
RECOGNIZED” or the sys-
tem does not interpret the
command correctly.

1. Ensure that the command is valid, see Command list (Refer to Owner’s Manual).

2. Ensure that the command is given after the tone while “ LISTENING” is displayed.

3. Speak clearly without pausing between words and at a level appropriate to the ambient noise level.

4. Ensure that the ambient noise level is not excessive, for example, windows open or defrost on.

NOTE:
If it is too noisy to use the microphone, it is likely that voice commands will not be recognized.

5. If optional words of the command have been omitted, then the command should be tried with these in

place.

6. If a number of commands have been given in rapid succession resulting in the message “COMMAND

NOT RECOGNIZED” to be displayed, then allow the system to recover (approximately 1 minute)
before trying the command again.

7. If the system consistently does not recognize commands, the voice training procedure should be per-

formed to improve the recognition response for the speaker.

Displays “NO SPEECH
DETECTED”.

1. Ensure that the command is given after the tone while “LISTENING” is displayed.

2. Ensure that the command is given within a maximum of five seconds from the end of the tone.

NOTE:
Be sure you know what to say before pressing the Voice button.

Displays “NAMETAG NOT
UNIQUE”.

1. This response will be received when storing a nametag if the nametag being given has already been

stored. This can be confirmed by giving the Radio Directory command.

2. If this response is received and the nametag has not been used already, then it is too similar to an

existing nametag or voice grammar and an alternative should be used.

The system consistently
selects the wrong nametag.

1. Ensure that the nametag requested matches what was originally stored. This can be confirmed by

giving the Radio Directory command.

2. Delete one of the nametags being confused and replace it with a different nametag.

Unit

Power source

Fuse No.

Voice activated control module

Battery

52

Ignition switch ACC or ON

21

Terminals

Ignition switch position

(+)

(–)

OFF

ACC

Connector

Terminal

B69

13

Ground

Battery voltage

Battery voltage

20

0 V

Battery voltage

PKIA9735E

DI-214

VOICE ACTIVATED CONTROL SYSTEM

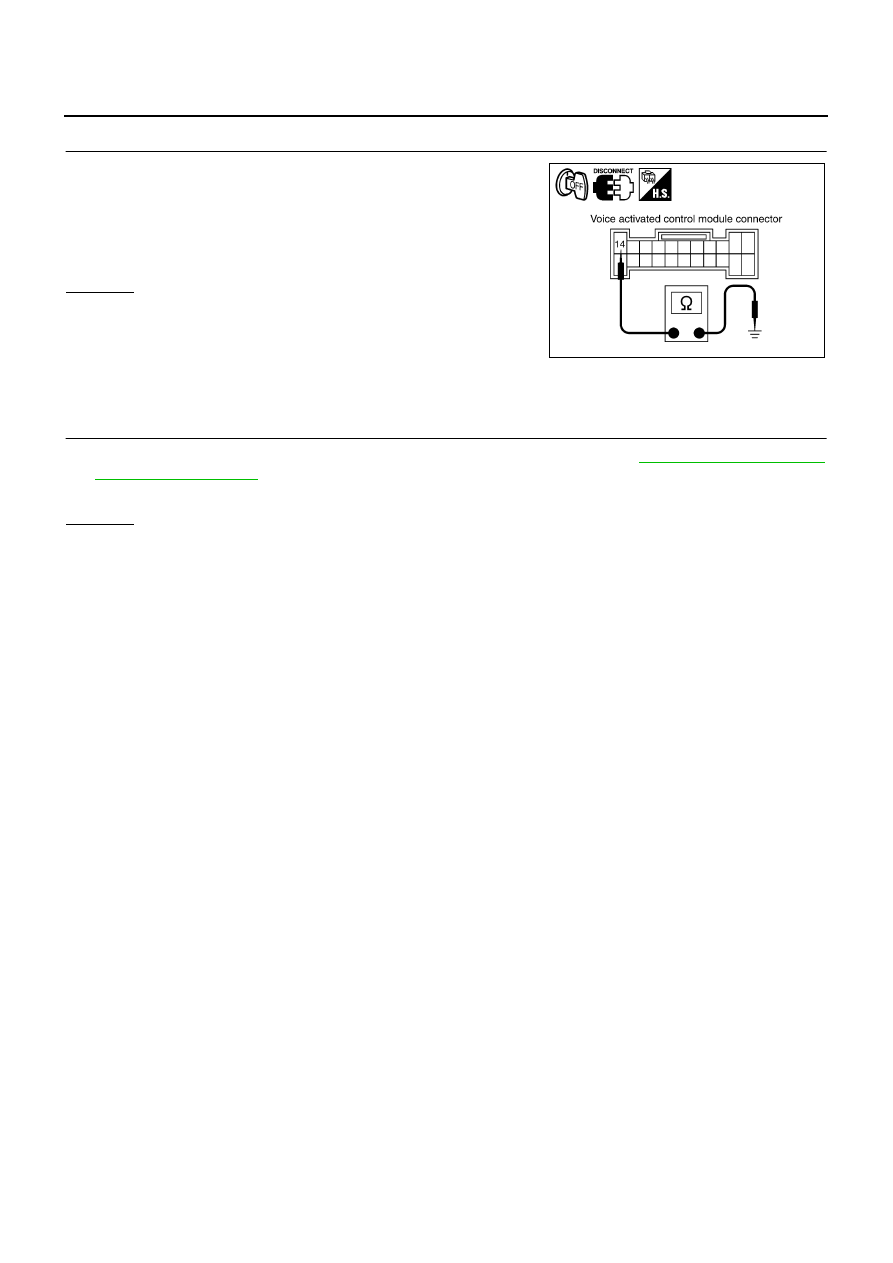

3.

CHECK GROUND CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect voice activated control module connector.

3.

Check continuity between voice activated control module har-
ness connector B69 terminal 14 and ground.

OK or NG

OK

>> INSPECTION END

NG

>> Check ground harness.

Voice Command Not Identified (With Voice Activated Control System in Opera-
tion)

NKS001ET

1.

CHECK MICROPHONE OPERATION

1.

Select “Voice Mic. Test” of “CONFIRMATION/ADJUSTMENT” mode. Refer to

DI-212, "CONFIRMATION/

ADJUSTMENT MODE"

 .

2.

Speak to microphone, and check if the sound is heard from (right) instrument speaker.

OK or NG

OK

>> Replace voice activated control module.

NG

>> GO TO 2.

14 – Ground

: Continuity should exist.
