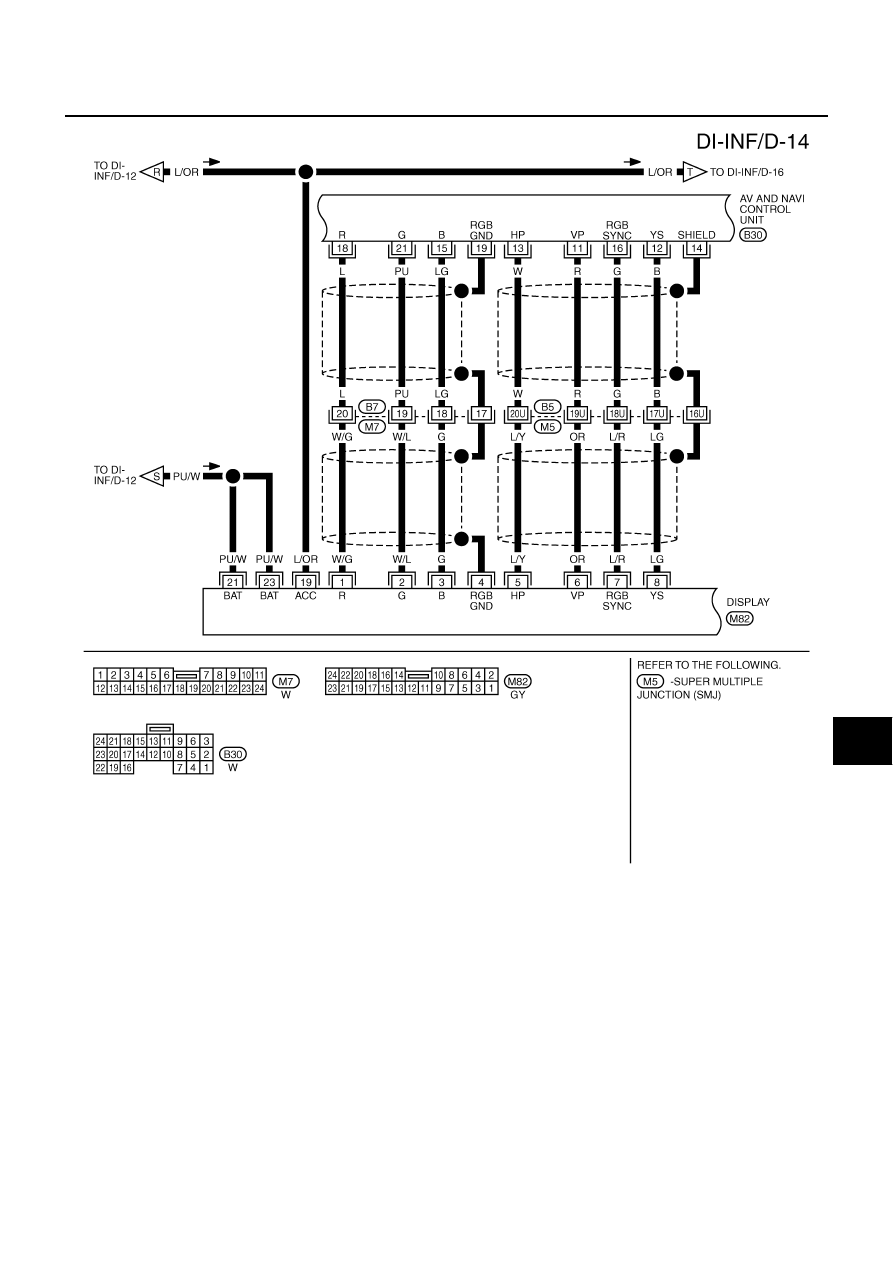

VEHICLE INFORMATION AND INTEGRATED SWITCH SYSTEM /WITH NAVIGA-

TION SYSTEM

DI-159

C

D

E

F

G

H

I

J

L

M

A

B

DI

TKWM3749E

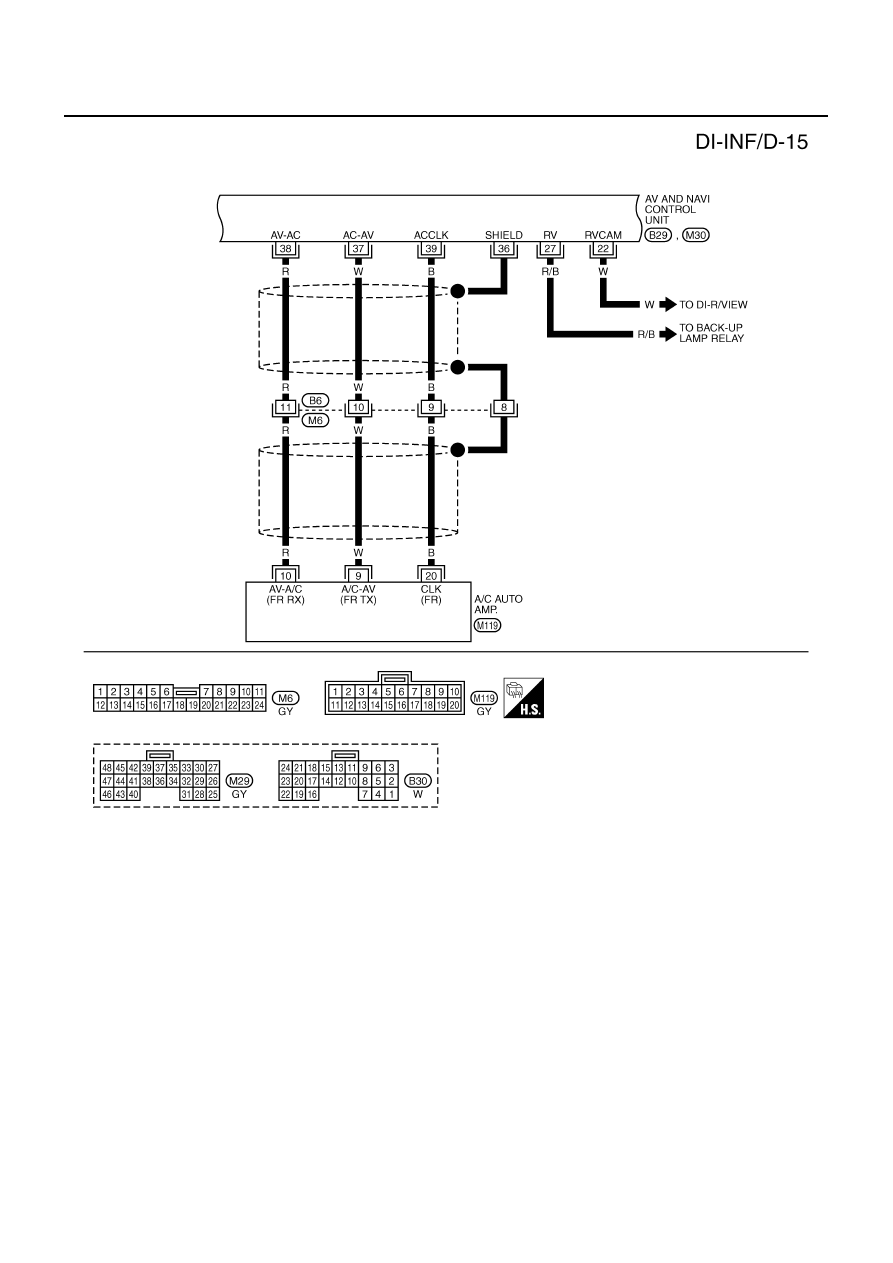

DI-160

VEHICLE INFORMATION AND INTEGRATED SWITCH SYSTEM /WITH NAVIGA-

TION SYSTEM

TKWM1572E

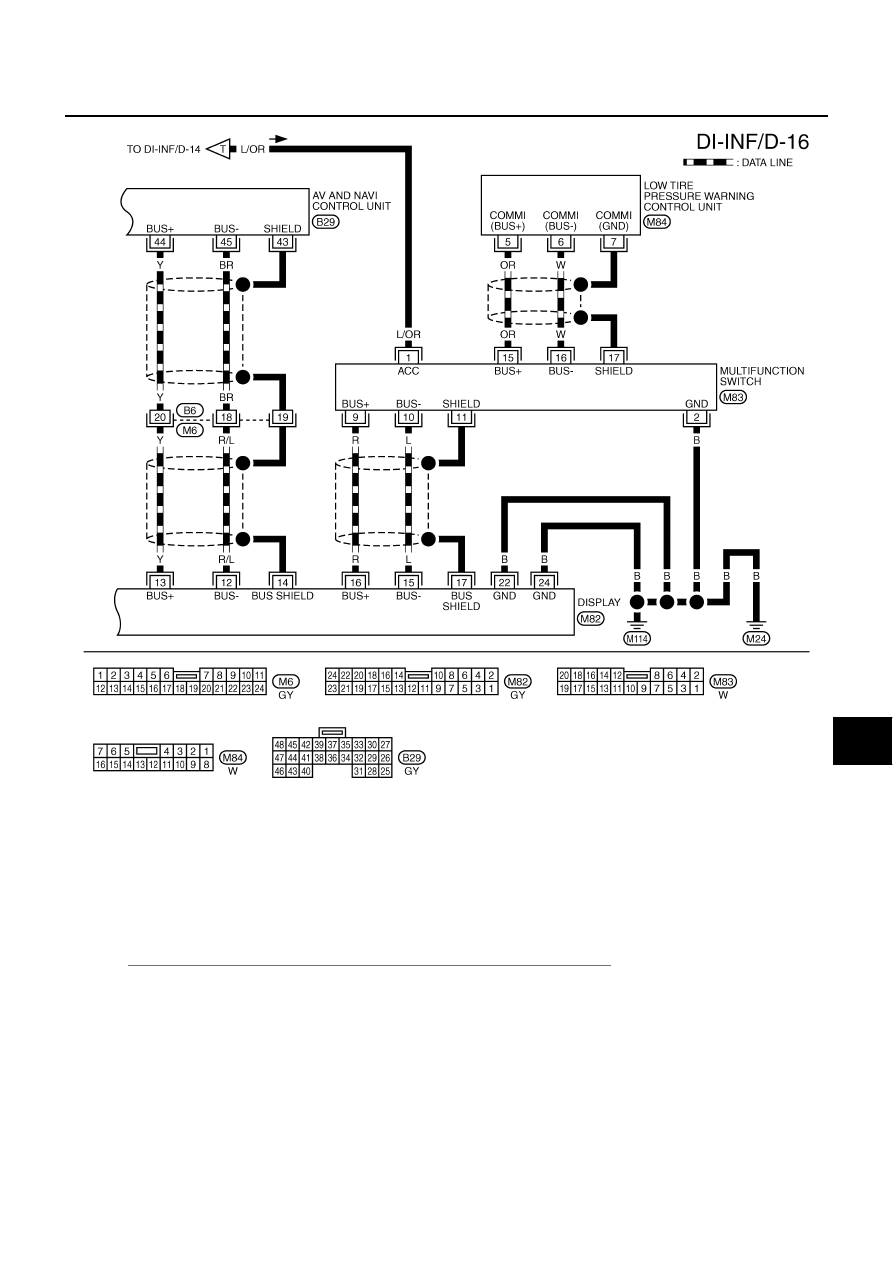

VEHICLE INFORMATION AND INTEGRATED SWITCH SYSTEM /WITH NAVIGA-

TION SYSTEM

DI-161

C

D

E

F

G

H

I

J

L

M

A

B

DI

Terminals and Reference Value for AV and NAVI Control Unit

NKS001DL

Refer to

AV-97, "Terminals and Reference Value for AV and NAVI Control Unit"

  in AV section.

TKWM1573E

DI-162

VEHICLE INFORMATION AND INTEGRATED SWITCH SYSTEM /WITH NAVIGA-

TION SYSTEM

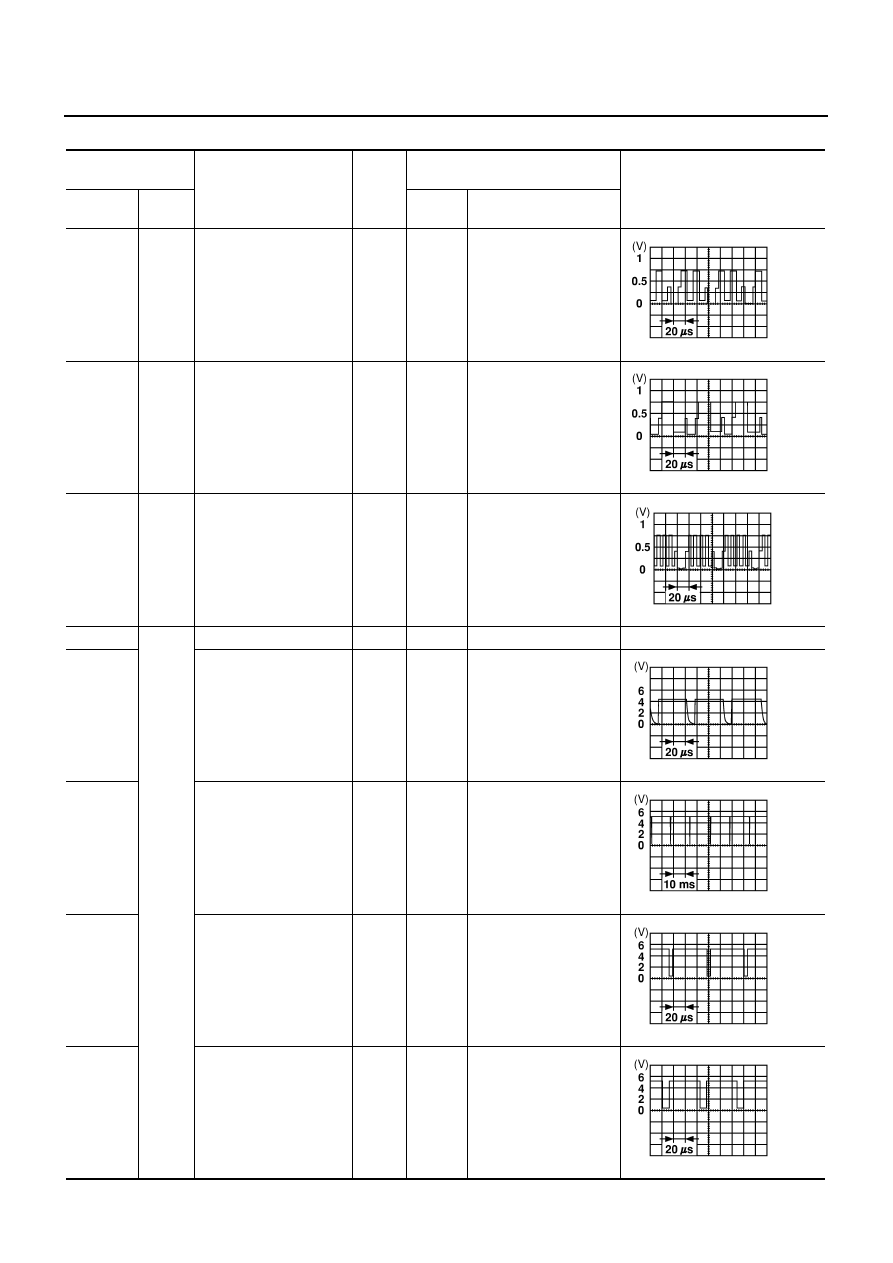

Terminals and Reference Value for Display

NKS001DM

Terminal No.

(Wire color)

Item

Signal

input/

output

Condition

Reference value

(Approx.)

(+)

(–)

Ignition

switch

Operation

1 (W/G)

4

RGB signal (R: Red)

Input

ON

Select “Display Color
Spectrum Bar” of “Dis-
play Diagnosis” in Confir-
mation/Adjustment mode
function.

2 (W/L)

4

RGB signal (G: Green)

Input

ON

Select “Display Color
Spectrum Bar” of “Dis-
play Diagnosis” in Confir-
mation/Adjustment mode
function.

3 (G)

4

RGB signal (B: Blue)

Input

ON

Select “Display Color
Spectrum Bar” of “Dis-
play Diagnosis” in Confir-
mation/Adjustment mode
function.

4

Ground

RGB ground

—

ON

—

0 V

5 (L/Y)

Horizontal synchronizing
signal

Output

ON

Select “Rearview” in
“Confirmation/Adjust-
ment” mode and display
the rear view image on
the screen.

6 (OR)

Vertical synchronizing
signal

Output

ON

Select “Rearview” in
“Confirmation/Adjust-
ment” mode and display
the rear view image on
the screen.

7 (L/R)

RGB synchronizing signal

Input

ON

Press the “MAP” switch.

8 (LG)

RGB area signal

Input

ON

Press the “INFO” switch.

SKIA0165E

SKIA0166E

SKIA0167E

SKIA0163E

SKIA0161E

SKIA0164E

SKIA0162E
